F-73G LAQUA Colour Touchscreen Benchtop Water Quality Meter

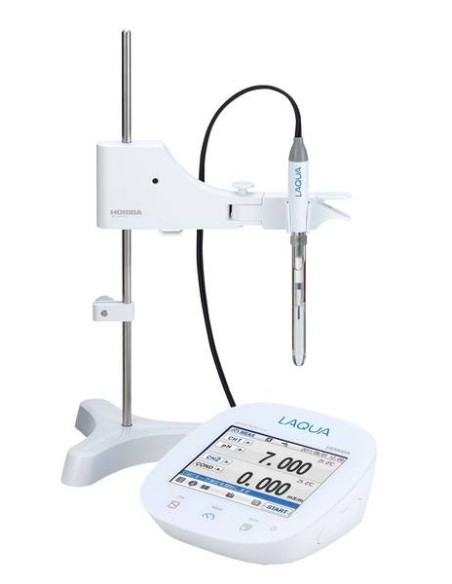

F-73A-S LAQUA Color Touch Table Meter Kit for Water Quality

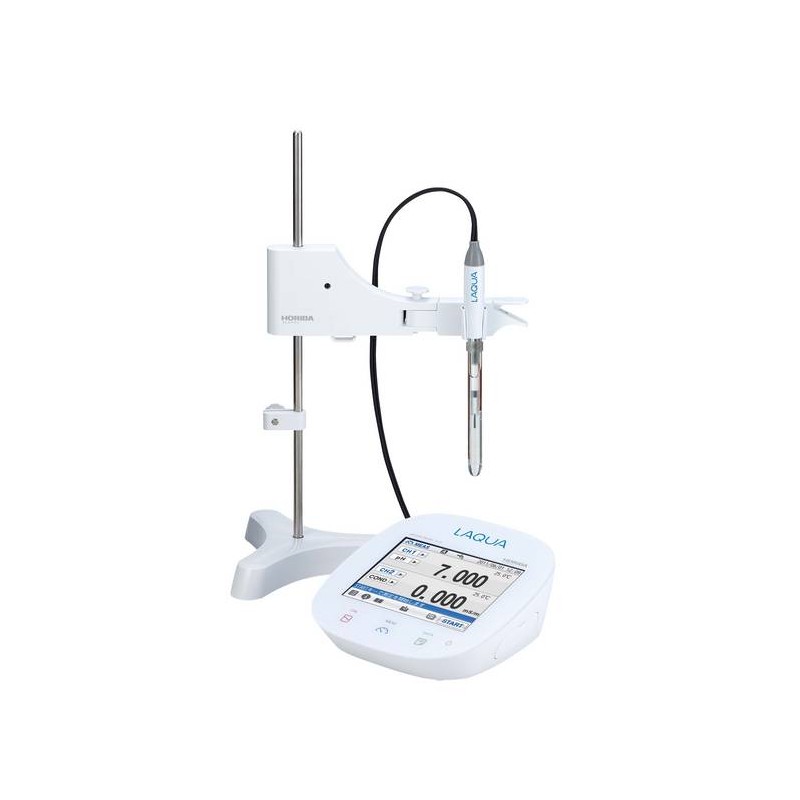

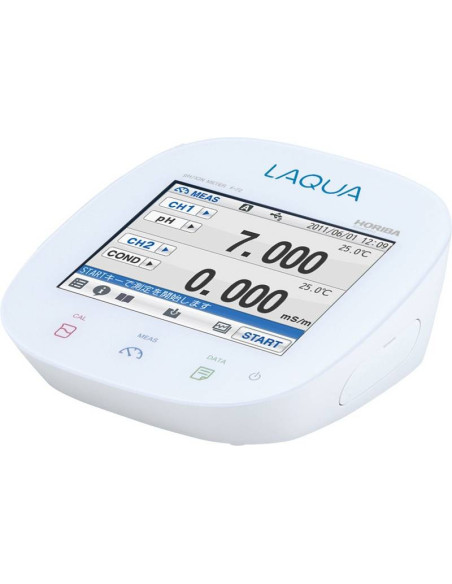

F-73G LAQUA Colour Touchscreen Benchtop Water Quality Meter

Reference: F-73G (3200575123) - Manufacturer: HORIBA

Contain:

• F-73 meter
• Electrode stand
• Protection cover
• Power adaptor with 6 plugs
• Data acquisition software in USB

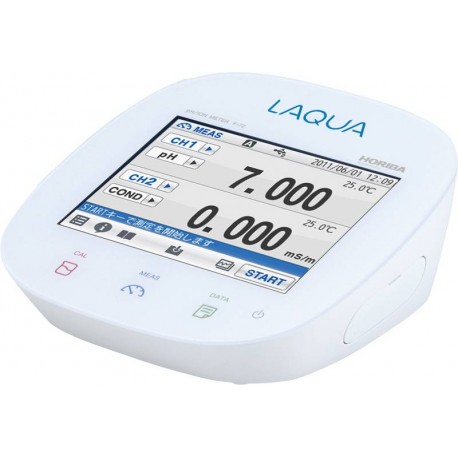

- Bench meter with large touchscreen color graphic LCD
- Easy-to-clean, elegant body
- GLP/GMP compliant, compatible with LAQUA 21 CFR Part 11 Software
- Switchable display - digital, graph, and analog
- Single-touch operations - tap, flick, and drag
- Smart navigation - on-screen support for calibration, application, inspection and troubleshooting via electronic user guide with coloured pictures
- 2-Channel display and simultaneous measurements
- Auto data log capable
- Customizable printout and auto-hold function for calibration and measurement
- Simultaneous connection to a compatible printer and computer
- Simultaneous data storage to meter and USB flash drive
- Built-in memory stores up to 2,000 data with sample ID for easy reference
- Data settings allow users to search (by date, parameter, or sample ID), view, delete, and even copy data from meter to USB flash drive
- Data output via USB to computer or USB flash drive or via RS232C to computer or printer
- Multi-language support (Japanese, English, Chinese, Korean, and Vietnamese)
- Meter password setting and up to 25 users registrations
- 2 years meter warranty

Model	LAQUA F-73 Dual Channel pH/ORP/Ion/Temp (⁰C)
pH Range	-2.000 to 20.000 pH
Resolution	0.01 / 0.001 pH
Accuracy	± 0.001 pH
Calibration Points	Up to 5
Buffer Options	USA / NIST / NIST2 / China / Custom
ORP Range	± 1999.9 mV
Resolution	0.1 mV
Accuracy	± 0.2 mV
Ion Range	0.000 µg/L to 9999 g/L (mol/L)
Resolution	4 significant digits
Accuracy	± 0.3% of full scale
Calibration Points	Up to 5
Temperature Range	30.0 to 130.0 ⁰C
Resolution	0.1 ⁰C
Accuracy	± 0.4 ⁰C
Calibration Option	Yes
Navigation Function	Yes
Memory	2000
Auto Data-Logging	Yes
Data Search	Yes
Custom Printing	Yes
Real Time Clock	Yes
Date / Time Stamp	Yes
Sample ID Input	Yes
Operator ID Input	Yes
Password Setting	Yes
Auto Stable / Auto Hold	Yes
Offset / Slope Display	Yes (independent acid and alkaline slopes depending on calibration)
Calibration Alarm Limit	Yes
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Touchscreen color graphic LCD
Languages	English / Japanese / Chinese / Korean / Vietnamese
Inputs	Dual BNC, dual phono, DC socket
Outputs	USB, RS232C, analog output
Power Requirements	AC adaptor 100 - 240V, 50/60 Hz
Electrode Stand	Stand-alone
Weight	700g
Dimensions	170 (W) x 174 (D) x 73 (H) mm

Number of Channels: 2 channels
With Display: Color LCD
Communications: USB, RS232C, analog output
Memory Capacity: 2000 data
The Sensor measures:: pH/ORP/Ion/Temp
Power Supply:: AC adaptor 100 240V, 50/60 Hz
