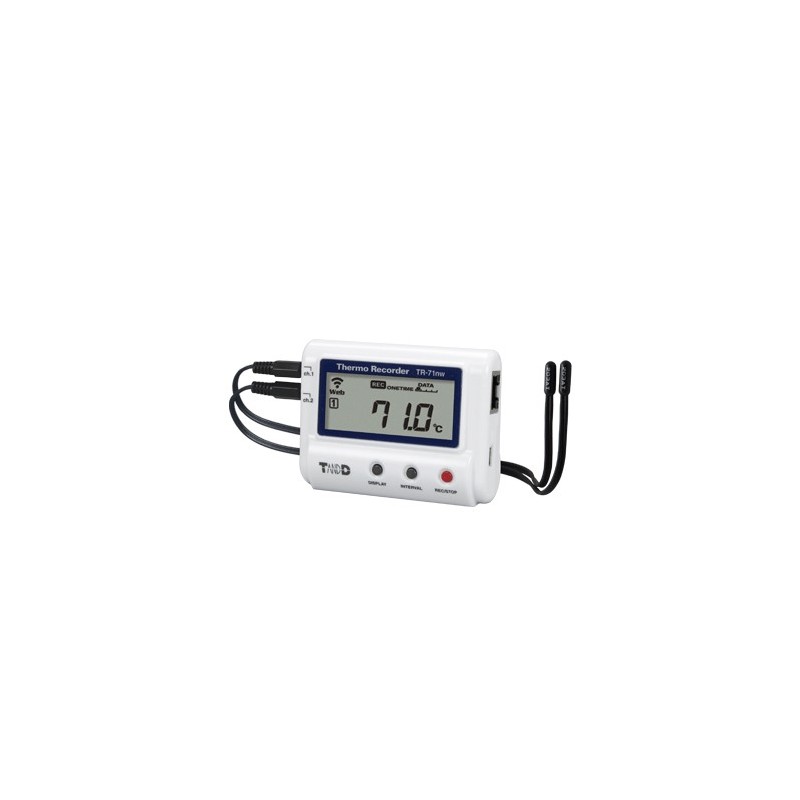

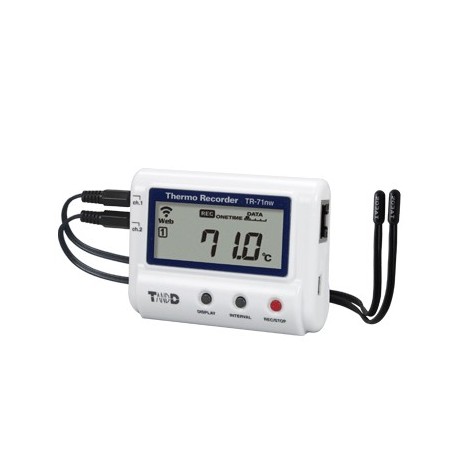

TR-71NW Ethernet / LAN Temperature Recorder
Temperature and Humidity Data Logger made for the Cloud. Recorded data can automatically be uploaded via wireless or wired LAN to our free cloud service "T&D WebStorage Service" where it can be accessed from anywhere you have a connection.
TR-71nw is a temperature logger with two available sensor connections and can measure from -60 to 155℃.
The wide range of optional sensors provides increased measurement flexibility.
Functional buttons on the device allow you to make settings and start/stop recording.
Use Ethernet connection to auto-upload data to the cloud for anytime anywhere access and get warning notices. Connect to a PC with a USB cable to download the recorded data and make setting changes.
It is perfect for not only home and office but research labs, hospitals and large institutions.
General Specifications
- Measurement Channels Temperature 2ch
- (Internal 1ch / External 2ch)
- Measurement Range -40 to 110°C
- Accuracy ±0.3°C
- LCD Display Measurements, Battery Life Warning, etc.
- Logging Capacity 8,000 data sets
- Recording Intervals 15 choices from 1 sec. to 60 min.
- Recording Mode Endless/Onetime
- Comm Interfaces Wired LAN, USB
- Warning Norifications E-mail, Software/Browser
- Power AA Alkaline Battery x 2, AC Adaptor, PoE
- Operating Environment Temperature: -10 to 60°C
- Humidity: 90%RH or less (no condensation)
- Dimensions H:58mm × W:78mm × D:26mm
- Waterproof Capacity None
- Battery Life Approx. 10 days to 1.5 years
- Accessories Temperature Sensor x2, AA Alkaline Battery (LR6), etc.
"T&D Thermo" is a mobile application for "TR7A, TR-7nw/wb/wf series" loggers that allows users to carry out operations such as making settings, downloading recorded data, and viewing graphs via smartphones and tablets.
2 x TR-0106 temperature sensors, battery, USB cable, manual.
AD-05C2 AC/USB Adaptor (CE) is optional.
- Environment of Use
- Indoor
- Type of Logger
- Portable
- Measured Parameters
- Temperature
- Number of Channels
- 2 channels
- With Display
- LCD
- Memory Capacity
- 8,000 data
