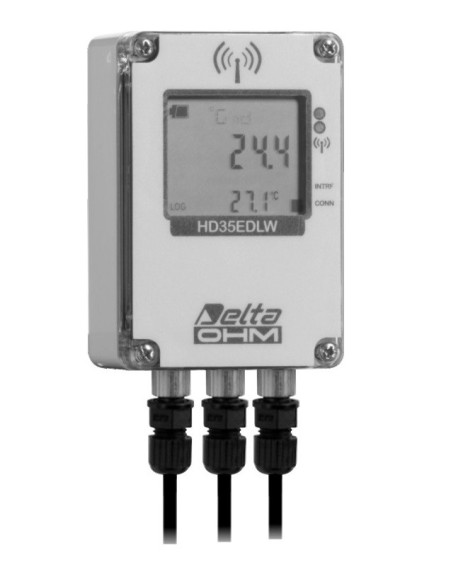

HD 35EDW WBGT-S PROBES FOR WBGT INDEX MEASUREMENT

TP 3501TC2
Natural ventilation wet bulb probe. Pt100 sensor.
Probe stem: Ø 14 mm, length 110 mm. 2 m cable with 4-pole M12 connector. Complete with 2 spare cotton wicks and 50 cc distilled water container.

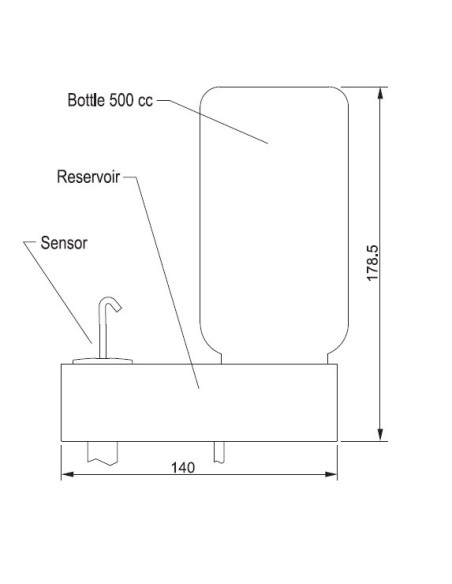

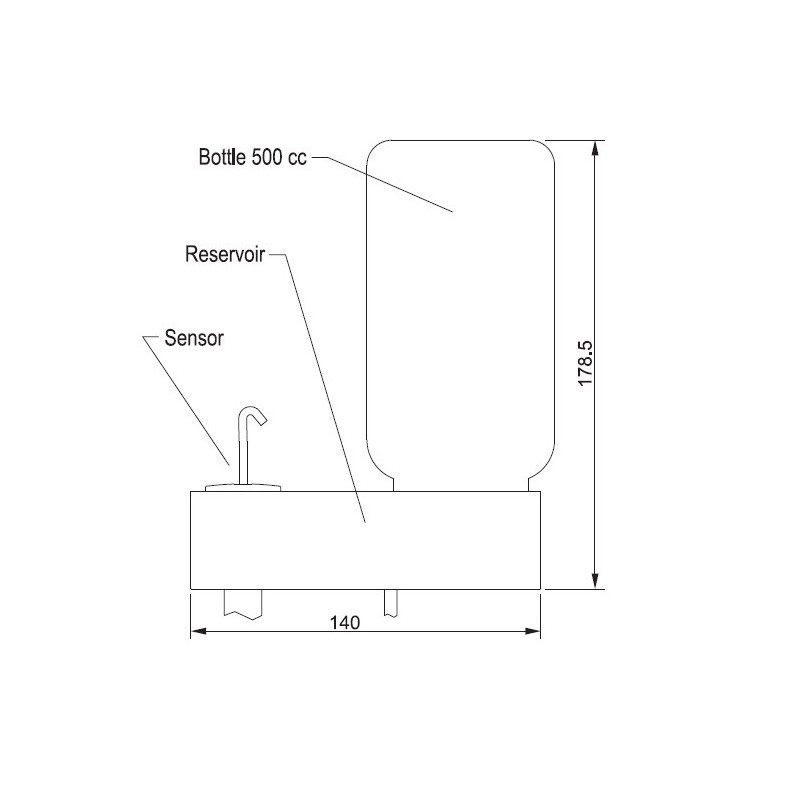

TP 3204
Natural ventilation wet bulb probe for long-lasting measurements.
Capacity: 500 cc of distilled water. Autonomy: 15 days @ 40 ° C.
Pt100 sensor. 2 m cable with 4-pole M12 connector. Complete with
500 cc bottle and 2 spare cotton wicks.

TP 3507TC2
Temperature probe. Pt100 1/3 DIN sensor. Probe stem: Ø 14 mm, length 140 mm. 2 m cable with 4-pole M12 connector. The outdoor installation of the probe requires the optional HD9007A-3 protection against solar radiations.

TP 3575TC2
Pt100 sensor globe-thermometer temperature probe, globe Ø 150 mm. Stem: Ø 14 mm, length 110 mm. 2 m cable with 4-pole M12 connector.

TP 3576TC2
Pt100 sensor globe-thermometer temperature probe, globe Ø 50 mm. Stem: Ø 8 mm, length 170 mm. 2 m cable with 4-pole M12 connector.

HP 3517ETC2.2
Temperature and relative humidity combined probe. 2 m cable with 8-pole M12 connector. RH. Sensor measuring range: 0 ... 100%. Pt100 1/3 DIN temperature sensor. Operating temperature: -40 ... + 150 ° C. The outdoor installation of the probe requires the optional HD9007A-3 protection against solar radiations.

HP 3517ETC2.5
Temperature and relative humidity combined probe. 5 m cable with 8-pole M12 connector. RH. Sensor measuring range: 0 ... 100%. Pt100 1/3 DIN temperature sensor. Operating temperature: -40 ... + 150 ° C. The outdoor installation of the probe requires the optional HD9007A-3 protection against solar radiations.

HP 3517ETC2.10
Temperature and relative humidity combined probe. 10 m cable with 8-pole M12 connector. RH. Sensor measuring range: 0 ... 100%. Pt100 1/3 DIN temperature sensor. Operating temperature: -40 ... + 150 ° C. The outdoor installation of the probe requires the optional HD9007A-3 protection against solar radiations.

HD 9007A-3
16-ring protection from solar radiations.

HD 9007T26.2
Fitting for Ø 14 mm probes for the protection from solar radiations HD9007A-3.

HD 32.2.7.1
Holder for the probes, to be fixed on the tripod.

VTRAP30
Tripod, maximum height 280 mm.

HD 32.4.17
Bracket for fixing the measurement system to a wall or a mast.

HD 2013.2.14
3-sector clamping for mast ∅ 40 mm with 6 inputs ∅ 16 mm. For fixing the globe-thermometer in outdoor measurements.

HD 3218K
Clamp shaft for fixing the globe-thermometer to the HD 2013.2.14 flange.
