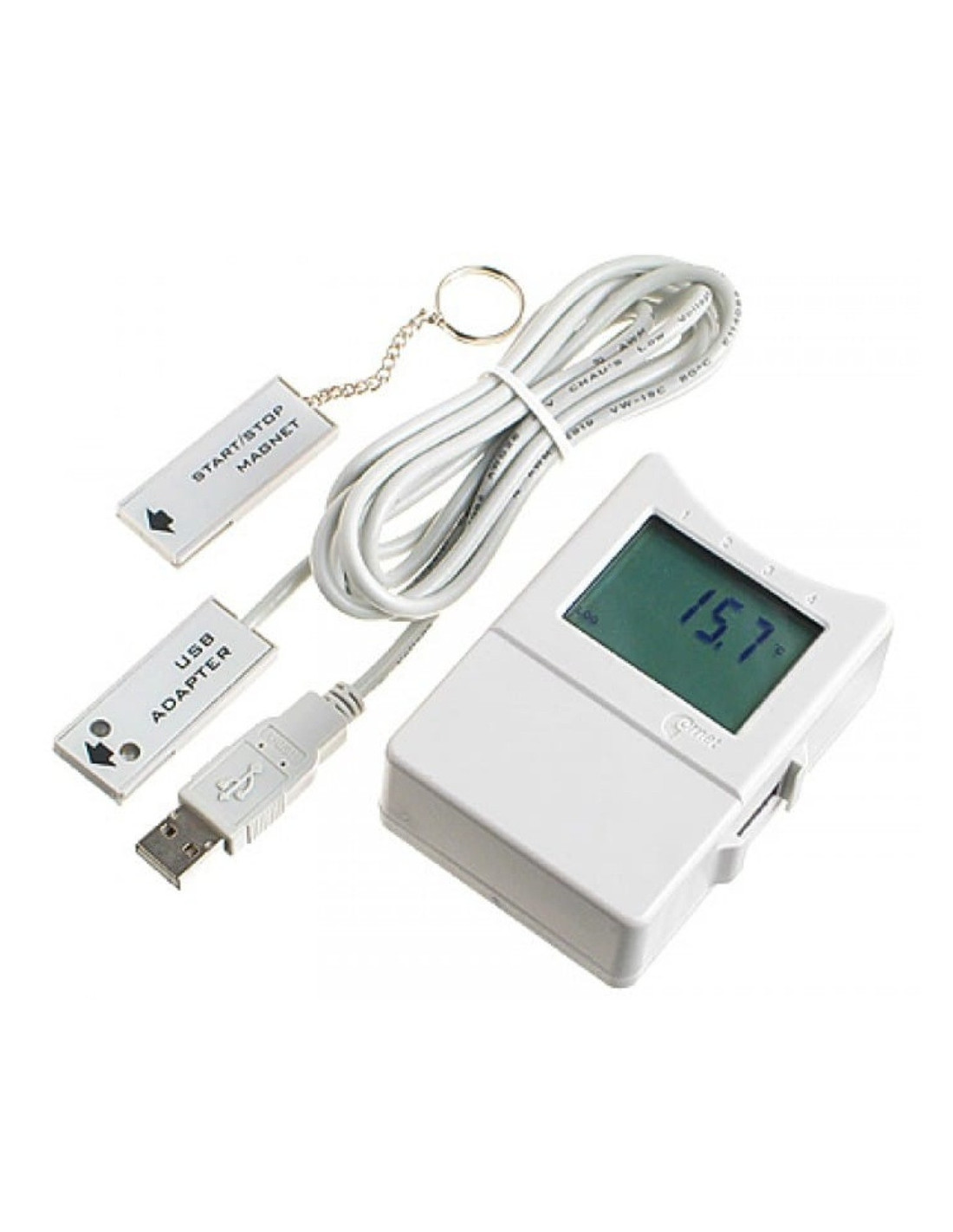

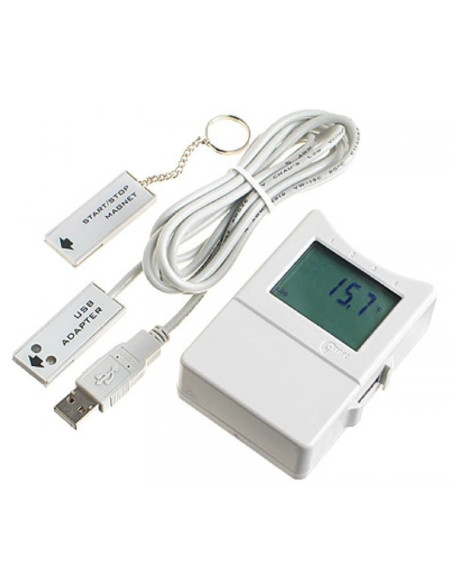

S0110E Economic Thermometer (-30 ºC a + 70 ºC.) View larger

S0110E Economic Thermometer (-30 ºC a + 70 ºC.)

S0110E

Comet System

New

Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter. Thermometer is designed for record of temperature.

Volume discounts

Quantity Price
(tax excl.)
You Save
%
1+ 112,00 € 0%
5+ 109,76 € 2%
10+ 107,58 € 3.9444%
15+ 105,40 € 5.8889%

112,00 €

tax excl.

Add to wishlist

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based

Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter. Thermometer is designed for record of temperature.

Main thermometer applications:

  • Transport of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Pharmaceutical industry
  • Blood stations, pharmacies
  • Horticulture and cultivation of plants
  • HVAC (heating, ventilation, air conditioning, cooling)
  • Building and energy management
  • Research and development
  • Laboratories (GLP)
  • Warehouses
  • Technological processes
  • Museums, archives, galleries

Thermometer advantages:



  • Included traceable calibration certificate from the manufacturer
  • Fast data transfer to the PC (full memory for approximately 30s)
  • Variability of connection to the computer - USB, RS232, Ethernet, GSM modem
  • Permanent connection to the PC enabled, data is possible to download even during logging
  • Large data memory 32000 values
  • Optional display of minimum and maximum measured values (reset of min/max memory from PC or by magnet)
  • Dual level alarm is enabled for each channel, alarm is indicated by blinking of the LED diode
  • Two alarm modes are enabled: instant or with memory (detected alarm is indicated permanently till alarm memory is cleared from the PC)
  • Robust watertight case
  • Low power consumption from battery, battery life up to 7 years
  • Indication of remaining battery life, easy replacement of the battery
  • It is possible to combine temperature measurement with logging of contact state (e.g. door contact)
  • Logging start/stop is enabled in several ways: at certain time and date programmed from computer, by delivered magnet
  • Also special logging mode is enabled, when logging runs only, if some of measured values are out of adjusted alarm limits
  • Each logger is possible to describe with text of maximum 32 characters
  • Each channel is possible to describe with text of maximum 16 characters
  • Password protection is enabled to prevent unauthorized manipulation with logger



Logger Downloader - free application for data download from Android smartphones and tablet PC















Technical parameters

Value

Measured Value

Temperature

Construction Type

Ambient Air

Temperature Measuring Range

-30 to +70°C

Two-State Input

No

Lcd Display

Yes

Built-In Printer

No

Operating temperature range

-30 to +70°C

Accuracy of temperature measurement

±0.6°C from -30 to +30°C
±0.8°C from +30 to +70°C

Resolution of the reading

0.1°C

Real time clock

year, leap year, month, day, hour, minute, second

Data logging interval

adjustable from 10s to 24h

Display and alarm refresh

each 10 s

Total memory capacity

32000 temperature values in noncyclic logging mode

Data logging mode

noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Power

Lithium battery 3,6V, size AA

Typical battery life

6 years

Battery life in continuous on-line mode with interval 1 minute

reduced to 70% of the above life

Battery life in continuous on-line mode with interval 10 second

1 year

IP protection

IP67 - protected against influence of temporary immersion into water

Dimensions

93x64x29mm

Weight including battery

approximately 110g

Warranty

2 years

GSM communication

KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers
code: KIT-GSM-L
KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers
   COM adapter with protection IP65
 code: LP012
COM adapter with protection IP65
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families
code: LP040
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families
antenna for GSM modem FASTRACK
code: MP009/1
antenna for GSM modem FASTRACK
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode
code: A1940
AC/DC adapter 230Vac to 24Vdc/1A, switch-mode
Communication cable for GSM modem
code: QMS2901
Communication cable for GSM modem
Transducer USB/RS232 complete
code: MP006
Transducer USB/RS232 complete
Self Adhesive Dual Lock
code: MD036
Self Adhesive Dual Lock
Wall holder for GPRS modem
code: MP036
Wall holder for GPRS modem
DIN Rail 35mm holder for GPRS modem
code: MP037
DIN Rail 35mm holder for GPRS modem
One time fee for using M2M server - applied for each data logger with modem
code: SLU302
One time fee for using M2M server - applied for each data logger with modem
Start/stop magnet
code: LP004
Start/stop magnet
USB adapter
code: LP003
USB adapter
USB adapter cable USB A/female - Micro USB/male - OTG
code: OTG
USB adapter cable USB A/female - Micro USB/male - OTG
COM adapter with protection IP65
code: LP012
COM adapter with protection IP65
LAN adapter with 0.5 meter cable
code: LP005
LAN adapter with 0.5 meter cable
LAN adapter with 5 meter cable
code: LP005-5
LAN adapter with 5 meter cable
Lithium battery 3,6V/AA
code: A4203
Lithium battery 3,6V/AA
wall holder for datalogger
code: F9000
wall holder for datalogger
Self Adhesive Dual Lock
code: MD036
Self Adhesive Dual Lock
