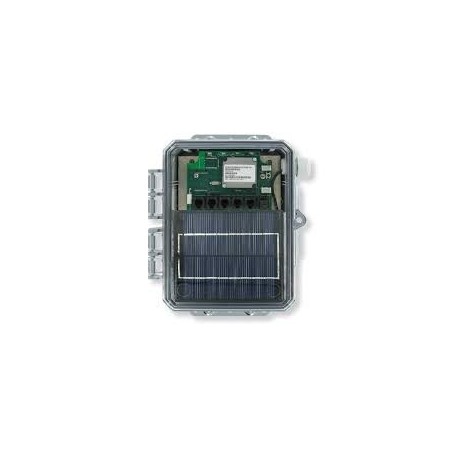

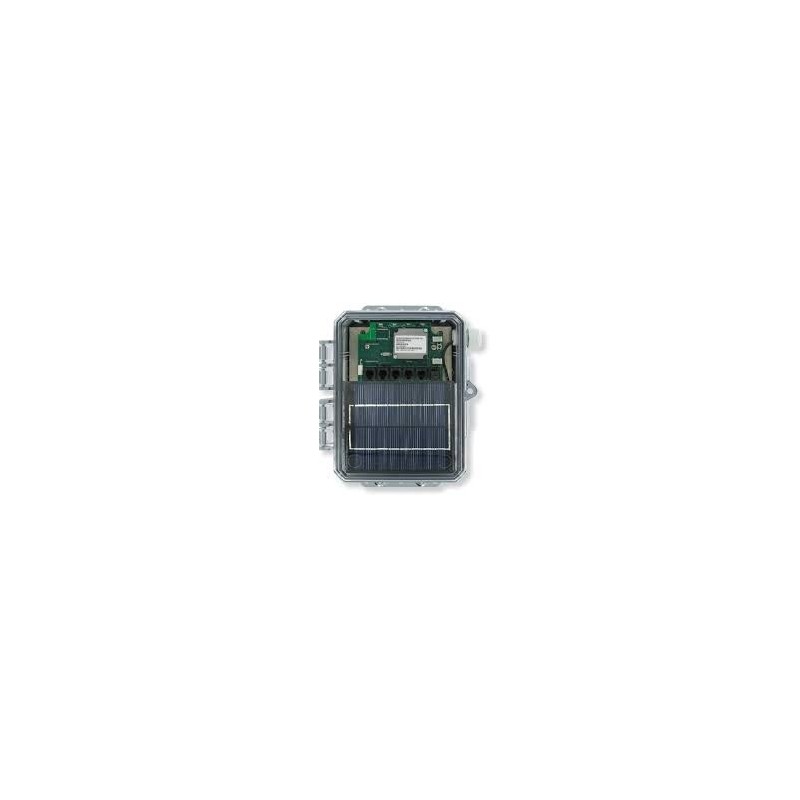

DG-1 DataGarrison Satellite Station

Reference

Manufacturer: DataGarrison

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Compatible Sensors
Download

DataGarrison Download (729.53k)

The station's monitoring satellite DataGarrison is a device of transmission of data poe satellite with energy solar and uses the sensors smart HOBO® of Onset Computer Corporation, type plug-and-play.
Only by pressing a button, the DataGarrison season begins to transmit data DataGarrison.com center satellite.
You can access securely from any PC or mobile data connected to the Internet. Users can view or download data with a 256-bit encrypted secure connection.
Also is can change them parameters is them sensors remotely, as the interval of record and the rate of update of the server with an interface easy of use.

Temperature Range	Temperature Range -30 to 60º C (-22 to 140º F) Optional industrial battery packs available to extend temperature range up to 80º C (176º F)
Power	A 1.2 Watt solar panel and the optional 2.5 AH industrial grade rechargeable battery pack are designed to last up to 15 years
Solar charging	Temperature compensated charging voltage optimizes battery life and performance. Typically requires an average of one to two hours of direct sunlight per day. Will typically operate for one month in clouded conditions
Weight	2.8 kg (6 lbs)
Dimensions	20 X 15 X 10 cm (8 X 6 X 4 inches)
Environmental Rating	NEMA 6 weatherproof. Indoor and outdoor versions available.
Communication ports	Two serial ports for configuration and interfacing with external serial devices
Smart Sensor ports	Six ports available
Average power consumption	Satellite linking/transmitting/receiving (70 mA) and sleep (1.1 mA)
LED's	Four LED’s on main circuit board indicate Power, In Range, Receiver On, and Low Battery.
Server updates (satellite xmission frequency)	User configurable from every 5 minutes to once a month
Minimum recommended logging interval	every 2.5 minutes
Remote alarms	User configurable low battery alarm and high/low sensor value alarms Average sensor alarm latency: logging interval plus 30 seconds during typical network conditions.
Remote control	Can be controlled over the Internet. Functions include setting alarm limits and changing the data logging or transmission intervals
Data formats	Tab-delimited text
Data access	Raw data is accessible from any Web browser via a password-protected, secure 256-bit connection. Live plots can be configured and viewed from the same online account.

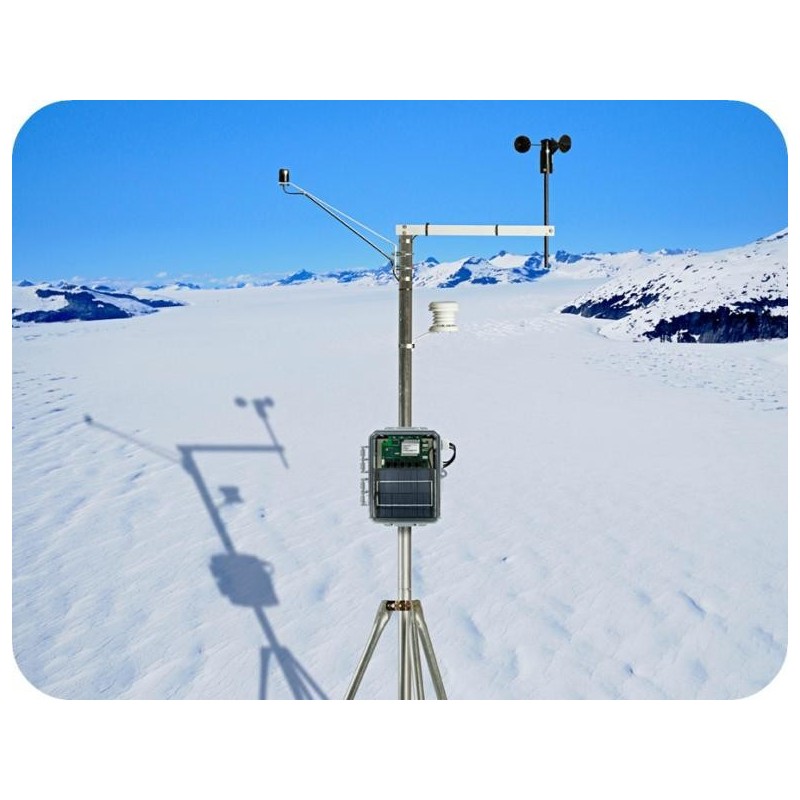

Mounting	Sun-facing wall or pole. Sold with clamps for mounting on poles from 1.5 to 2 inches in diameter.
Frequency	1616 to 1626.5 MHz
Satellite Network	Iridium Satellite Constellation
Coverage	Works throughout the world in areas with lines of sight to the sky
Federal specifications	FCC certified for use in the U.S. and authorized for use throughout the world. Call for details regarding worldwide operation.
Enclosure Access	Hinged door secured by two latches, which can be further secured with user-supplied padlocks
