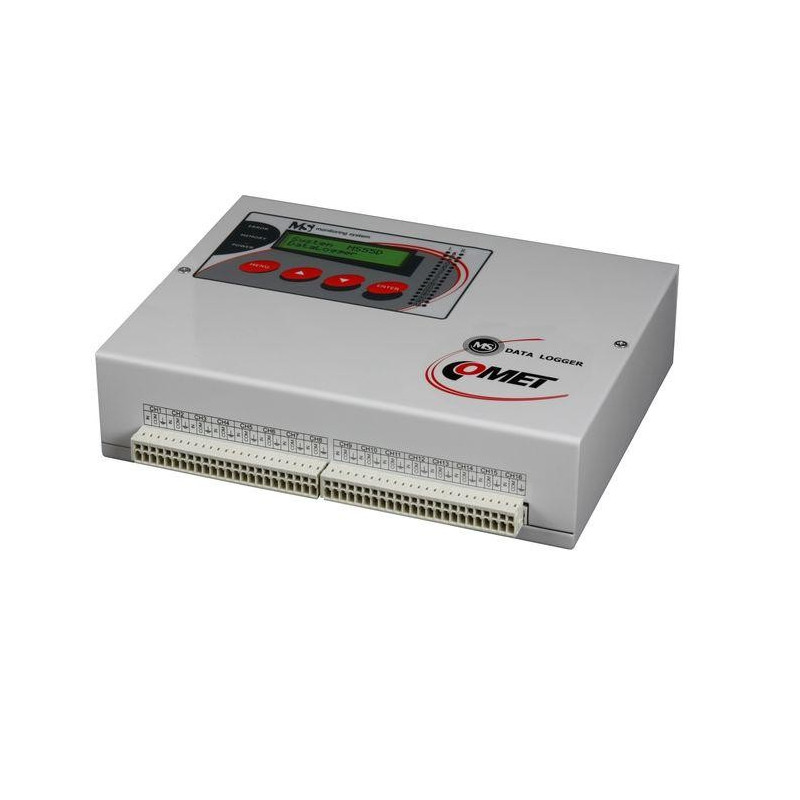

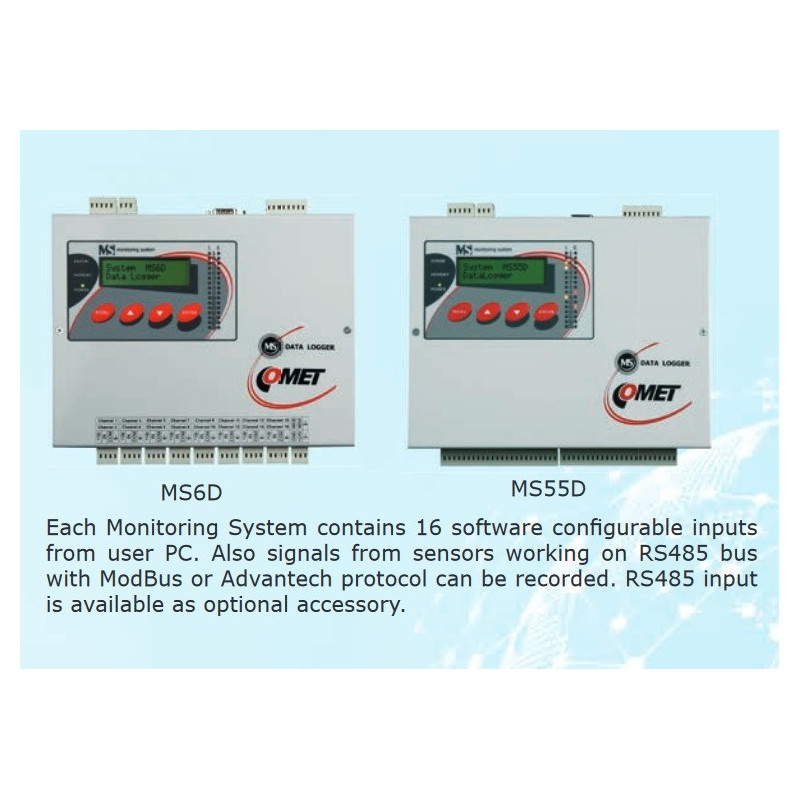

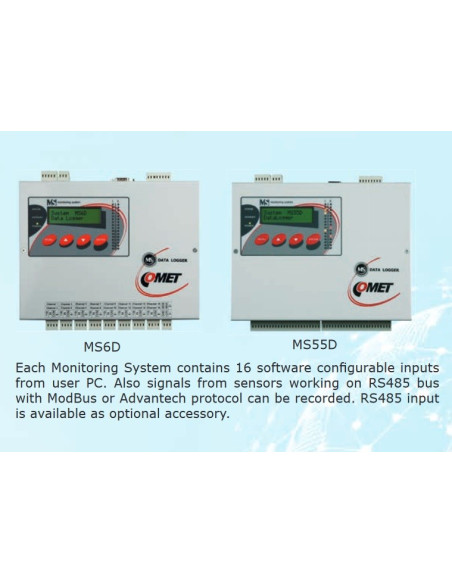

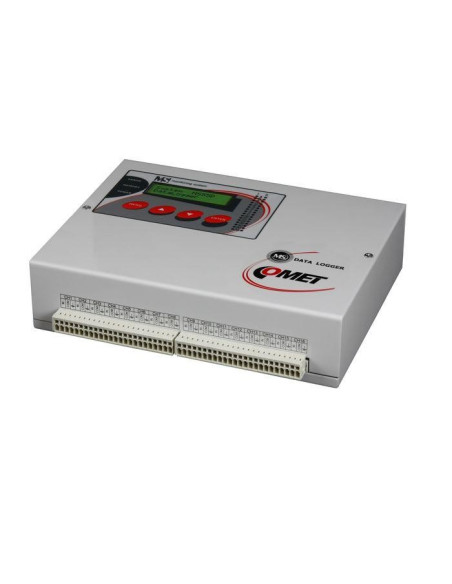

MS55D $ MS6D DataLoggers 16 Channels

Data Logger enables to:

• Measure and process 1 to 16 input variables
• Each of the 16 channels offers the virtual channel (countable)
• Acquire autonomous recording of measured values
• Create alarm conditions
• Based on the created alarms perform other actions (acoustic, optical signaling, control relay outputs, sending SMS messages, handling telephone dialer, messaging using different protocolsEthernet interface, etc.)
• On-line monitoring of measured values ​​and states

Each from 16 Channels offers:

• independent hysteresis, delay
• setting up 4 conditions for an alarm

Alarms by:

• GSM modem
• Emails
• Phone dialer
• Integrated buzzer
• External siren or light
• Relay

Applications:

• Food and beverages industry (HACCP)
• Server rooms, data centers
• Server rooms, data centers
• Pharmaceutical industry (GMP)
• Blood stations, pharmacies
• Horticulture and cultivation of plants
• HVAC - heating, ventilation, air conditioning, cooling
• Building and energy management
  Building automation
• Research and development
• Laboratories (GLP)

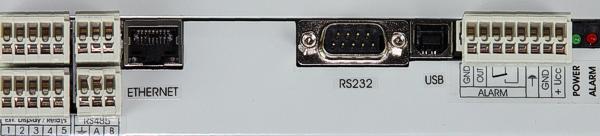

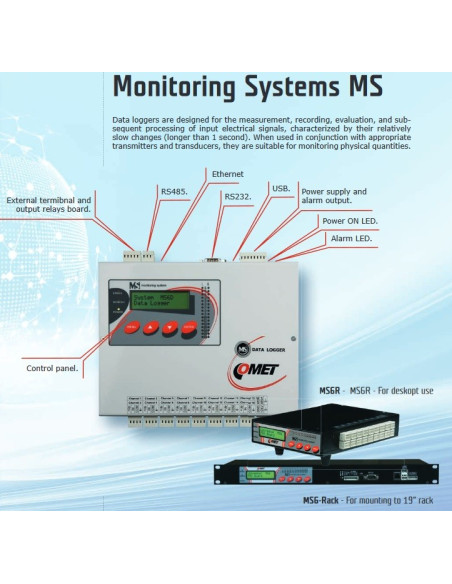

Figure: communication interface, alarm outputs, connection of power. Ethernet interface is optional.



Features of Ethernet Interface:

	Ethernet interface   Data logger is designed for  connection to standard computer network. The 10 and 100Mb/s Ethernet is supported.No need to build new data lines. Thanks this installation cost are essentially reduced and instant easy start of monitoring system operation is enabled.
	Modbus protocol Enables to read actually measured values by means of industrial standard Modbus. Data is available in several formats. Protocol is suitable for implementing of MS data logger to SCADA system.
	SNMPv1 protocol Actually measured values can be acquired by means of SNMPv1 protocol. MIB tables are available for free. Designed especially for IT applications and use in “managed” computer networks.
	Fast data download Record download speed was increased four-times from previous MS5 data logger generation.
	SOAP protocol  Protocol designed for data logger integration to own www infrastructure. Available actual values can be captured by www server (Apache, IIS) and processed by the user.Communication protocol SOAP version 1.1. is supported. By means of this protocol data logger sends actual values in preset intervals to specified server.
	Syslog protocol Syslog message is sent after alarm state or data logger error appears. Syslog is compatible with RFC5424.
	E-mail Data logger sends warning emails up to three different addresses. E-mail is immediately sent after alarm state of monitored technological process appears. User is also informed on error states of device itself (measuring channel error, fulfilling of internal memory, self-test error). SMTP servers requiring autentization are also supported.
	XML file Actual values can be downloaded to XML file. This option is suitable for data logger integration to SCADA systems.
	Data logger display   Network parameters can be set directly from data logger display. It is possible to change IP address, subnetwork mask and initial gate.
	Secured WEB server WWW server is built in the device. Here it is possible to monitor actual values, alarm states and information on data logger. Also access password for www pages can be entered. WWW pages are user modifiable. Free SDK description is available to create own www pages.
	SNMP Trap SNMP Traps are sent after alarm state or device error appears.
	Database system Prepared for connection to database system including online values transfer.
	WWW remote conditions Control of remote condition and relays is enabled also via www interface.

 Included in Delivery:

• Data logger including the battery
• Traceable calibration certificate. Calibration certificate contains calibration of 16 inputs 4-20mA, if it is not defined required configuration of inputs by the user. If required configuration of inputs is defined by the user, calibration certificate proves calibration of inputs in accordance with this required configuration - maximum one range for each of 16 inputs.
• Calibration of other ranges is optional.
• USB communication cable
• Basic manual
• Free basic Windows software is ready to download at folde

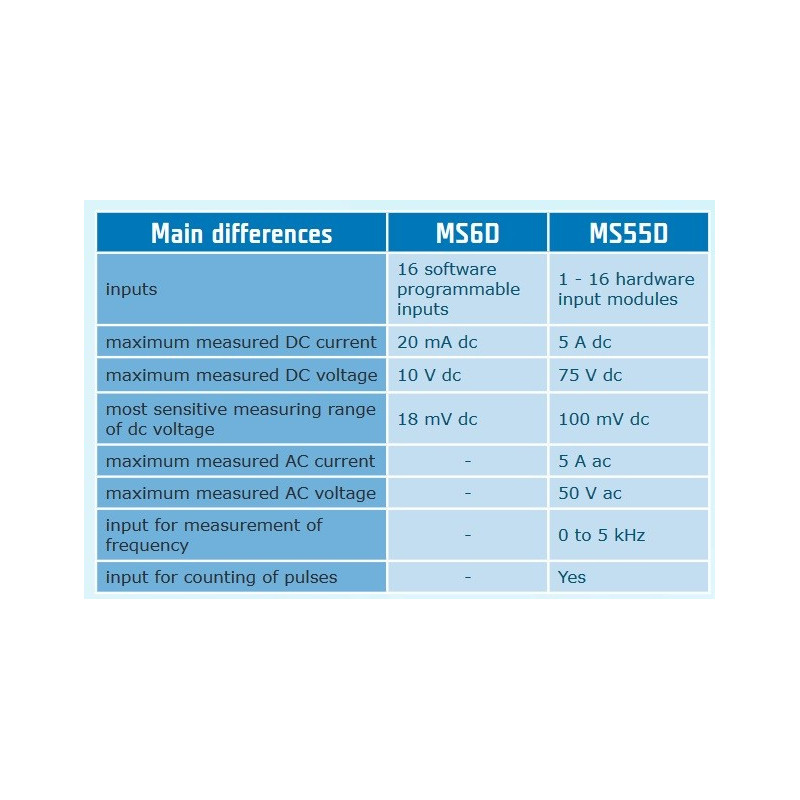

Monitoring systems MS
MS55D       16 channel datalogger with LCD
MS6D         16 channel datalogger with programmable inputs
MS6-Rack  16 channel datalogger, programmable inputs, rack 19" mount
MS6R          MS6R datalogger with programmable inputs, rack 19" mount

Total memory capacity

2MB (up to 480 000 values)

Memory type

internal SRAM, backed-up by Lithium battery

Data logging modes

noncyclic - logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Data logging interval

adjustable individually for all input channels from 1 second to 24 hours

Real time clock

year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

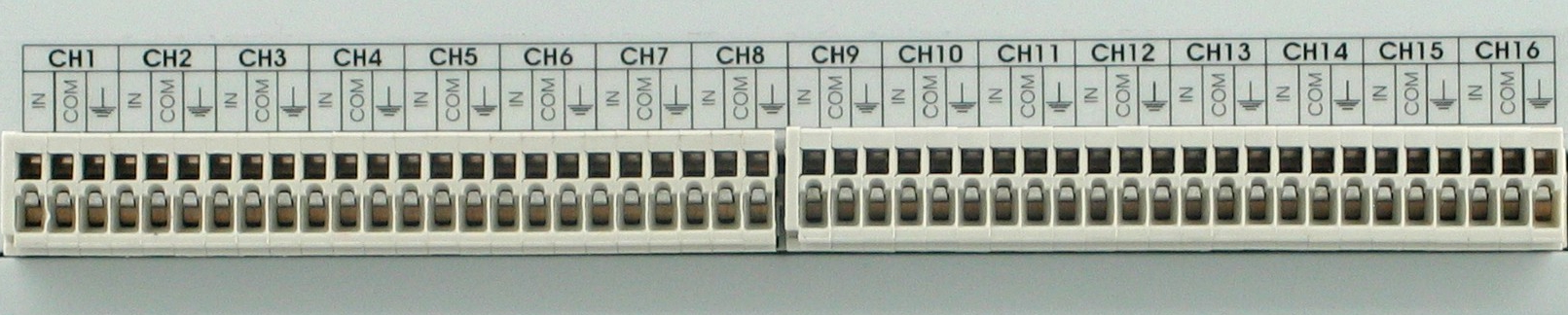

Input measured values (1 to 16 inputs)

are defined for each channel by installed input modules (see table) accordingly to user requirements

Resolution of the AD converter (analog channels)

16 bits, conversion duration approximately 60ms/channel

Communication speed

9600, 19200, 57600, 115200 Bd, 230400* Bd (* applicable for USB, Ethernet)

Power

9 to 30Vdc, 24Vdc recommended

Operating temperature range

0 to +50°C

Dimensions including connectors

215 x 225 x 60 mm

Protection

IP20

Weight

approximately 800 g

Warranty

2 years
