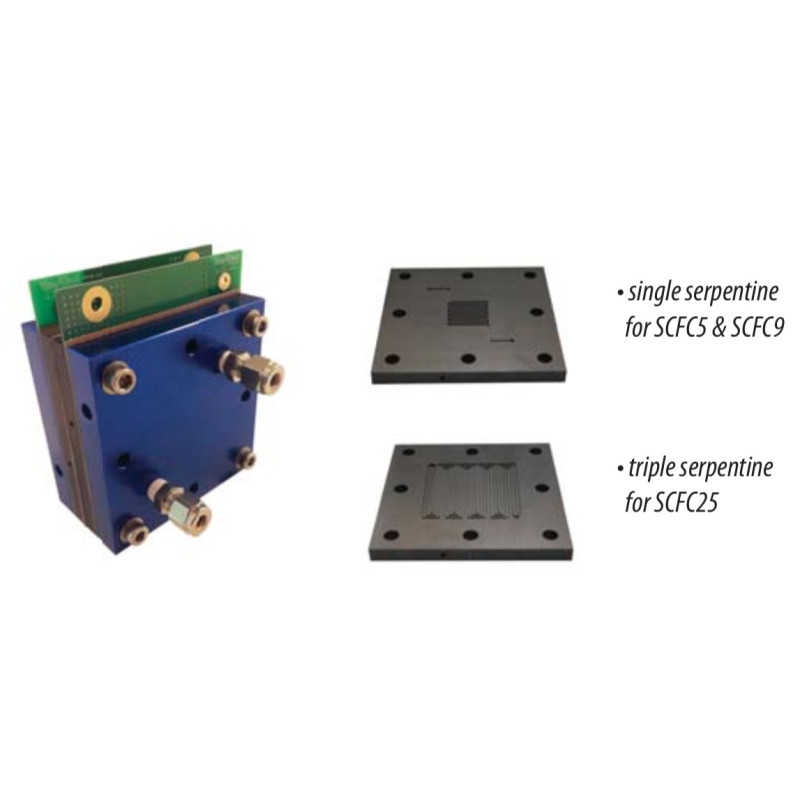

SCFC Fuel Cell Hardware Fixture

SCFC Fuel Cell Hardware Fixture

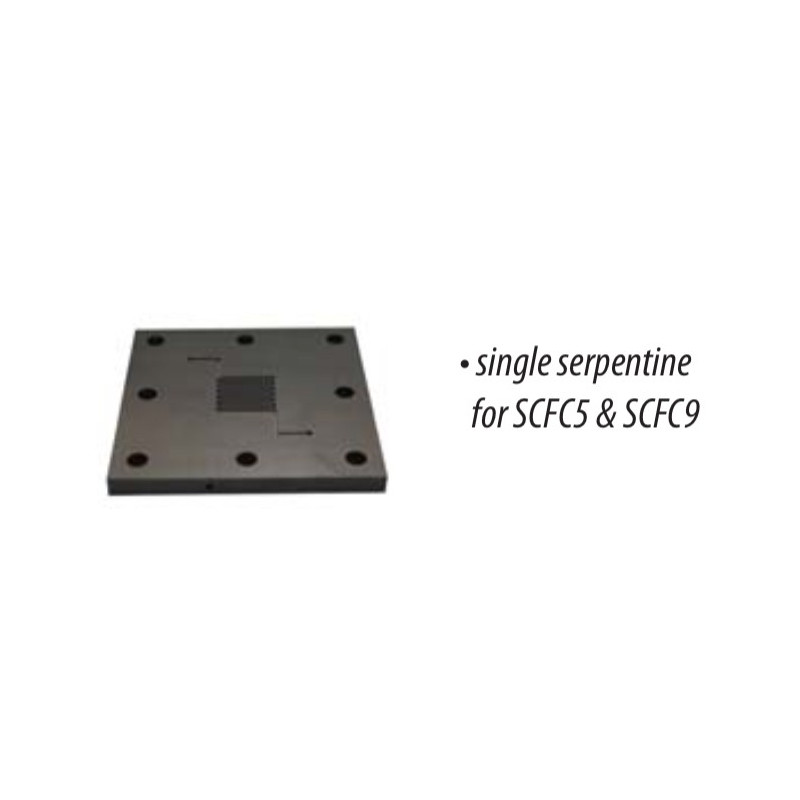

Single serpentine for SCFC5 & SCFC9

WonATech

SCFC Fuel Cell Hardware Fixture

SCFC Fuel Cell Hardware Fixture

Single serpentine for SCFC5 & SCFC9

WonATech

SCFC Fuel Cell Hardware Fixture

Reference: SCFC - Manufacturer: WonATech-ZIVE LAB

Ordering Guide

Select Model

- For PEMFC, DMFC
- Max.operating temperature : 120 ̊C or 180 ̊C
- Active area : 5, 9, 25, 50, 100cm2
- Components: serpentine flow pattern, cartridge heater(2), current collector(2), cell graphite(2), end plate(2), connector
- Thermal Jacket is available as an option.
- MEA is not included.

Accessory Catalog

Download (1.37MB)
