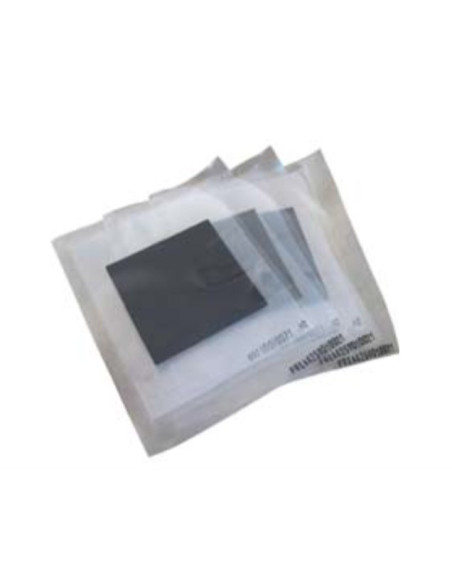

MEA Membrane Electrode Assembly

MEA Membrane Electrode Assembly

MEA Membrane Electrode Assembly

Reference: MEA - Manufacturer: WonATech-ZIVE LAB

Ordering Guide

Select Model

Overview
Attachments

- Active area : 25cm2 (5x5cm)
- Reactants : hydrogen/oxygen or air
- Pt charge anode/cathode : 0.2/0.4mg/cm2
- Gas diffusion layers included, hot bonded to MEA
- Subgasket included for easy handling
- Formulated for testing under dry conditions (no external humidification of reactant gases)
- External size : 92 x 72mm (cut to fit ClearPak dimensions)
- Cell temperature : 70°C

Accessory Catalog

Download (1.37MB)
