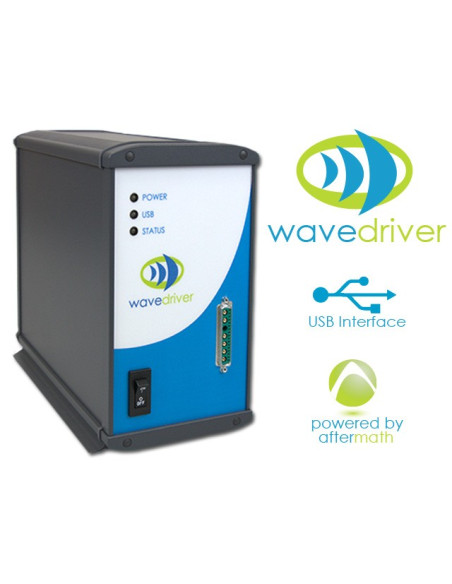

Bipotentiostat WaveDriver 40 DC

You can get started immediately with a new instrument today!
The Key features of the WaveDriver 40 bipotentiostat/galvanostat are listed below:

- Integrated Bipotentiostat: One or two working electrodes with common reference and counter electrodes, simple cable connections, no special adapters required
- Applied/Measured Current Ranges: ±100 nA to ±1 A
- Applied/Measured Potential Ranges: ±2.5 V, ±10 V, ±15 V
- DC Techniques: All popular potentiostatic and galvanostatic sweep and step methods are included (BE, CV, LSV, CA, DPV, SWV, NPV, ASV, OCP, ZRA, RCP, etc.)
- Special Bundles: Rotating Ring-Disk Electrode, Rotating Disk Electrode, and Spectroelectrochemistry (see below)
- AfterMath Software: Powerful plotting, Analysis tools, Data transforms.

WaveDriver 40 DC Bipotentiostat/Galvanostat is an affordable benchtop bipotentiostat/galvanostat system capable of performing a wide variety of single and dual working electrode DC electroanalytical techniques. Unlike many other bipotentiostat offerings on the market, the fundamental design of the WaveDriver 40 makes it just as easy for you to use two working electrodes in an electrochemical cell as it is to use just one working electrode.

It is a True Integrated Bipotentiostat.

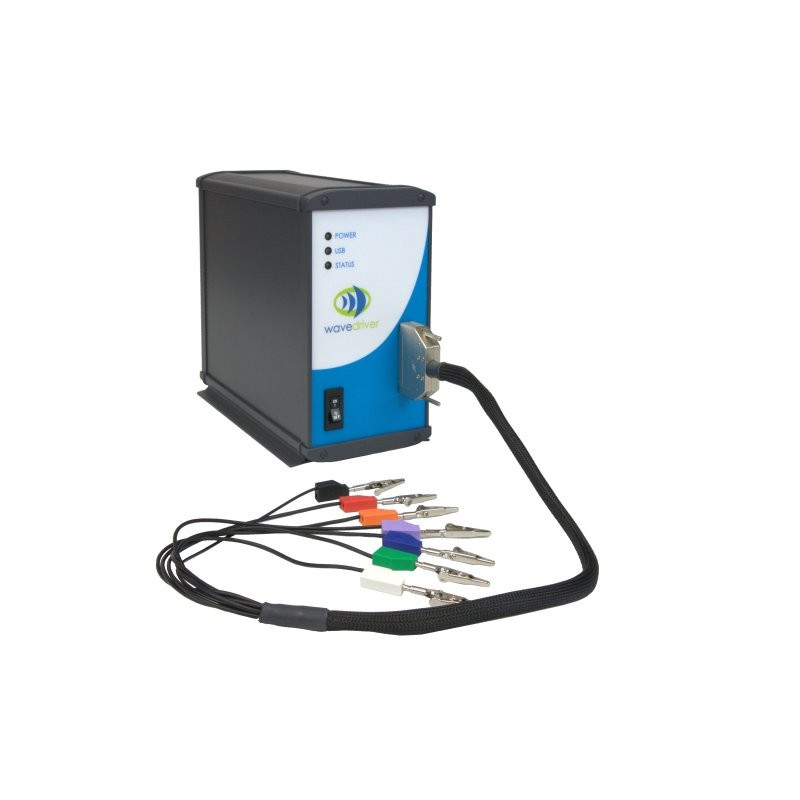

From the software to the cell cable design, everything about the WaveDriver 40 bipotentiostat makes working with dual working electrode configurations as straightforward as possible: no messy inter-channel connections are required, and no additional cell cables or adapters are required. The WaveDriver 40 connects to your laptop or PC via a standard USB cable and is controlled by our powerful AfterMath software. The software user interface is designed with two working electrodes in mind, so entering experimental parameters for dual-electrode techniques is quick-and-easy.

Applications:
The WaveDriver 40 finds use in academic and industrial research laboratories around the world and across a wide variety of applications. The instrument offers a large range of accessible current ranges (±100 nA up to ±1 A) and potential ranges (±2.5V up to ±15 V) along with advanced filtering and iR compensation. Back panel connections allow rotation rate control when performing voltammetry using a Rotating Disk Electrode (RDE), Rotating Ring-Disk Electrode (RRDE), or Rotating Cylinder Electrode (RCE). Additional input/output and timing connections permit the WaveDriver to control third-party instrumentation in applications such as UV/Visible Spectroelectrochemistry.

Cost Effective:
Take a look around at similar bipotentiostat/galvanostat systems and you will have a difficult time finding one with comparable specifications and capabilities at the same modest price point.  Designed with the everyday user in mind, the specifications for the WaveDriver 40 bipotentiostat are broad enough to permit you to perform a wide range of routine electrochemical techniques but also prudently chosen to allow for a simple and affordable design. Popular and common techniques such as cyclic voltammetry, bulk electrolysis, differential pulse voltammetry, square wave and pulse voltammetry, battery charge/discharge sequences, corrosion techniques (such as linear polarization resistance), chronoamperometry, and chronopotentiometry are easily configured and executed using our AfterMath software package.
