Reference: AF01WV10 - Manufacturer: Pine Research

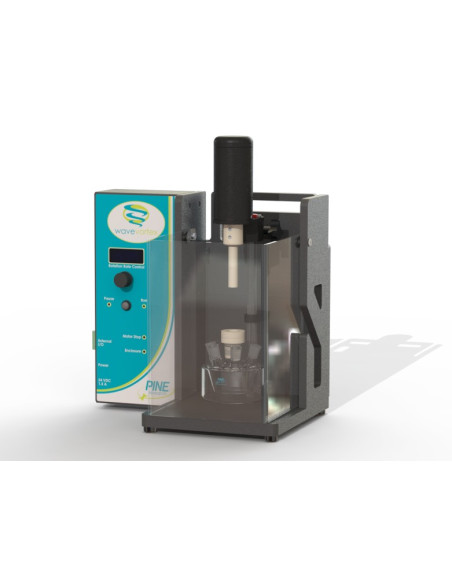

WaveVortex® 10 is a compact research-grade electrode rotator design from Pine Research.  With a small footprint, the WaveVortex 10 is the ideal instrument for precision Rotating Disk Electrode (RDE) and Rotating Ring-Disk Electrode (RRDE) experiments in laboratories with space constraints or when working inside a glovebox.  The WaveVortex 10 design combines the rotator, control unit, shaft, and enclosure in one convenient package.  WaveVortex 10 is compatible a wide variety of standard RDE and RRDE electrodes manufactured by Pine Research, along with many of our cells, glassware, and accessories.

-    Rotation Rate is adjustable up to 8000 RPM
-    Small footprint - easily installed in tight spaces
-    Compatible with a variety of Pine Research RDE and RRDE tip designs
-     Integrated Enclosure with Motor Interlock

help_outlineAsk for Quote

WaveVortex 10 Electrode Rotator, AF01WV10

I accept privacy policy rules



WaveVortex® 10 electrode rotator is designed to suit the needs of those looking to perform rotating disk (RDE) and rotating ring-disk (RRDE) electrode experiments with limited lab space.

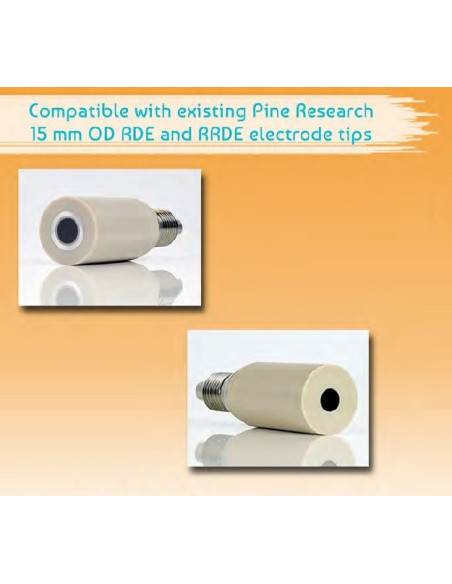

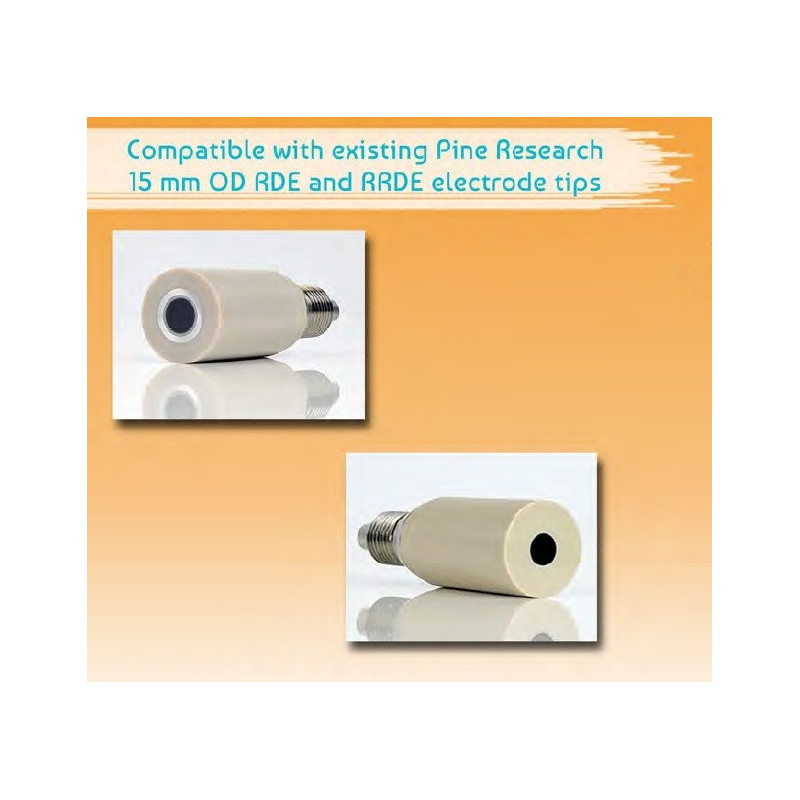

This small footprint rotator is compatible with any existing 15 mm OD RDE/RRDE electrodes manufactured by Pine Research, along with many of our cells, glassware, and accessories.

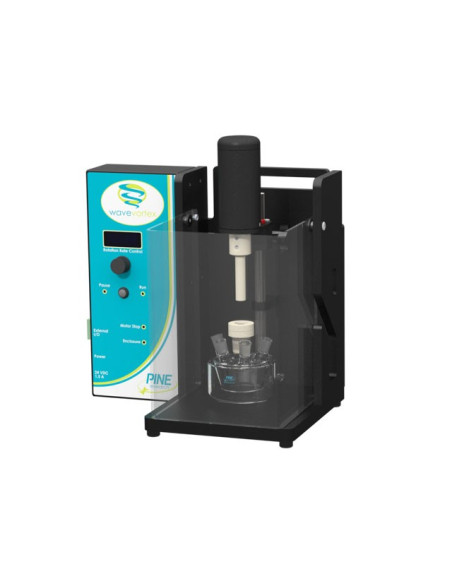

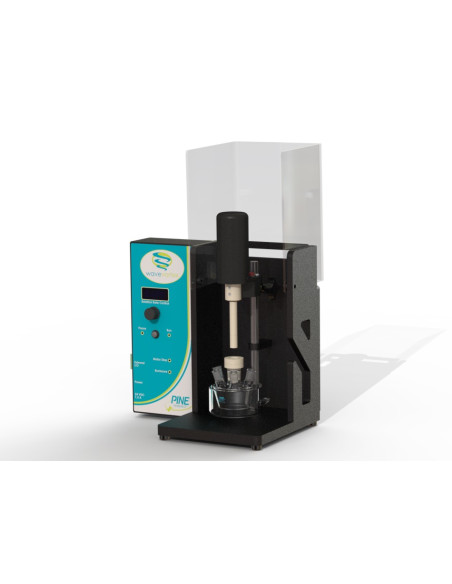

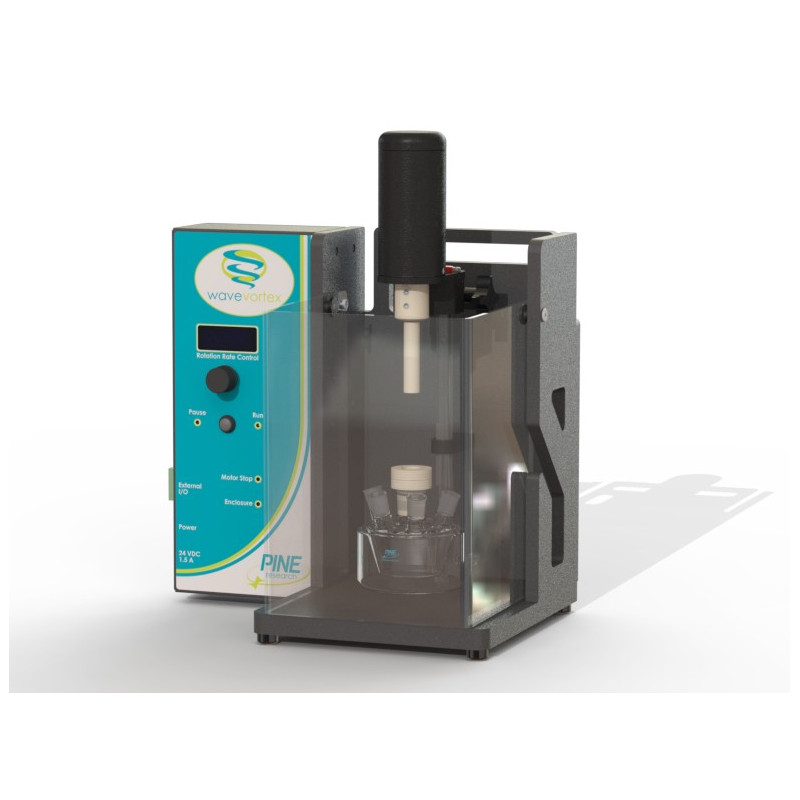

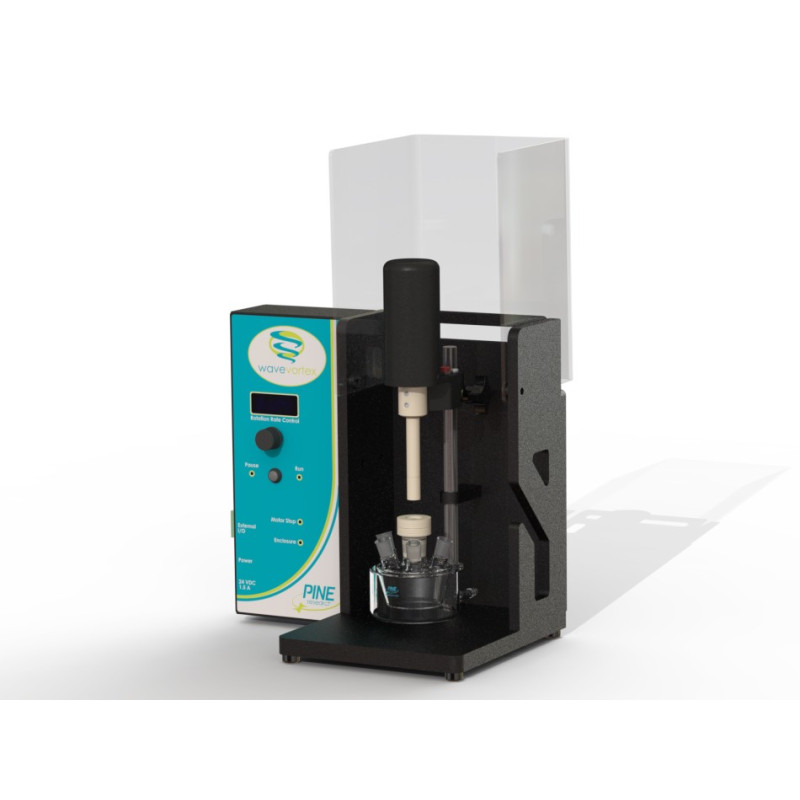

The Control box, motor, shaft, and enclosure are all fixed into one convenient unit, making the WaveVortex compact and easily moved around.
The rotation rate can be manually controlled on the front panel with digital display, as well as using an external voltage source from a potentiostat or other voltage source for secondary rotation rate control.

The Electrode connections are made to the rotating shaft using silver-carbon brushes. There are two contacts – the red is for the disk, and the blue is for the ring.

WaveVortex 10 is RoHS compliant.
