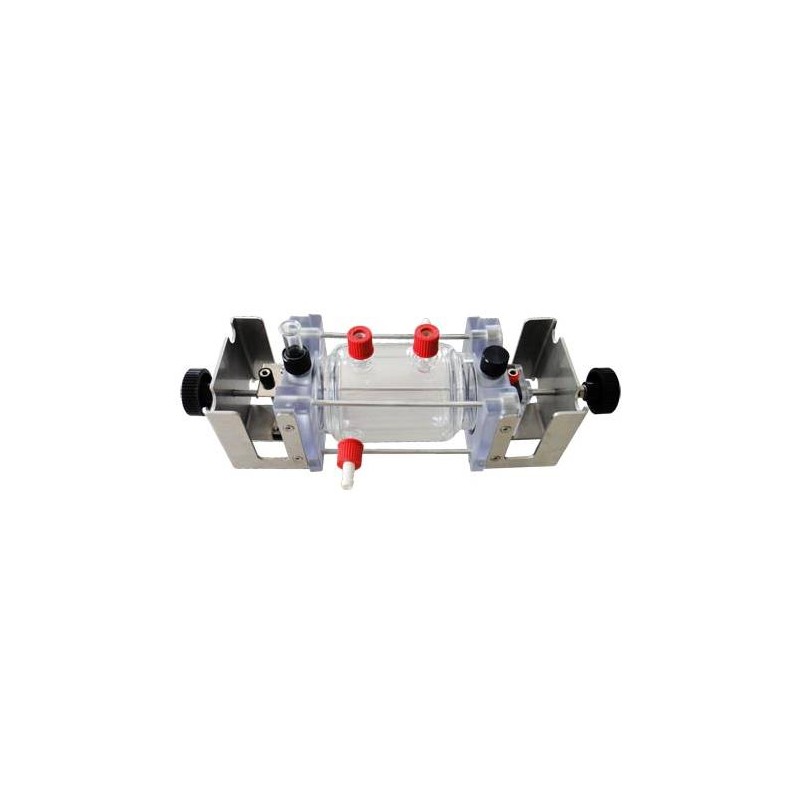

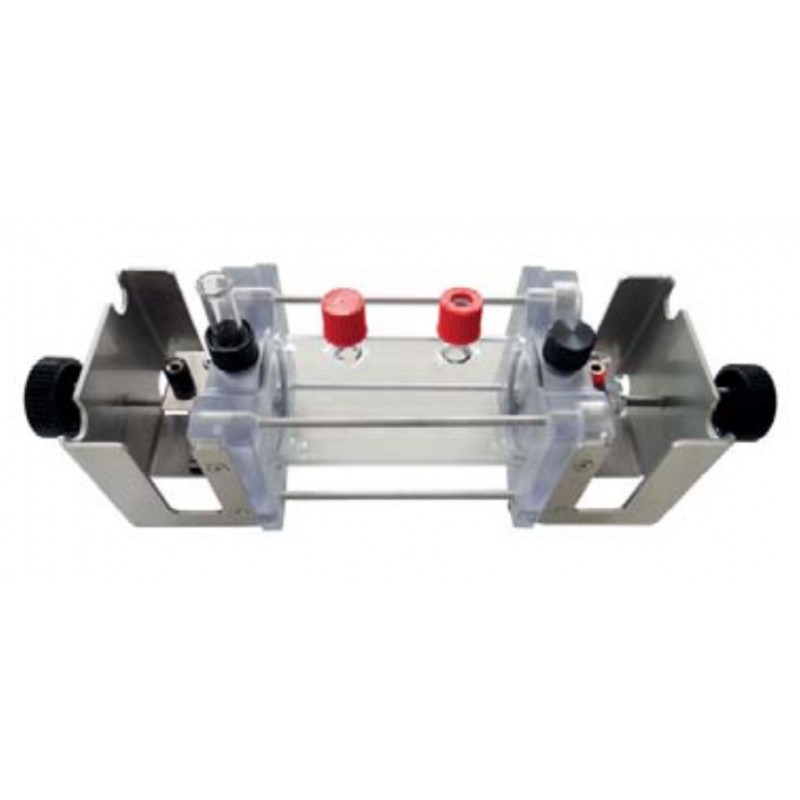

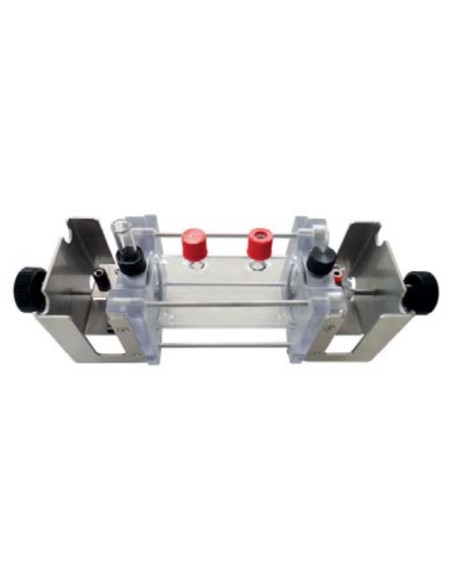

FCK2 Flat Cell Kit (Standard Type)

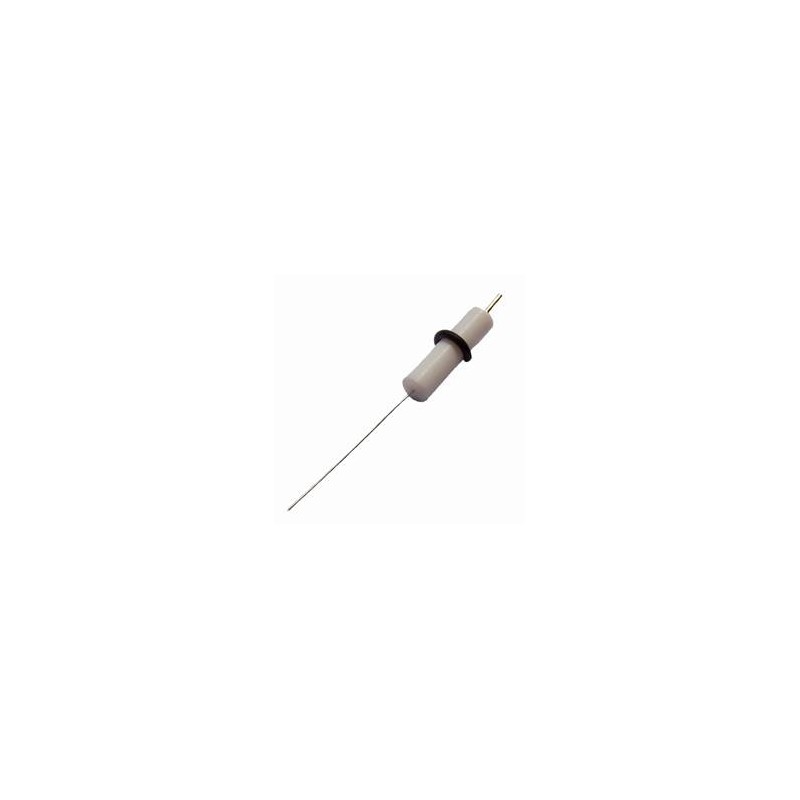

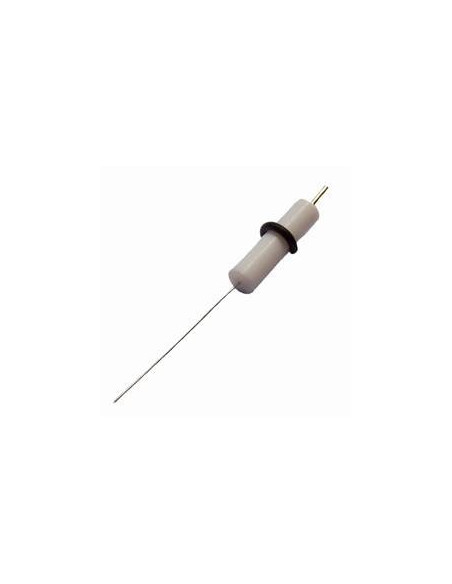

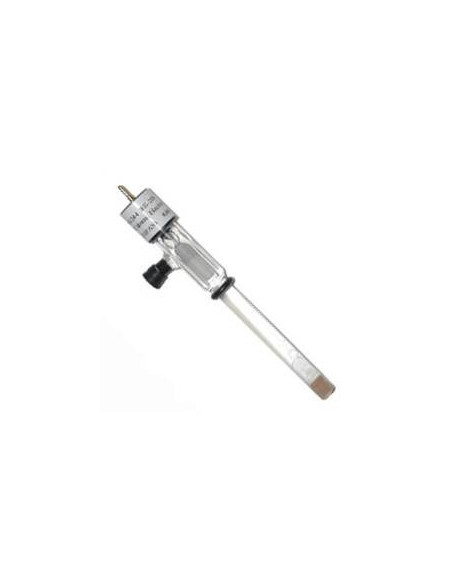

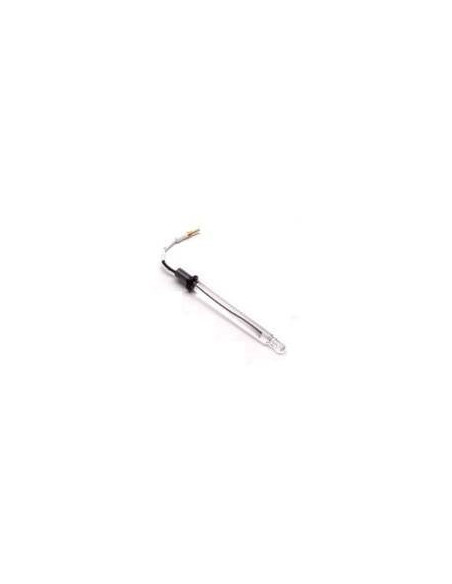

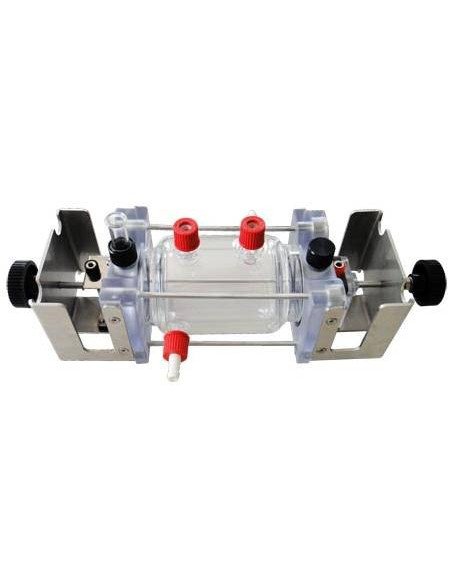

The flat cell kit was designed to evaluate plate material such as metal (coupons), semi-conducting plate, etc. A sample plate will be placed one sample holder by fixing knob and maximum 300ml sample volume is acceptable. A water jacketed version is also available. A graphite plate which is placed in one side of the cell is supplied with a cell and can be used as a counter electrode. A Luggin capillary is also included while a reference electrode should be purchased separately. Instead of graphite plate, a platinum wire can be also used as counter electrode by putting through either of the ports on cell body. You can selecst PTC1 or PTC2 plate test cell kit for small solution volume.
