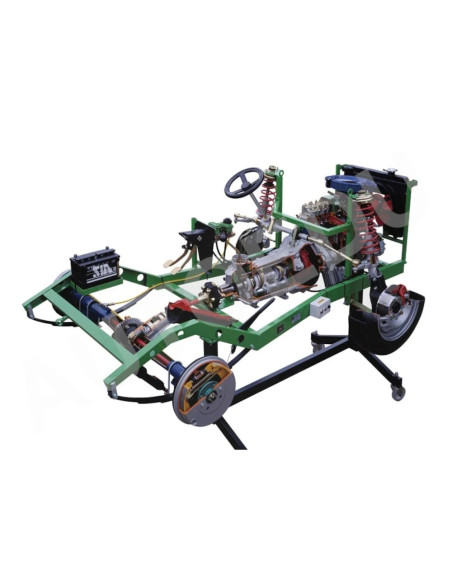

AE36160E Diesel engine with rear wheel drive chassis and lights system cutaway educational trainer

► Equipped with a hypoid differential, a dual-circuit braking system with front disc and rear drum brakes, leaf-spring rear suspension, and a front McPherson strut suspension, it offers comprehensive hands-on learning.

► Rack-and-pinion steering completes the functional design, and the trainer is mounted on a mobile stand with exposed sections for detailed examination of the engine, lubrication, fuel, and cooling systems.

► Featuring a working lighting system that includes running lights, rear fog lights, reverse and hazard lights, the electrical controls are mounted on a dash with warning lights.

► Student Value

● Detailed understanding of the 4-stroke, 4-cylinder diesel engine, allowing for the study of internal combustion processes and the function of the mechanical and fuel systems.

● It allows for hands-on learning in diagnosing and troubleshooting common engine problems, with a focus on understanding mechanical transmissions, rear-wheel drive mechanics, and clutch operation.

● It facilitates the study of hydraulic brake systems, including dual-circuit power assist, front disc brakes, and rear drum brakes, allowing students to understand brake operating principles, force distribution, and safety protocols.

● It provides a platform for exploring real-life automotive electrical and lighting systems, ensuring a comprehensive learning experience.

● It enhances the understanding of suspension and steering dynamics, helping students master key concepts in automotive design and maintenance.

► Value for Instructors

● It provides a fully operational cutaway model, allowing clear demonstrations of engine and chassis operation, helping to effectively convey complex automotive principles to students.

● Manufactured with galvanized and chrome-plated parts, this trainer ensures long-lasting durability and consistent performance, minimizing maintenance requirements and maximizing instructional time.

● The color-coded and professionally painted components help teachers clearly differentiate between systems, enhancing the educational impact of each session.

● Mounted on a mobile stand with wheels, the trainer is easy to position and integrate into various classroom settings, facilitating interactive and collaborative learning.

● It requires minor adjustments to restore default parameters, making it easy to set up and start each lesson.

● It uses OEM components for easy, safe, and realistic training that mimics a real car.

● The sectional view shows the camshaft, valves, cylinders, crankshaft, oil pan, and water cooling pump, with lubrication and cooling circuits visible for functional study.

● The vehicle's chassis is visible, including leaf spring rear suspension, McPherson strut front suspension, shock absorbers, and subframe for suspension dynamics.

● Rack and pinion steering for studying the mechanical operation of the steering.

● Disc and drum brakes, handbrake, pedal, hydraulic pump, and cylinder for hydraulic braking operation.

● Gearbox gears, steering wheel, clutch, shift mechanism, and pedal are visible for studying the transmission and clutch.

● Color-coded components for clear system identification (lubrication, cooling, suspension, brakes) with color coding for enhanced learning.

● Electrical panel with functional warning lights and controls for studying the automotive electrical systems.

● Work lighting systems, including hazard, reverse, and fog lights, to understand vehicle lighting operation.

● Dimensions: 2200 x 1600 x 1150 mm (86.61 in x 62.99 in x 45.28 in)
● Weight: Approx. 420 kg (925 lb)
● Power: Operates at 220 volts (110 V US), with an electric motor for low-speed ● operation.
● Product number: AE36160E
