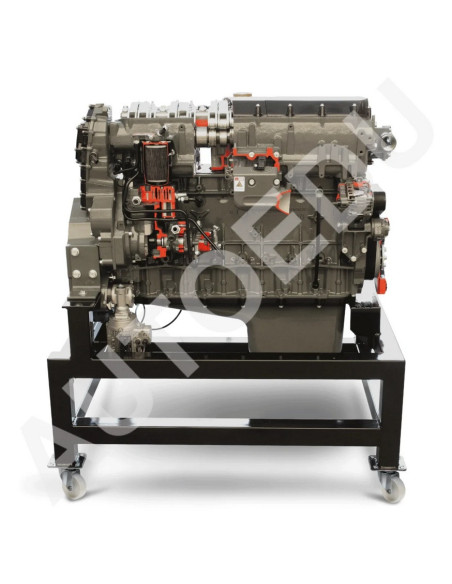

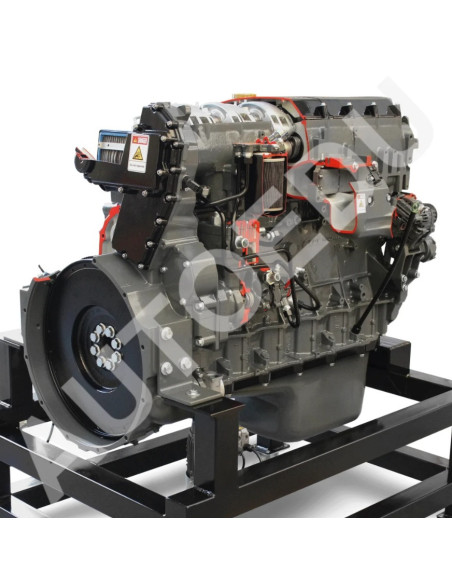

AE36083E Iveco diesel engine cutaway AutoEDU

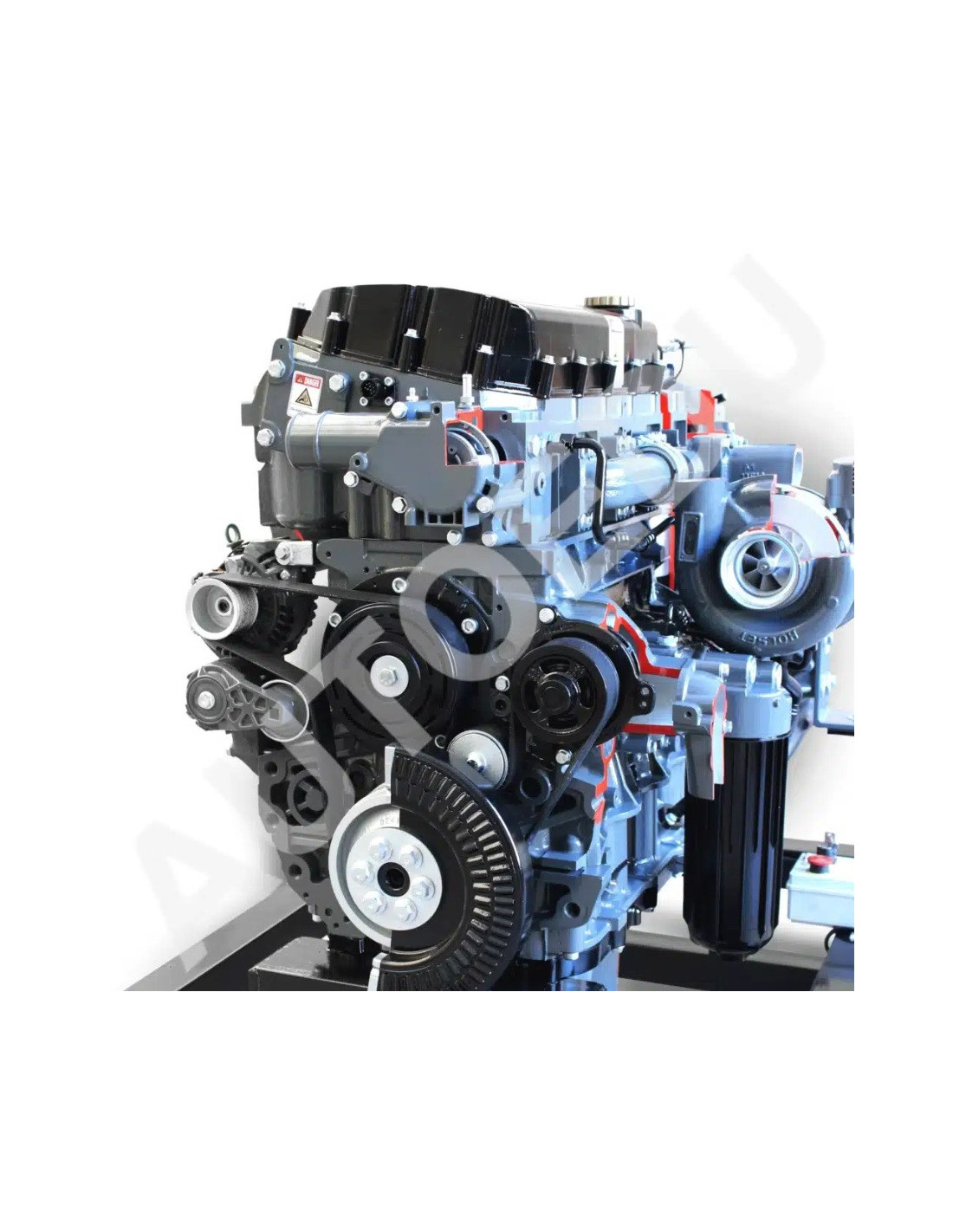

AE36083E Iveco truck diesel engine cutaway

Name: AE36083E Iveco truck diesel engine cutaway
Brand: Autoedu
SKU: AE36083E

Reference: AE36083E - Manufacturer: Autoedu

Cutaway educational trainer of a 6-cylinder Iveco Cursor diesel engine with turbocharger, water cooling, and electronic pump injectors.

Training application: truck diesel engine education, operation demonstration, maintenance, and diagnostics.

Ask for Quote

Iveco truck diesel engine cutaway training model

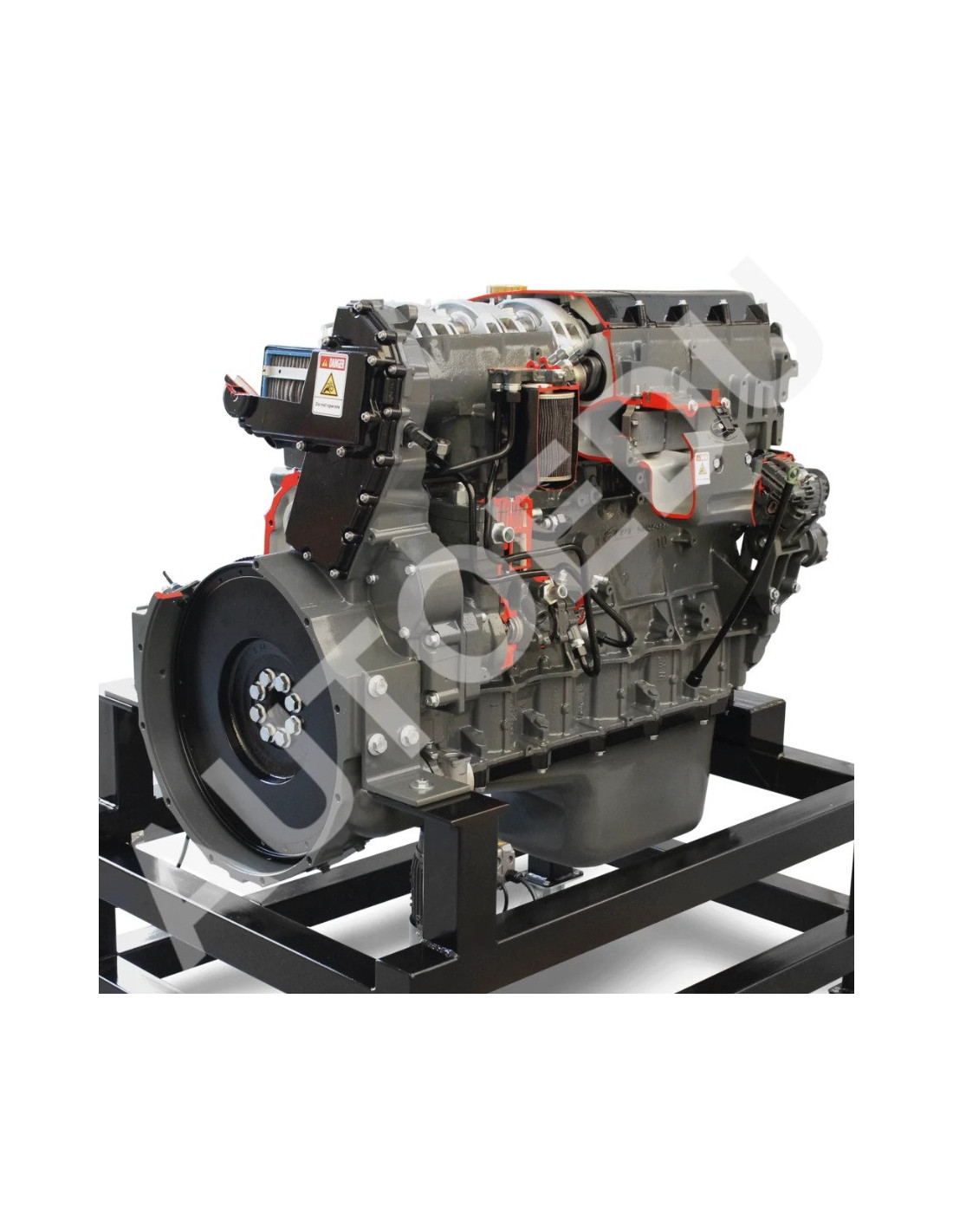

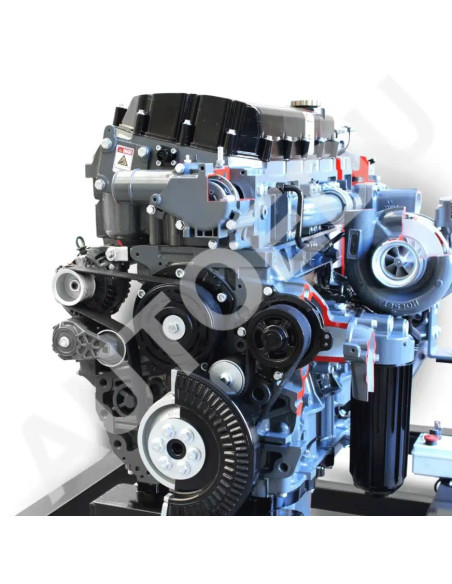

The AE36083E from AutoEDU is a cutaway educational trainer based on an Iveco Cursor 6-cylinder diesel truck engine. It is designed for automotive technical training and allows clear visualization of the architecture and internal operation of a large-displacement industrial diesel engine.

The unit features a 6-cylinder in-line diesel engine with a displacement of 7790/10380 cu cm depending on available configuration and a maximum power output of 310/450 hp. Movement of the mechanical components is simulated by a 220V electric motor, enabling safe and repeatable demonstrations in classrooms, laboratories, and training centers.

Complete visualization of internal systems

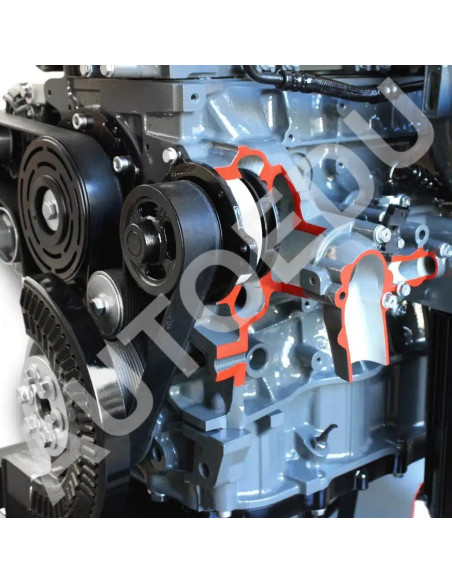

The cutaway model reveals multiple engine components and internal circuits, allowing students and instructors to study in detail the layout and functional relationship of the internal elements. Visible systems include the lubricating circuits, the fuel system, and the water cooling system.

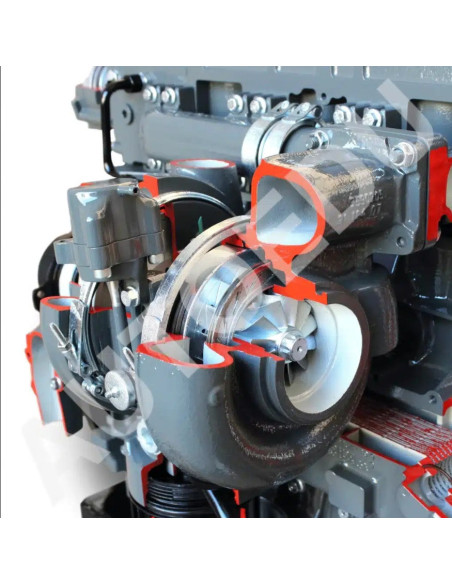

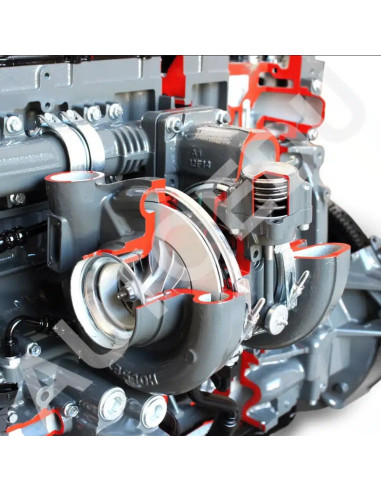

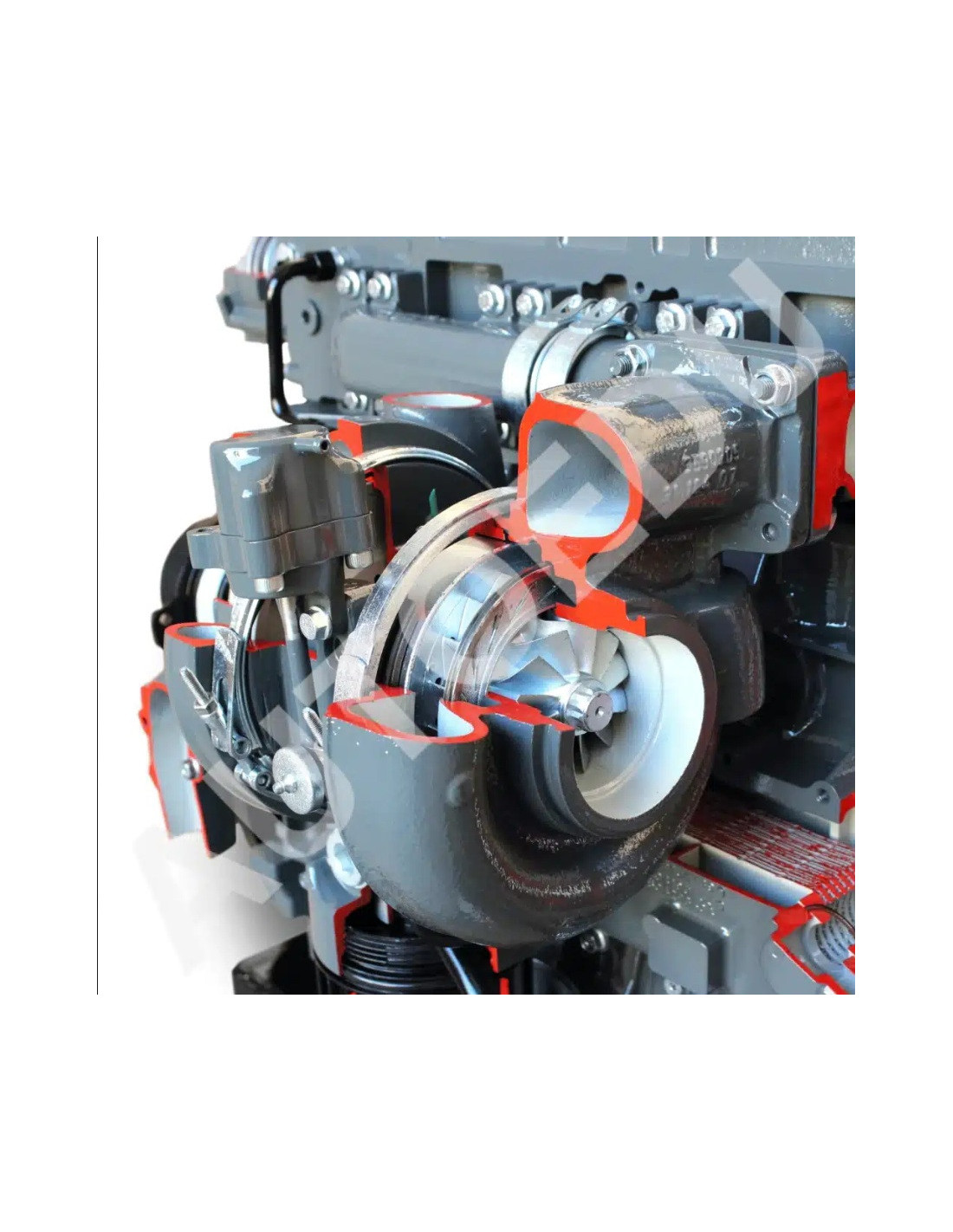

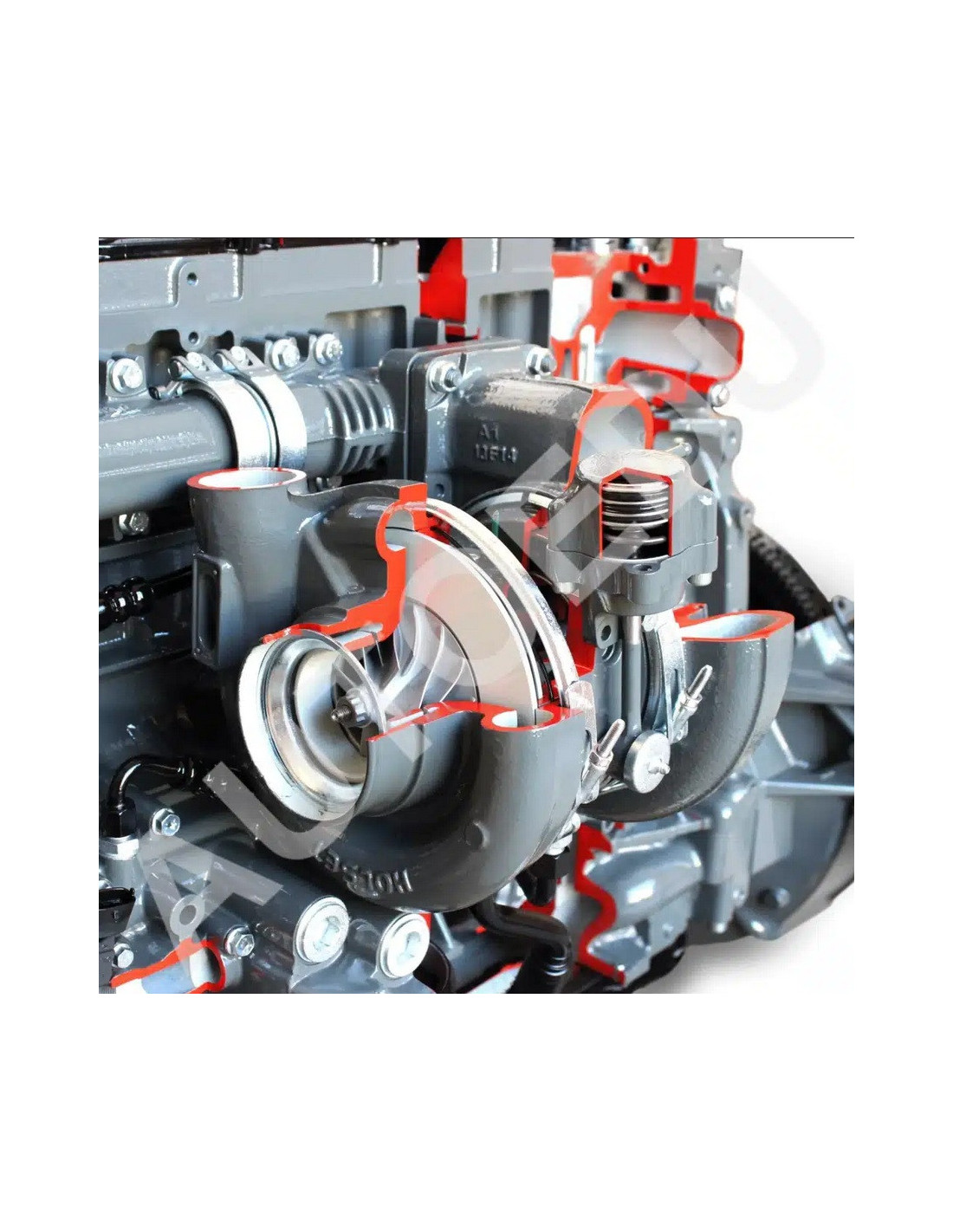

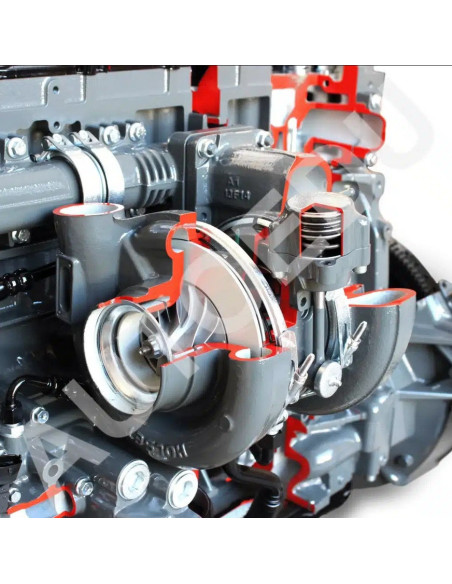

The engine includes electronically controlled pump injectors and a turbo-compressor, making it a valuable trainer for explaining diesel injection technology and forced induction systems used in commercial vehicles.

Training value for automotive education

Thanks to its cutaway construction, the AE36083E improves visual understanding of engine design, fluid routing, and subsystem interaction. It is well suited for universities, technical colleges, vocational centers, and automotive laboratories that require durable educational equipment for teaching truck diesel engines.

The electrically simulated movement enhances practical demonstration and supports lessons on maintenance, diagnostics, and general engine operation.

Specifications

Reference: AE36083E.
Manufacturer: AutoEDU.
ASE category: A1.
Product type: diesel engine cutaway trainer.
Base engine: Iveco Cursor 6-cylinder diesel engine.
Engine configuration: 4-stroke, 6 in-line cylinders, 4 valves per cylinder.
Displacement: 7790/10380 cu cm depending on available configuration.
Maximum power: 310/450 hp depending on available configuration.
Simulation power supply: 220V electric motor, 110V US version.

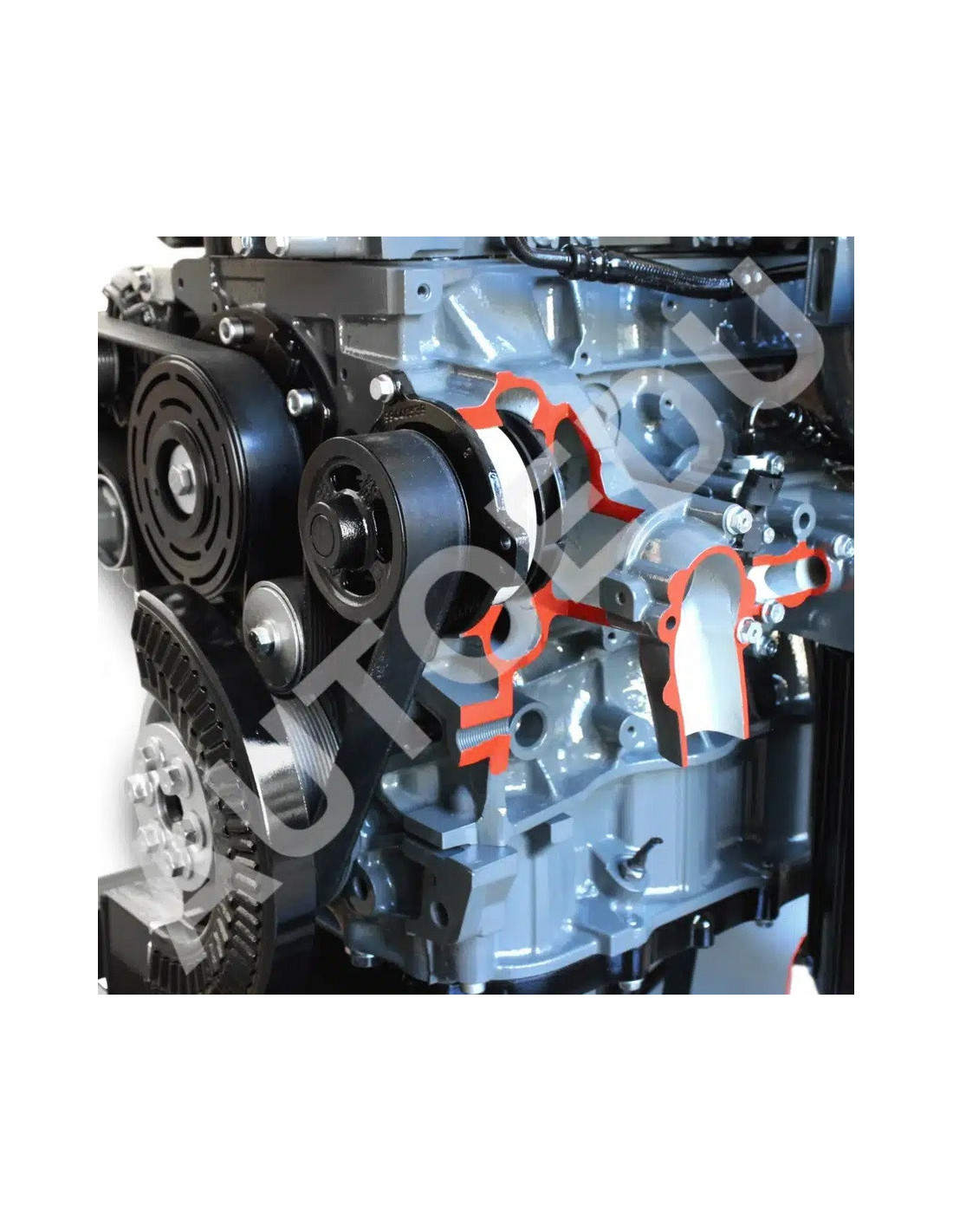

Cooling system: water cooling.
Forced induction: turbo-compressor.

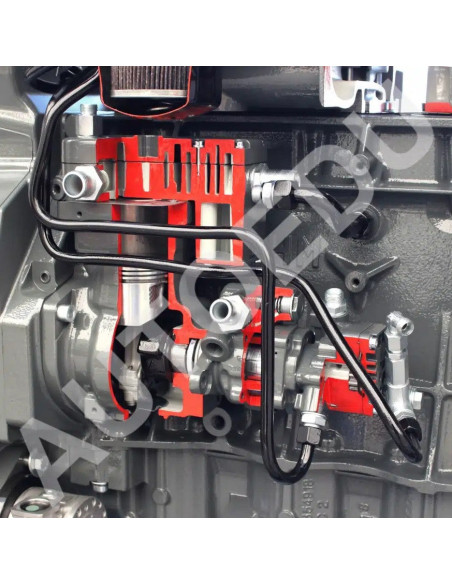

Injection system: electronically controlled pump injectors.
Visible cutaway systems: lubricating circuits, fuel system, and cooling system.

This training model helps students understand how modern diesel engine systems interact and provides instructors with a practical tool for demonstrating operation, diagnosis, and troubleshooting in automotive and technical education environments.

This fully functional cutaway trainer is based on a 6-cylinder diesel engine with electronically controlled pump injectors, allowing students to study fuel delivery, combustion, turbocharging, cooling, and lubrication systems in a clear and practical way.

Powered by a 220 V electric motor, or 110 V for the US version, the engine runs at reduced speed for safe observation of the complete 4-stroke cycle and the movement of internal mechanical components.

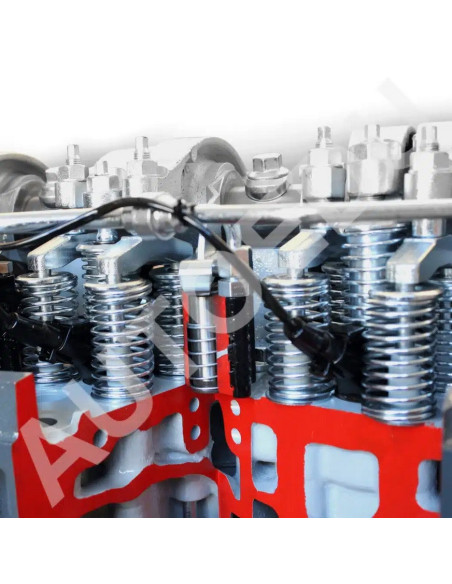

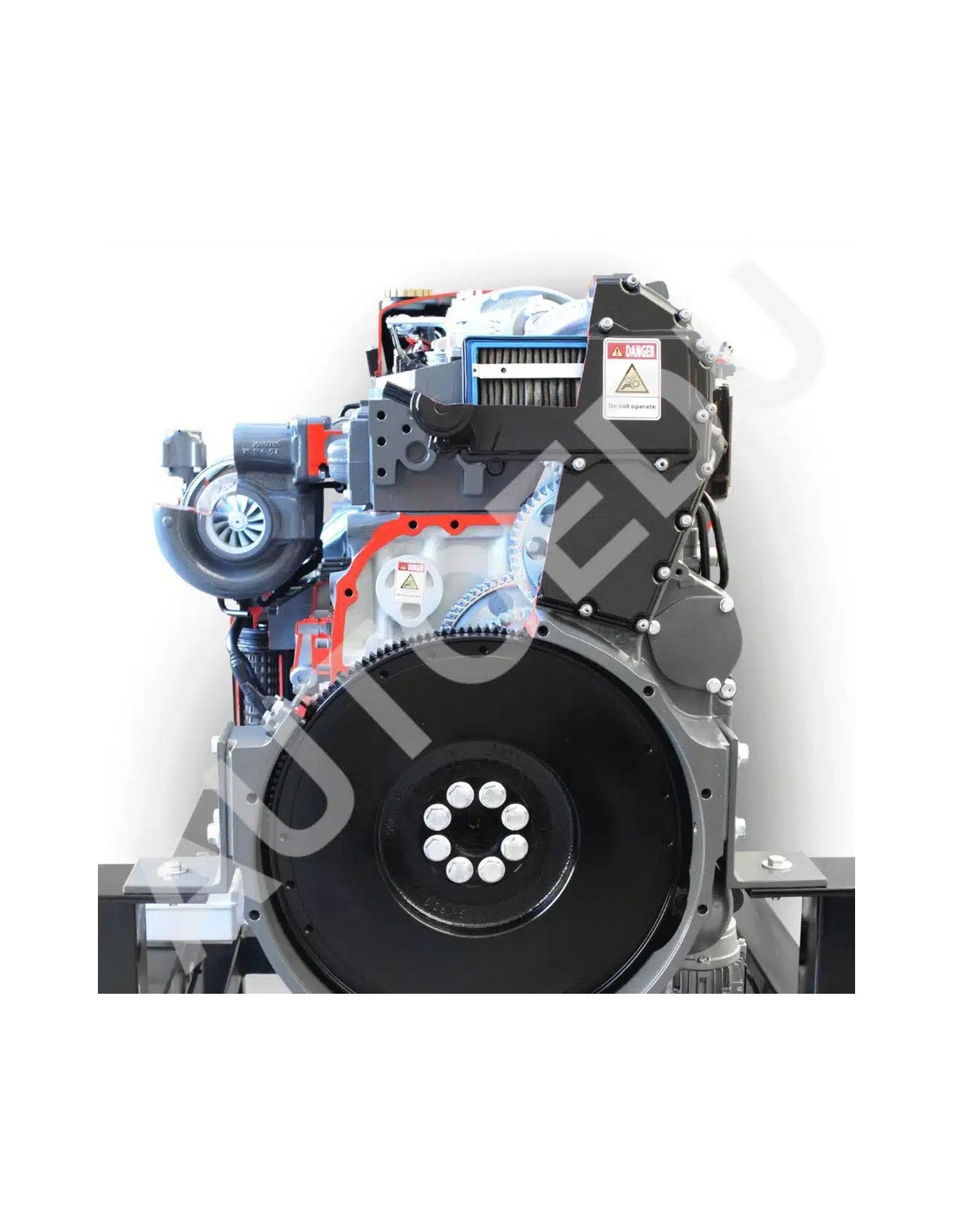

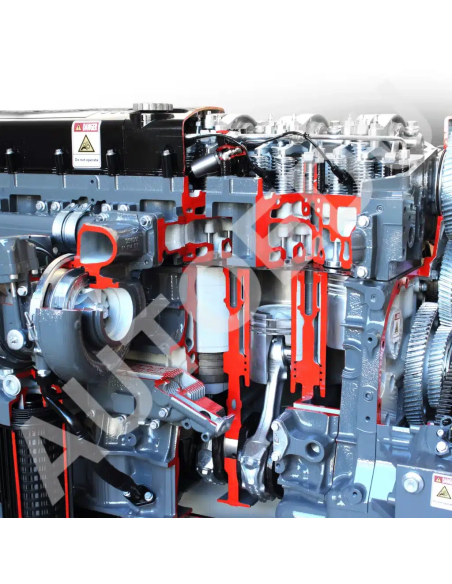

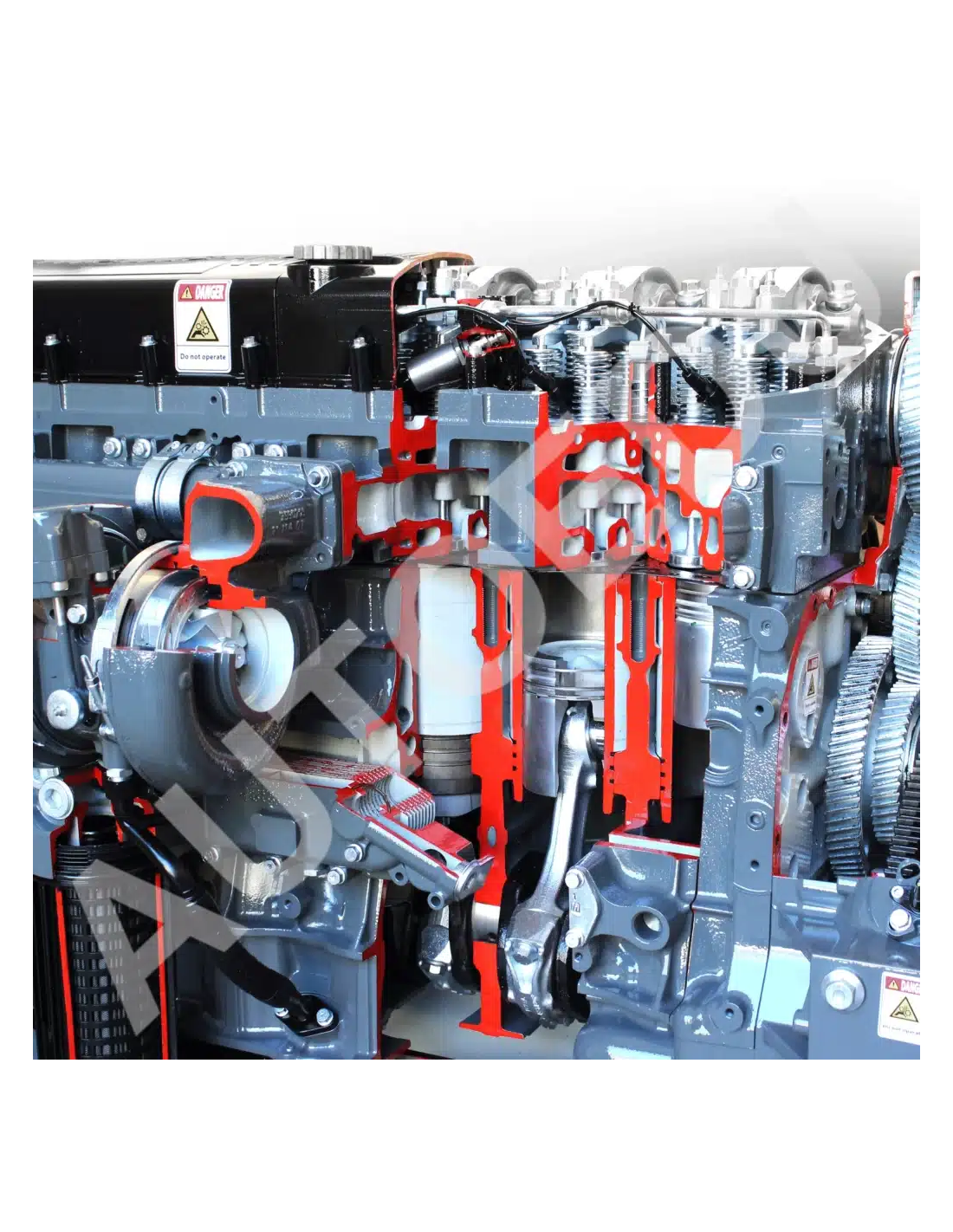

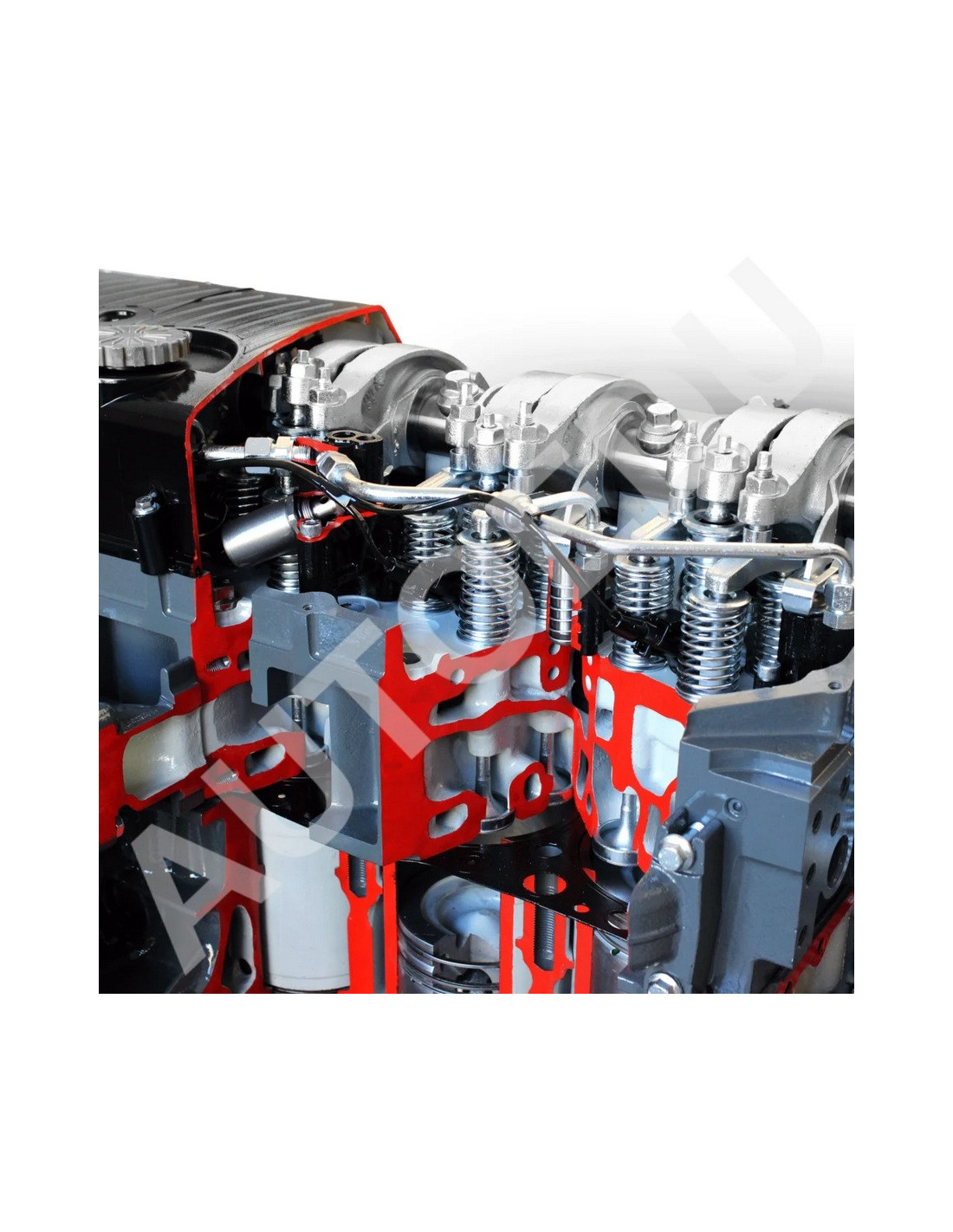

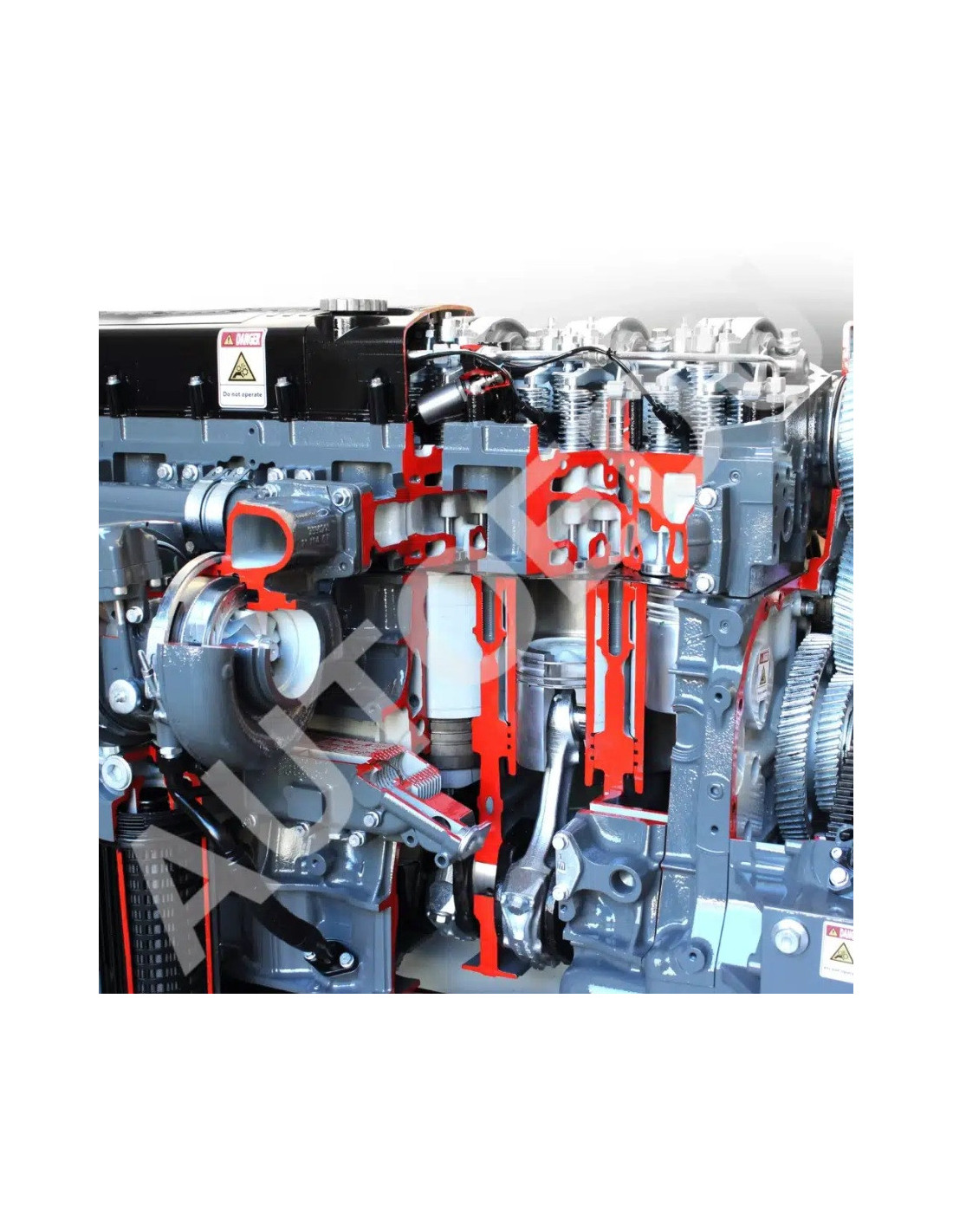

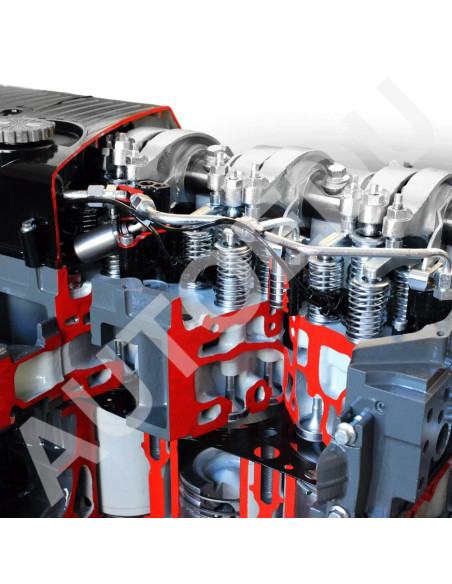

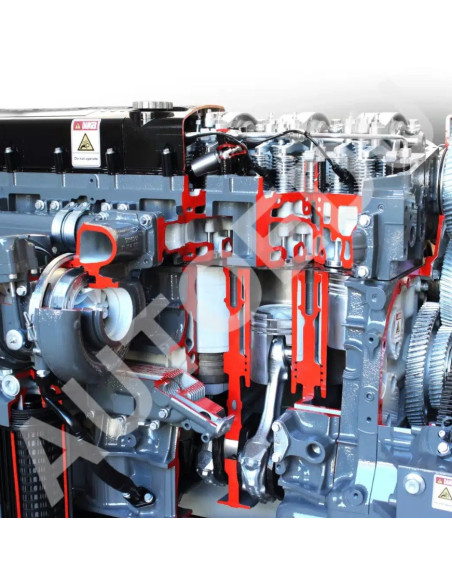

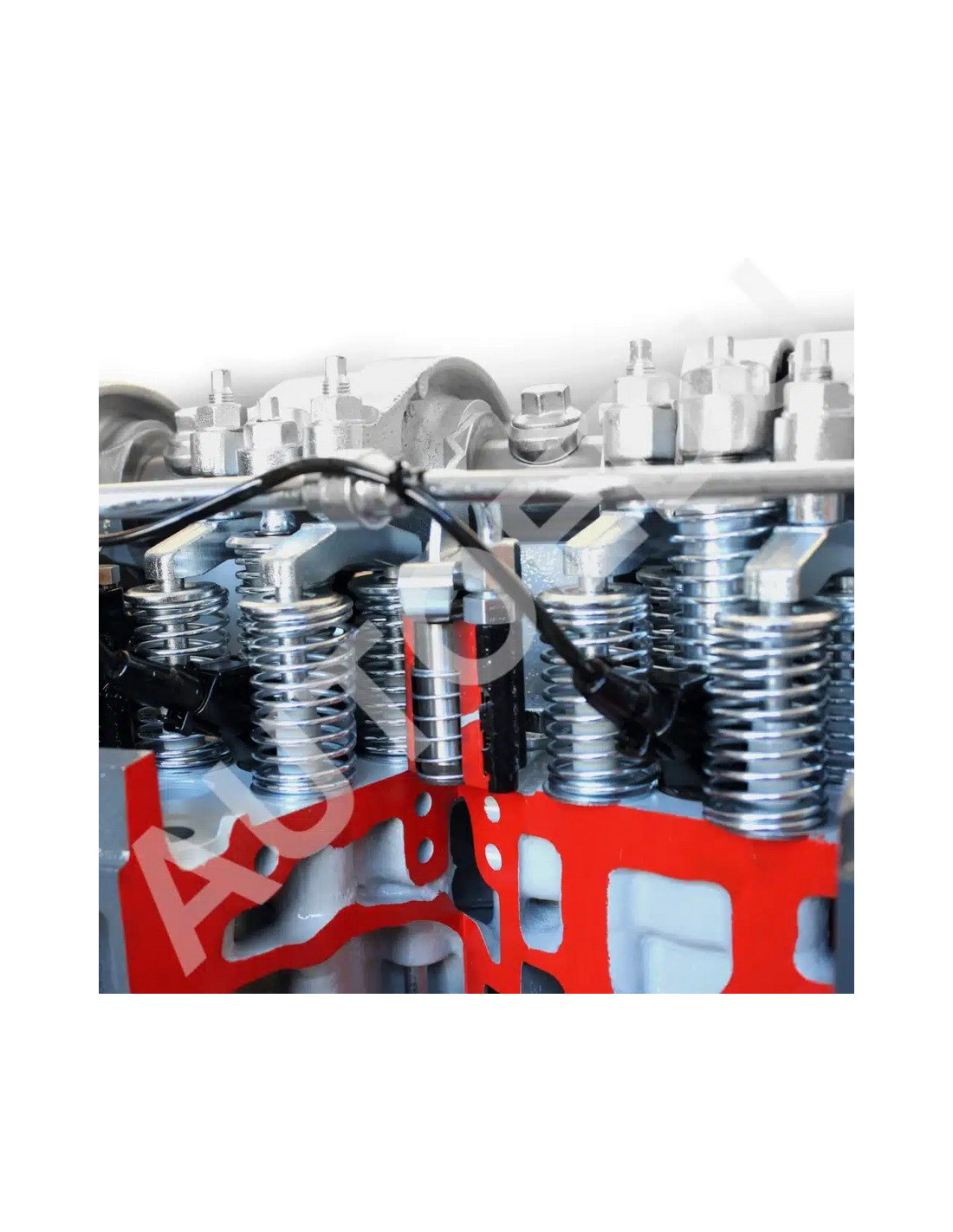

The sectioned and colour-coded design makes it easy to identify key systems such as the turbocharger, water-cooling circuit, lubrication circuit, fuel system, valves, cylinders, and electronically controlled preheating devices.

This cutaway OEM Iveco Cursor diesel engine trainer provides students with a realistic, hands-on learning experience for studying modern diesel engine technology and automotive mechanics.

Its sectioned and colour-coded design allows clear demonstration of key systems, including fuel injection, lubrication, cooling, turbocharging, and electronically controlled pump injectors. This makes complex engine functions easier to understand during practical training.

The engine operates at reduced speed using a 220 V power supply, or 110 V for the US version, ensuring safe observation of mechanical movement and system interaction.

Students can analyse engine operation, identify the function of each component, and develop basic diagnostic and troubleshooting skills through direct visual observation.

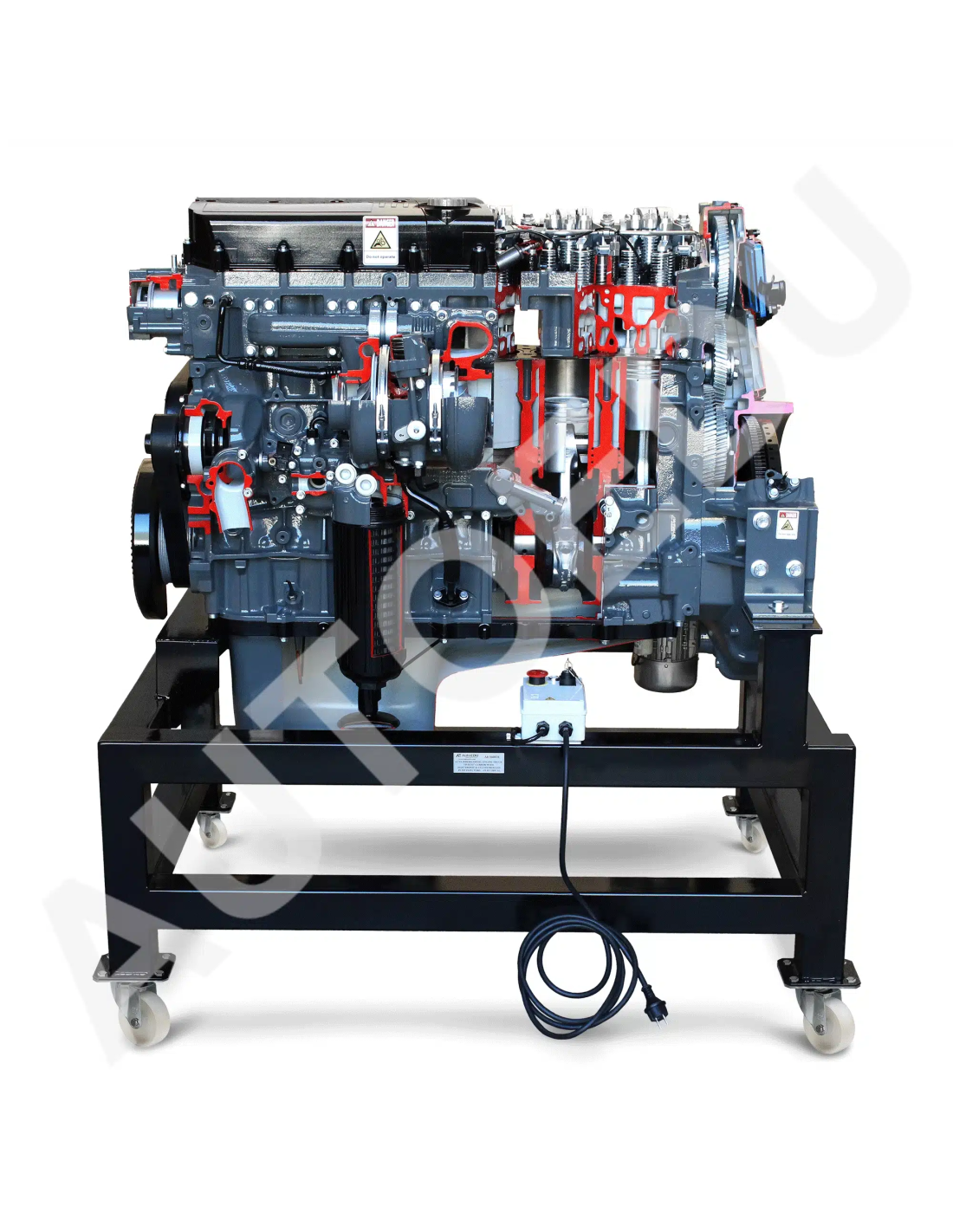

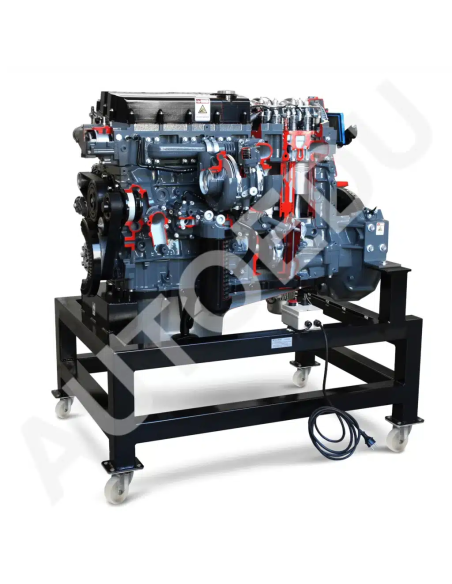

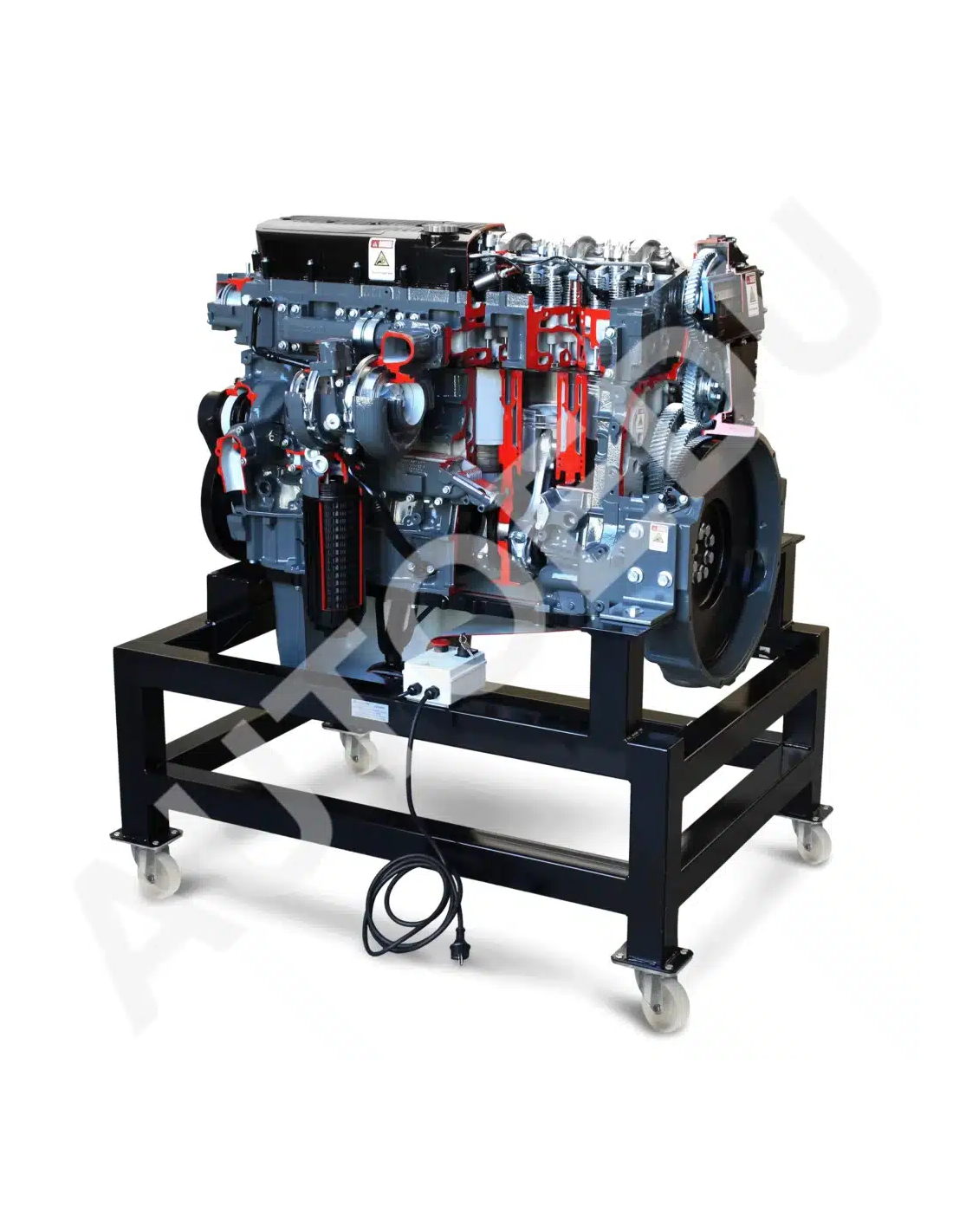

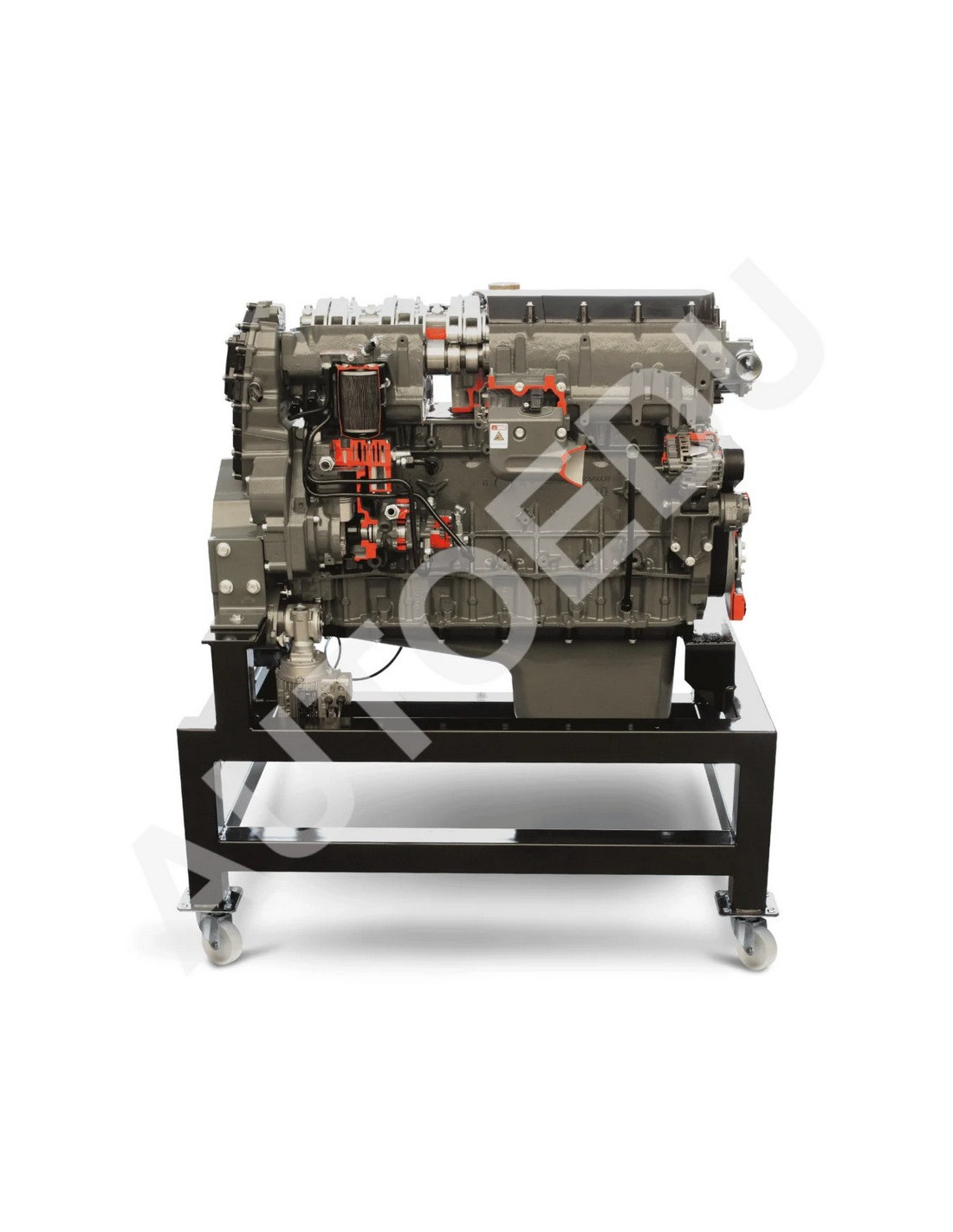

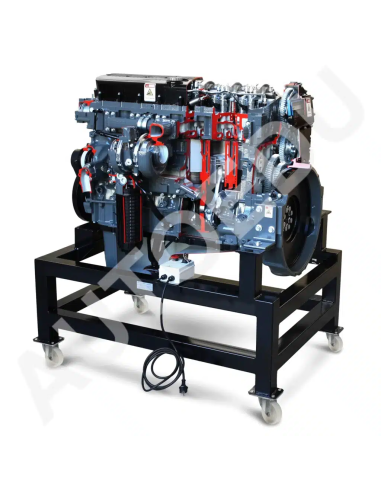

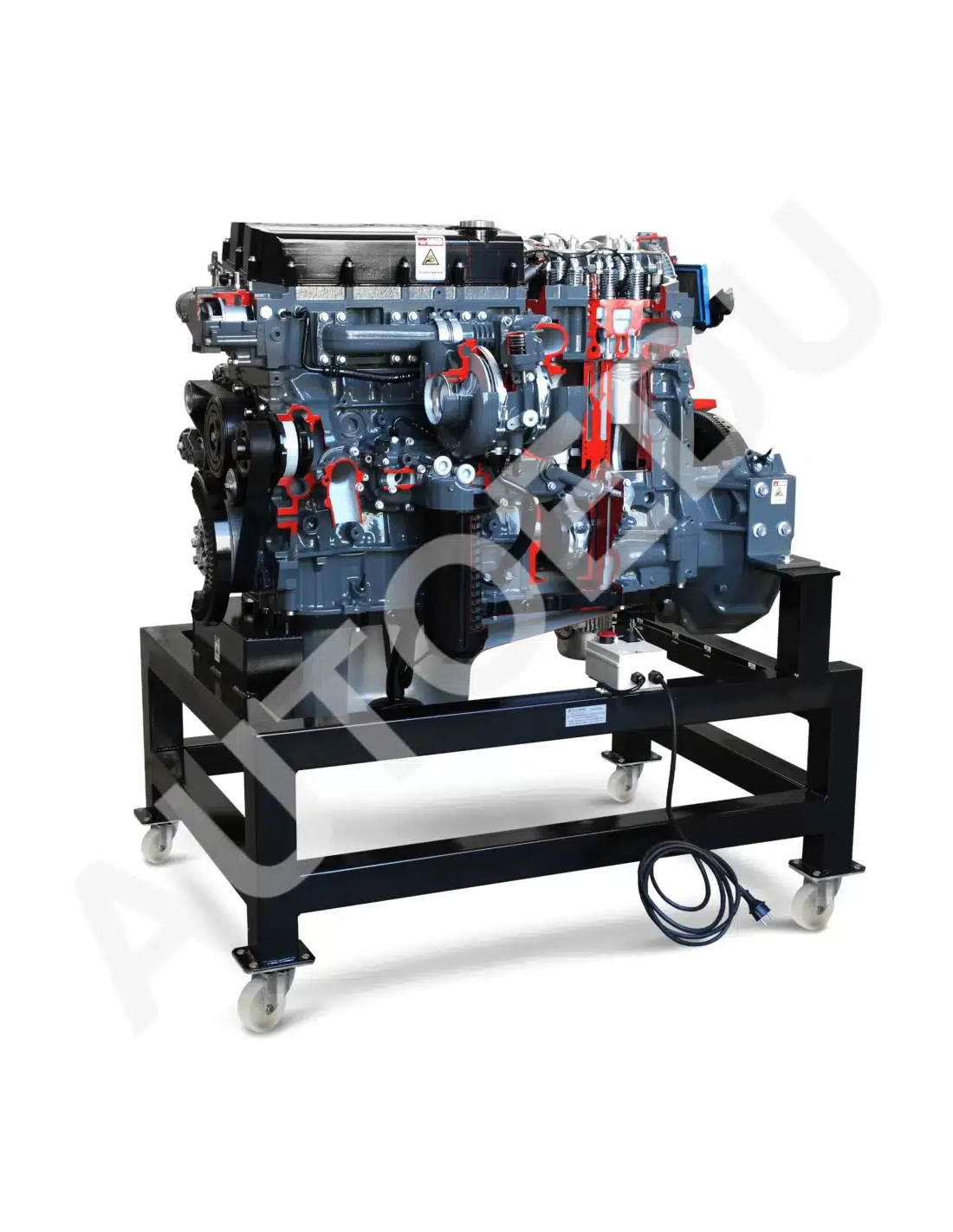

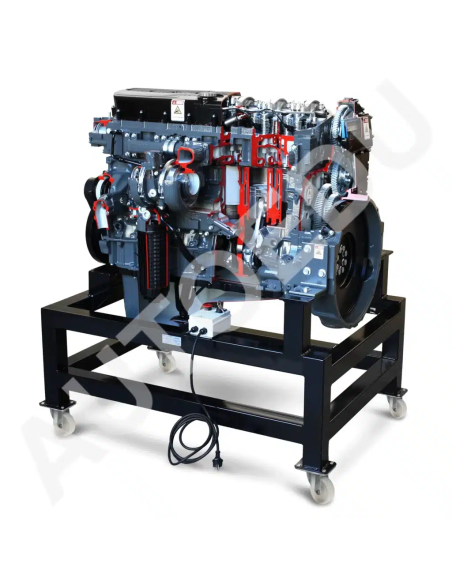

Mounted on a mobile stand with wheels, the trainer can be easily moved and integrated into classrooms, workshops, and technical training laboratories.
