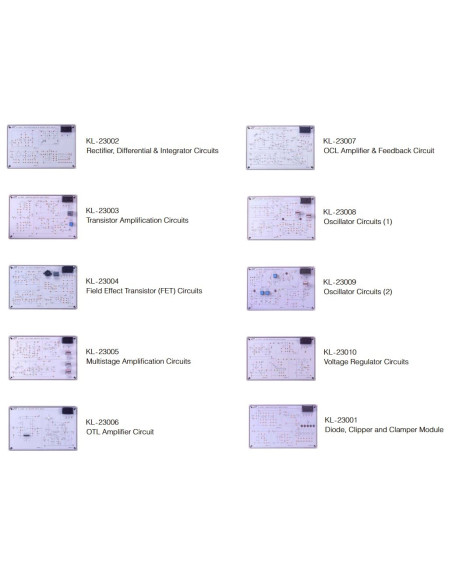

Some of the 17 Electronic Circuits Lab experiment Modules

KL-200 Laboratory for Electronic Experiments with Linear Circuits (2)

Name: KL-200 Laboratory for Electronic Experiments with Linear Circuits (2)
Brand: KandH
SKU: KL-200

Reference: KL-200 - Manufacturer: KandH

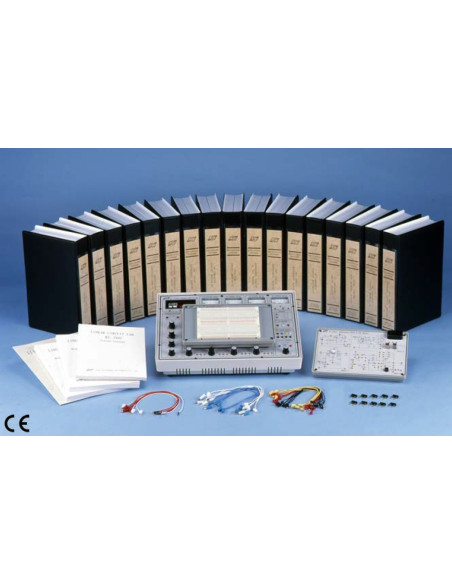

The KL-200 Linear Circuit Lab(2) - Electronic Circuits Lab is a comprehensive and self-contained system suitable for anyone engaged in electronic circuit experiments.

Ask for Quote

► The KL-200 Linear Circuit Lab(2) - Electronic Circuits Lab is a comprehensive and self-contained system suitable for anyone engaged in electronic circuit experiments.

► All the necessary equipment for electronic circuit experiments such as power supply, function generator, analog and digital meters are installed on the main unit.

► The 17 modules cover a wide range of essential topics for electronics circuit. It is a time and cost saver for both students and engineers interested in developing and testing prototype circuits.

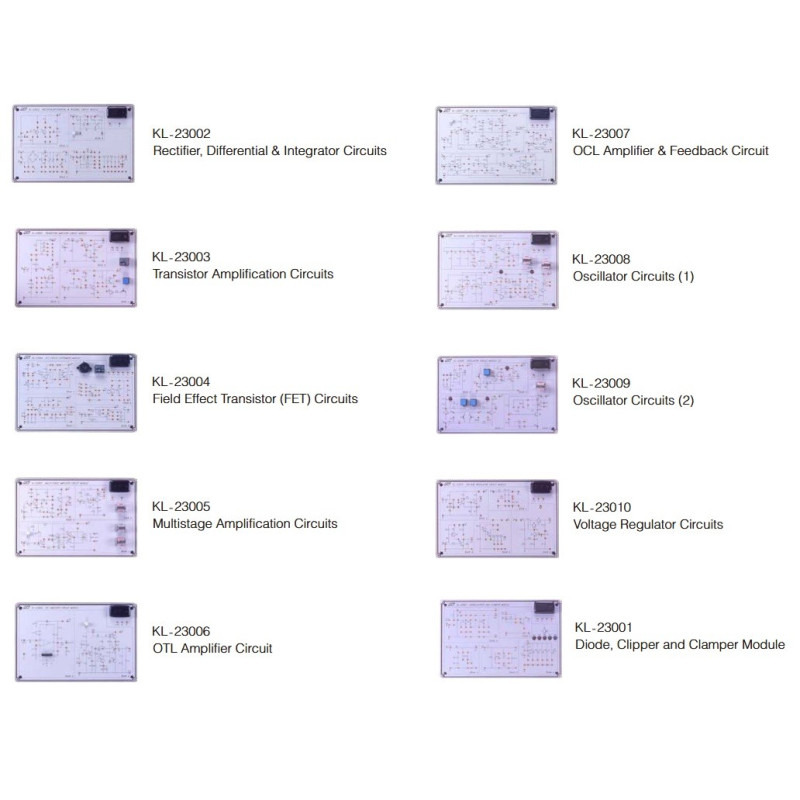

The KL-200 Linear Circuits Lab - Electronic Circuits LAB includes the following 17 experiment modules:

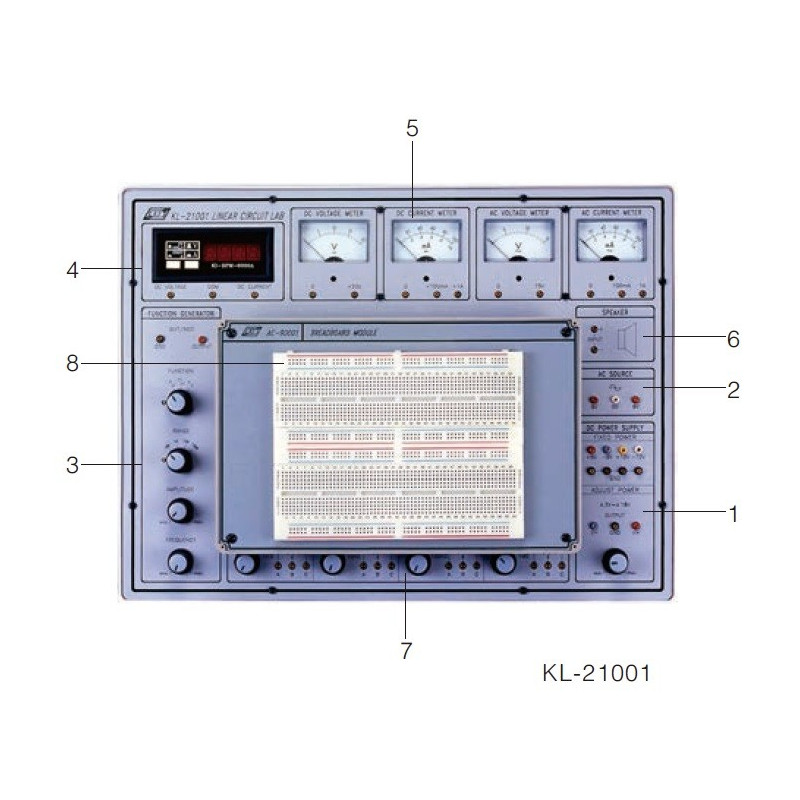

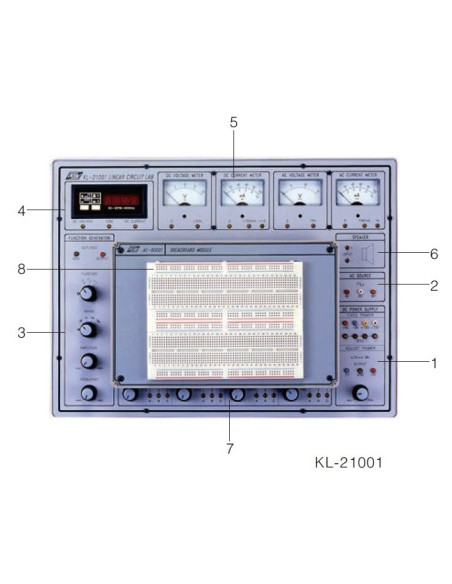

KL-21001 MAIN UNIT
KL-23001 DIODE, CLIPPER AND CLAMPER MODULE
KL-23002 RECTIFIER, DIFFERENTIAL & INTEGRATOR CIRCUITS
KL-23003 TRANSISTOR AMPLIFICATION CIRCUITS
KL-23004 FIELD EFFECT TRANSISTOR (FET) CIRCUITS
KL-23005 MULTISTAGE AMPLIFICATION CIRCUITS
KL-23006 OTL AMPLIFIER CIRCUIT
KL-23007 OCL AMPLIFIER & FEEDBACK CIRCUIT
KL-23008 OSCILLATOR CIRCUITS (1)
KL-23009 OSCILLATOR CIRCUITS (2)
KL-23010 VOLTAGE REGULATOR CIRCUITS
KL-23011 VOLTAGE REGULATOR & AMPLITUDE MODULATION (AM) CIRCUITS
KL-23012 FREQUENCY MODULATION (FM) & OP AMPLIFIER CIRCUITS
KL-23013 OP AMPLIFIER CIRCUITS (1)
KL-23014 OP AMPLIFIER CIRCUITS (2)
KL-23015 OP AMPLIFIER CIRCUITS (3)
KL-23016 OP AMPLIFIER CIRCUITS (4)
KL-23017 OP AMPLIFIER CIRCUITS (5)
KL-28002 ACCESSORIES

The user must provide locally the following items for operating the KL-200:
►PC/ LAPTOP
►DIGITAL MULTIMETER
►DIGITAL STORAGE OSCILLOSCOPE

1. Characteristics of Diodes

2. Clipping and Clamping Circuits with Diodes

3. Rectifier Circuits

4. Differential and Integrator Circuits

5. Transistors

6. Transistor Amplification Circuits

7. Field Effect Transistors (FET)

8. FET Amplification Circuits

9. Multi - Stage Amplification Circuits

10. Transistor Negative Feedback Circuits

11. Transistor Positive Feedback Circuits

12. Regulated Voltage / Constant Current Circuits

13. Modulation and Demodulation

14. OP Amplifiers

15. Basic Characteristics of OP Amplifier

16. Basic Characteristics of OP Amplifier (1) - Negative Feedback

17. Basic Characteristics of OP Amplifier (2) - Negative Feedback

18. Basic Characteristics of OP Amplifier - Positive Feedback

Ideal for electronic circuit experiments and designing exercises
Integrated experimental circuit and trainer with comprehensive experiment curriculum
Supply complete training device easy and effective for experiments
With universal breadboard for circuit designing and prototypes
All modules equipped with an 8-bit DIP switch for fault simulations
Individual keeping case for all modules easy carrying and storage facilities

◆ We would like to introduce the pre-circuited systems with a complete step-by-step experiment manual, which enables students to learn efficiently.
◆ In addition to hardware experiments, we also provide material for students to do some simulation software experiments.
◆ Below is a demo video; first an experiment is performed by hardware and then the same experiment is performed again by software. This will help students in their learning.
◆ Students can then split into 2 groups and take turns using the hardware or software, especially during mobility restrictions.
