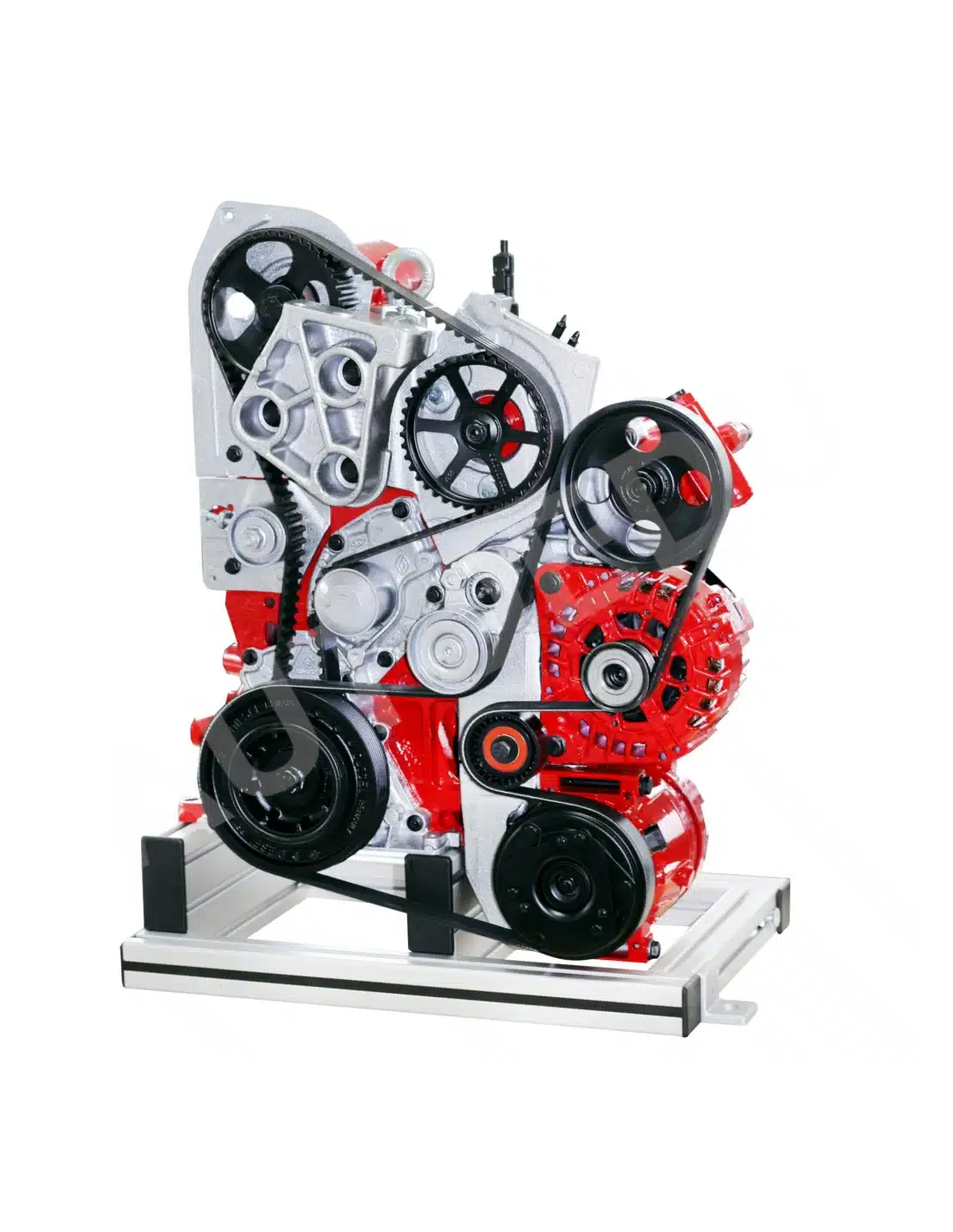

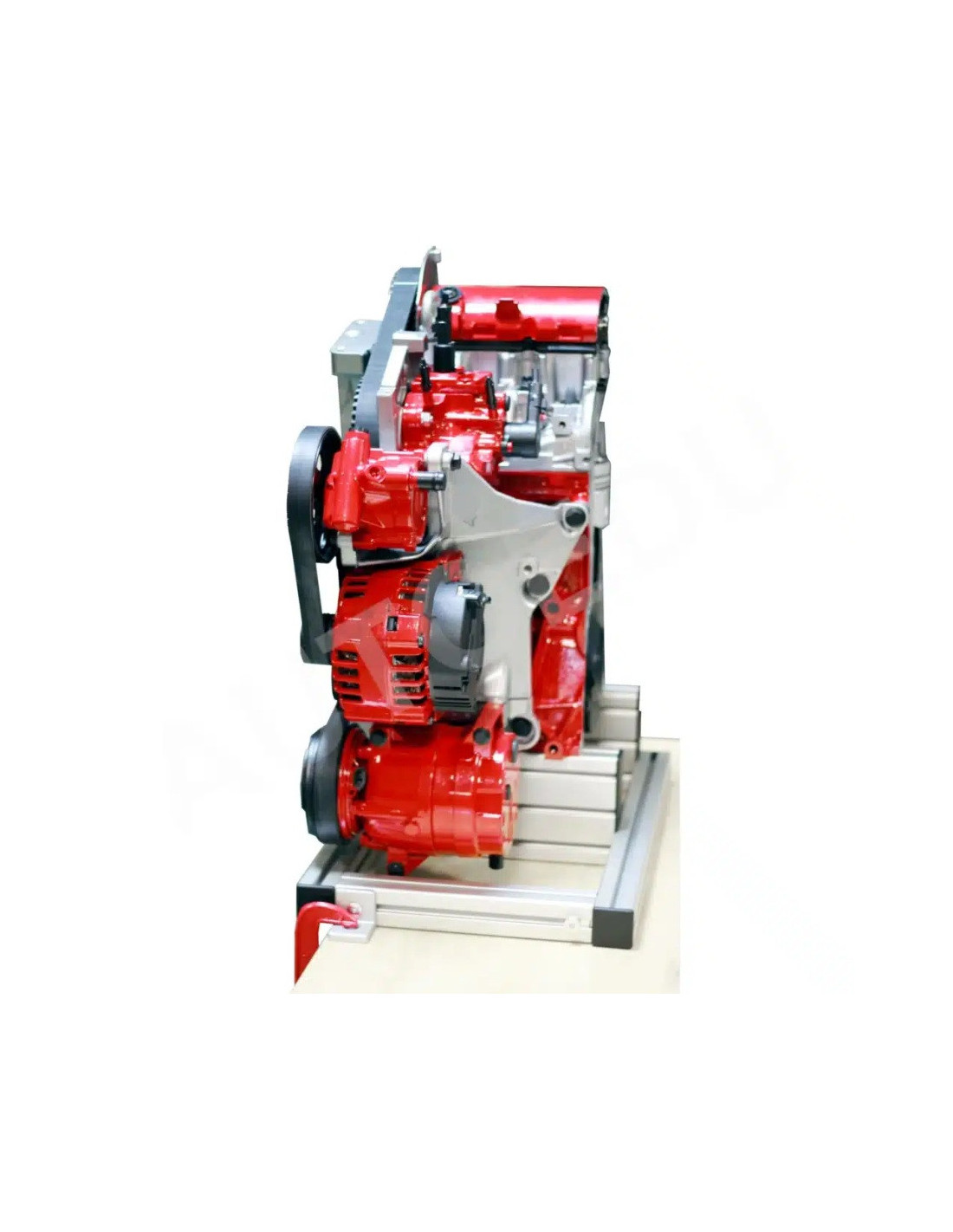

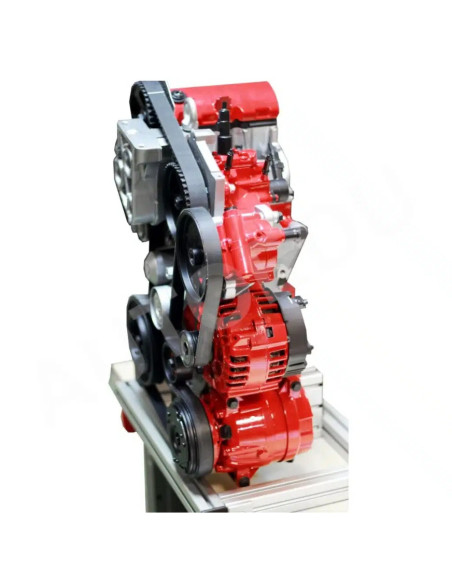

IVOD01-CR01 Half cutaway diesel engine

Specifications

• Reference: IVOD01-CR01.
• Manufacturer: AutoEDU.
• ASE category: A1.
• Product type: half cutaway diesel engine trainer.
• Engine technology: diesel OHC Common Rail.
• Visible components: sectioned engine block, crankshaft, OHC camshaft with valves, pistons with rings, and high-pressure CR pump.

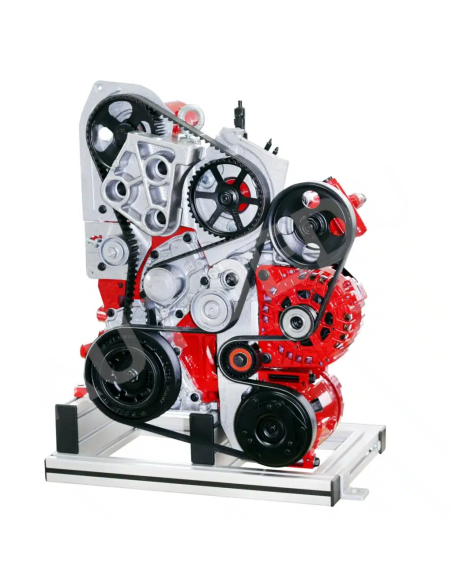

• Training tasks: timing belt replacement and alternator belt replacement.
• Included tools: special tool kit for timing belt replacement.

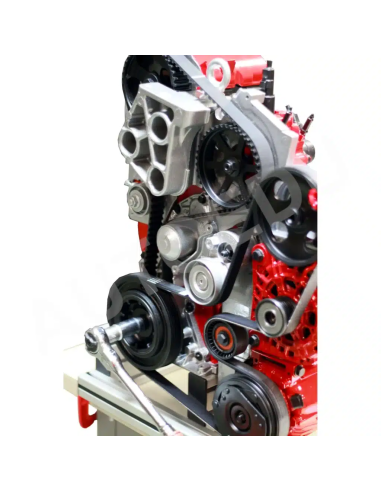

• Measurement capability: specialized tools for torque measurement.
• Functional study: piston operation, combustion chamber dynamics, and OHC mechanism.
• Safety: protective plastic covers.
• Dimensions: 650 x 600 x 320 mm.
• Imperial dimensions: 25.59 x 23.62 x 12.60 in.
• Weight: approx. 75 kg.
• Imperial weight: 165 lb.

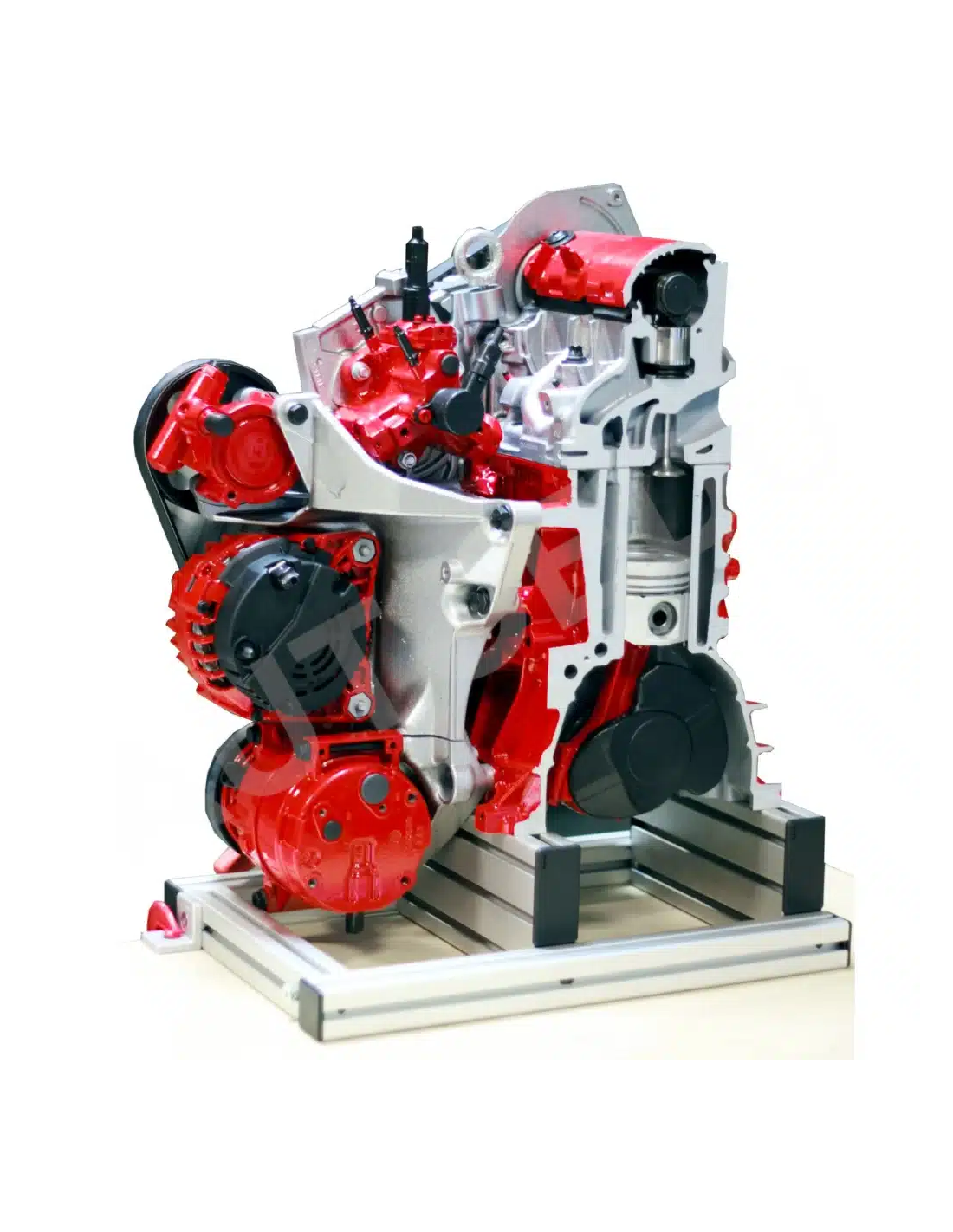

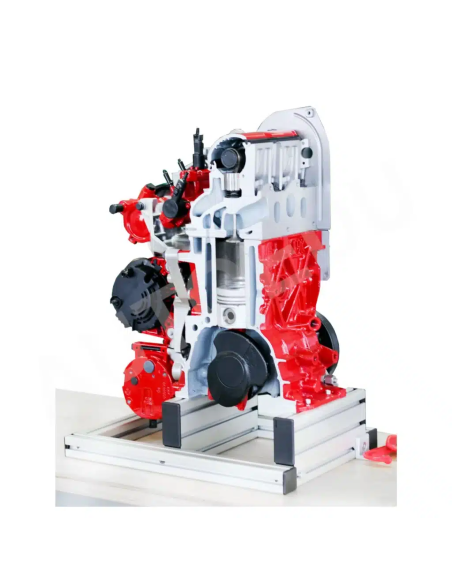

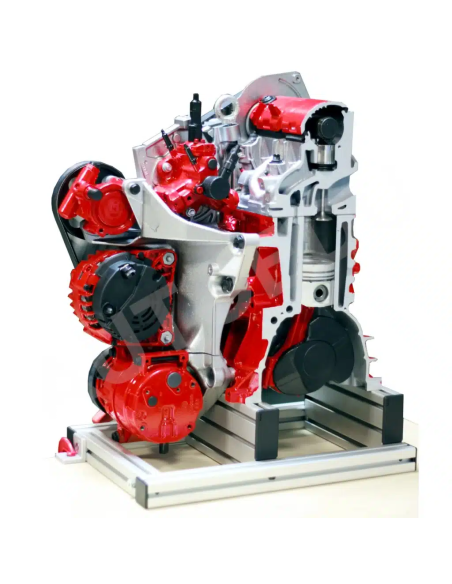

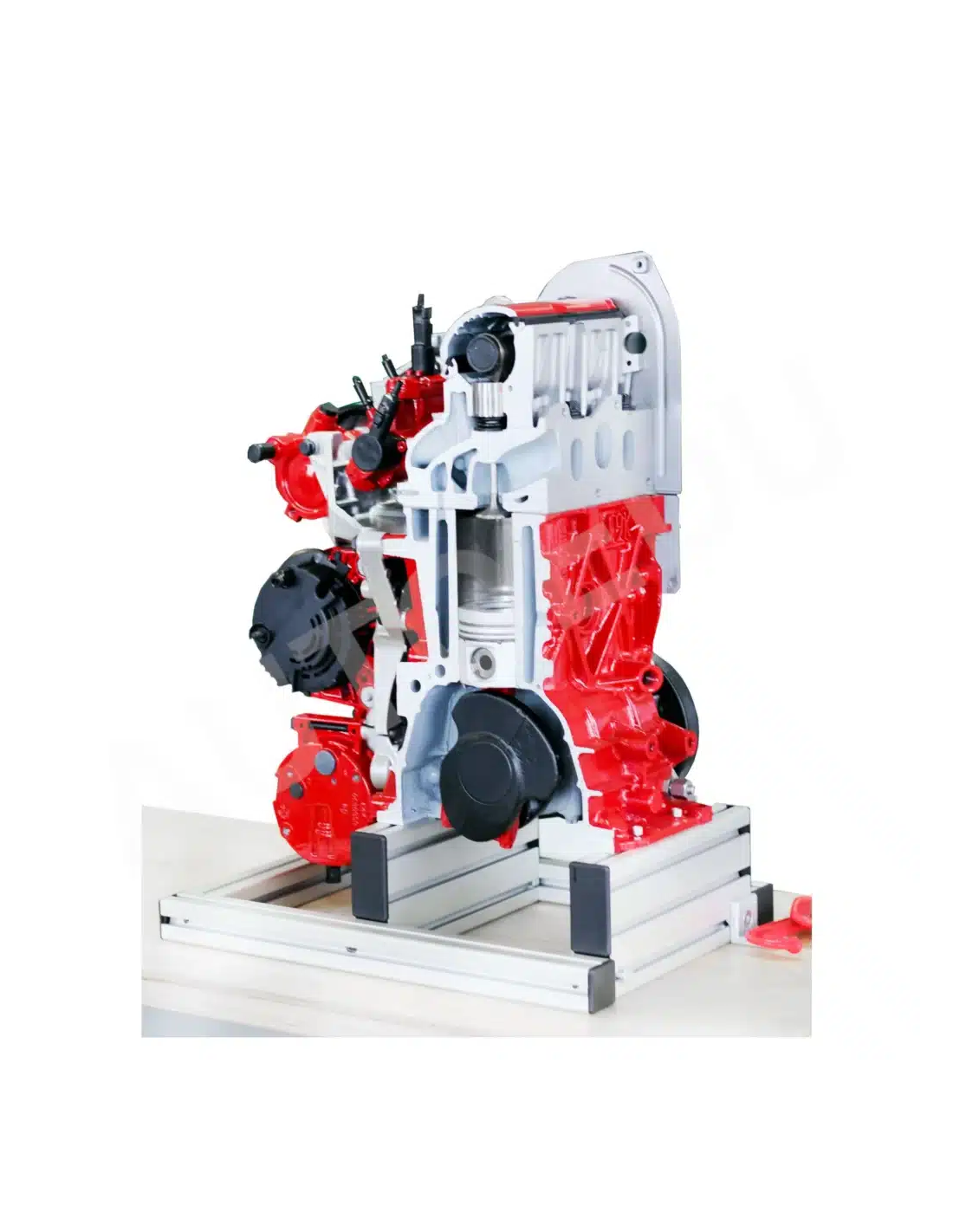

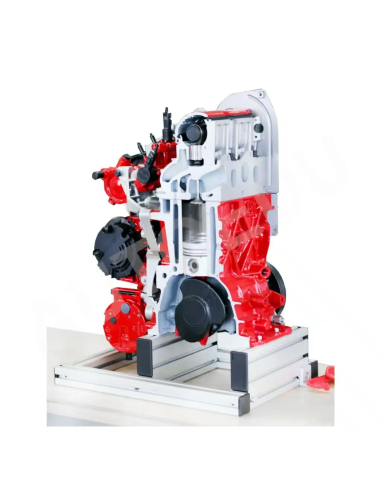

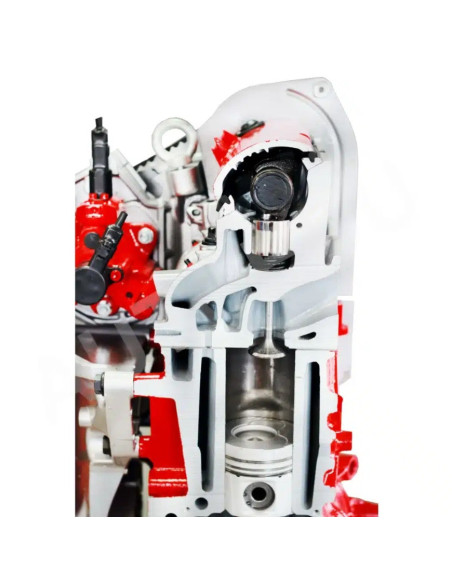

This cutaway diesel engine trainer allows students to study key engine components such as the engine block, crankshaft, OHC camshaft, valves, pistons, piston rings, combustion chamber, injector, glow plug positions, and high-pressure common rail pump.

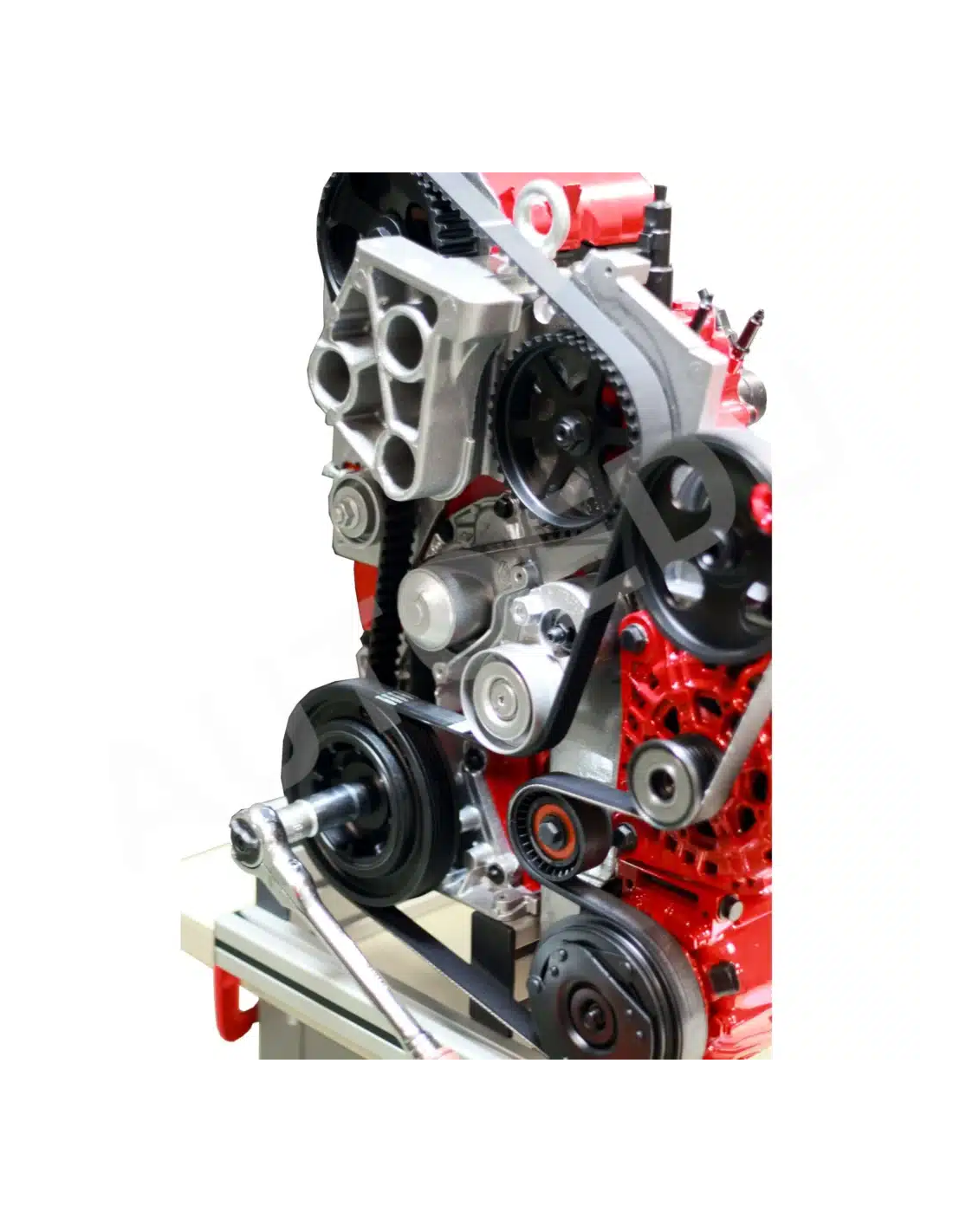

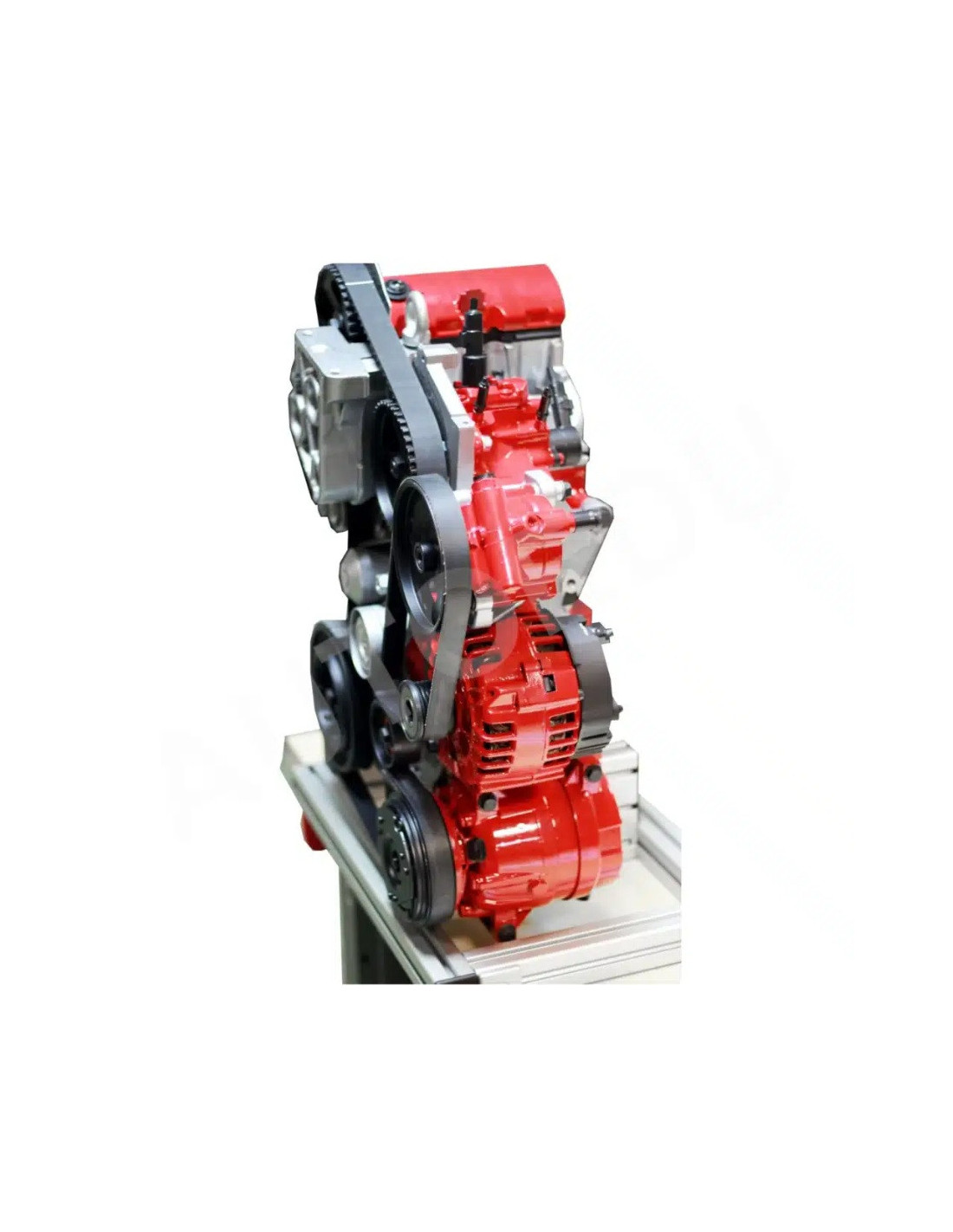

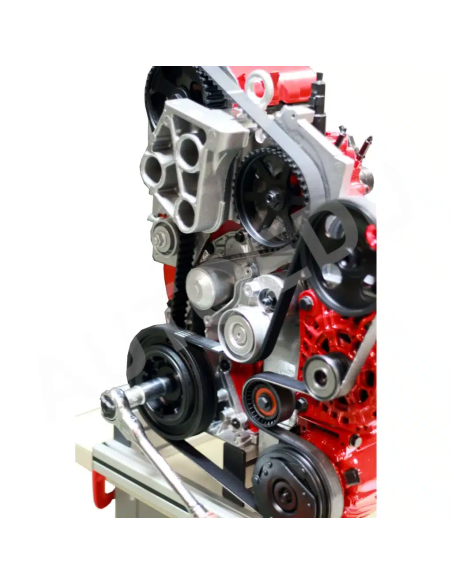

The model supports practical training in timing belt and alternator belt replacement, providing a realistic approach to essential maintenance procedures. Supplied special tools also allow torque measurement exercises, helping students develop precision and confidence in mechanical work.

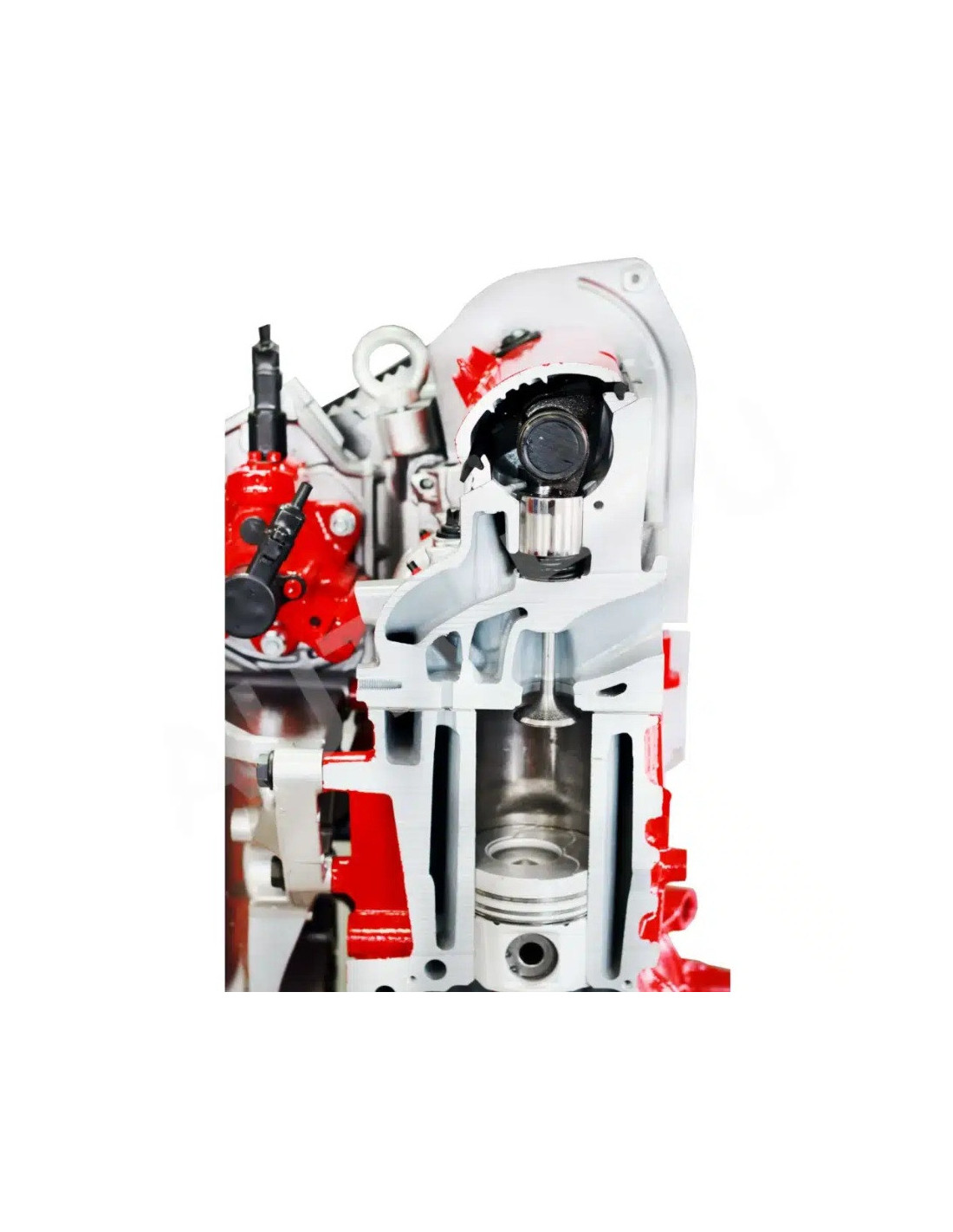

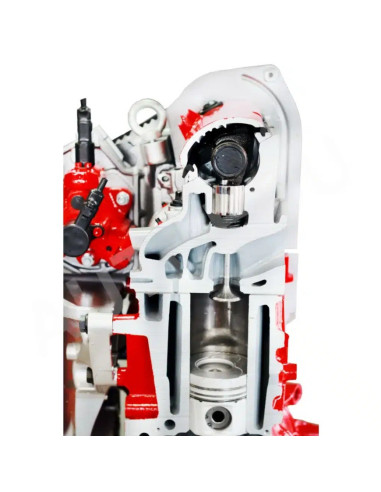

By manually rotating the crankshaft, students can clearly observe piston movement, valve operation, combustion chamber layout, and the synchronization between the crankshaft, camshaft, and timing system.

The cutaway design, combined with safety protection, allows detailed observation of internal engine operation without exposing students to operational hazards. This makes the trainer ideal for automotive workshops, technical schools, and diesel engine training laboratories.

This OEM-based cutaway diesel engine trainer provides safe, practical, and realistic training for students learning truck engine maintenance and repair procedures.

The fully sectioned design allows instructors to clearly demonstrate internal engine operation, including piston movement, valve timing, combustion chamber layout, and the replacement of timing and alternator belts. Visible components make complex mechanical concepts easier to explain and understand.

Its compact and lightweight construction allows the trainer to be used on a workbench, tool trolley, or classroom table, without requiring a large floor-standing frame.

Designed for repeated educational use, the model is robust, easy to maintain, and supplied with special tools to simplify practical exercises. This helps instructors reduce preparation time and focus on effective hands-on training.
