Nvis 2001 Techbook for Radar Trainer

Nvis 2001 Techbook for Radar Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

The trainer is capable of measuring the Speed of Object, Frequency of Vibrations and RPM of any fan. Students can also study the properties of different types of materials like Metal, Acrylic, Teflon, Bakelite, etc.

• Features:

- Complete hardware and software setup to demonstrate Radar concepts
- Signals study on Software / Oscilloscope with the help of test points given on trainer
- Object Counter provided on trainer

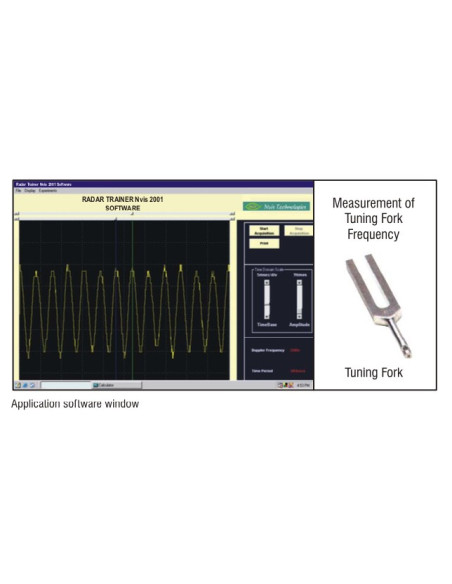

- Real time fan RPM measurements and vibrations measurements with the help of tuning forks
- Tripod stand provided for height and level matching
- LED Indication for Doppler Echo Signal
- On board alarm for detected signals

- Transmitter Frequency: 10 GHz
- Output Power: 10 mW (approximate)
- Operating Voltage: 8.6 V
- Antenna: Horn
- Antenna Gain: 16dB
- Sensitivity: -50 to -70dBm
- IF Output: Audio range
- Power Supply: 230 V ±10 %, 50 Hz
- Alarm: Onboard detected signal indication
- About Software
- Oscilloscope: Real time / Storage mode with FFT analysis
- Display: -- Voltage : Vpp
                -- Speed: Km/hr, Miles/hr, m/s, rpm
- Frequency: Hz & kHz

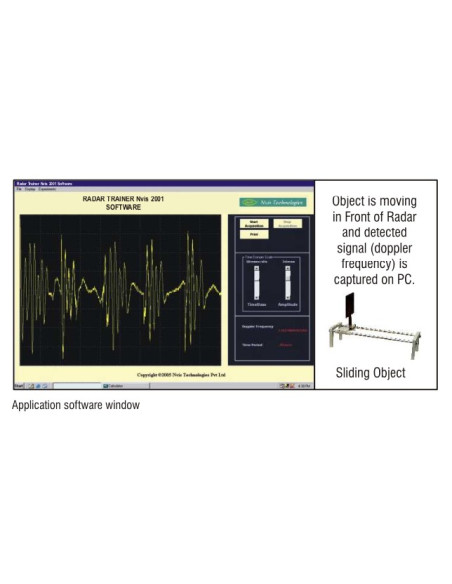

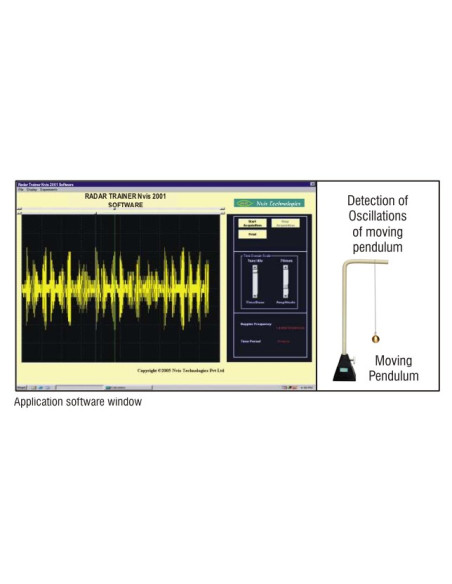

- Time domain window: Display the Doppler Frequency in Time domain
- Frequency domain window: Display the Doppler Frequency in Frequency domain
- Control Panel window:
            -- User interface for:
                       • Measurement of Doppler Frequency, Amplitude
                       • Measurement of Velocity, RPM

            -- Utilities:
                       • Start / Stop of Display
                       • Setting of Time base and Amplitude range on display window
                       • Printing of Doppler Frequency signal
                       • Cursors for Time and Voltage measurements
                       • Save, Load

- Measurement of Doppler Frequency, Amplitude
- Measurement of Velocity, RPM
