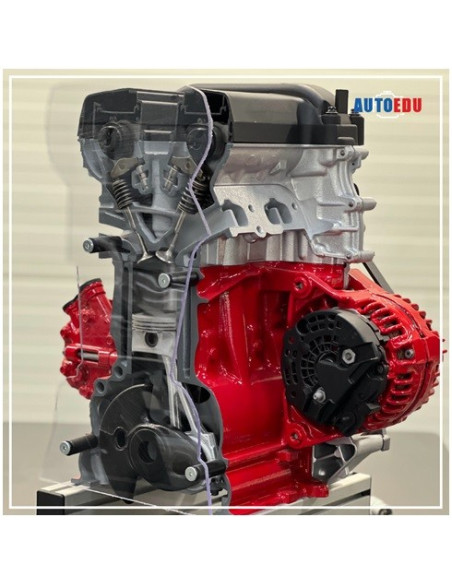

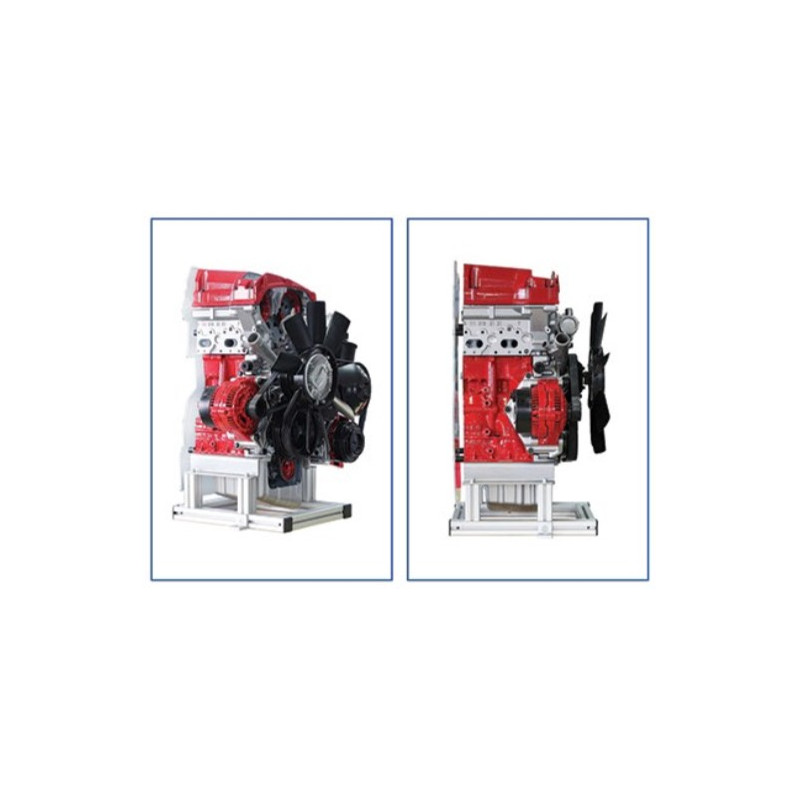

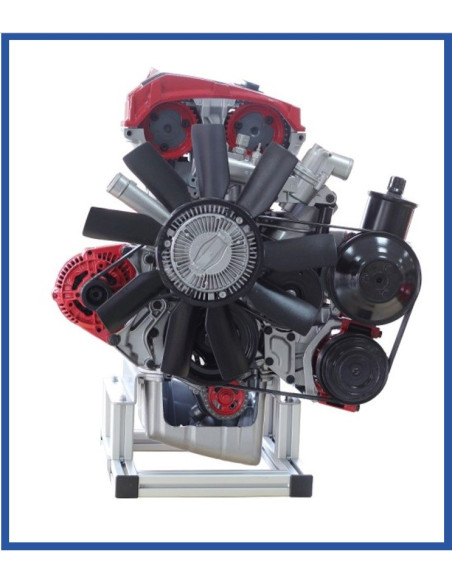

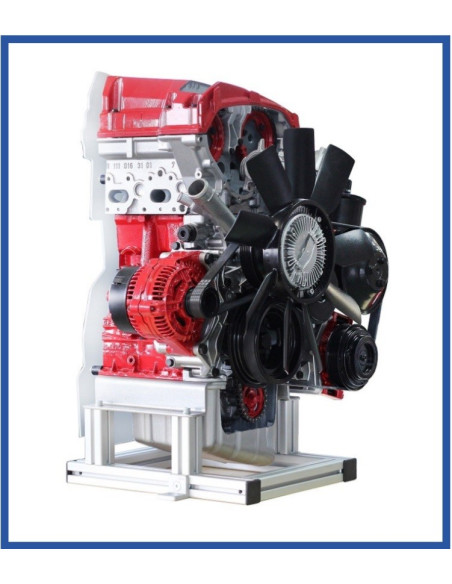

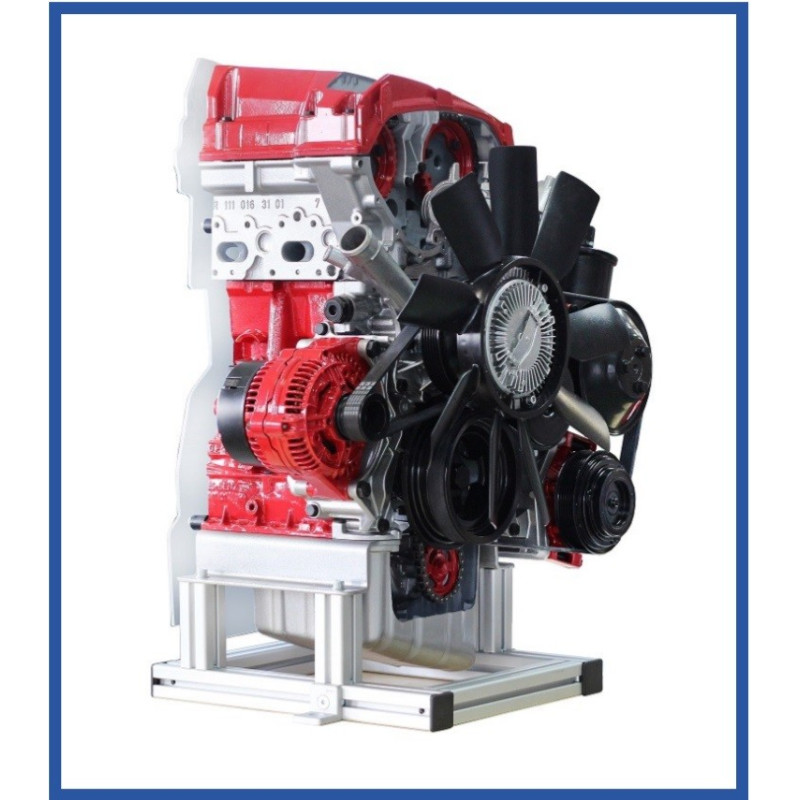

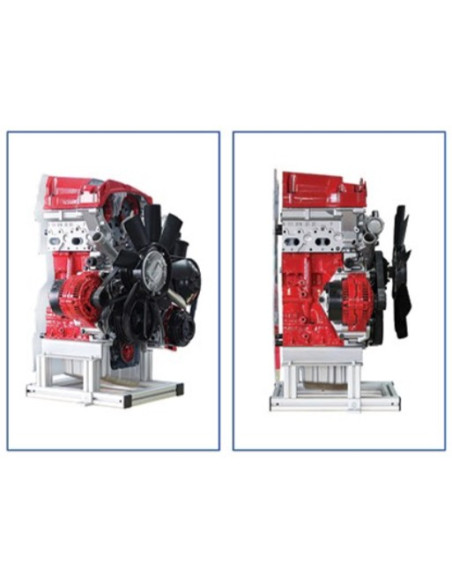

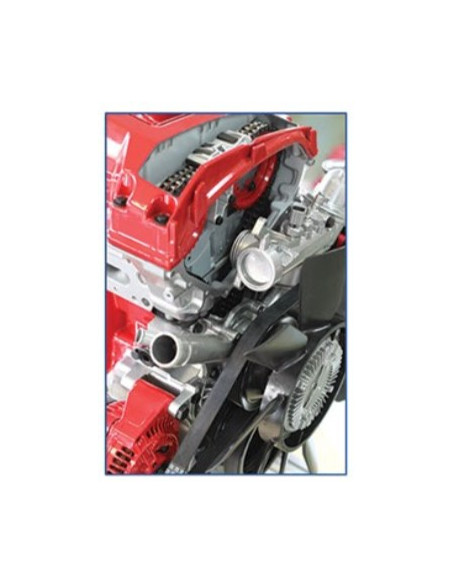

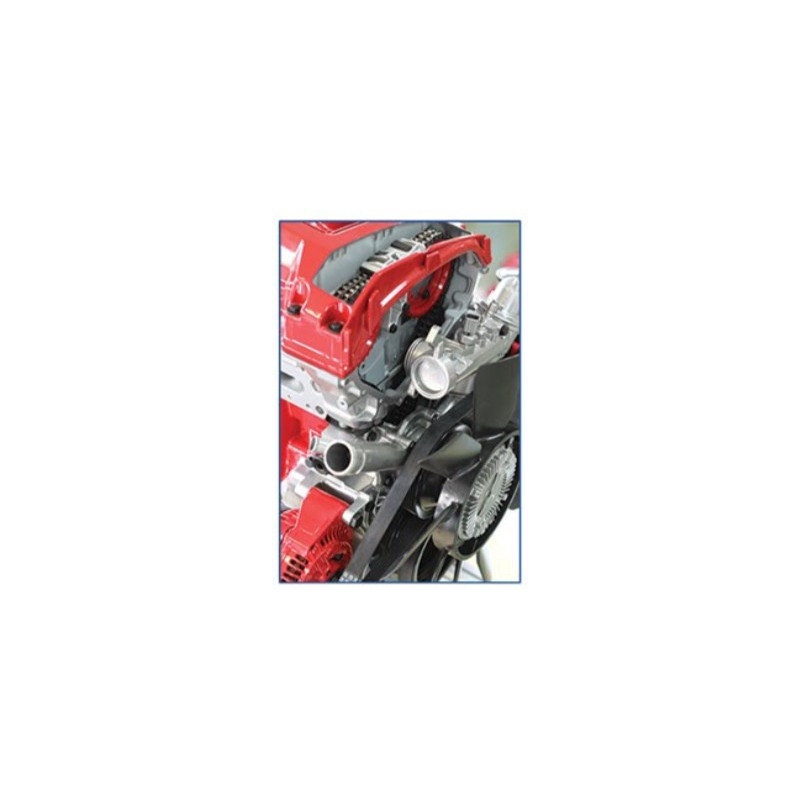

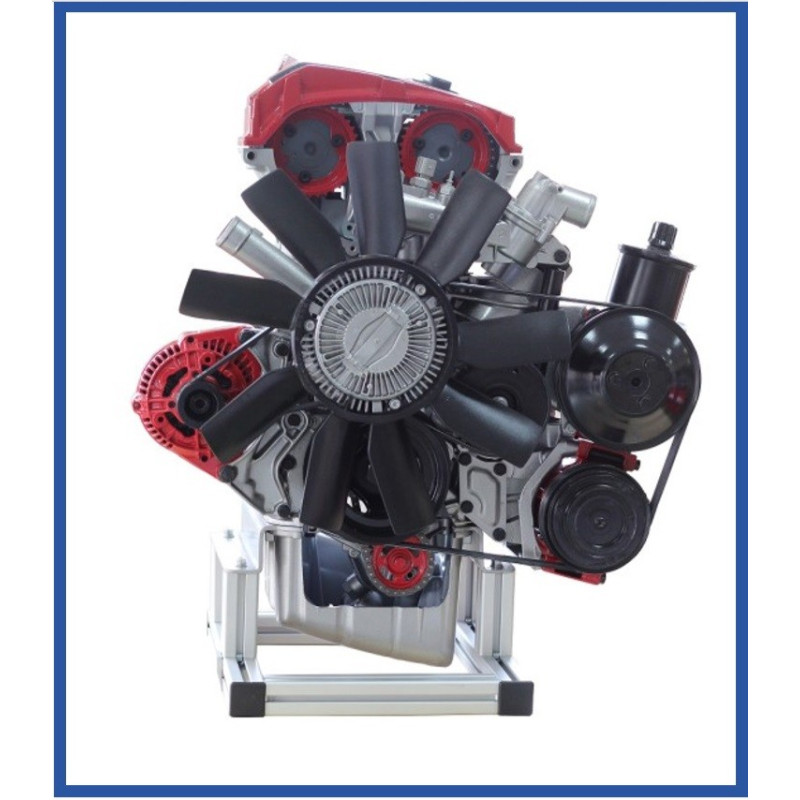

IVDB02 Petrol Engine Cutaway Model DOHC MPI

The educational cutaway model is based on original components of the vehicle. This cutaway model is coloured in different colours in order various parts and cross-sections could be easier differentiated.

• Educational purpose of this cutaway model:

- Demonstration of the different components of the model
- Demonstration of the DOHC timing chain replacement
- Demonstration of the alternator belt replacement
- Demonstration using special tools for timing chain replacement
- Demonstration and explanation of the technical literature/schemes and procedures
- Demonstration of the DOHC engine with multipoint fuel injection (MPI) combustion chamber

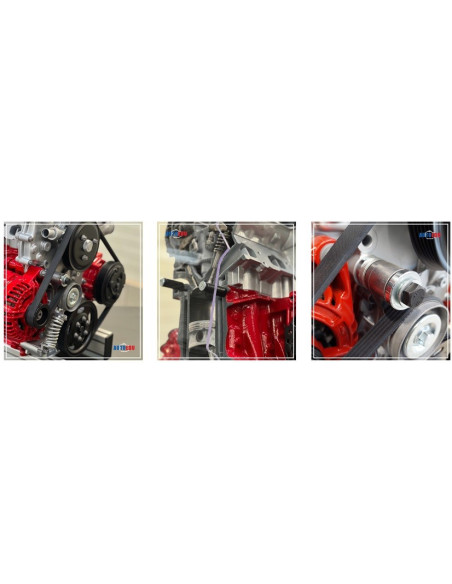

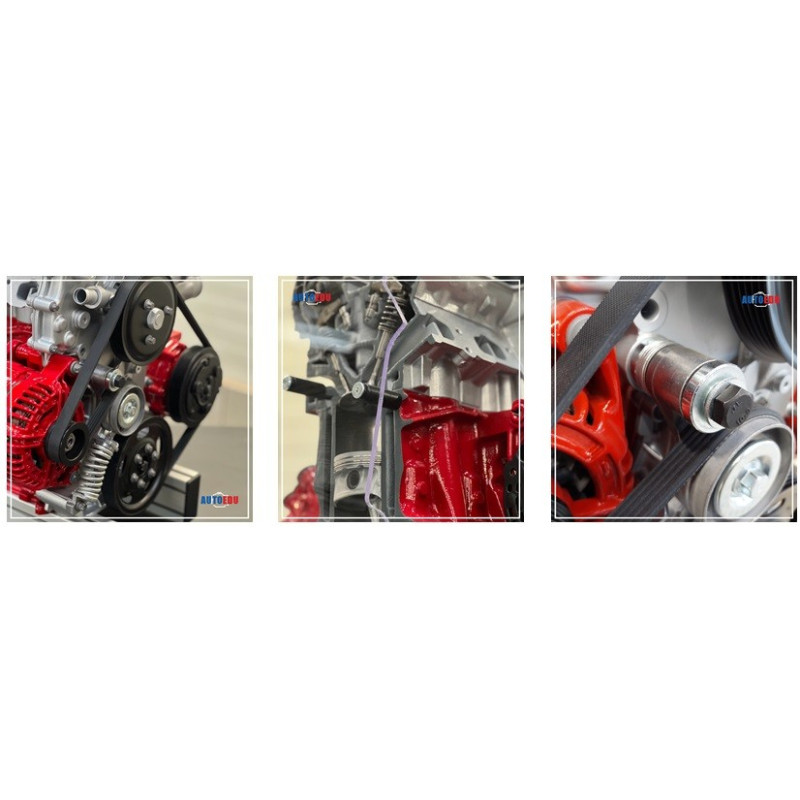

• Timing chain and alternator belt replacement

The educational cutaway engine model contains all elements of the original car: timing chain, tensioners, alternator belt, crankshaft sprocket and etc. Using instructions and recommendations it is possible to demonstrate chain replacement procedures. Torque measurements of the components can be performed by using special tools.

• Other

- Minimal space for training and storage
- Minimal weight in order to avoid additional transportation or mounting stands. Demonstrations can be performed on any workbench or tool trolley
- Cross-section of the trainer is protected with safety plastic protection
- The training model is equipped with fasteners

• Optional accessories

- Standard tool kit
- Workbench
- Technical car database

• Visible components of the sectioned engine model:

- Engine block
- Head and valves
- Crankshaft
- Connecting rod
- DOHC dual overhead camshaft (camshafts, valves, valve lifters, water pump and etc.)
- Pistons with rings
- Timing chain with camshaft sprocket and tensioners, oil pump
- Alternator belt with tensioner

• Cutaway model is designed to demonstrate:

- Piston, rings, combustion chamber, intake and exhaust ports, DOHC components, injector and glow plug positions in a combustion chamber;
- Operation of the DOHC mechanism by turning the crankshaft*;

*Training cut away model is not suitable for intensive rotation. All rotating parts must be lubricated before the rotation.

• Other:

- Dimensions approx. (HxLxW): 750x670x440 mm
- Nett weight approx.: 81 Kg
- Made in EU
