KL-270 Automotive Air Conditioner Training System

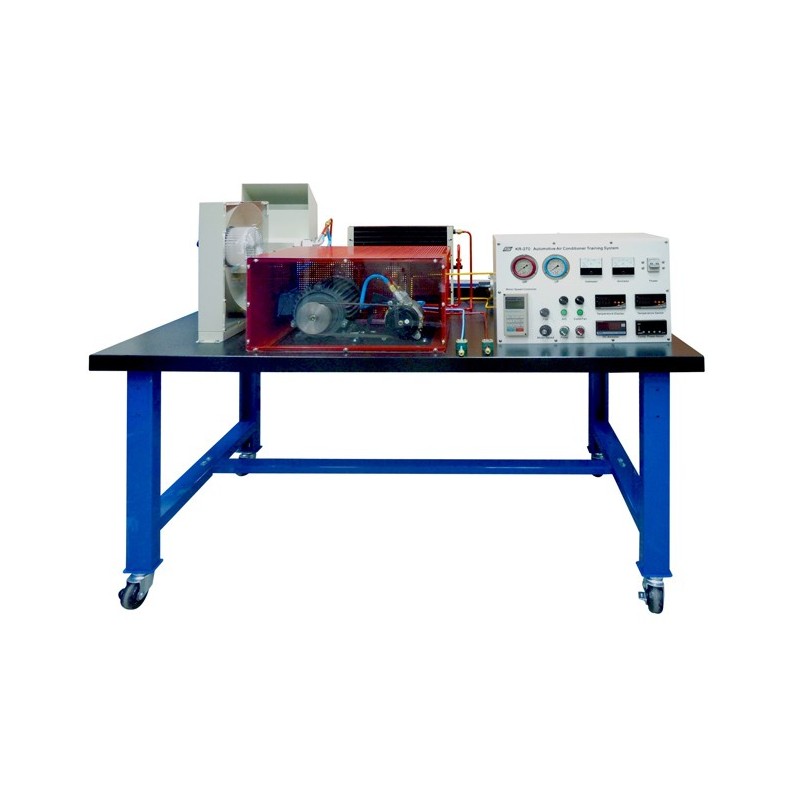

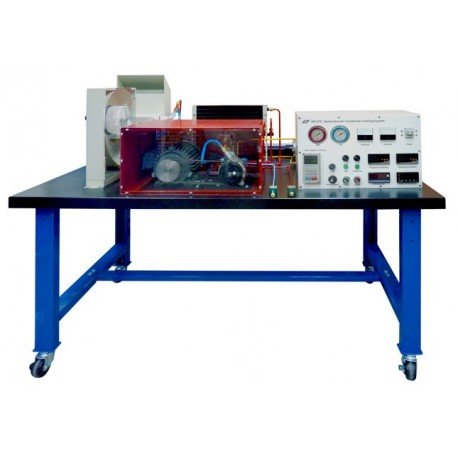

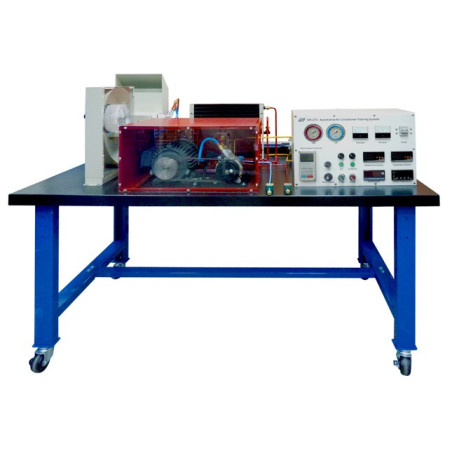

The structure of KR-270 is based on a real air conditioner of an automotive system. The evaporator is protected by plastic acrylic so that students can easily observe the internal structure of the evaporator. It also allows students to safely observe how fan door switches the function of air conditioner between cooler and heater when the system is operating.

The system adopts a three phase motor with varied speed to simulate the function of the engine so as to drive the air compressor. The circulating water originally heated by hot engine for heater application is completed by an Integrated heating coil.

• Understanding the principle of automotive air condition system
• Understanding the components in an automotive air condition system
• Understanding the difference between automotive air condition system and building air condition system

1. Motor speed and refrigerating capacity experiment
    Understanding motor speed and refrigerating cycle of every index related

2. Hot water coil exchange performance experiment
    (1) Learning water circle process and water pump performance
    (2) Learning hot water coil exchanged performance

3. Maximum warm air capacity test
    (1) Understanding the change of  the air property after warm up by the coil
    (2) Understanding the heat exchange performance of the hot water coil

4. Automotive air conditioner mix and warm air capacity experiment
    (1) Learning the standard process of dehumidifing the air
    (2) Learning the dehumidification capacity difference during air process

5. The heat recover capacity experiment plate heat exchanger
    (1) Learning plate heat exchanger structure
    (2) Calculating benefit from plate heat exchanger

6. Plate heat exchanger performance experiment
    (1) Learning plate heat exchanger feature
    (2) Learning the difference of having plate heat exchanger or not

7. compare the consumption power between the heat recover by the plate heat exchanger and electric heat
