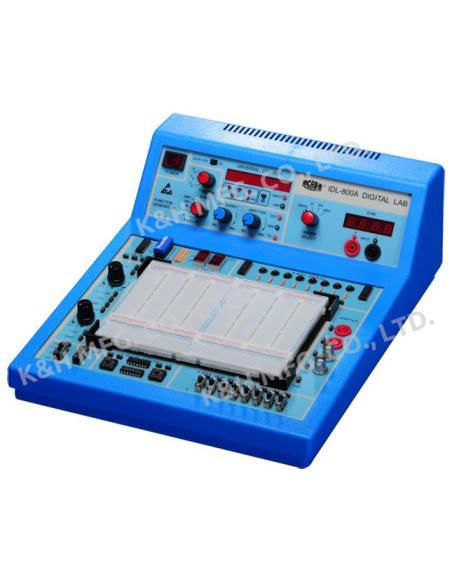

IDL-800A Digital Lab

+ Specification

1. Solderless breadboard : AD-200

Interconnected nickel plated contact socket with a total of 1896 tie points fits all components with DIP size and solid wire in diameter of AWG #22-30 (0.3 ~ 0.8 mm)

2. DC power supply Variable DC power :

- Positive output voltage : 0 ~ +15V ±10%
- Negative output voltage : 0 ~ -15V ±10%
- Maximum output current : 300 mA.
- Line regulation : < 0.05% / V (Ta=25°C)
- Load regulation : < 30mV (Ta=25°C)

• Fixed power supply :

- Positive output voltage : +5V ±10%
- Maximum output current : 1 Amp.
- Line regulation : < 50mV.
- Load regulation : < 100mV.
- Negative output voltage : -5V ±10%
- Maximum output current : 100mA
- Line regulation : < 25mV.
- Load regulation : < 30mV.

• All DC power supplies with short circuit protection.


4 Digital voltmeter :

-
3 1⁄2 Digits LED display.
- 4 Ranges: 0 ~ 199.9V full scale

                  0 ~ 19.99V full scale
                  0 ~ 1.999V full scale
                  0 ~ 199.9mV full scale
:



- Ιnput impedance : 10MΩ for any range.



5 Universal counter

(1) Frequency range : 1Hz ~ 99.999999 MHz ;
10Hz ~ 100.00000 MHz

(2) Period range TH & TL : 0.01μs ~ 999999.99μs ;
1μs ~ 99999999μs

(3) Input signal: TTL or CMOS level or any level (Vmin ≥ +2.3Vp ±10%)

(4) Display : 8-digit 7-segment LED display
(5) Counter switch : External / internal


6.Two digits of 7 segment LED display :

Common cathode operation

7.Four point tip / banana socket / BNC socket exchange adapters

8.Eight buffered LED displays :

9.Eight data switches :

10.Two function switches :

11.Two pulse switches :

12.Dimensions : 420 x 360 x 200 mm (L x W x H)

13.Weight : 4.2kg

Solderless breadboard: AD-200
Interconnected nickel plated contact socket with a total of 1896 tie points fits all components with DIP size and solid wire in diameter of AWG #22-30 (0.3 ~ 0.8 mm)
