Scientech2515 Laboratory for Mode Characteristics in Fiber Optics

When V<2.405, only single mode propagates in the waveguide and when V>2.405, the other modes propagate in the waveguide. Using this experimental, the student can easily differentiate between Single Mode and Multi Mode optical fiber cables.

• Features:

- Complete set up for Numerical Aperture measurement and V number verification for Single Mode and Multi Mode fiber cables
- Complete set up for observation of intensity patterns of modes in Single Mode and Multi Mode fiber cables
- He-Ne LASER Source (650nm; 2mW) with mounting stand and fiber coupler
- Single Mode & Multi Mode fibers with SMA connectors at each end

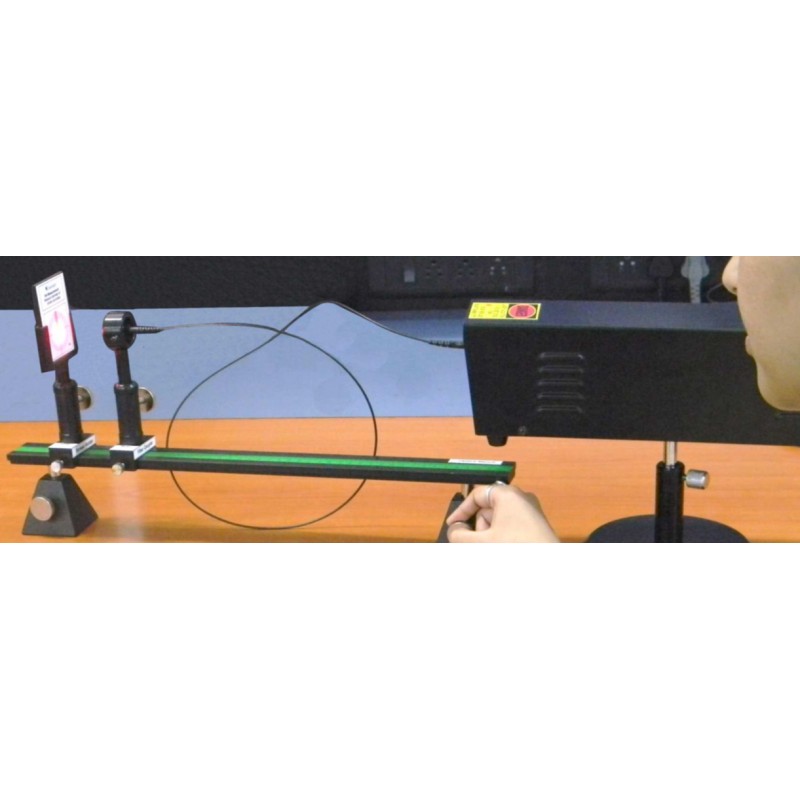

- Numerical Aperture measurement / Mode observation screen with holding assembly
- Optics bench with fiber coupling assembly and customized mechanical fixtures

+ Optical Source:
- Source Type: He-Ne LASER source.
- Wave length: 650 nm
- Output Power: 2mW

+ LASER to fiber coupler:
- Coupling efficiency:
       -- >70% for SM fiber
       -- > 90% for MM fiber

+ Single Mode fiber cable:
- Connector type: Standard SMA
- Cable type: Step indexed, Glass cable
- Core diameter: 9 microns
- Refractive indices: Core: 1.52; Cladding : 1.48
- Numerical Aperture: 0.13
- Central wavelength: 1300 nm to 1600 nm

+ Multi Mode POF cable:
- Connector type: Standard SMA
- Cable type: Step indexed, Polymer fiber cable (POF)
- Core diameter: 1000 microns
- Refractive indices: Core: 1.49; Cladding : 1.42
- Numerical Aperture: 0.5
- Central wavelength: 650 nm to 1300 nm

+ Fiber length: 1.0 m

+ Power Supply: 110-220V, ± 10%, 50 / 60 Hz

+ Power consumption: 10 VA (approximately)

+ Dimensions:
- LASER Source: W 95 x H 110 x D 355 mm
- Optics bench: W 40 x H 75 x D 500 mm

+ Weight: 4 Kg. (approximately)

+ Product Tutorial: Online on www.ScientechLearning.com

+ Operating conditions: 0-40º C, 85% RH

+ List of Accessories:
- He-Ne LASER source with mounting stand, Mains cord & Optics bench: 1no
- Optics bench stands with bolts: 2nos
- Numerical Aperture measurement / Mode observation screen: 1no
- NA measurement / Mode observation screen holder with base and screws: 1no
- Fiber coupling assembly with base and screws: 1no
- Single Mode fiber optic cable, length 1 meter: 1no
- Multi Mode fiber optic cable, length 1 meter.: 1no
- Measuring scale (6 inches): 1no
- Plastic box for cables: 1no

- Measurement of Numerical Aperture and verification of V number of a fiber test cable (Single Mode and Multi Mode)
- Coupling light into a test fiber cable (Single Mode and Multi Mode) and observing the intensity patterns of modes
