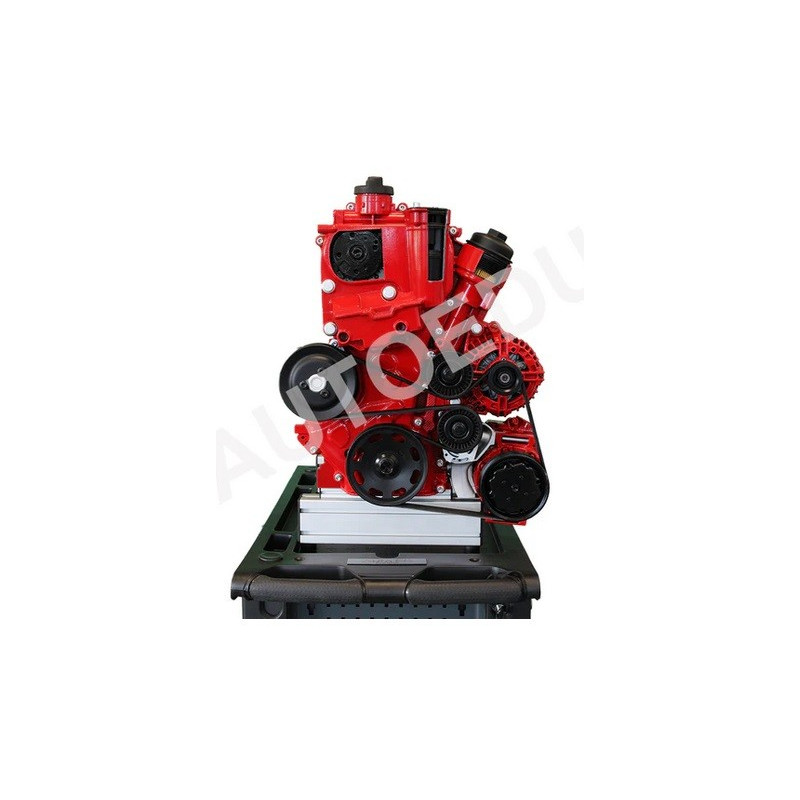

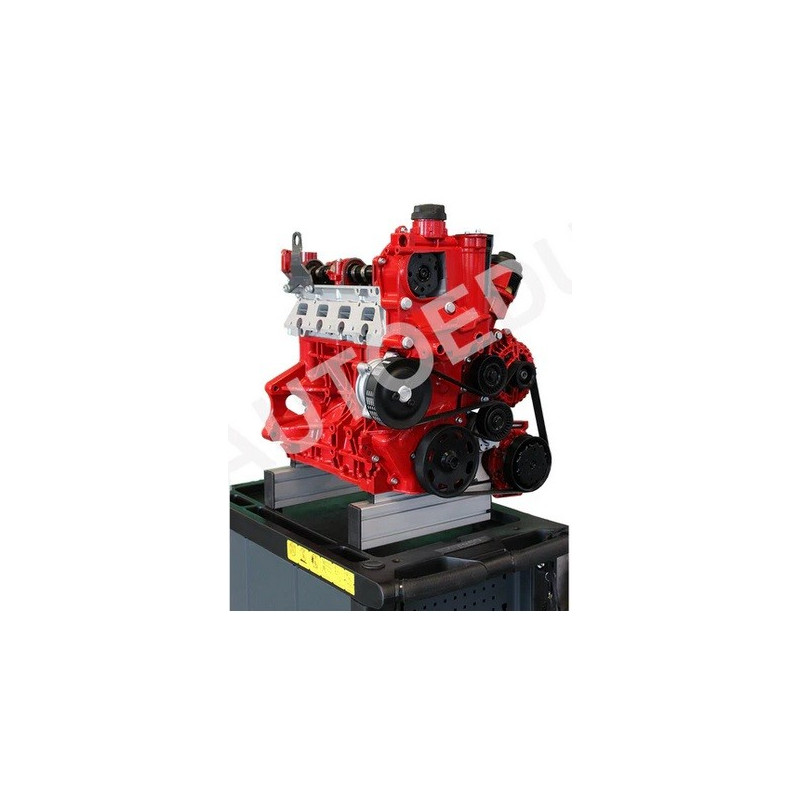

AutoEDU IVDB03 Petrol DOHC engine ½ cutaway Educational Trainer

Key features:

- Engine chain replacement procedures.

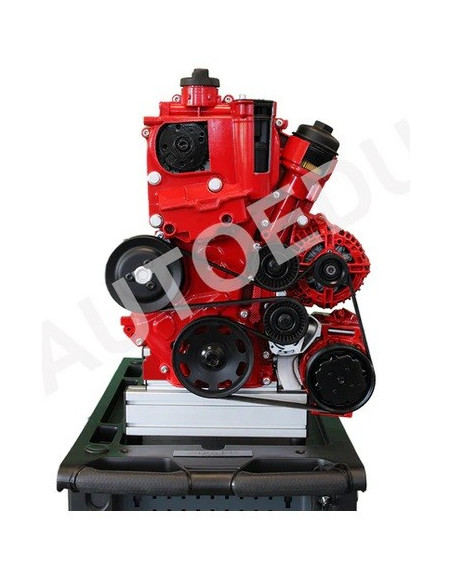

- Practice loosening tensioner, removing and replacing auxiliary belt, inspecting auxiliary components.
- Auxiliary belt system with tensioner, alternator, cooling pump, and AC compressor.
- Set and check Top Dead Center (TDC).
- Perform camshaft alignment and adjustment with tools.
- Learn auxiliary pulleys, cooling pump, alternator, AC compressor removing and changing techniques.

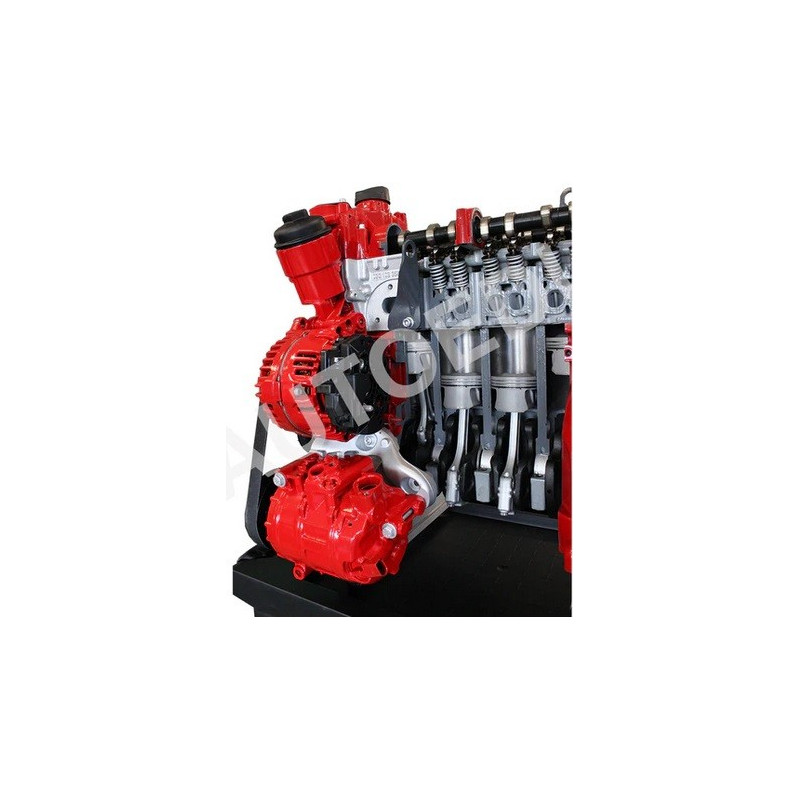

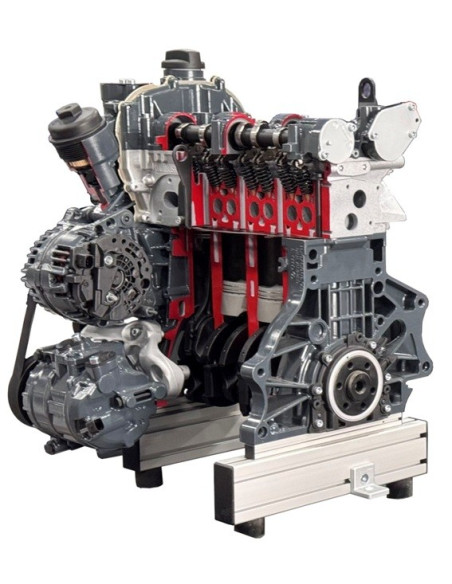

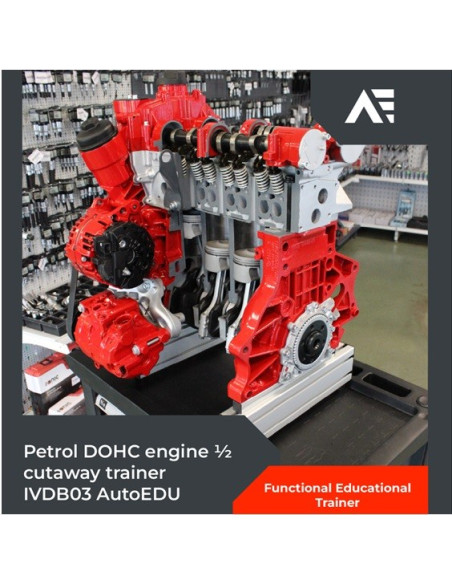

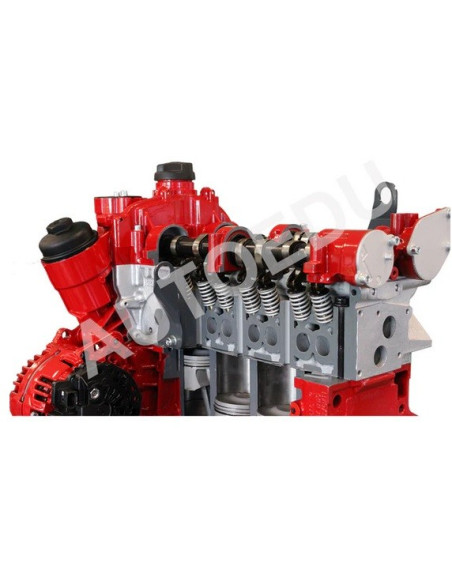

- Cross-section view of engine block, cylinder head, crankshaft, pistons, camshaft, valves, and rocker arms.
- Manual crank rotation to observe piston, valve, and camshaft movement.

Visible lubrication and cooling system channels.

Visible components of the sectioned engine model:

- Engine block
- Engine head
- Crankshaft mechanism
- Crankshaft
- Pistons
- Connecting rods
- Rings
- Thrust bearings (inserts)
- Crankshaft
- Alternator
- AC compressor

The cutaway engine model is designed to demonstrate:

- A timing chain replacement procedure
- Gas distribution mechanism: camshaft, rocker arms, valves, tappets
- Camshaft drive mechanism: timing gear, chain, tensioners, sliders

AutoEDU IVDB03 Supports 30+ practical tasks.

This trainer supports over 30 practical tasks for technical training.

Practical Task Examples (Video-Supported)

Task 1: Auxiliary belt replacement — tensioner release, belt removal and installation.

Task 2: Water pump replacement — removal, inspection and installation.

Task 3: Timing chain replacement — disassembly, chain installation and camshaft alignment.
