MSMPI 1 MOTRONIC M 3.8.X (MPI) Training Board-Simulator

MSMPI 1 MOTRONIC M 3.8.X (MPI) Training Board-Simulator

Name: MSMPI 1 MOTRONIC M 3.8.X (MPI) Training Board-Simulator
Brand: Autoedu
SKU: MSMPI 1

Reference: MSMPI 1 - Manufacturer: Autoedu

This MSMPI1 training board-simulator is specially designed to help technical students understand multipoint petrol injection (MPI) system MOTRONIC M 3.8.X.

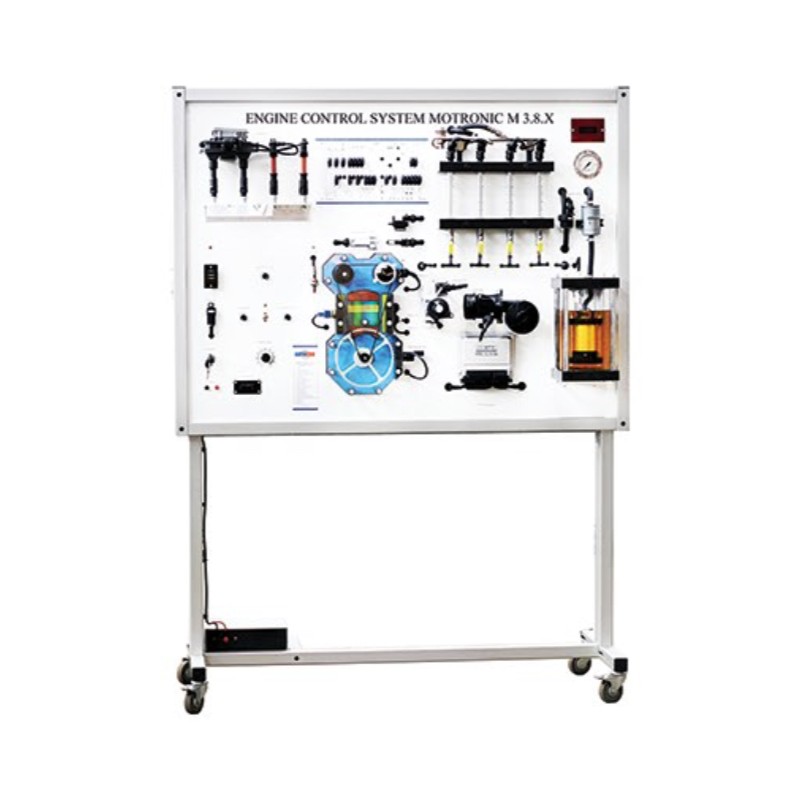

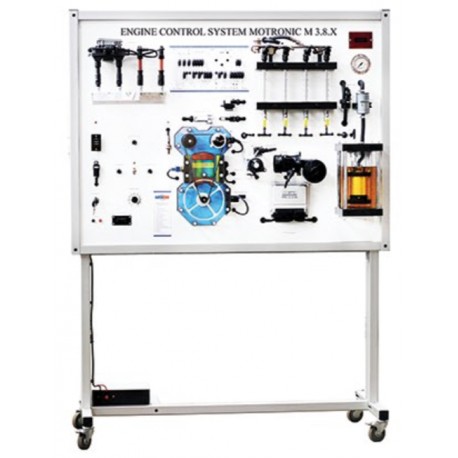

MOTRONIC M 3.8.X (MPI) training board-simulator is installed in a mobile aluminum frame. The educational training board is based on Audi/VW OEM components. The integrated engine control system shows different operation modes of the fuel injection/ignition system. The training board-simulator is a great educational tool that allows students to learn the structure of engine control system, study its components and operation modes, perform various measurements, tests and other diagnostic procedures.

Diagnostic and measurement

Oscilloscope/multimeter

- System’s parameters are measured by connecting to the banana connector

- Ability to measure electrical signal parameters of each system component (such as sensor or actuator)

- Ability to measure high voltage circuit of the ignition system

Control unit diagnosis

- Diagnosis through OBD 16 – pin diagnostic connector

- Electronic control unit (ECU) identification; Reading/erasing fault codes

- Displaying the operating system parameters (live data)

- Activating the actuators (depends on the control unit)

- Throttle valve adaptation

- Control unit encoding/configuration

Optional accessories

- Examination console for 10 hidden fault simulations

- 12 V battery

- 220/12 V power supply unit

- OBD diagnostic scan tool

• Fully functional engine control system is installed in a mobile aluminum frame. This training board – simulator is specially designed to help technical students understand better multipoint petrol injection system.
• Educational training board is based on OEM components.
• Integrated engine control system shows different operation modes of the multipoint fuel injection/ignition system.
• Integrated engine control system with multipoint petrol injection system.
• Monitoring operation of fuel supply system, injected fuel quantity, spray pattern quality, low fuel pressure of the fuel pump.
• Low pressure fuel pump is built – in a transparent tank which allows to see its operation.
• Adjustable air flowrate simulator allows to demonstrate a work of mass –air flow meter and air temperature sensor.
• Visible work process of spark plugs.
• Easy access for high voltage measurements.
• Manual adjustment of the engine crankshaft speed.
• Possibility to change the air/fuel mixture by the oxygen sensor signal simulator.

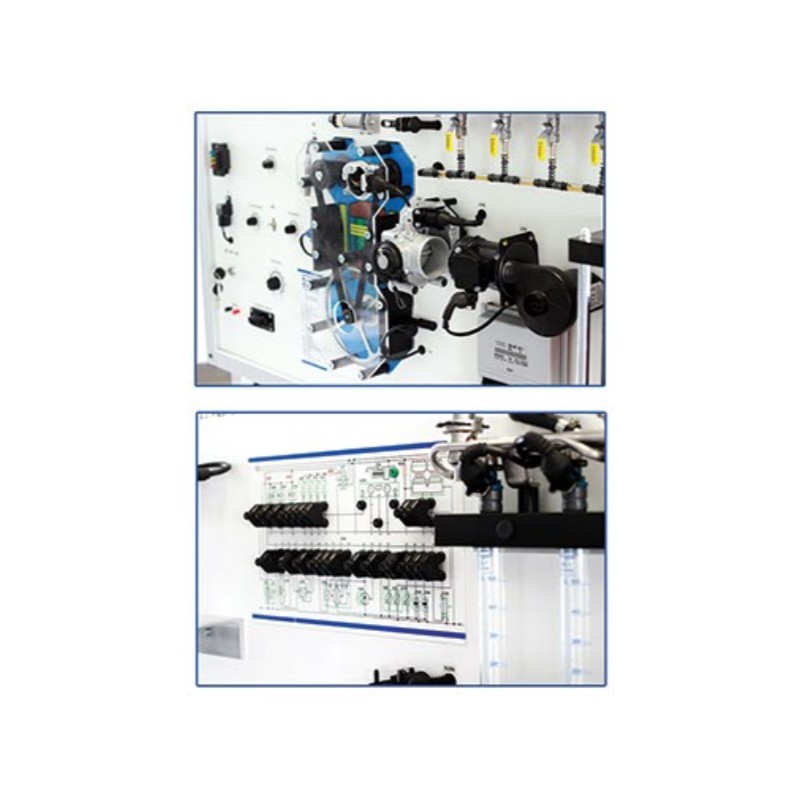

• Training board has a complete electric wiring diagram of multipoint petrol injection system.
• Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes.
• Possibility to simulate more than 20 system faults by disconnecting banana plug jumpers.
• Training board – simulator has an integrated voltmeter. It displays voltage of different electronic system components.
• The stand has a closed structure – internal wiring is not visible.
• Power supply: 12 V
• Dimensions (H x L x W): 1850 x 1380 x 600 mm
• Weight (netto) approx.: 70 kg
• CE certificate
