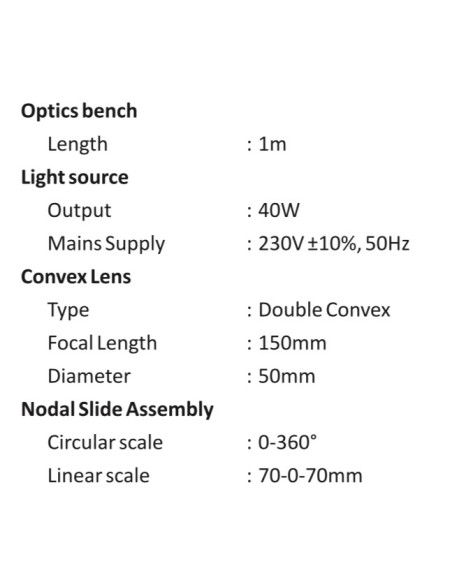

Nvis 6029 Technical specifications

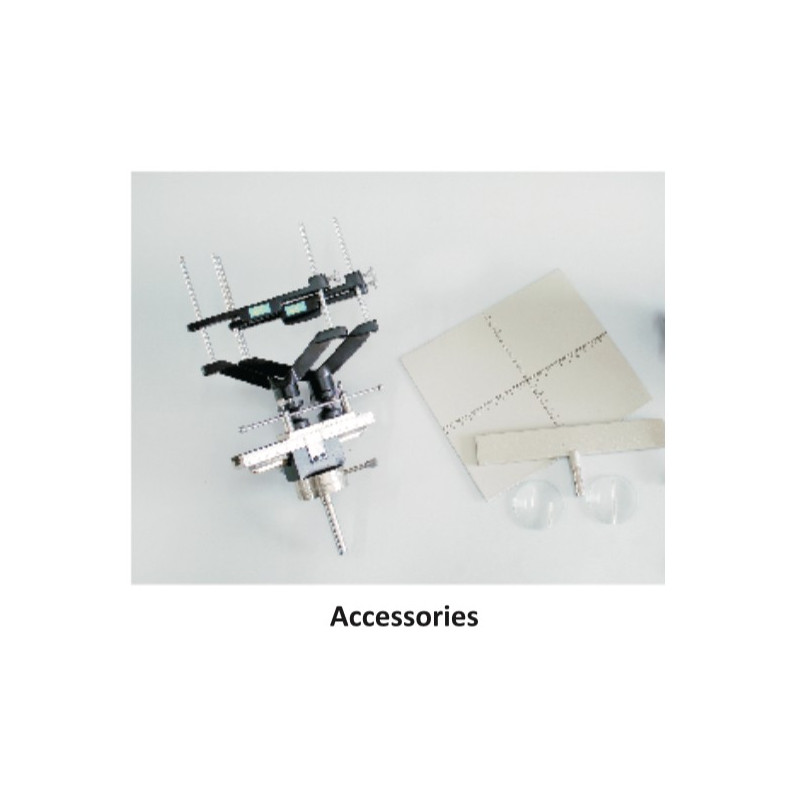

Optional Accessory
Nvis 6029 Laboratory for Nodal Slide Assembly Setup
Nvis 6029 Laboratory for Nodal Slide Assembly Setup

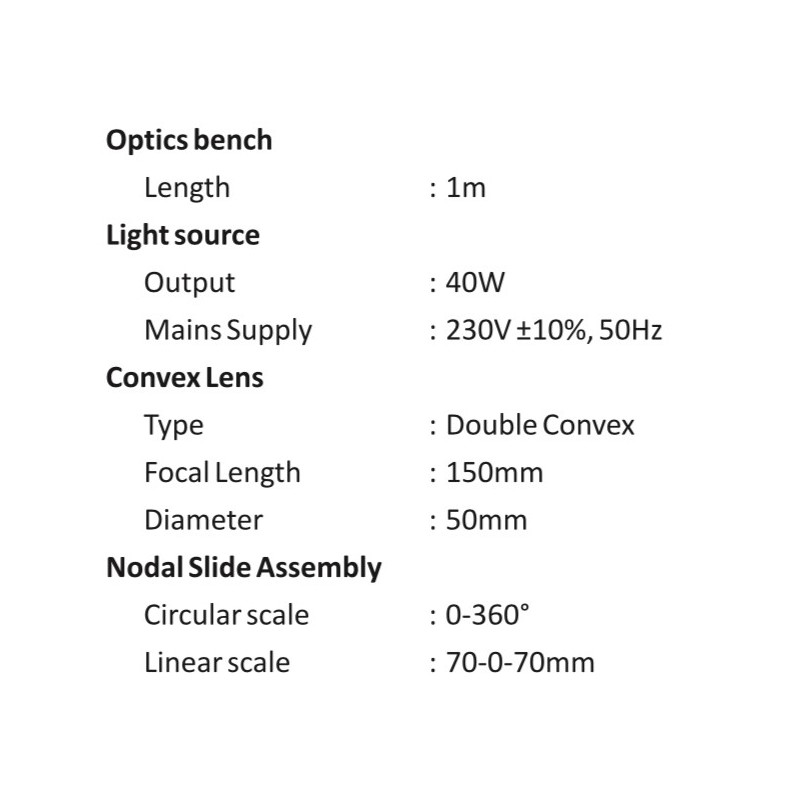

Nvis 6029 Technical specifications

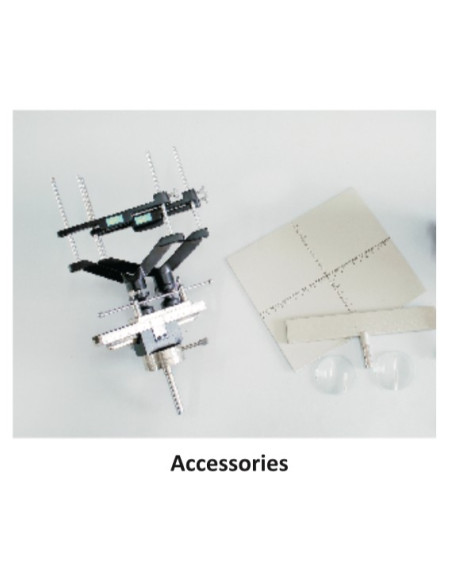

Optional Accessory
Nvis 6029 Laboratory for Nodal Slide Assembly Setup

Nvis 6029 Laboratory for Nodal Slide Assembly Setup

Reference: Nvis6029 - Manufacturer: NVIS TECHNOLOGIES

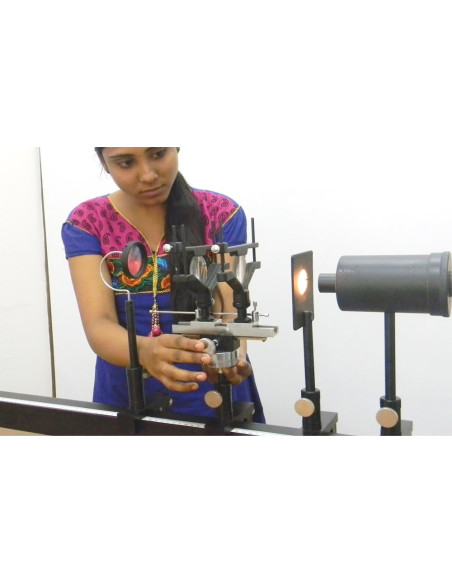

Nvis 6029 Laboratory for Nodal Slide Assembly Setup is useful for accurate measurement of focal length of convex lens and for combination of convex lenses. It consists of incandescent light source, cross slit, movable circular mirror and nodal slide assembly.

help_outlineAsk for Quote

Nvis 6029 Laboratory for Nodal Slide Assembly Setup

I accept privacy policy rules



The Nodal slide assembly is provided with angular and linear movement along with graduated linear and circular scale. This setup also helps the students to understand the basic property of lens like focal point, nodal Point, principal axis, centre of curvature etc.

Nvis 6029 Laboratory for Nodal Slide Assembly Setup is an ideal platform to enhance education, training, skills & development amongs our young minds.

- A comprehensive and self contained optics system
- A complete system with a Light Source, Bench and all other accessories
- Sliding uprights
- 40W incandescent lamp Light Source
-  Online product tutorial

- Determination of the focal length of the converging lens
- Determination of the focal length of the combination of convergent lenses
- Verification of the relation: 1/F = 1/f1 + 1/f2 -d/f1f2
