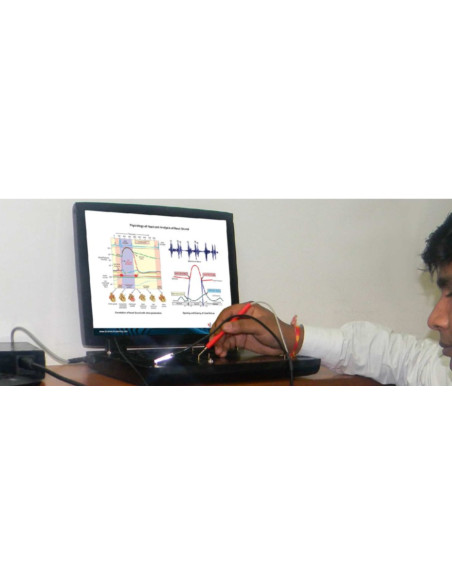

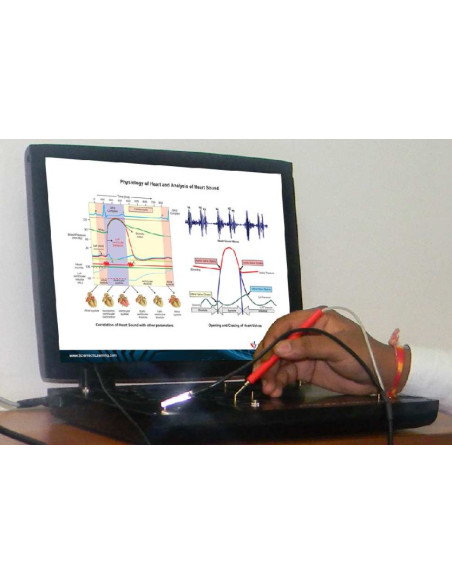

Scientech2356 TechBook for Study of Phonocardiograph System

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

This techbook has a low noise and distortion- free amplifier, Band pass filter and main amplifier of proper pitch and intensity. The heart sounds can be heard clearly on the headphone. The PC interface through USB is provided so that the PCG unit can be connected to PC to obtain the Phonocardiogram waveforms of the patient in the PCG software.

Scientech2356 TechBook for Study of Phonocardiograph System is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Features:

- Specially Designed for Educational Purpose
- Easy to operate with minimum use of accessories
- Provides amplified audible (Headphone) and visible output (Software)
- Separate Test-Points to observe Waveforms after each Block
- USB interface with PC
- Real time PCG Acquisition Software for waveform analysis

- Study of pumping action of heart.
- Study of heart sound generated due to mechanical activity of heart.
- Study of real-time PCG waveform.
- Study of LUB-DUB heart sound.
