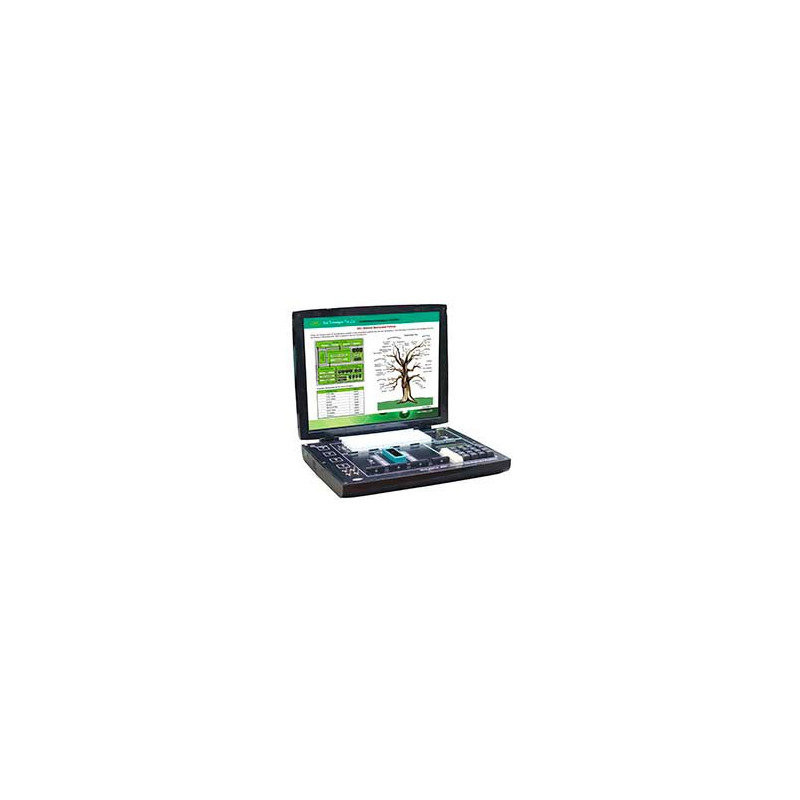

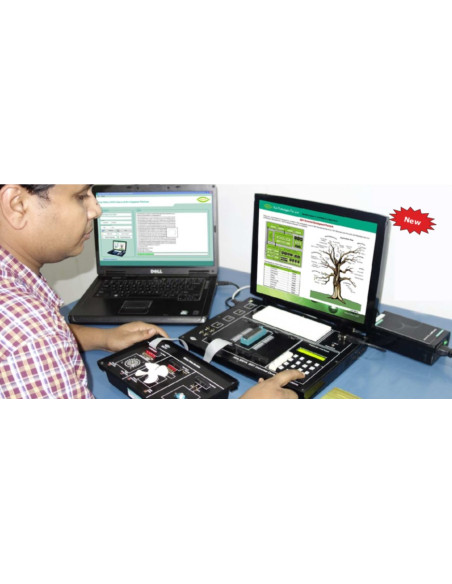

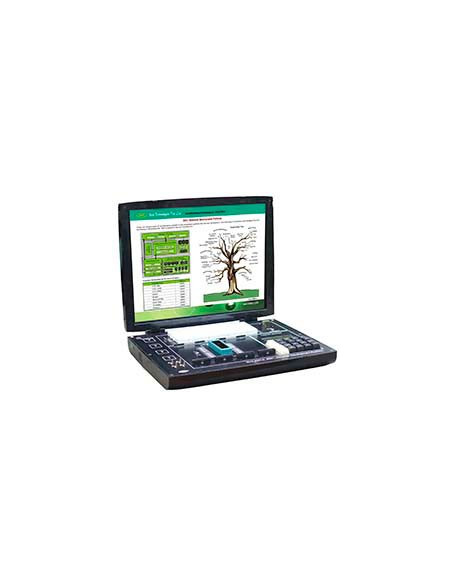

Nvis 5001A Techbook for 8051 Universal Development Platform

Nvis 5001A Techbook for 8051 Universal Development Platform  also supports PC-based programming for large size program code. Using Nvis 5001A, a range of projects in various domains like telecommunication, robotics, consumer electronics, etc can be made.Nvis 5001A gives designers a quick start to develop code on a controller with on-board programmer and on board breadboard facility. The flexibility of connectors allows a user to make external connections. On board breadboard allows them to make their own circuits and perform any experiment they desire.

Nvis 5001A Techbook for 8051 Universal Development Platform  is an ideal platform to enhance education, training, skills & development among our young minds.

• Features:

- Core 8051 MCU clocked at 11.0592 MHz.
- User can enter op code using on board 20 keys Hex keypad

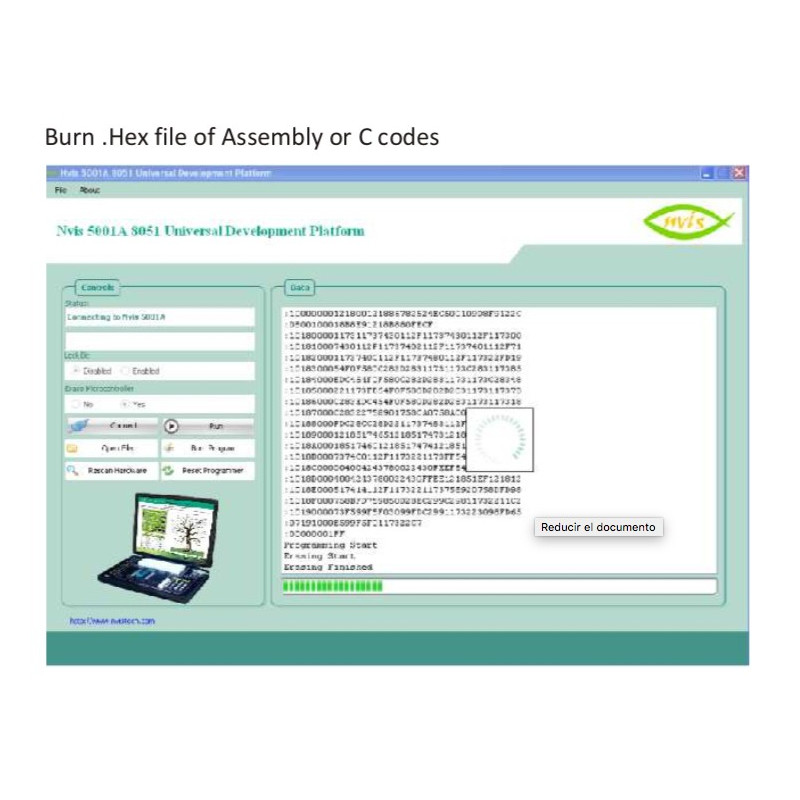

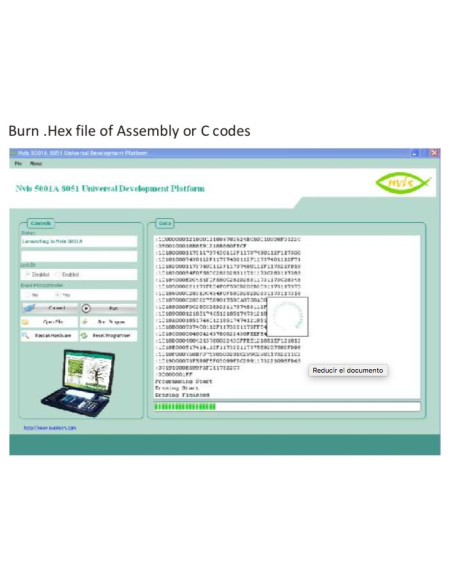

- For large program user can use on board PC based USB Programmer.
- On board LCD for both programming mode and run mode.
- Every pin is marked in order to make work easier

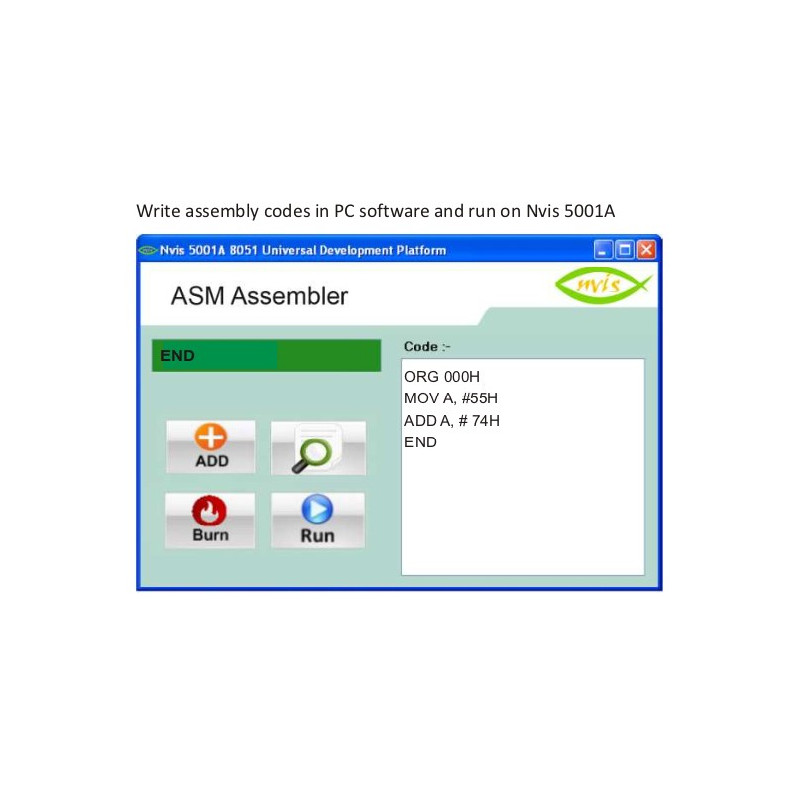

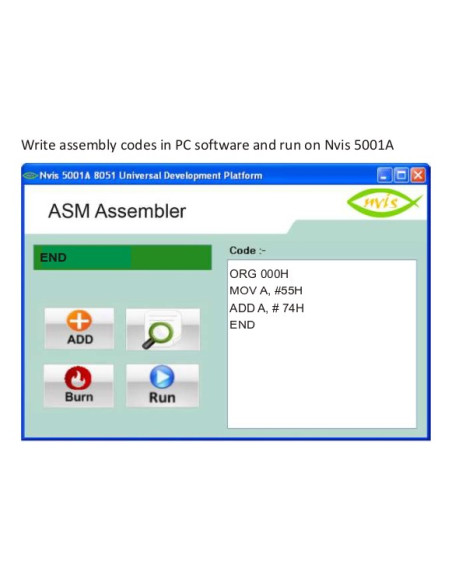

- User can write assembly codes in PC software and run on Nvis 5001A
- PC Programmer mode also supports other devices like AT89C51/52/55, AT89S51/52/53 , AT89S8252
- Input / Output & test points provided on board
- Self contained development board with on board DC Power
- Supply plug in modules and prototyping area
- On board breadboard for self circuit design
- CD with sample project code in assembly and C, Programmer software & useful documents

- Communication: USB
- Programming mode: PC mode, Hex keypad mode
- MCU: 8051 core
- Crystal Frequency: 11.0592 MHz
- DC Power Supplies: +12V, -12V, +5V & - 5V
- Programmer: Ready to run programmer will program 8051 devices
- Interconnection for modules: 2 mm patch cords and FRC cables
- Product Tutorial: Online (Theory, procedure, reference results etc).
- Dimensions (mm): W 326 x D 252 x H 52
- Power Supply: 110V - 260V AC, 50/60Hz
- Weight: 1.5Kg (approximately)
- Operating Conditions: 0-40º C, 85% RH
- Included Accessories: USB cable, Mains cord, Patch cords, 20 Pin FRC cable, TeckBook Power Supply
- Other Microcontroller support PC programmer modes: AT89C51/52/55, AT89S51/52/53 , AT89S8252

- Suggested modules (optional):
-- Nvis MC01-Input interface module
-- Nvis MC02 -ADC- DAC interface module
-- Nvis MC03 - Computer interface module
-- Nvis MC04 - Display module
-- Nvis MC05 - Motor drive module
-- Nvis MC06 - Elevator control module
-- Nvis MC07 - TTL IO interface module
-- NvisMC08- Real time clock module
-- NvisMC09- Graphical display module
-- NvisMC10- Display and switches module
-- NvisMC11- Multi interface module
-- Nvis MC12 - Infrared modules
-- NvisMC13- ADC-DAC with I2C
-- Nvis MC15 - Sensor module
-- Nvis MC16- PWM based voltage regulator
-- Nvis MC17- Vehicle motion detector module

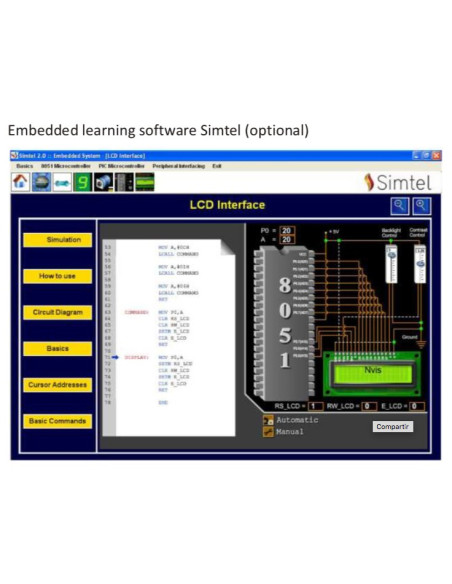

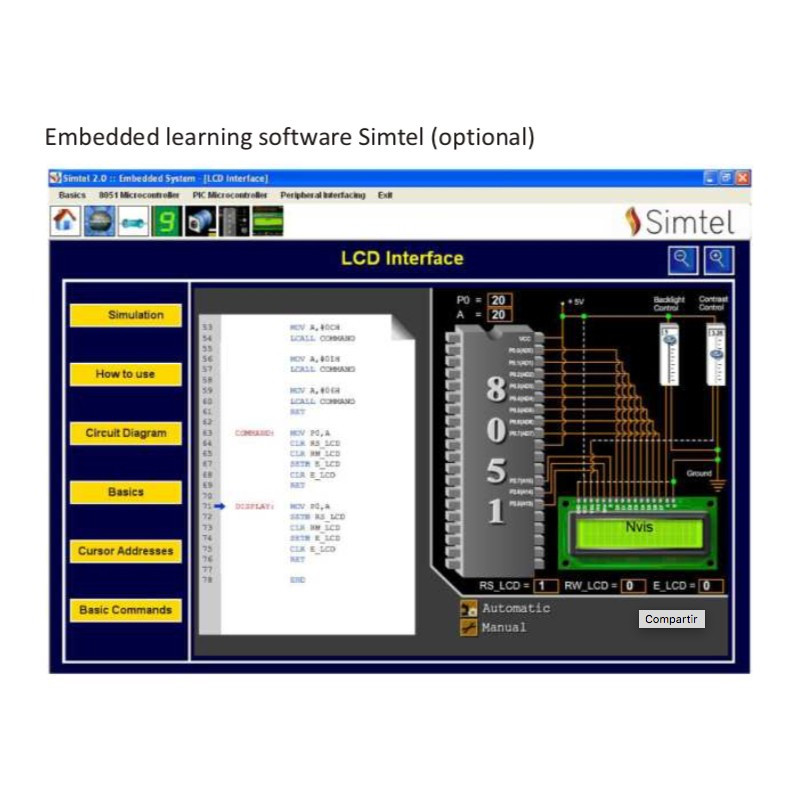

-- Embedded learning software Simtel.

- Decimal Addition of two numbers.
- Hexadecimal Addition of two numbers.
- Hexadecimal Multiplication of two numbers.
- Hexadecimal Division of two numbers.
- Hexadecimal Subtraction of two numbers.
- Logical Operation AND, OR, XOR, NOR, NAND, and NOT.
- Factorial calculation
- Timer/Interrupt example.
- Square wave generation on port
- Ascending and descending order.
- Fibonacci series
- LCM calculation
- HCF calculation
- Multiplication by shifting
- Multiplication by adding
- Square root calculation of a byte.
- Square calculation of a byte
- 8 bit Array addition
- Flashing "Nvis 5001A" on LCD.
- Split bytes into two nibbles and display on LCD
- Program to find even or odd of a byte Interface various external MCXX series modules
