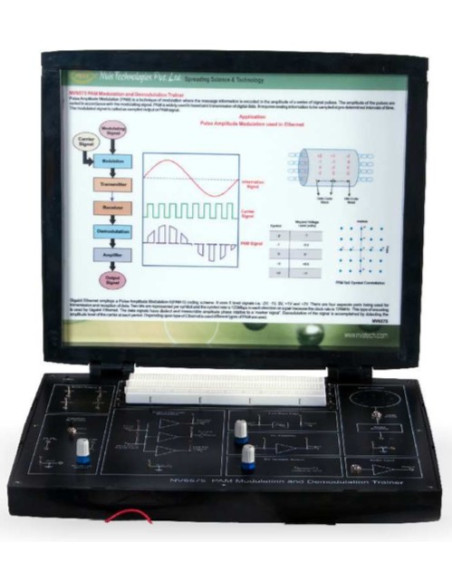

Nvis 6575 Techbook for PAM Modulation and Demodulation Trainer

Nvis 6575 Techbook for PAM Modulation and Demodulation Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

Pulse amplitude modulation is an effective technique used to transmit the information signal over a long distance without any distortion in it. PAM is a form of signal modulation where the message information is encoded in the amplitude of a series of signal pulses. Pulse amplitude modulation is a scheme, which alters the amplitude of regularly spaced rectangular pulses in accordance with the instantaneous values of a continuous message signal.

• Features:

- Self contained Trainer
- Selectable 4 pulse frequencies on board
- On board Sine and Square wave Generators
- Voice Communication using Dynamic Microphone and Speaker
- On Board Filter and AC Amplifier
- Functional Blocks indicated on board mimics
- Input-Output and test points provided on board
- In-built DC Power Supply
- Compact Size
- Learning material CD

- To study the concept of Modulation and Demodulation
- To study the Sampled Waveform
- To study the Sample and Hold Waveform
- To study the Flat-Top Waveform
- To study the Voice Modulation and Demodulation
