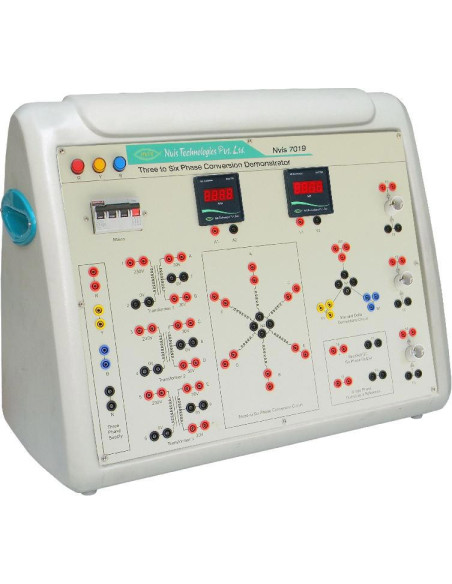

Nvis 7019 Laboratory for Three to Six Phase Conversion Trainer

Reference: Nvis7019 - Manufacturer: NVIS TECHNOLOGIES

Nvis 7019 Laboratory for Three to Six Phase Conversion Trainer is a comprehensive training product used to illustrate the core concepts of Electrical Engineering. User can learn of how Three Phase Supply can be converted into Six Phase with proper phase shift by using three Single Phase Transformers. Separate terminals are provided to analyze Six Phase waveform using Single Phase as a reference waveform.

help_outlineAsk for Quote

Nvis 7019 Laboratory for Three to Six Phase Conversion Trainer

I accept privacy policy rules



The product familiarizes with the phenomenon of Polarity usually expressed as a round dot. User can also get to know the significance of Three Phase Parameters and verify the Star and Delta connection properties.

  • Features:

- Separate terminals to analysis waveforms
- Control board consist of high grade FRP material to provide utmost safety to the users
- Three Identical Single Phase Transformer
- Equipped with supply indication lamps
- Provided with bulb holder to use suitable load
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Exclusive and Attractive Design
- Product tutorial (CD)

- Study of Three Phase Parameters of Three Phase Supply
- Study of Three to Six Phase Conversion using 3 nos. Single Phase Transformers
- Study of Polarity Test under Single Phase Transformer
