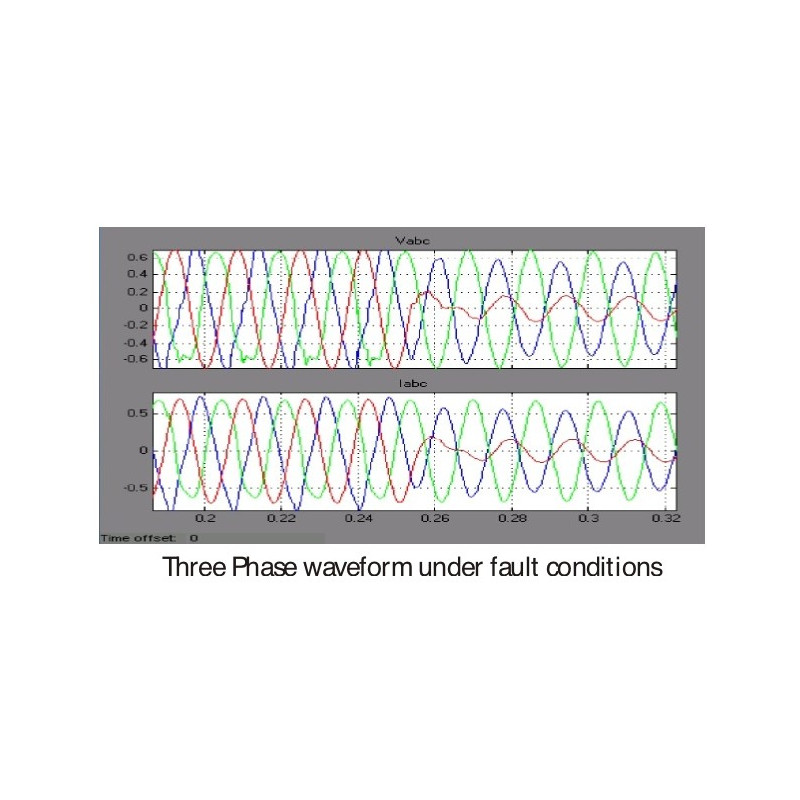

Three Phase waveform under fault conditions
Nvis
Nvis 7065 Symmetrical and Unsymmetrical Fault Demonstrator Lab

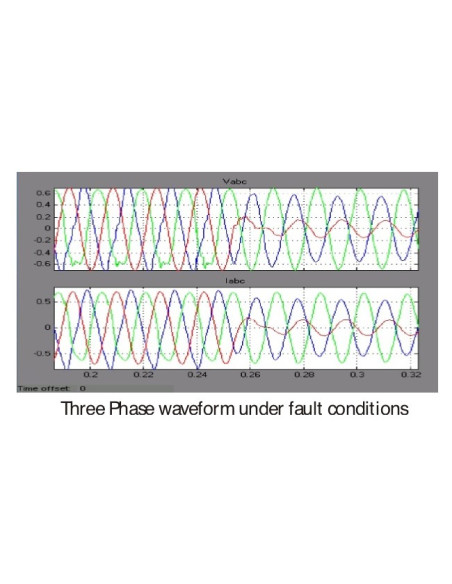

Three Phase waveform under fault conditions
Nvis

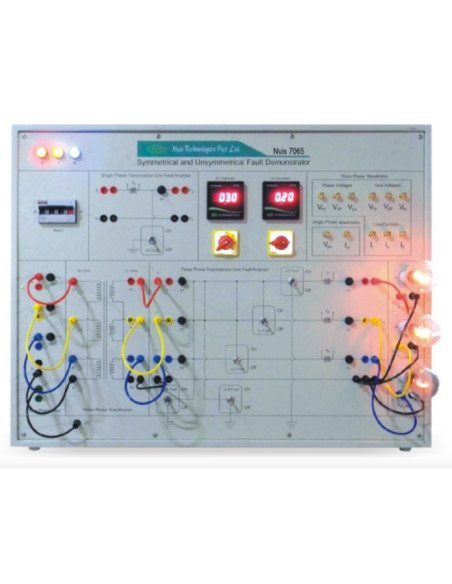

Nvis 7065 Symmetrical and Unsymmetrical Fault Demonstrator Lab

Reference: Nvis7065 - Manufacturer: NVIS TECHNOLOGIES

Nvis 7065 Symmetrical and Unsymmetrical Fault Demonstrator Lab is a training system designed to explain the basic faults which can occur in a Transmission Line. Using Three Phase step down transformer, the training product reinforces the knowledge of all the basic faults in Transmission Line and corresponding sequence characteristics.

help_outlineAsk for Quote

Nvis 7065 Symmetrical and Unsymmetrical Fault Demonstrator Lab

I accept privacy policy rules



Nvis 7065 Symmetrical and Unsymmetrical Fault Demonstrator Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

In addition to this, it also provides an opportunity to a student to use a wide variety of electrical components such as MCB, Selector Switch, Ammeter, Voltmeter, Three Phase Transformer, Indicating Lamps, Fuse etc. This product along with the learning material represents almost all faults in Power System training course.

  • Features:

- Fast response time
- High quality meters
- Test terminals provided to analyze the waveforms
- Line Voltage and Phase Voltage selection facility
- Designed by considering all the safety precautions
- Diagrammatic representation for the ease of connections
- Online product tutorial

- Line to Ground (L-G) Fault analysis of a Single Phase Transmission
- Line Single Line to Ground Fault (L-G) analysis of a Three Phase Transmission Line
- Line to Line Fault (L-L) analysis of Three Phase Transmission Line
- Double Line to Ground Fault (L-L-G) analysis of Three Phase Transmission Line
- Symmetrical L-L-L Fault analysis of Three Phase Transmission Line
- Symmetrical L-L-L-G Fault analysis of Three Phase Transmission Line
