Reference: Scientech2702 - Manufacturer: SCIENTECH TECHNOLOGIES

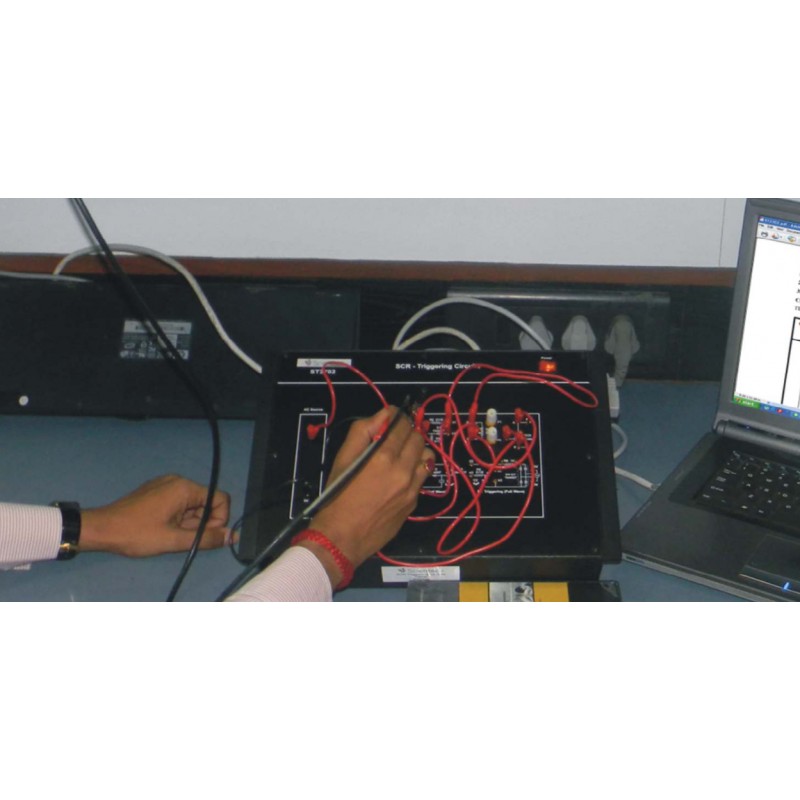

Scientech 2702 is a platform which is very useful for Students to understand various thyristor firing methods like R, RC half wave, RC full wave.

This platform is provided with in built power supply, sockets for making interconnection in the circuit & exhaustive learning material.

Built in power supply.
Easy to operate and understand.
Three firing circuits on single board.
Gradual firing angle control.
Test points for observe output of different circuits.
Sockets to make different connections.
On board AC sources of 18 V-0 V-18 V.

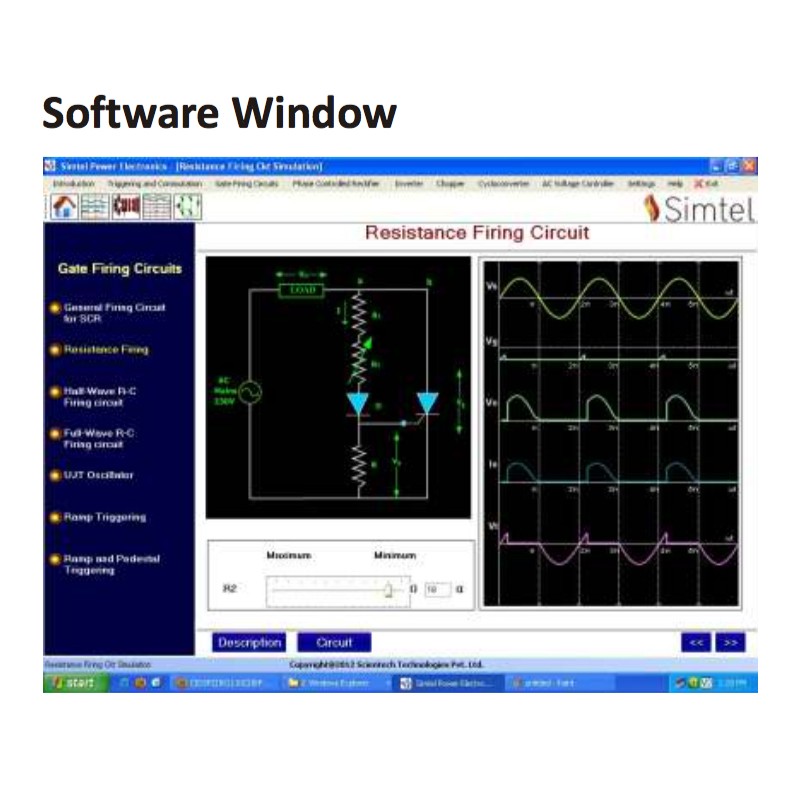

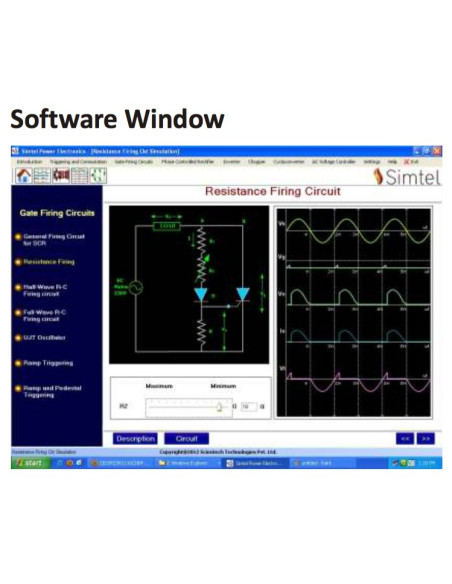

Study of the Resistor Triggering Circuit
Study of the RC Half Wave Triggering Circuit
Study of the RC Full Wave Triggering Circuit

Category: Platforms

Download (357.23KB)
