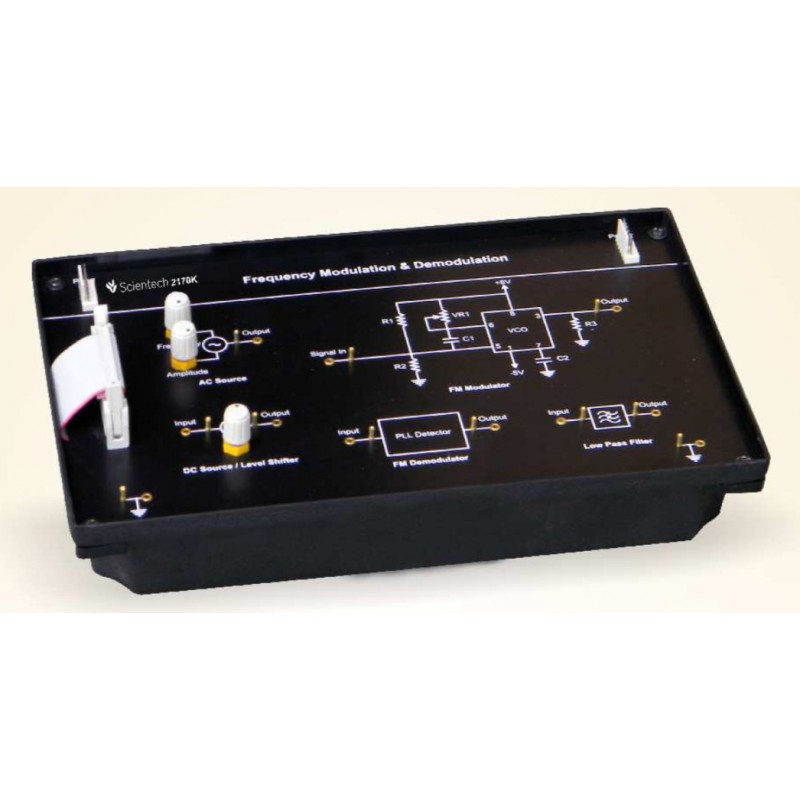

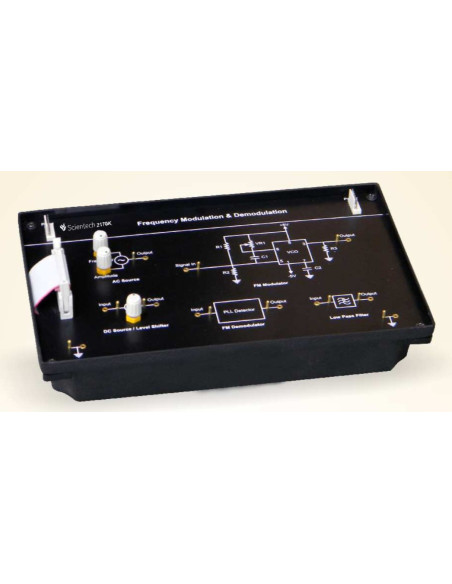

Scientech2170K Laboratory for FM Modulation and Demodulation
Scientech2170K Laboratory for FM Modulation and Demodulationn is a comprehensive lab training solution for students who have just started their first course on electronic communication. This board implements Frequency Modulation using Voltage Controlled Oscillator.
The frequency demodulation consists of simple Phase Locked Loop circuit. Scientech 2170K has its own Audio Signal Generator and DC Source/ Level shifter onboard.
Scientech2170K Laboratory for FM Modulation and Demodulation comprises of following blocks :
- AC Source with variable amplitude and frequency
- DC Source/Level Shifter
- Frequency Modulation using VCO
- Frequency Demodulation using PLL
- Low pass filter
Product Features:
- On-board Audio Signal Generator
- Amplitude and Frequency controls for Audio signal generator
- Variable DC Source/ Level Shifter
- Frequency Modulation using VCO
- Frequency Demodulation using PLL
- Online Product Tutorial
- Study of Frequency Modulation using Voltage Controlled Oscillator.
- Study of Frequency Demodulation using Phase Locked Loop.
- Measurement of modulation index.
- Category
- AM/FM
