VWSE-RST vibrating wire soil Extensometer

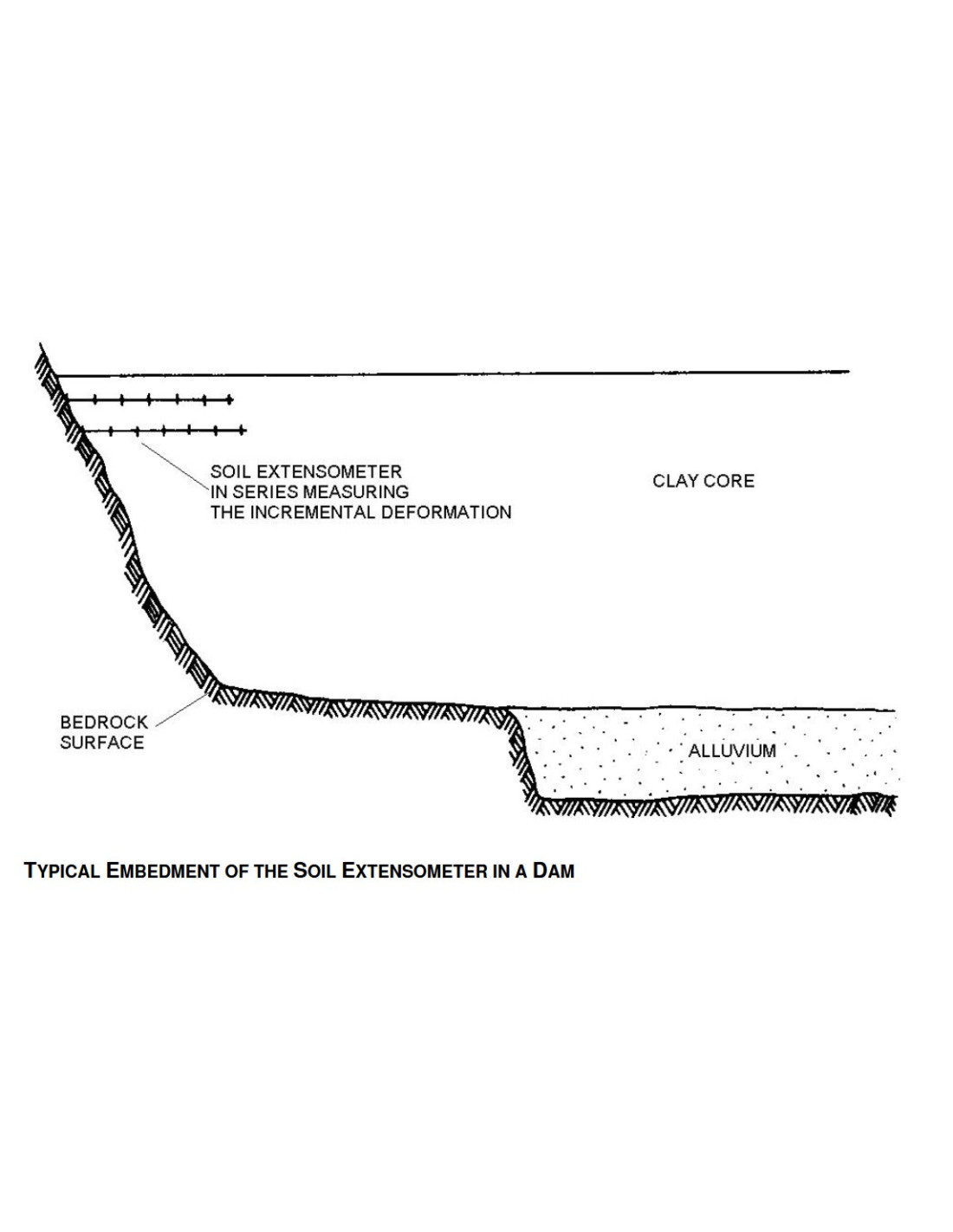

The VWSE-RST vibrating wire soil extensometer is designed to monitor lateral and longitudinal deformation in soil, embankments, and embankment dams.

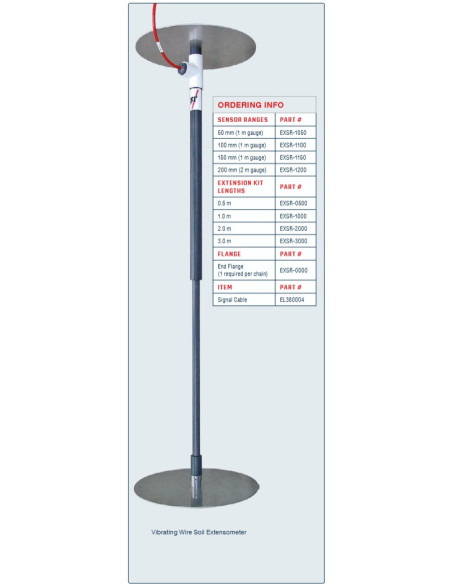

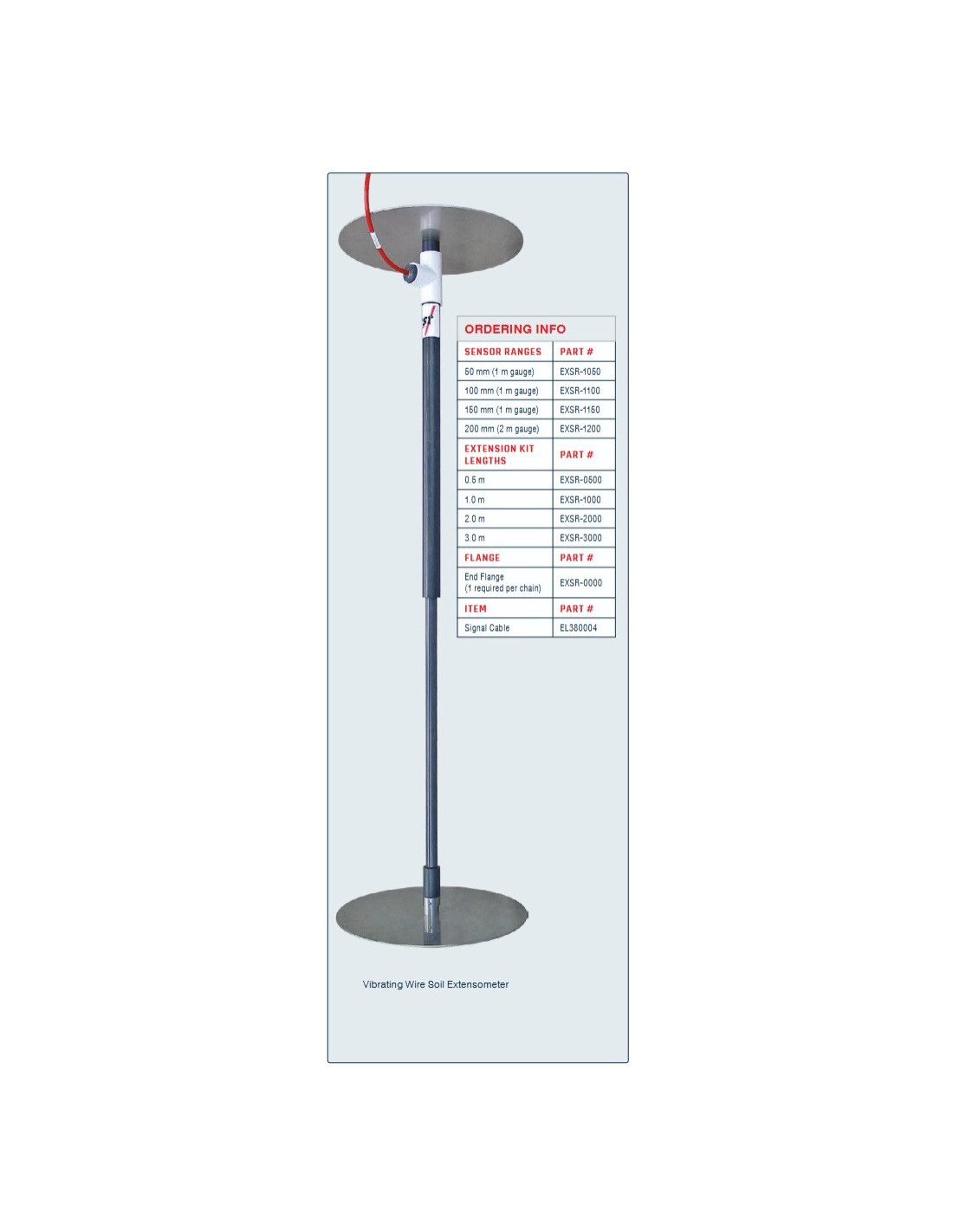

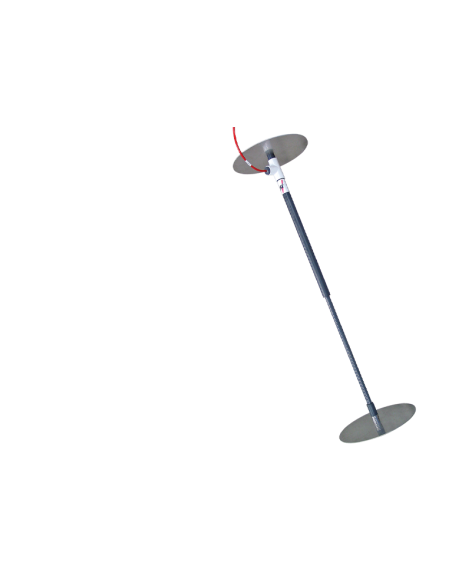

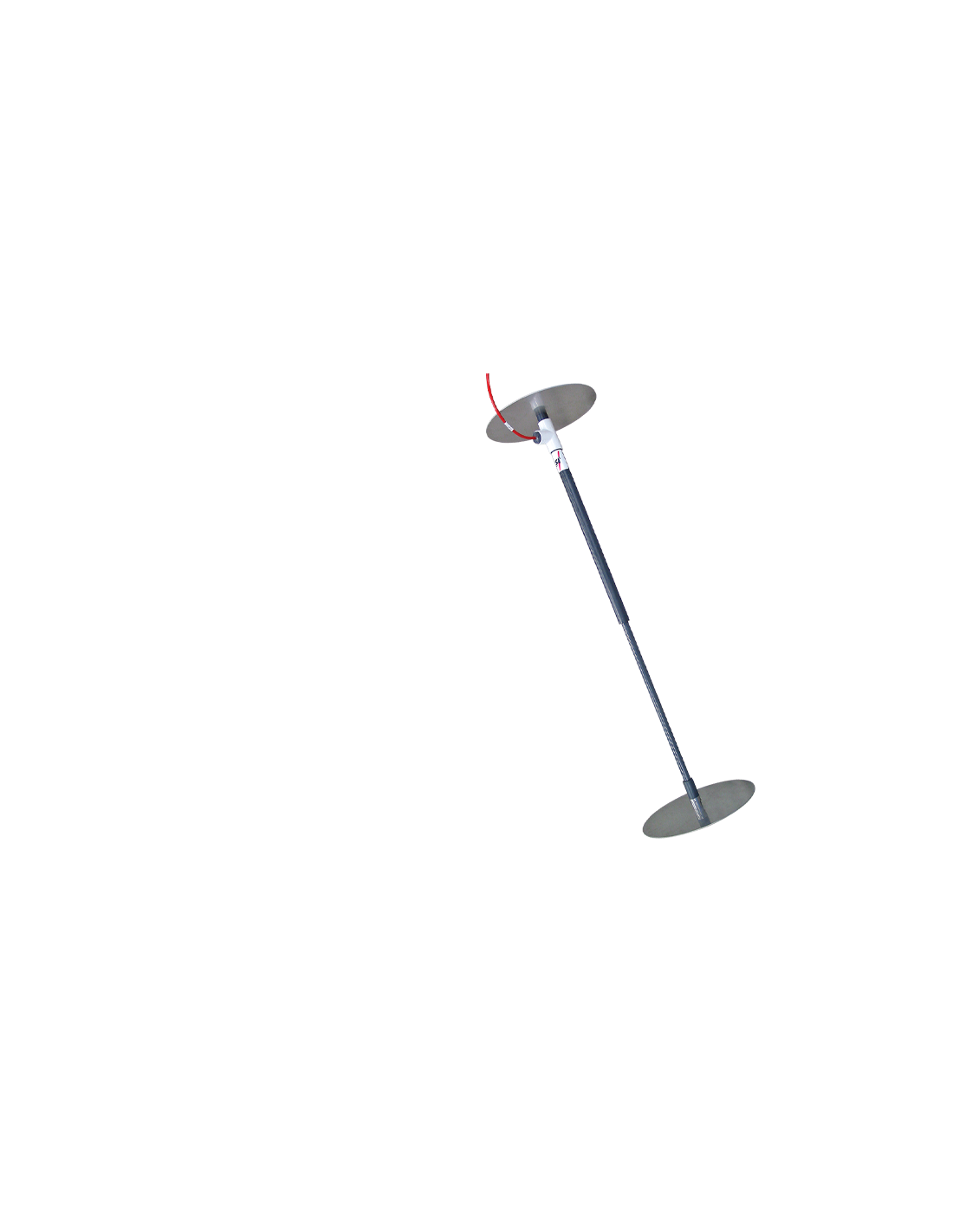

The instrument consists of a vibrating wire displacement sensor enclosed in a sealed body. The assembly includes a telescopic outer PVC pipe fitted with two flanges and an inner stainless steel rod. One end of the rod is attached to a flange, while the other end is connected to the displacement sensor attached to the opposite flange.

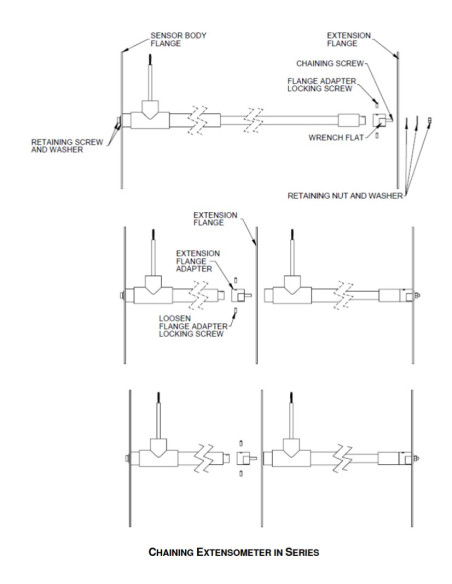

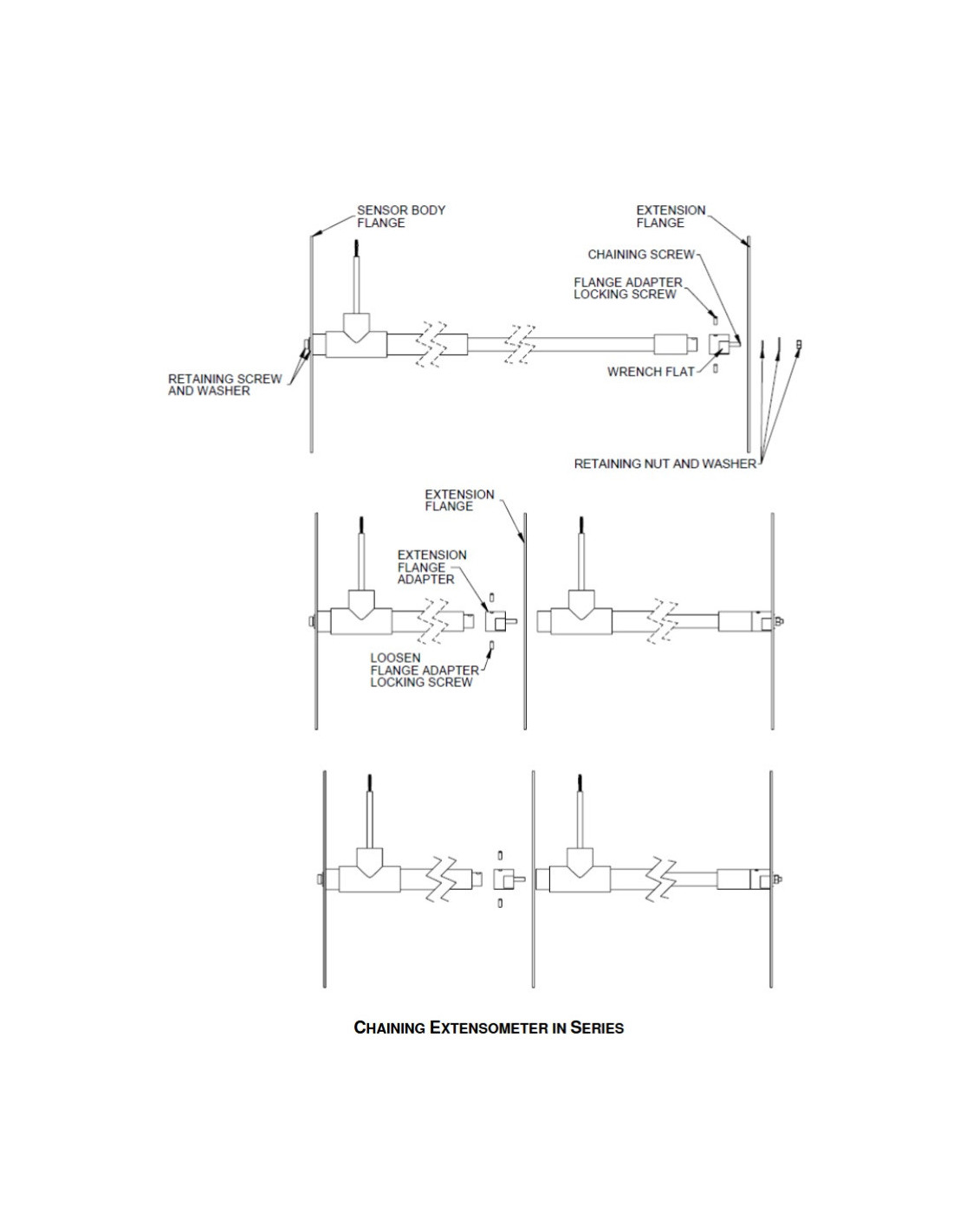

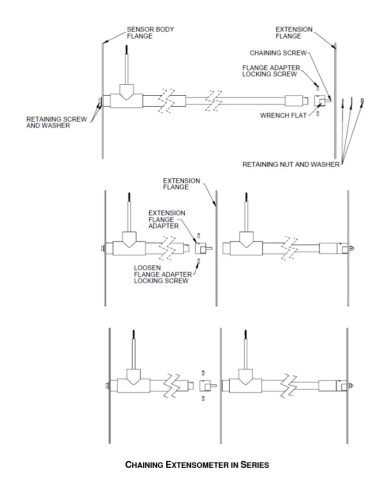

Units are typically installed in series as a chain over the required monitoring distance. As deformation occurs, the telescopic pipe moves with the soil and the displacement sensor measures the resulting movement.

• Easy installation and maintenance
• Very robust and accurate
• Wide measuring range
• Suitable for remote reading and data logging
• Accuracy not affected by cable length
