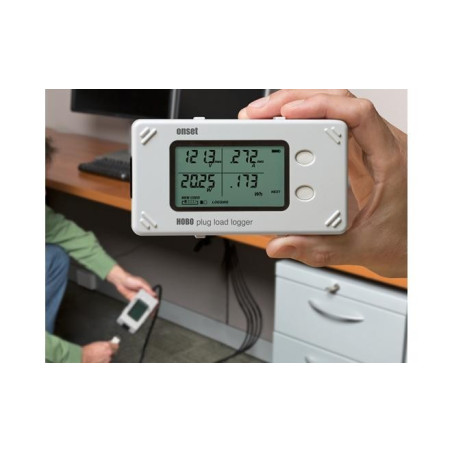

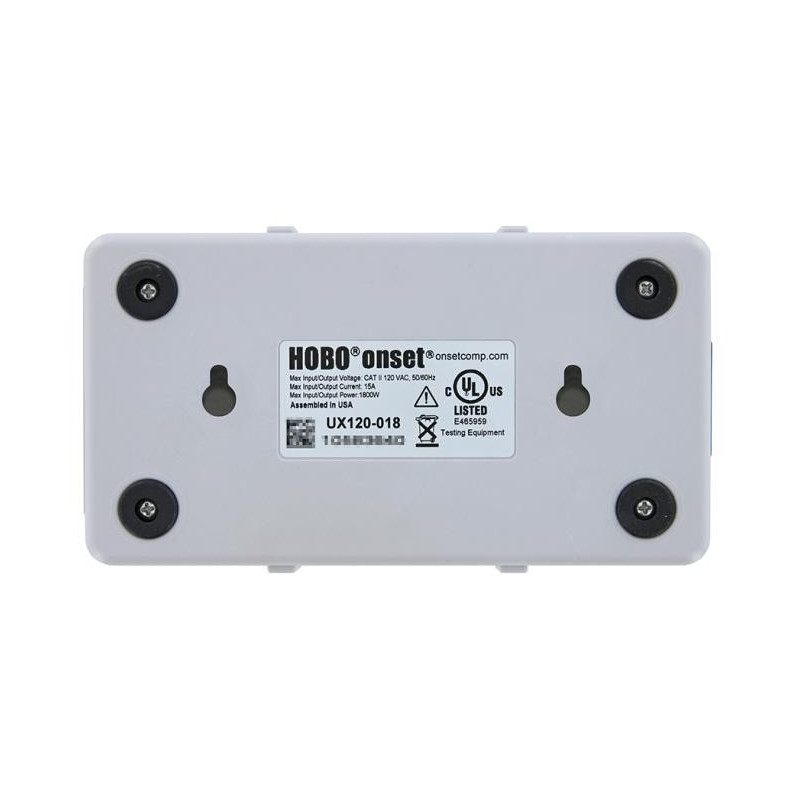

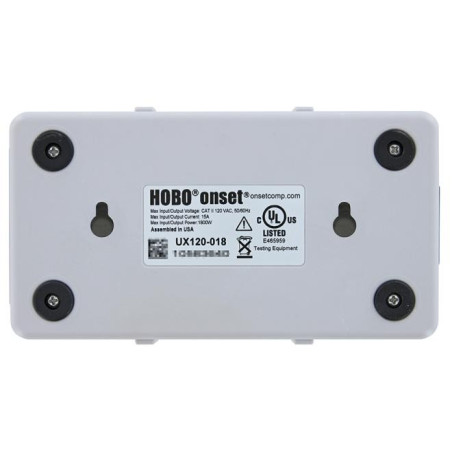

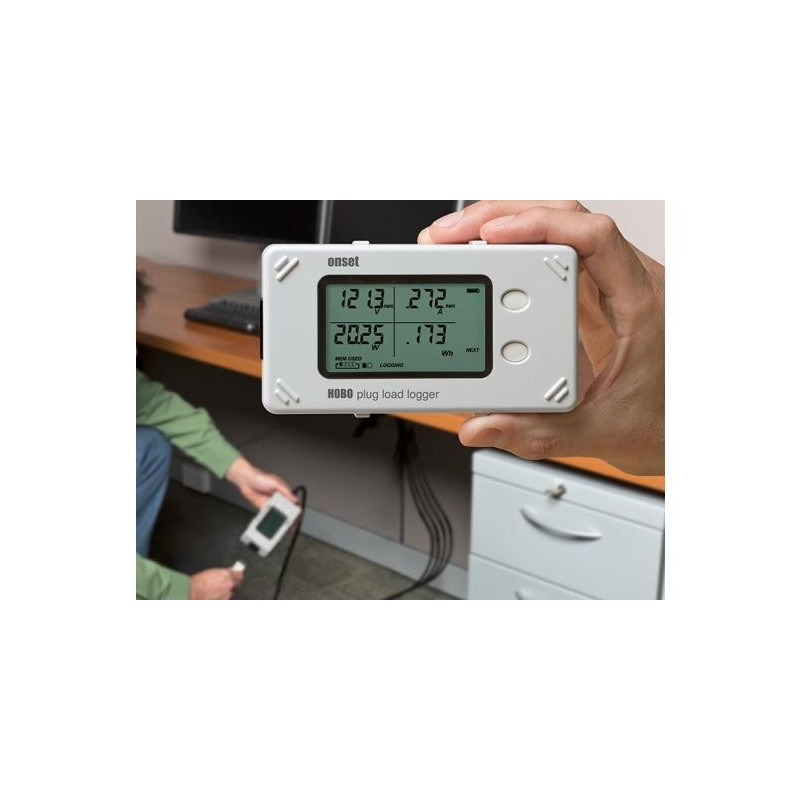

HOBO Plug Load Data Logger
HOBO Plug Load Logger UX120-018
New
A high-accuracy, easy-to-deploy data logger that measures and records the power and energy consumption of 120V plug loads by simply plugging office equipment, vending machines, and other devices into the logger.
IMPORTANT INFORMATION Requires HOBOware software and a USB cable. (Note: A USB-A to USB-B mini cable is included w/HOBOware Pro USB Drive software purchase). See compatible items below.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
A high-accuracy, easy-to-deploy data logger that measures and records the power and energy consumption of 120V plug loads from office equipment, vending machines, and other devices. These devices can simply be plugged into the logger, and it will record all the key power parameters. This UL-certified logger provides 0.5% measurement accuracy with a measurement resolution of 1 watt, making it an ideal choice for building audits where detailed energy use data is required. The rugged housing is designed to withstand the rigors of real-world handling, providing reliable performance despite bumps, drops, and use under desks.
Features
-
No Electrician Required
Simply plug in the device that needs to be monitored.
-
0.5% Measurement Accuracy
Enables more reliable plug load energy data.
-
Meter Mode
Provides instant viewing of real-time plug load variables.
-
Time-Stamped and Totalized Data
Provides detailed load data for energy analysis.
-
Large Memory
Enables faster logging intervals for comprehensive plug load profiles.
-
Battery Backup
Ensures logged data remains intact during power outages or load failures.
-
Full-Featured LCD Display
Provides visual diagnostics for easy deployment.
-

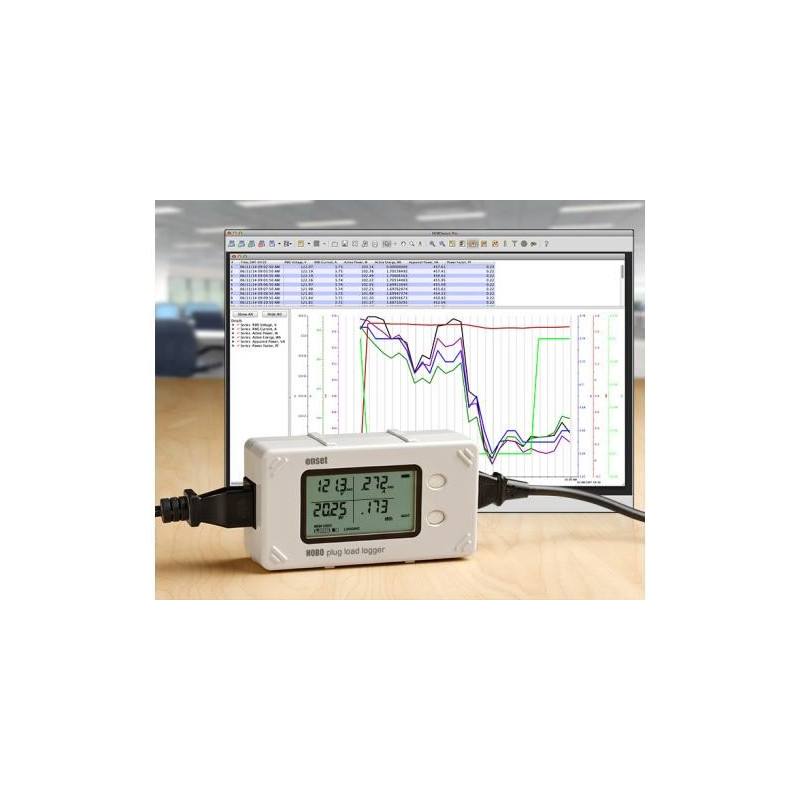

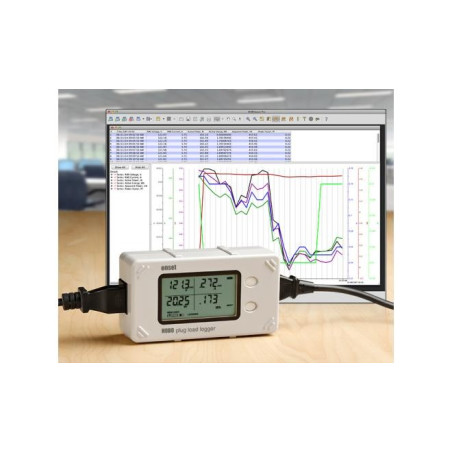

HOBOware Compatibility
Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis.
Specifications
Note: The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W.
| Specification | Details |
|---|---|
| Indoor use only | Insulation category 2 |
| Maximum Current | 15 Amps |
| RMS Voltage Accuracy | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| RMS Current Accuracy | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Active Power Accuracy | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Active Energy Accuracy | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle |
| Power Factor Accuracy | ±0.02 |
| Drift | Up to 0.5% typical within 1 year |
| Resolution |
|
| Operating Environment | Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude |
| Operating Modes | Meter or logging when launched with HOBOware |
| Logging Rate | 1 second to 18 hours, 12 minutes, 15 seconds |
| Statistics Sampling Rate | 60 Hz or 16.67 mS single-cycle |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | When memory full, push button, or date & time |
| Restart Mode | Push button |
| Time Accuracy | ±1 minute per month at 25°C (77°F), see Plot A |
| Power Source | Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable |
| Battery Life | 2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F) |
| Memory | 4 MB (1.4 million measurements, maximum) |
| Download Type | USB 2.0 interface |
| Full Memory Download Time | Approximately 1.5 minutes |
| LCD | Visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.) |
| Weight | 230.8 g (8.14 oz) |
| Ratings | IP50 |
| Certifications |  UL Listed; UL Listed to Canadian safety standards |
| Calibration | This device has been calibrated using equipment that has been tested in accordance with ANSI C12.20 0.5% |
| Time Accuracy |  ±1 minute per month at 25°C (77°F), see Plot A |
What's In The Box:
- HOBO UX120-018 Plug Load Data Logger
- AC power cord
