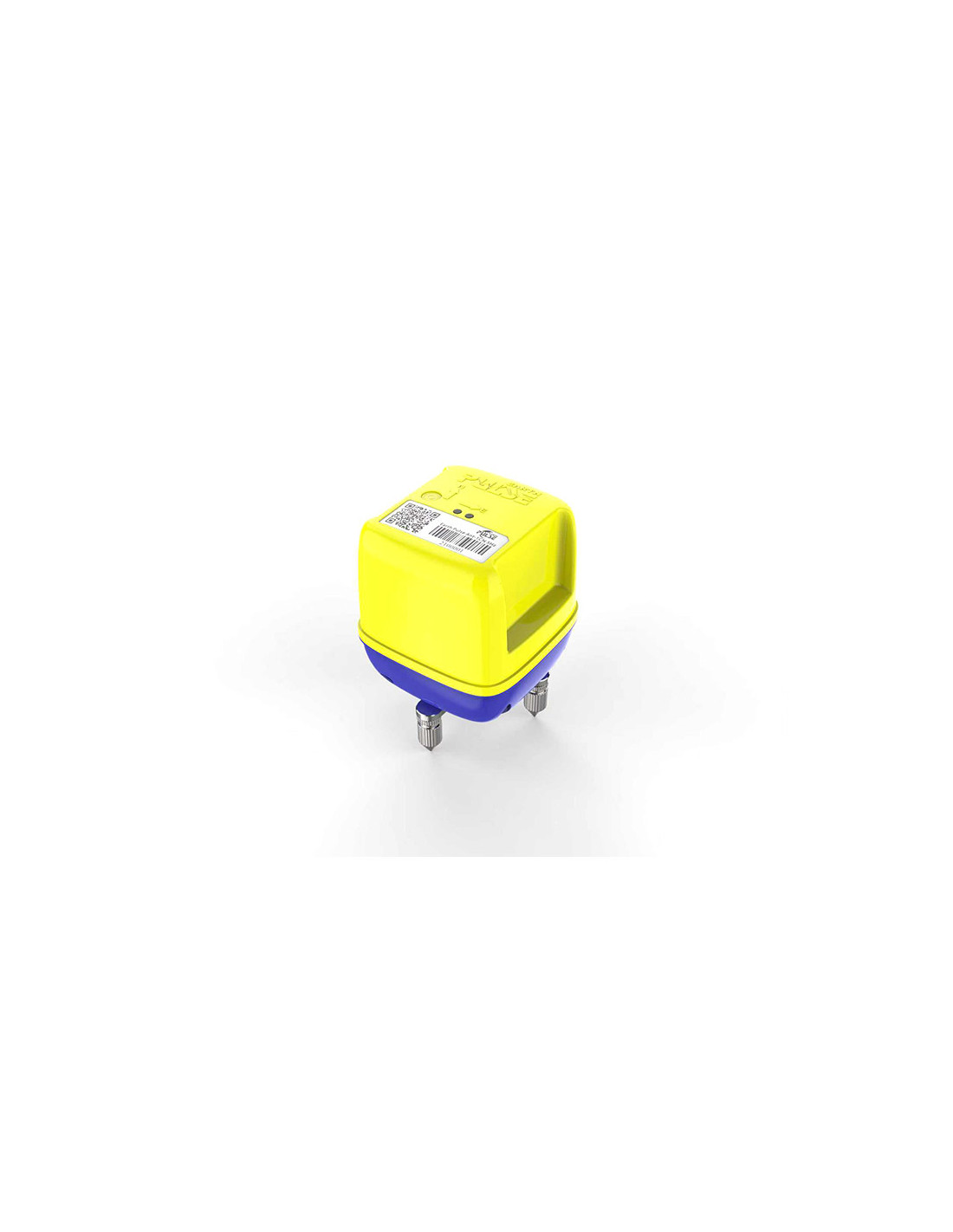

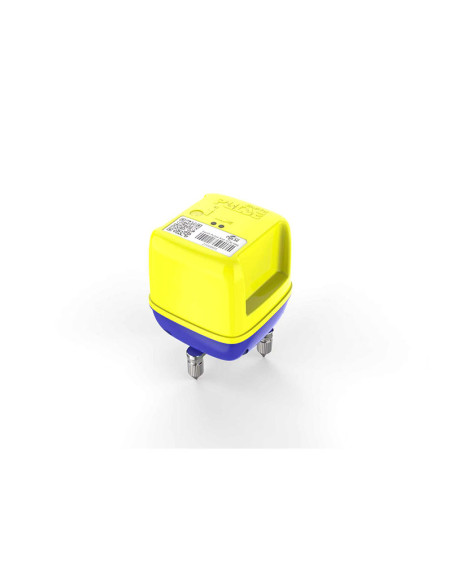

Ant-1CN-5Hz Integrated Single Component Seismometer with 4G

Reference: Ant-1CN-5Hz - Manufacturer: GEOANT

High precision single component seismometer with 4G connectivity, GNSS timing and IP68 protection for real time seismic monitoring.

help_outlineAsk for Quote

Ant-1CN-5Hz Integrated Single Component Seismometer with 4G

I accept privacy policy rules



The Ant-1CN-5Hz is an integrated single component seismometer designed for real time seismic monitoring. It features 4G cellular connectivity with IoT SIM card support for immediate field data transmission.

It combines advanced GPS/Beidou synchronization algorithms, ultra low power electronics, wireless data and charging technology, and real time communication. Its highly integrated design, long operating life and zero external contacts support automated deployment in complex terrain and harsh environments.

With a high performance ADC architecture, it delivers outstanding dynamic range for microvibration detection in seismic zonation, shallow geological surveys, urban subsurface exploration, geothermal projects and energy or mining exploration.

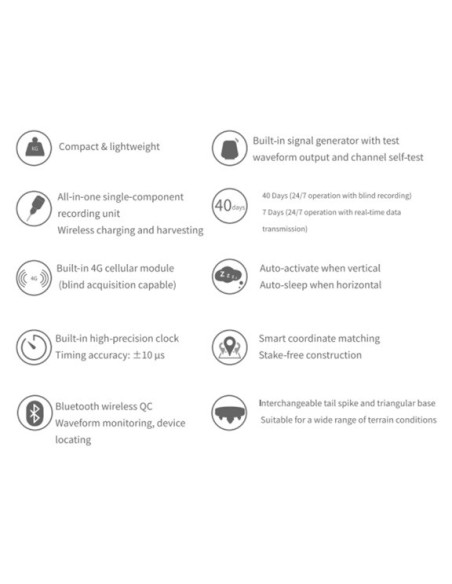

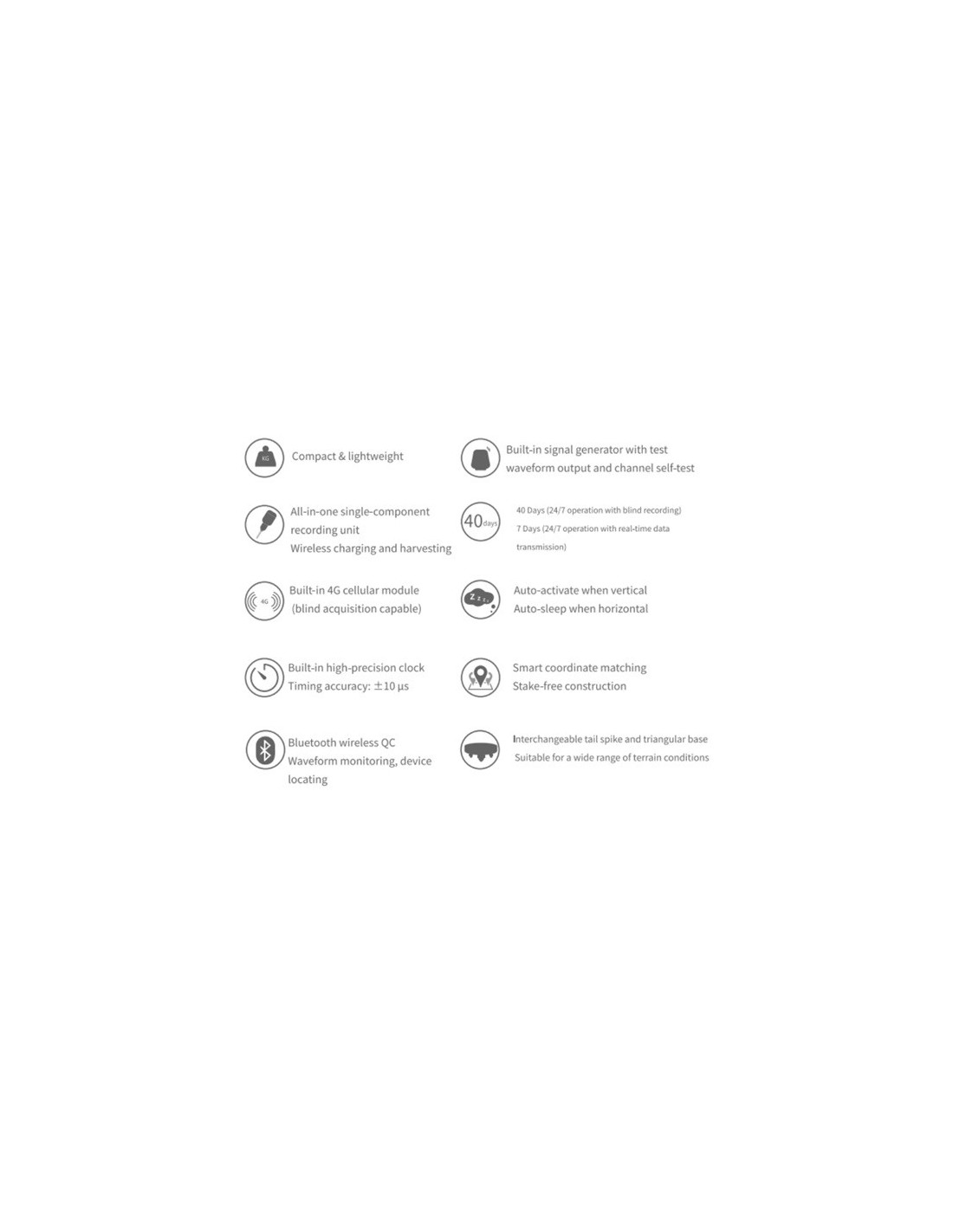

  • 4G connectivity for instant transmission
  • Simultaneous GPS/Beidou/GLONASS/GNSS timing
  • IP68 protection and operation from -40 C to +70 C
  • Total dynamic range of 145 dB
  • Expandable storage from 32 GB to 128 GB

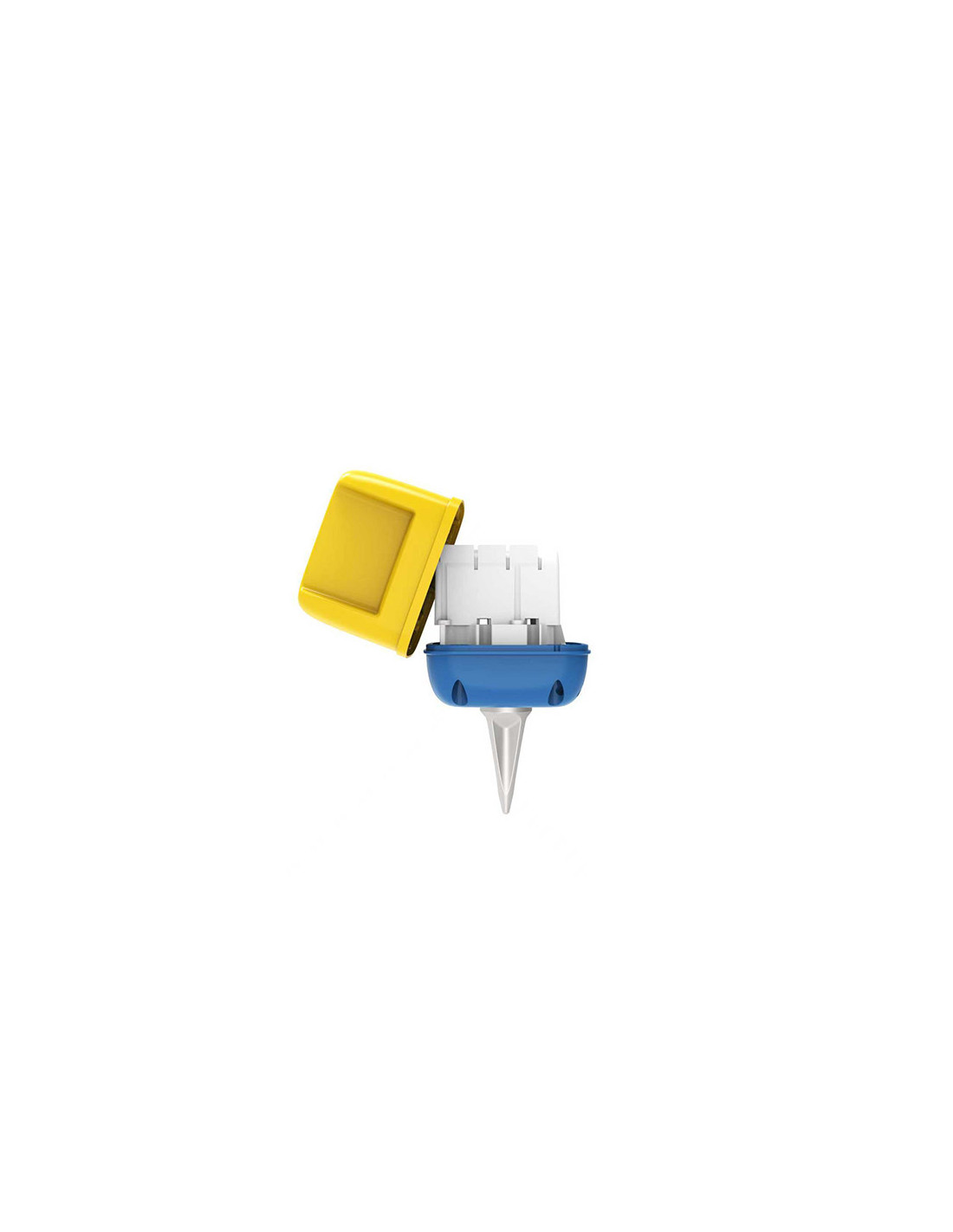

Weight 1200 g excluding spike
Dimensions 90 x 100 x 128 mm
Operating temperature -40 C to +70 C
Ingress protection IP68
Operating life at 25 C Unlimited with external solar panel; 7 days realtime transmission; 15 days cyclic transmission; 40 days blind recording
Charging time 6.5 hours
Channels 1 channel Delta-Sigma ADC
A/D converter 32-bit
Sampling rate 0.25 ms, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 10 ms and 20 ms
Preamplifier gain 0-24 dB in 6 dB steps
Low cut filter 1 Hz, DC removed or disabled
Total dynamic range 145 dB
Timing accuracy ±10 us GPS disciplined
Storage Expandable from 32 GB to 128 GB
Built in GNSS Simultaneous GPS/Beidou/GLONASS/GNSS, single or dual mode
Selectable geophone 5 Hz
Natural frequency 5 ± 7.5 %
DC resistance 1850 ± 5 %
Open circuit sensitivity 76.7 ± 5 %
Damping 0.7 ± 7.5 %
Distortion ≤0.1 %
Spurious frequency ≥170
Effective frequency range 0.2 to 1000 Hz

The Ant-1CN-5Hz is an integrated single component seismometer designed for real time seismic monitoring. It features 4G cellular connectivity with IoT SIM card support for immediate field data transmission.

It combines advanced GPS/Beidou synchronization algorithms, ultra low power electronics, wireless data and charging technology, and real time communication. Its highly integrated design, long operating life and zero external contacts support automated deployment in complex terrain and harsh environments.

With a high performance ADC architecture, it delivers outstanding dynamic range for microvibration detection in seismic zonation, shallow geological surveys, urban subsurface exploration, geothermal projects and energy or mining exploration.

  • 4G connectivity for instant transmission
  • Simultaneous GPS/Beidou/GLONASS/GNSS timing
  • IP68 protection and operation from -40 C to +70 C
  • Total dynamic range of 145 dB
  • Expandable storage from 32 GB to 128 GB
