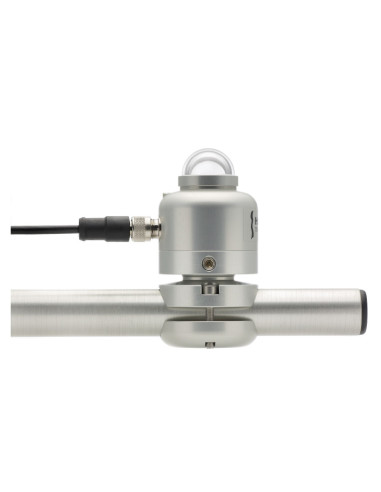

Pyranometer with handheld read-out unit/datalogger, SR05-LI19

Reference SR05-LI19

Manufacturer: Hukseflux

Condition: New

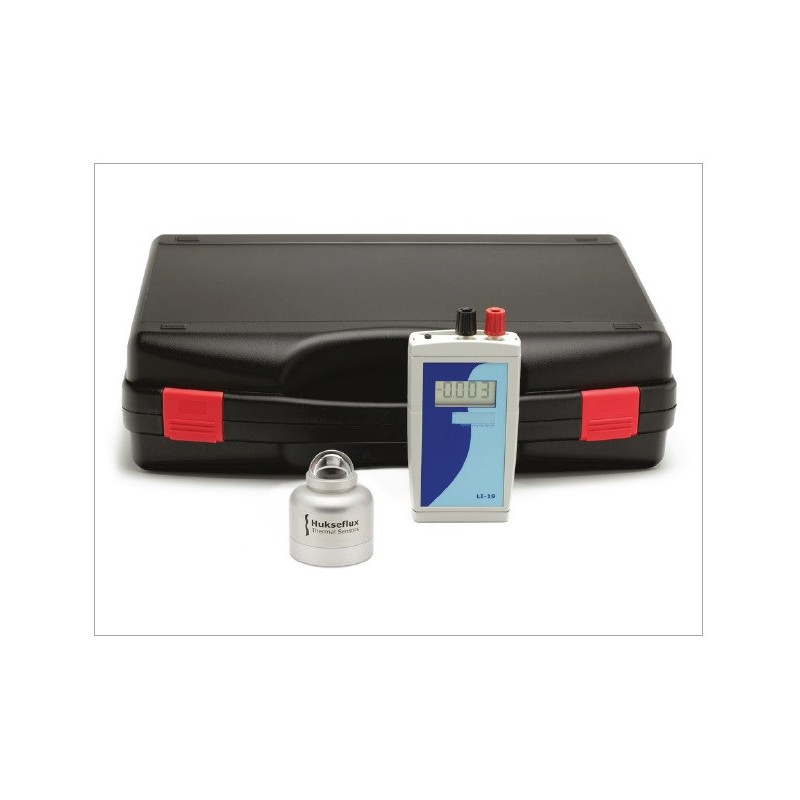

SR05 is a solar radiation sensor that is applied in most common solar radiation observations. SR05-A1, with analogue millivolt output, complies with the spectrally flat Class C specifications of the ISO 9060 standard and the WMO Guide. LI19 is a high-accuracy handheld read-out unit / datalogger. The SR05-LI19 combination is well suited for mobile measurements and short term datalogging.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet
Download

Environment of Use	Indoor/Outdoor
ADC Bits	16 bit
With Display	LCD
The Sensor measures:	Solar Light Radiation W/m2

SR05 LI19 Data Sheet Download (1.33M)

LI19 displays measured radiation and stores measured data. Once programmed with the sensitivity of SR05, the display will show the actual value of the solar radiation in W/m2.
Programming LI19 is done through its PC user interface.

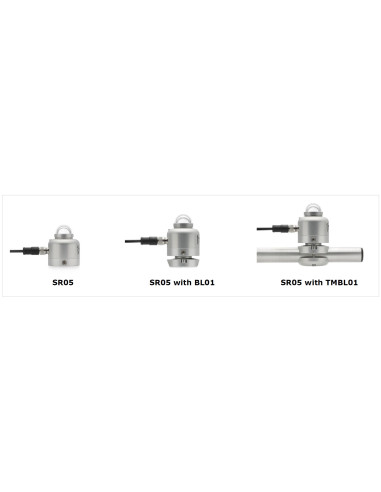

SR05 is a solar radiation sensor that is applied in general observations. It measures the solar radiation received by a plane surface from a 180o field of view angle. This quantity, expressed in W/m2, is called “hemispherical” solar radiation.

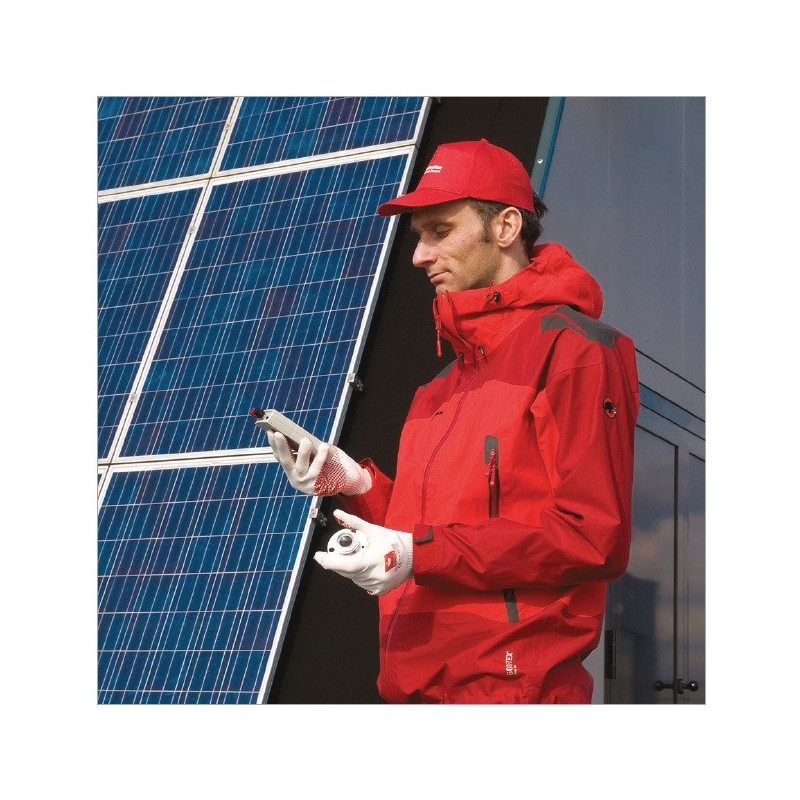

SR05 pyranometer can be employed outdoors under the sun, as well as indoors with lamp-based solar simulators.
Its orientation depends on the application and may be horizontal, tilted (for plane of array radiation) or inverted (for reflected radiation). Model version SR05-A1 offers analogue millivolt output.
