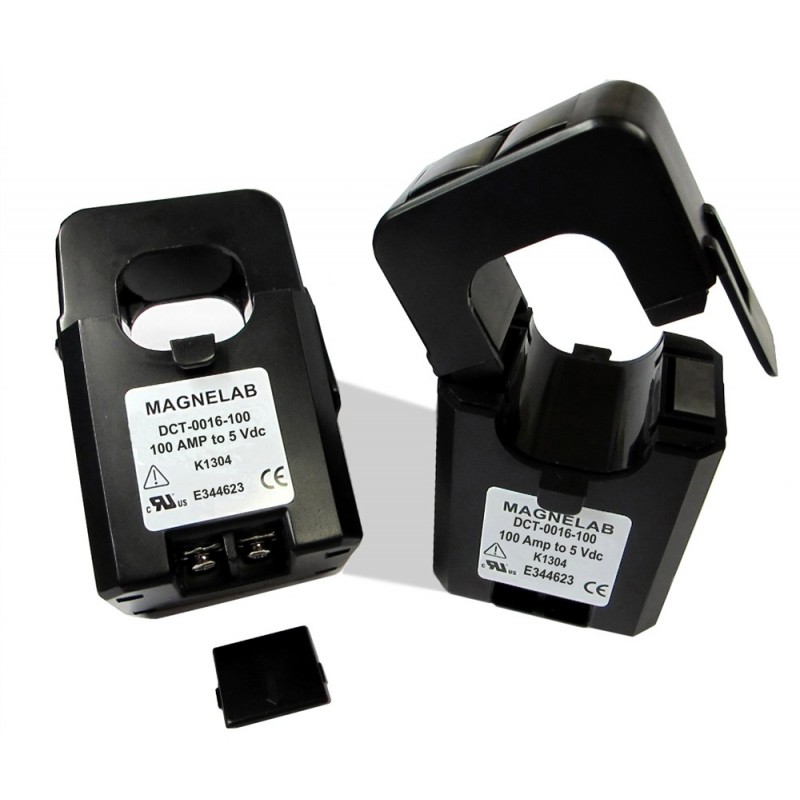

DCT-0016-100 Core DC Voltage Output Transducer

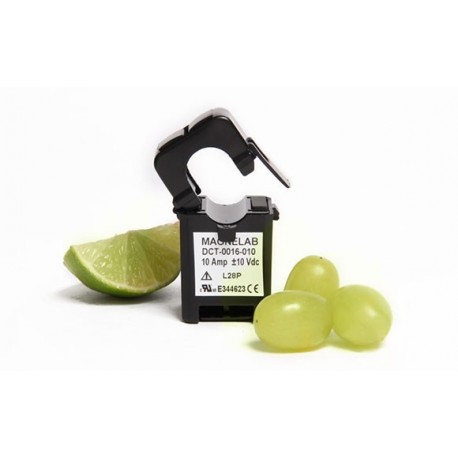

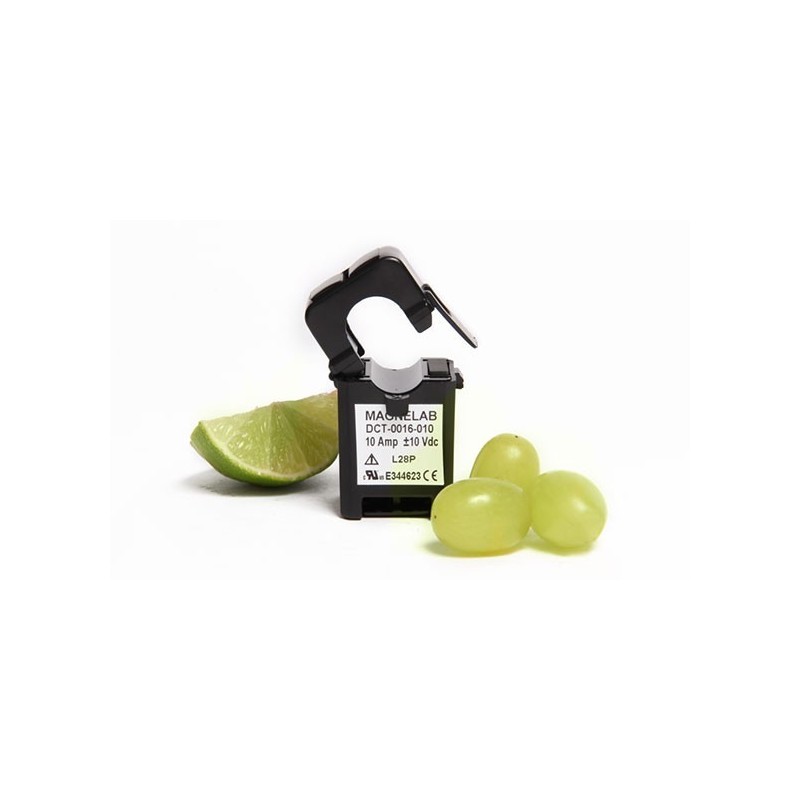

16mm split-core current sensor that transforms an AC current of 100 Amps to a DC voltage output up to 5 Vdc. Split-core sensors are ideal for installation on existing electrical wiring by snapping around the conductor. The DCT-0016 has a self-locking mechanism.

Frequent Applications

• HVAC & Pumps
• Refrigeration
• Small Industrial Motors
• Fans
• Lighting

Features

• Rated input 100 Amps AC
• Output of 5 Vdc at rated current (7.5 Vdc limit built in)
• Accuracy +/- 2% full scale (50/60 Hz Sinewave)
• Accuracy at 5% to 120% of rated current
• Output Impedance 23 KOhms
• Output Ripple +/- 5%
• 2 X M3-Screw terminals
• System Voltage: CAT III 600 VAC
• UL recognized, CE and RoHS Compliant
• 7-Year Warranty
