Reference: DCT-0016 - Manufacturer: Magnelab

Rated input 5 to 10 Amps AC

Calibration Certificate

OVERVIEW
SPECIFICATIONS

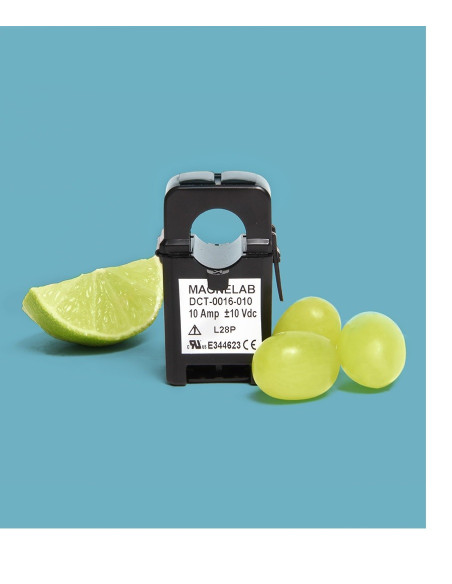

16mm split-core current sensor that transforms an AC current of 10 Amps to a DC voltage output up to 10 Vdc. Split-core sensors are ideal for installation on existing electrical wiring by snapping around the conductor. The DCT-0016-10/10Vdc has a self-locking mechanism.

Frequent Applications

HVAC & Pumps
Refrigeration
Small Industrial Motors
Fans
Lighting

Features

Rated input 5 to 10 Amps AC
Output of 10 Vdc at rated current (15 Vdc limit built in)
Accuracy +/- 2% full scale (50/60 Hz Sinewave)
Accuracy at 5% to 120% of rated current
Output Impedance 23 KOhms
Output Ripple +/- 5%
2 X M3-Screw terminals
System Voltage: CAT III 600 VAC
UL recognized, CE and RoHS Compliant
10-Year Warranty
