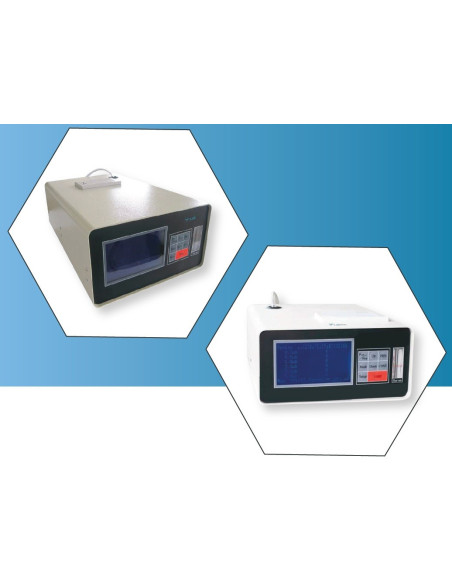

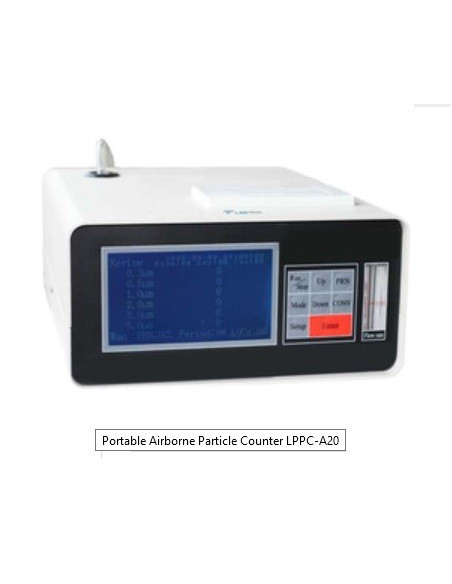

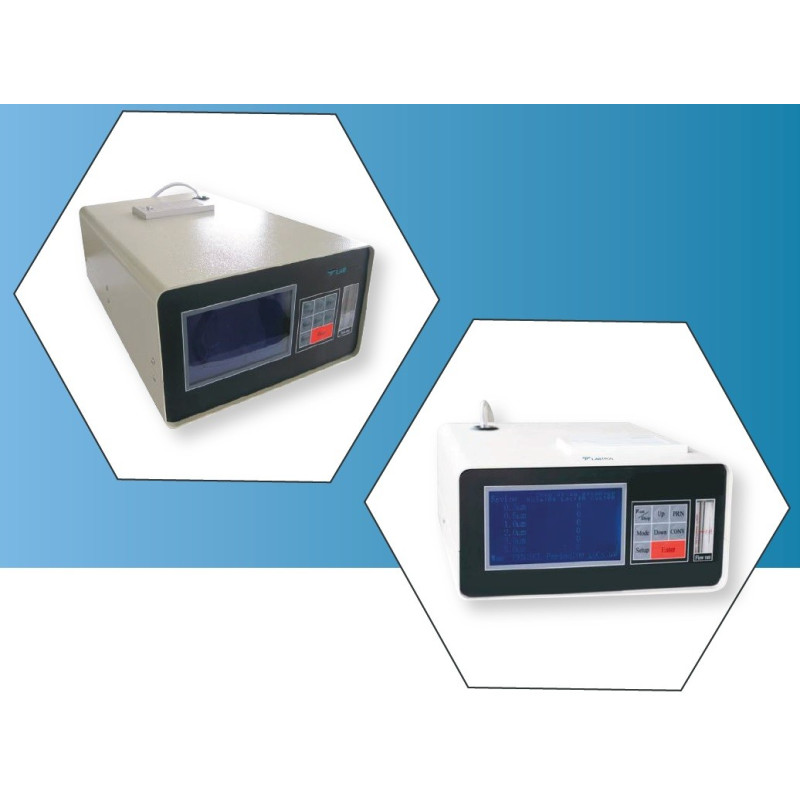

LPPC-A20 Portable Airborne Particle Counter (Printer and LCD screen)

Reference LPPC-A20

Manufacturer: LABTRON

Condition: New

Portable airborne particle counter LPPC-A20 is a six channel microcomputer controlled unit. It has a provision of simultaneously counting particles in six different size ranges with real time monitoring. Equipped with built-in thermal sensitive printer for direct printing of pre-recorded and current data for end user convenience. The particle count data can be conveniently viewed, downloaded or printed directly using the built-in printer featuring multiple print mode.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
APPLICATIONS
ACCESSORIES
Data sheet
Download

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Hospitals, Lab's, Clinics
Function:	Analyze Particle Size

LPPC-A20 Download (678.93k)

Large LCD screen for displaying particle count of all channels
Laser sensor based particle detection
Dual counting mode ( Auto/Manual )
Data conversion : ft3 and m3
Excess count limit alarm
Date and time display
Optional rechargeable battery
Optional RS232 communication interface

Particle size channels	0.3 µm, 0.5 µm, 1.0 µm, 3.0 µm, 5.0 µm, 10.0 µm
Flow Rate	1 CFM ( 28.3 L/min )
Test class	Class 100 ∼ Class 300,000
Test period	1 min ∼ 10 min
UCL Calculation	0.95
Light source and life	Semiconductor laser ( ˃ 30,000 hours )
Self-clean time	≤ 10 min
Operating temperature range	10 °C to 35 °C
Operational humidity	≤ 75 % RH
Battery type	Lithium-ion ( Optional )
Battery life	˃ 4 hours continuous usage
Power	220 V ± 10 %, 50 Hz ± 2 Hz
Power dissipation	12 W
Dimensions	235 x 300 x 115 mm
Weight	3.3 kgs

Used in clean room monitoring, indoor air quality testing, filter testing, tracking particle sources, pharmaceuticals, R&D labs, and electronics and semiconductor industries; monitoring of biosafety cabinets, clean benches, computer rooms and HVAC system performance; in fields of optics, aerospace, pharmaceutical, electronics, food hygiene industry, etc.
