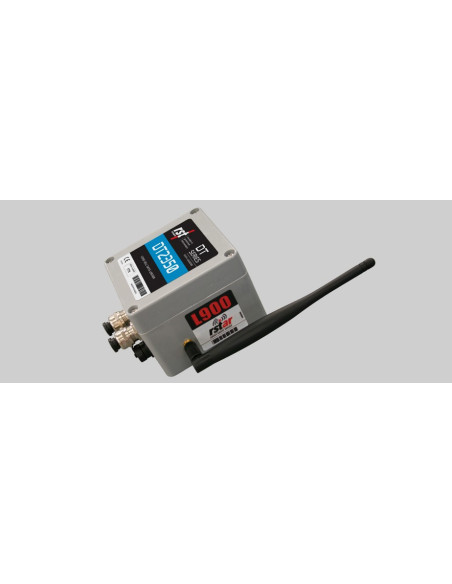

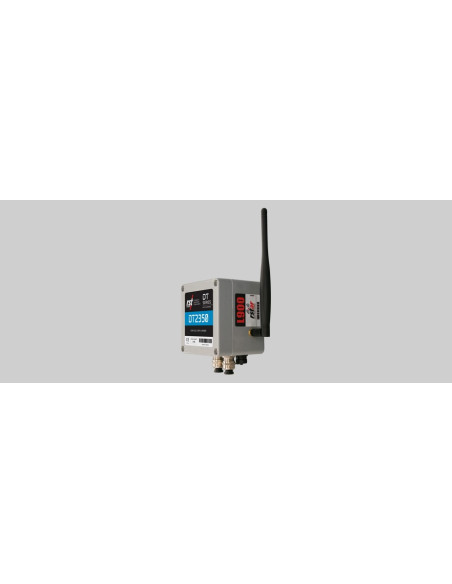

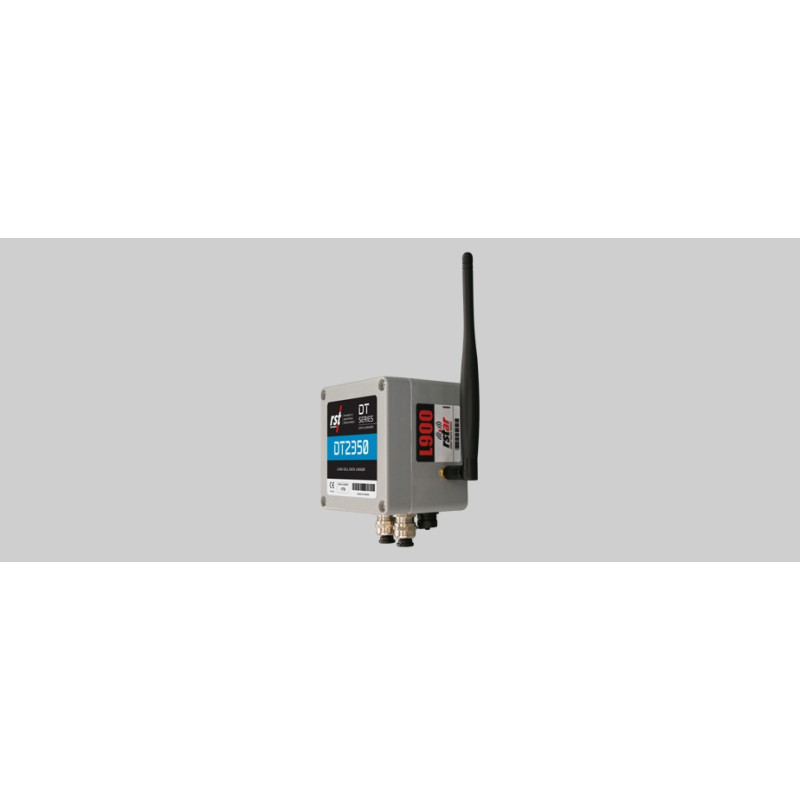

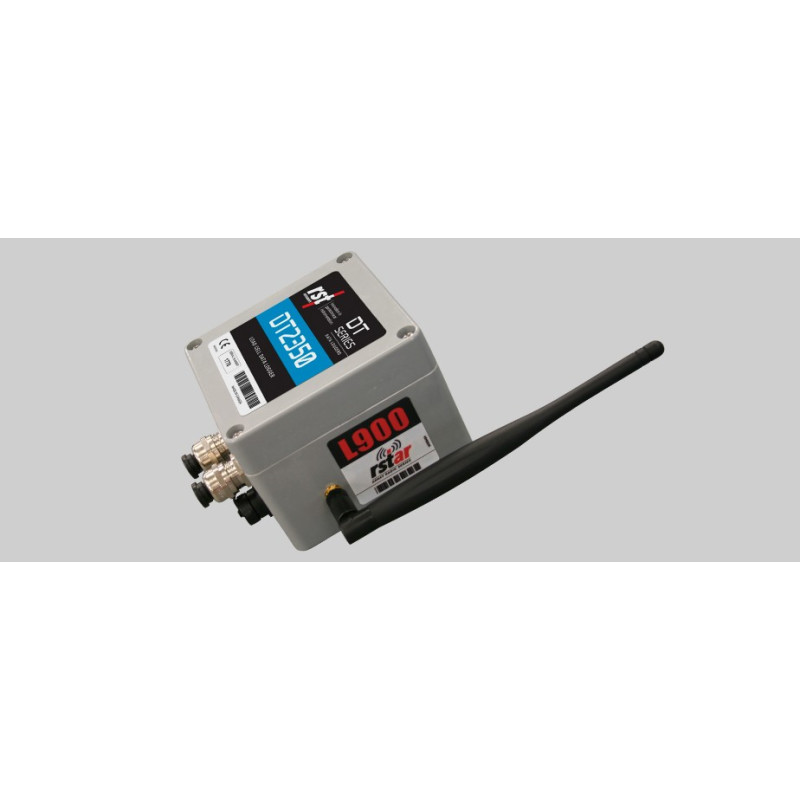

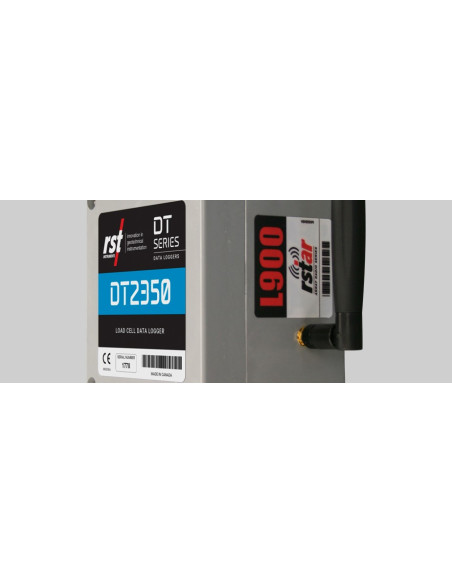

DT2350: Load Cell Data Logger

The DT2350 Load Cell Data Logger is a 2 channel data logger for resistance strain gauge load cells and other strain gauge sensors, pressure transducers, etc. The DT2350 is part of RST’s “DT Series” Data Loggers and is fully compatible with the RSTAR or DT LINK Wireless Data Collection Systems.

Analog Channels: 2
Analog Sensors Supported: Bridge Transducers
Resolution: 0.001%
Zero Stability (Logger Only): 0.001%
Nonlinearity (Logger Only): 0.003%
Memory Type: 4MB Flash
Memory Records: Up to 600,000 records of Date/Time, 2 Sensors
Memory Endurance Unpowered: 100 years
Power Source: Lithium compact or standard cell battery (NOTE: standard cell required for radio use)
Battery Life: Up to 4 years (non-radio or RSTAR) or 3.5 years (DT LINK) (NOTE: specs based on 1 hour reading frequency and dependent on temperature and use)
