8306 Handheld Particle Counter (0.3 – 25 µm @ 0.1 CFM)

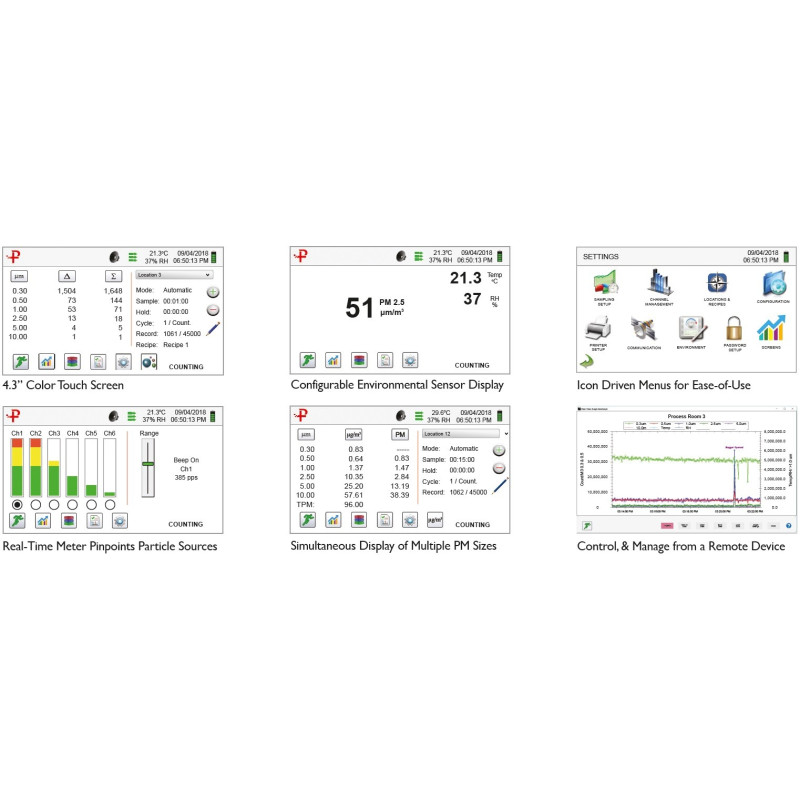

8306 Handheld Particle Counter (Screens and Menus)

8306 Handheld Particle Counter (0.3 – 25 µm @ 0.1 CFM)

Name: 8306 Handheld Particle Counter (0.3 – 25 µm @ 0.1 CFM)
Brand: Particles Plus
SKU: 8306

Reference: 8306 - Manufacturer: Particles Plus

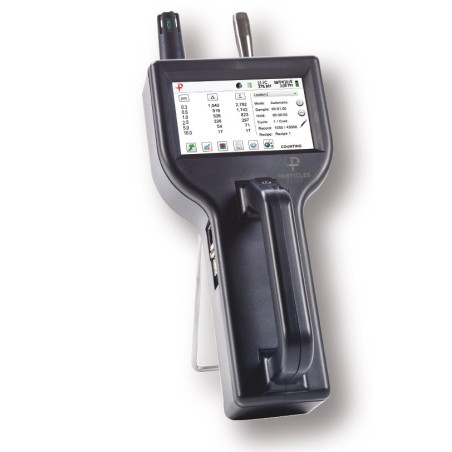

The Particles Plus 8306 Handheld Particle Counter measures 0.3 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus data-download software. Particles Plus counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.

• Industry's highest concentration of 15,000,000 particles/ft3 @ 10% coincidence loss
• Ideal for use in Cleanrooms, Industrial Health & Safety, and Air Quality applications
• >10 hours continuous operation on a fully charged battery
• Industry's first Sleep Mode and Power Conservation Mode with intelligent battery
• Unparalleled and most comprehensive internal self-diagnostics of any handheld particle counter
• Real-Time Meter detects particle contamination sources with visual and audible indication
• Internet of Things (JSON) communication allows for network or cloud based data options.

Measures 0.3 μm to 25.0 μm

0.1 CFM (2.83 LPM) flow rate

Long-life laser diode technology

Measures up to 6 channels of simultaneous data

Approximates mass concentration in μg/m³

Integrated handle for one-handed operation

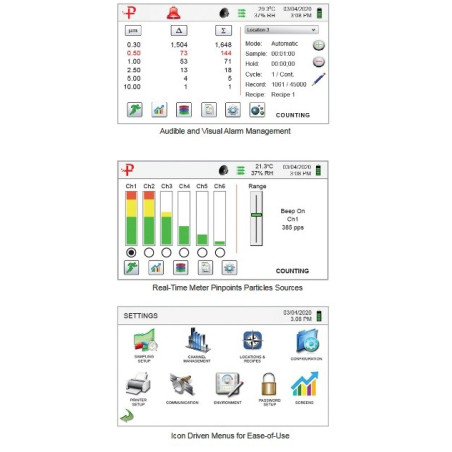

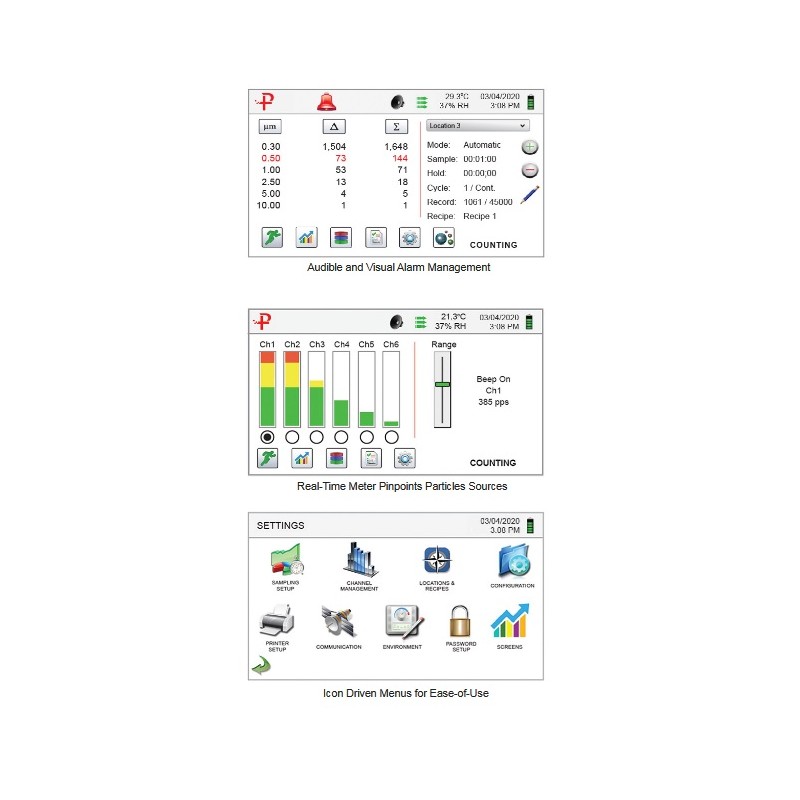

Large easy-to-use icon driven color touch screen display

Temperature and relative humidity probe included

Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes

Easy configuration and transferable from instrument to instrument

Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232

Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E

Internal audible alarm

User-definable reports

User-selectable channel sizes

Complies with ISO 21501-4 and JIS B9921 standards

Easy to clean and wipe down with minimal particle traps

Seamless integration into a facility monitoring system

Lightweight high-impact injection molded plastic enclosure

2 year warranty. Extended warranties available.

IMS, Instrument Management Software: Remote Operation, Data Collection, and Real-Time Graphing

IMS software from Particles Plus® is provided free of charge and it includes remote operation, data collection, and real-time graphing while controlling Particles Plus particle counters.

The software is used to manage and monitor particle counting instruments, providing accurate and reliable data for cleanroom and indoor air quality applications.

The software interface is intuitive and easy to navigate, providing a full dashboard. The IMS offers users the ability to update the firmware, download air quality data, or ever calibrate the environmental sensors present in each instrument.
