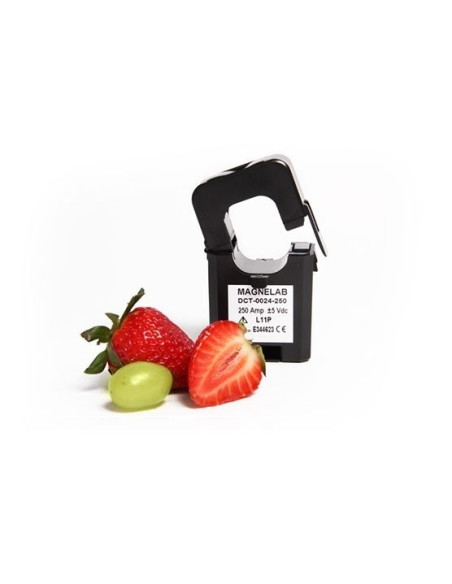

DCT-0024-250 CORE DC VOLTAGE OUTPUT TRANSDUCER

Reference

Manufacturer: Magnelab

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS

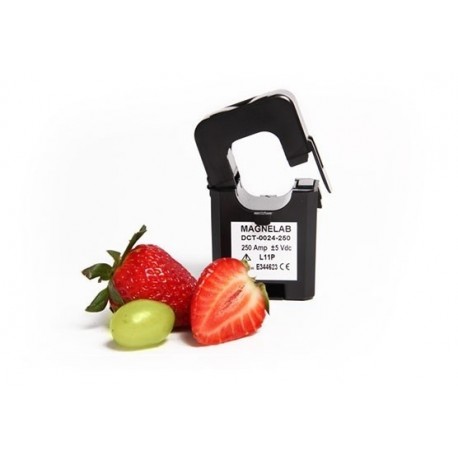

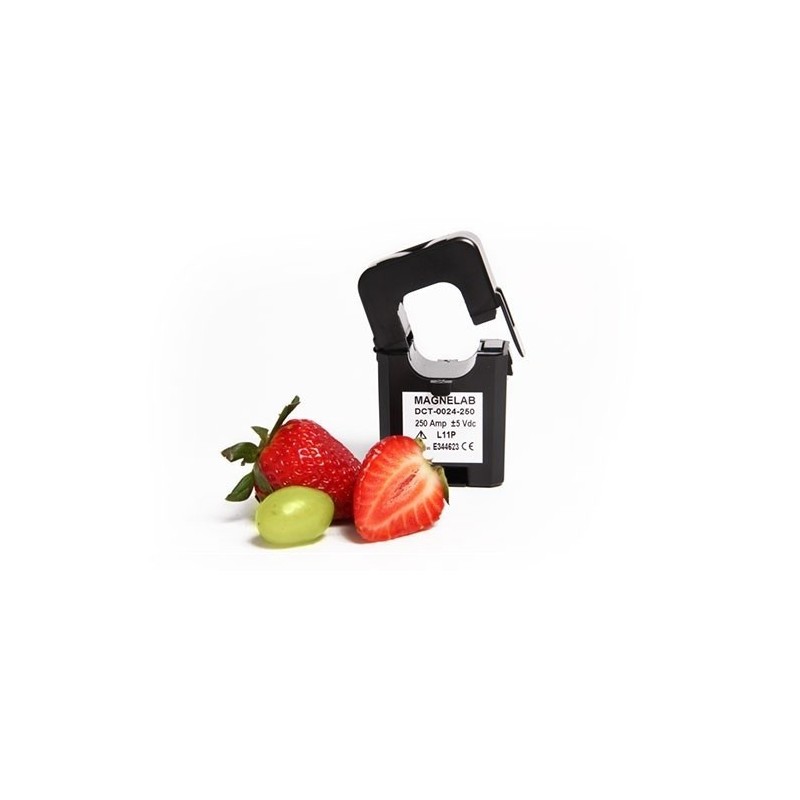

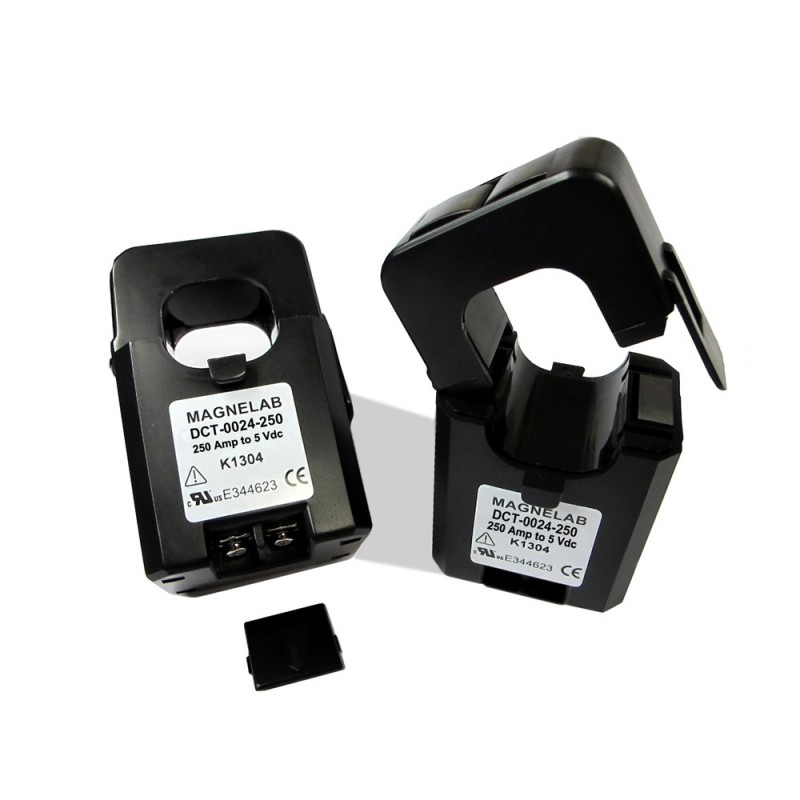

24mm split-core current sensor that transforms an AC current input 250 Amps to 5 Vdc. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The DCT-0024 has a self-locking mechanism.

Frequent Applications

HVAC & Pumps
Refrigeration
Small Industrial Motors
Fans
Lighting

Features

Rated input 250 Amps AC
Output of 5 Vdc at rated current (7.5 Vdc limit built in)
Accuracy +/- 2% full scale (50/60 Hz Sinewave)
Accuracy at 5% to 120% of rated current
Output Impedance 5.8 KOhms
Output Ripple +/- 5%
2 X M3-Screw terminals
System Voltage: CAT III 600 VAC
UL recognized, CE and RoHS Compliant
Operating condition -20℃, ≤ 85% RH
Storage condition -30℃ to 90℃, ≤ 85% RH
10-Year Warranty
