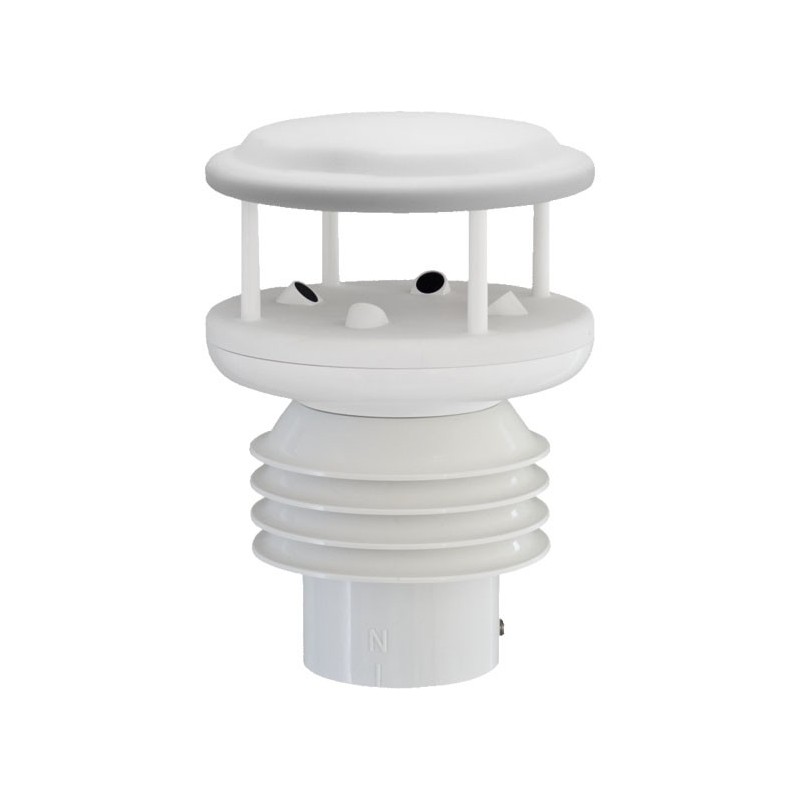

Weather station with ultrasonic sensors, outputs 0-10 V & Modbus RTU FS6002

Weather station FS6002 is used to detect the most important meteorological parameters.
Depending on its configuration, the FS6002 provides measurement data of wind speed/direction, air temperature, relative humidity, barometric air pressure, precipitation and brightness.
For a correct determination of wind direction in mobile use of the weather station, a magnetic compass is integrated in all device variants. Furthermore, a built-in GPS receiver is used to determine the exact world time and the geographical position.
The wind speed and wind direction is determined by the detection of the 2-dimensional horizontal components of mutually perpendicular ultrasonic measuring sections. In addition to this, the sound velocity can be used to calculate and output the acoustic virtual temperature. Due to the measuring principle of ultrasonic transit time measurements, the device is ideally suited to the inertia-free wind gust and peak values measurements.
The air temperature and relative humidity are measured by an integrated and accurate combined sensor, protected against harmful environmental influences by a microporous filter that is water-impermeable but water vapor-open.
The integrated pressure sensor based on MEMs (micro-electro-mechanical-system) technology is also protected with such a filter.
When measuring precipitation intensity, the precipitation is measured and calculated contactlessly by the back-reflected signal of a Doppler radar. The intensity of the last minute is extrapolated for the output to one hour.
Brightness is recorded by four photosensors with a spectral sensitivity curve adapted to the sensitivity of human eyes and the intensity ratio is also used to calculate the direction of the light source.
FS6002 Weather Station has a built-in heater that largely prevents icing and snow on the device.
The data output may be analog, as standard signal and/or as digital MODBUS RTU signal.
8 analog output channels (0-10 V) are available. 5 of these channels can optionally be configured universally.
