Vantage Pro2™ Wireless with WeatherLink Console

6252

Davis

New

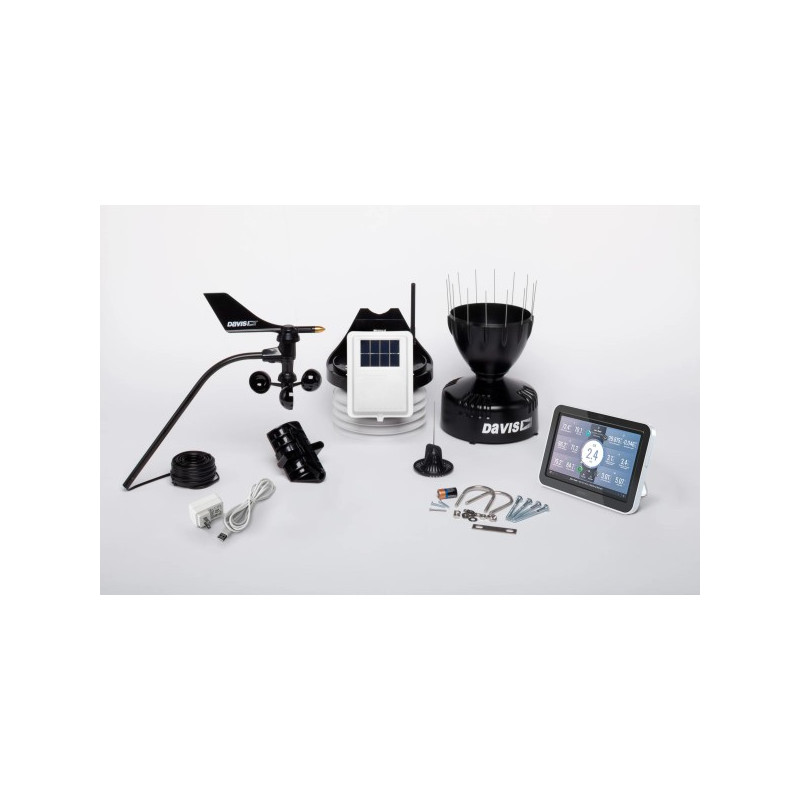

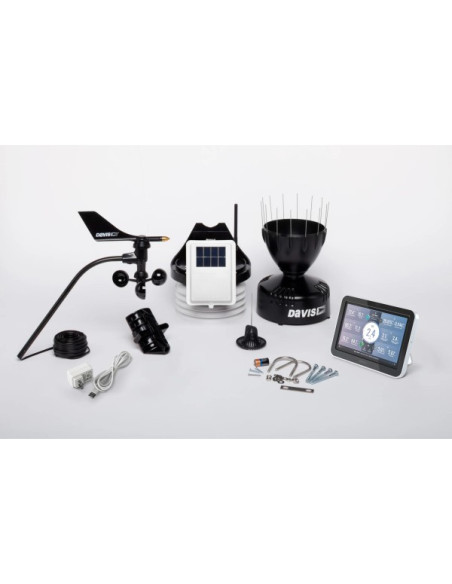

Davis Instruments Vantage Pro2 professional weather station, part number 6252EU.

This is the next version of the fully featured Vantage Pro 2 weather station, released in 2023.

This new version features a modern touchscreen receiver console called Weatherlink.

995,00 €

tax excl.

Add to wishlist

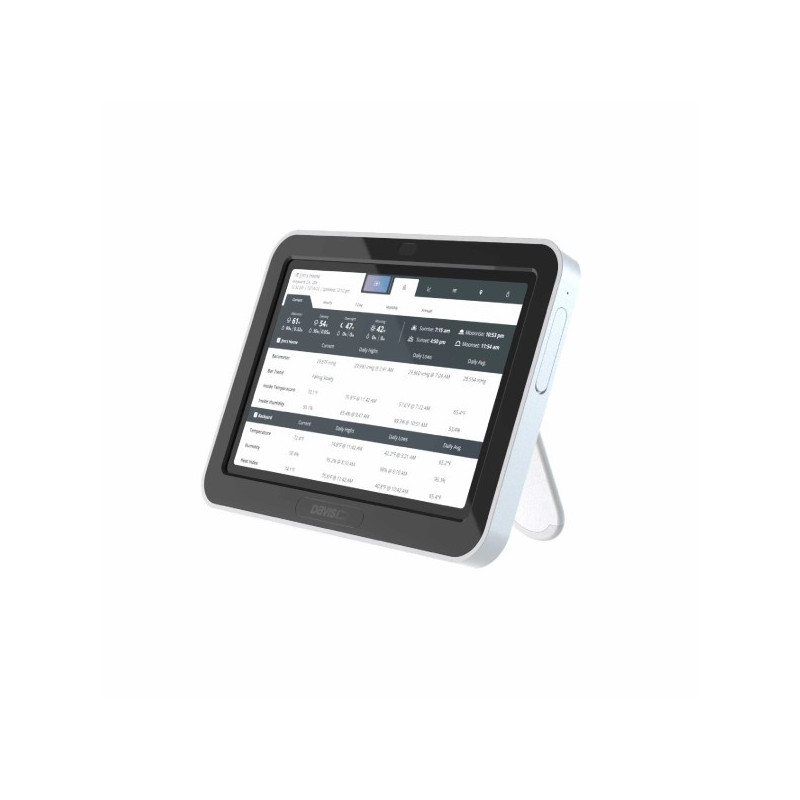

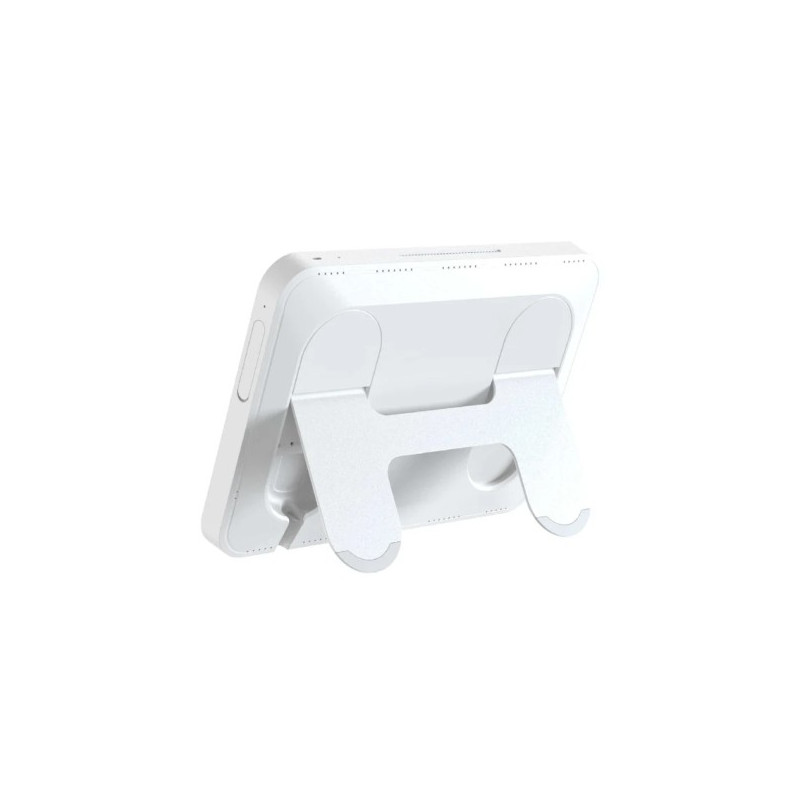

The connection between the outdoor sensors (ISS) and the console is via radio waves on the 868.0-868.6 MHz frequency with a range of up to 300 meters. The console is equipped with a large touchscreen and can be wall-mounted or placed on a table or shelf.

The WeatherLink console combines all the features of the older Vantage Pro 2 consoles and the non-display WeatherLink Live datalogger. It provides immediate access to all the latest measurements from the weather station (it can also receive data from Airlink or auxiliary temperature stations, for example). It displays graphs and tables for the day, month, and year. It allows you to set alarms. And much more! It can be connected to a Weatherlink.com account to export data to the Weatherlink cloud.

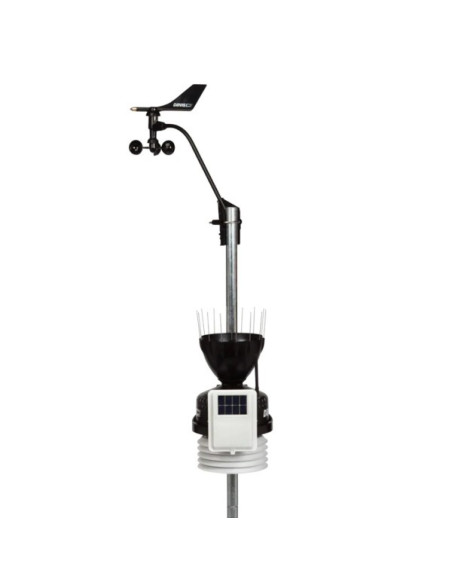

The ISS is very robust and can be installed on a mast (pipe) or a wooden post. A dual sensor is mounted on a standard radiation (solar) shelter to measure outdoor temperature and humidity. The rain gauge is equipped with a tipping bucket system for measuring precipitation. The vane anemometer can be detached from the ISS and installed on a roof, for example, using its 12-meter cable.

The 6322OV sensor array is used in this complete 6252EU weather station. Other models are available with the Vantage Vue or Vantage Pro 2 Plus sensor arrays (with UV sensors and a pyranometer).
Connect up to 8 weather stations simultaneously

Another highly anticipated new feature, WeatherLink Wi-Fi offers the ability to receive data from up to 8 transmitters simultaneously (8 Vantage Pro 2 or Vantage Vue sensor arrays, or 8 transmitters with a selection of sensors, etc.). While previously it was only possible to remotely control the anemometer from the sensor array, all sensors can now be remotely controlled independently. With the 6332OV transmitter (e.g., remote anemometer) or the 6331EU transmitter (powered version), you can increase the number of measurement points to 8. Also note that it is possible to transmit up to 8 6345OV agricultural auxiliary stations. In any case, you can have a maximum of 8 measurement points.

Radio transmitters:

6332OV solar-powered transmitter (e.g., remote anemometer)
6331EU AC-powered transmitter
6345OV agricultural auxiliary station transmitter

A weather purchasing service: MétéoData

To meet the demands of our private and professional customers, we have developed a complementary data query platform for weatherlink.com: MétéoData. It allows you to store unlimited files from your weather station and export them in spreadsheet format.

A WeatherLink.com Pro or Pro+ subscription is not required to archive your data. However, in the event of an internet outage and no data communication on weatherlink.com, we can only complete your file for Pro or Pro+ subscription holders.

Registration on our platform is free by default. Professionals have a subscription to access decision-support tools and customized reports.

Dimensions: 445 x 264 x 406 mm
Weight: 5.4 kg
Warranty: 2 years
Radio Frequency: 868.0 - 868.6 MHz FHSS, below 8 mW
Radio Range: 300 m visual, 60 to 120 m with obstacles

Wind
Measurement Units: mph, km/h, m/s, Node
Resolution: 1 mph, 1 km/h, 0.5 m/s, or 1 node
Accuracy: ±3 km/h
Measurement Range: 3 to 290 km/h
Measurement Frequency: 2.5 to 3 seconds
Wiring: 12 m long, maximum recommended 165 m
Measurement Principle: Wind Cubes, Hall Effect Sensor

Wind Direction
Resolution: 16 Points (22.5°) on the compass rose, 1° digital display
Accuracy: ±3°
Measuring range: 0 to 360°
Measuring frequency: 2.5 to 3 seconds
Measuring principle: Vane with potentiometer

Atmospheric pressure
Measuring units: in Hg, mm Hg, hPa/mb
Resolution: 0.01 in Hg, 0.1 mm Hg, 0.1 hPa/mb
Accuracy: ±1.0 hPa
Measuring range: 540 to 1100 hPa
Measuring frequency: 1 minute

Outdoor temperature
Measuring units: °C or °F
Resolution: 0.1
Accuracy: ±0.3°C
Measuring range: -40°C to 65°C
Measuring frequency: 10 seconds
Measuring principle Measurement: Silicon PN junction diode

Windchill Temperature
Resolution: 1
Accuracy: ±1
Measuring frequency: 10 seconds
Measuring principle: Calculation, Osczevski's formula (1995)

Indoor Temperature
Measuring units: °C or °F
Resolution: 0.1
Accuracy: ±0.5°C
Measuring range: 0 to 60°C
Measuring frequency: 1 minute

Console
Measurement: Temperature; Humidity; Atmospheric Pressure
Power: AC adapter, 5V DC, 2000mA
Dimensions: 210mm x 152mm x 19mm
Weight: 0.501kg
Power Autonomy: Less than 1 day
Operating Temperature: 0 to 50°C
Current Consumption: 2A max
Emergency Power Supply: Lithium Polymer
Display: Touch-sensitive LED

Integrated Sensor Array (ISS)
Composition: UV-resistant ABS and ASA plastics
Measurement: Temperature; Humidity; Wind Speed; Wind Direction; Rainfall; Perceived Temperature; Wind gusts
Power: Solar panel, 10F rechargeable battery, backup battery
Power autonomy: 8 months without sunlight, more than 2 years depending on sunlight
Operating temperature: -40 to 65°C
Current consumption: 5 mA (average) from 4 to 6 V DC for ISS only. 10 mA average between the console and the ISS
Emergency power supply: 3 V CR123 lithium battery (not included)

Outdoor humidity
Measuring units: % RH
Resolution: 1%
Accuracy: ±2%
Measuring range: 1 to 100% RH
Measuring frequency: 50 seconds
Measuring principle: Film capacitor
Drift: less than 0.25% per year

Precipitation
Measuring units: mm or inches
Resolution: 0.2 mm or 0.01 in
Accuracy: For rainfall intensities up to 100 mm/h: ±3% of the total or +0.25 mm maximum
Measuring frequency: 20 seconds
Measuring principle: Tipping bucket
Rainfall area: 214 cm2

Rainfall intensity
Units of measurement Measurement: mm/h or in/h
Resolution: 0.1 mm or 0.01 in/h
Accuracy: ±5% for rainfall intensities less than 250 mm/h
Measuring range: 0 to 762 mm/h
Measuring frequency: 20 seconds

Indoor humidity
Measuring units: % RH
Resolution: 1% RH
Accuracy: ±2%
Measuring range: 1 to 100% RH
Measuring frequency: 1 minute

Dew point
Measuring units: °C or °F
Resolution: 1
Accuracy: ±1.5°C
Measuring range: -76° to 54°C
<span style="color: #f

Available sensor suites:

Vantage Vue 6357OV
Vantage Pro 2 6322OV
Vantage Pro 2 with Active Ventilation 6323OV
GroWeather 6820OV
GroWeather with Active Ventilation 6325OV
Vantage Pro 2 Plus 6327OV
Vantage Pro 2 Plus with Active Ventilation 6328OV

Cloud WeatherLink (weatherlink.com)

Access to real-time data does not require a subscription. Access to your archive of charts and graphs on weatherlink.com requires a Pro or Pro+ subscription.

Basic Subscription:

Real-time data, daily extremes, daily, monthly, and yearly totals
Dashboard with gauges, graphs, and a wind rose
WeatherLink mobile app for Android and iOS.
Data broadcast to third-party sites or apps (via API) every 15 minutes
NOTE: Archived charts and graphs are not available with this offer.

Pro Subscription:

Same as the Basic subscription
Archive table
Customizable charts
Up to 5-minute archiving intervals
Shared file access with up to 6 other users
Access to the Mobilize application: OADs (Decision Support Tools for Agriculture: Irrigation, Frost, Plant Growth)
Data dissemination to third-party sites or applications (via API) every 5 minutes

Pro+ Subscription:

Same as the Pro+ subscription
Up to 1-minute archiving intervals
Shared file access with up to 10 other users
Access to additional OADs on plant diseases and pest risks
Data dissemination to third-party sites or applications (via API) every 1 minute
