ZM/O Meteorology Accessories
- Cross brace
- Traverse
- Base plate
Instrument holders: For field installation of meteorological measuring instruments. Consisting of mast tube, mounting cross, earth pins for ground installation or dowel pins for fundament as well as a staying and earth clamp.

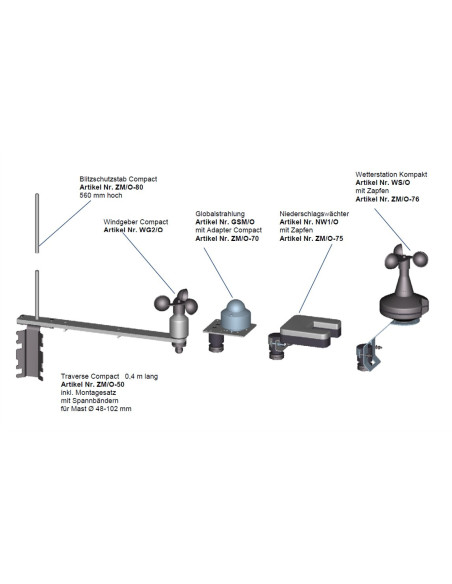

Telescopic Mast: For the field installation of meteorological measuring instruments. Mast with staying, base plate and adaptor. The base plate has a tilting mast receptacle. Traverse for Classic Wind Transmitters: For mounting the wind speed transmitter and wind direction transmitter jointly onto a mast. The traverse is connected with plug according to the transmitter combinations.

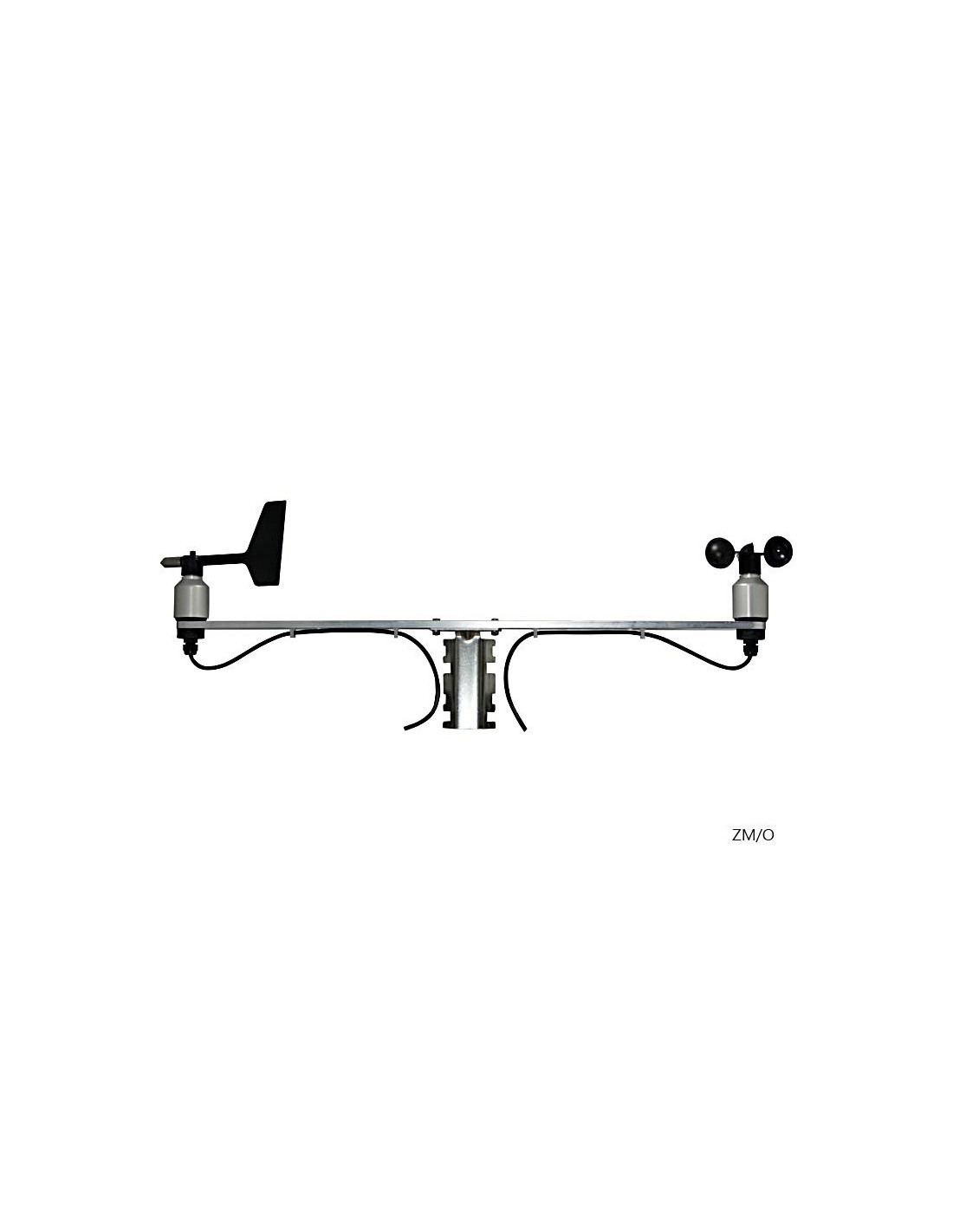

| Article No. ZM/O-30 | |
|---|---|

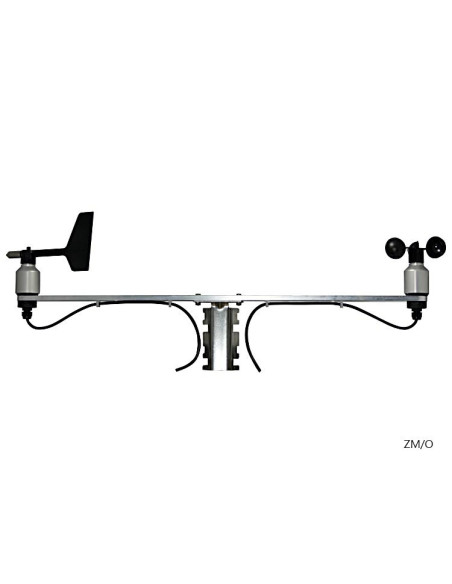

| Description | Traverse for 2 Wind Transmitter (Classic-Line) for joint installation of wind speed and wind direction sensor on a mast top |
| Material | aluminum, anodised |
| Pipe dimension | 1 1/2 inches according to DIN 2448 (Ø 48.3 x 2.6 mm) |
| Sensor distance | Horizontal 0.6 m, Vertical 0.2 m |
| Mounting | bore Ø 71 x 74 mm |
| Dimensions | height 0.8 m |
| Weight | 3000 g |

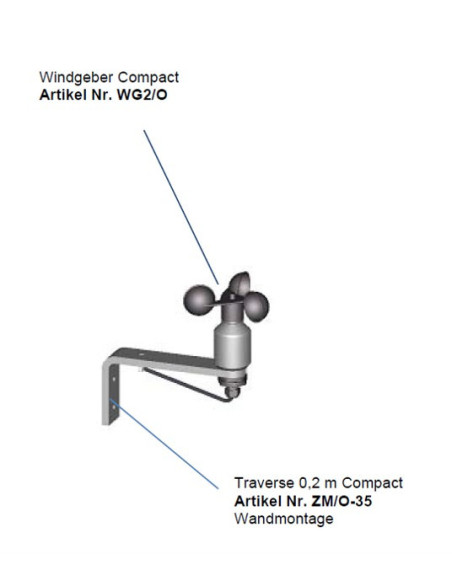

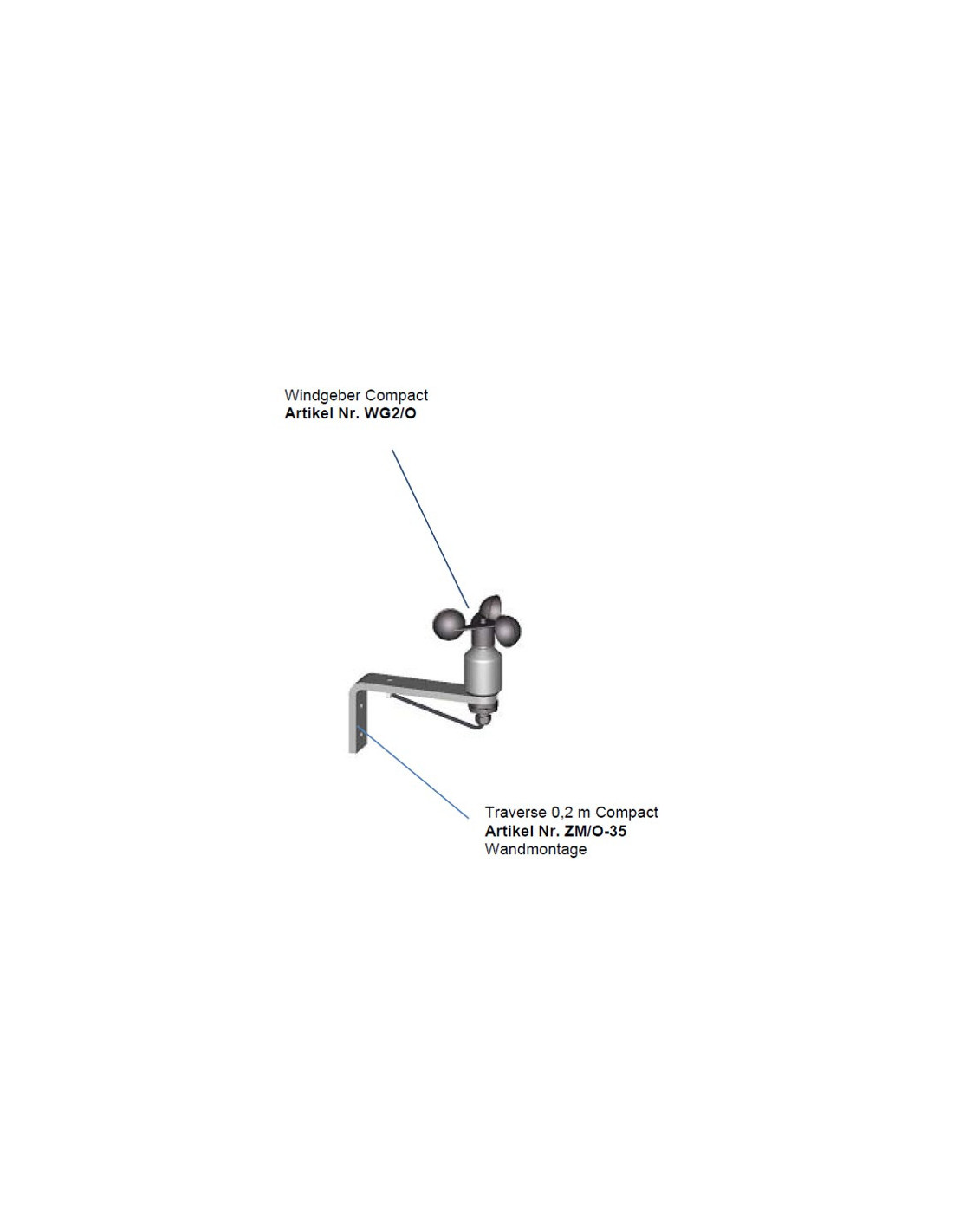

| Article No. ZM/O-35 | |
| Description | Traverse for 1 wind generator (Compact-Line) for mounting wind speed or wind direction sensors on a facade |
| Material | aluminum |
| Assembly | screw fastening |
| Encoder distance | 0.2 m |
| Weight | 300 g |

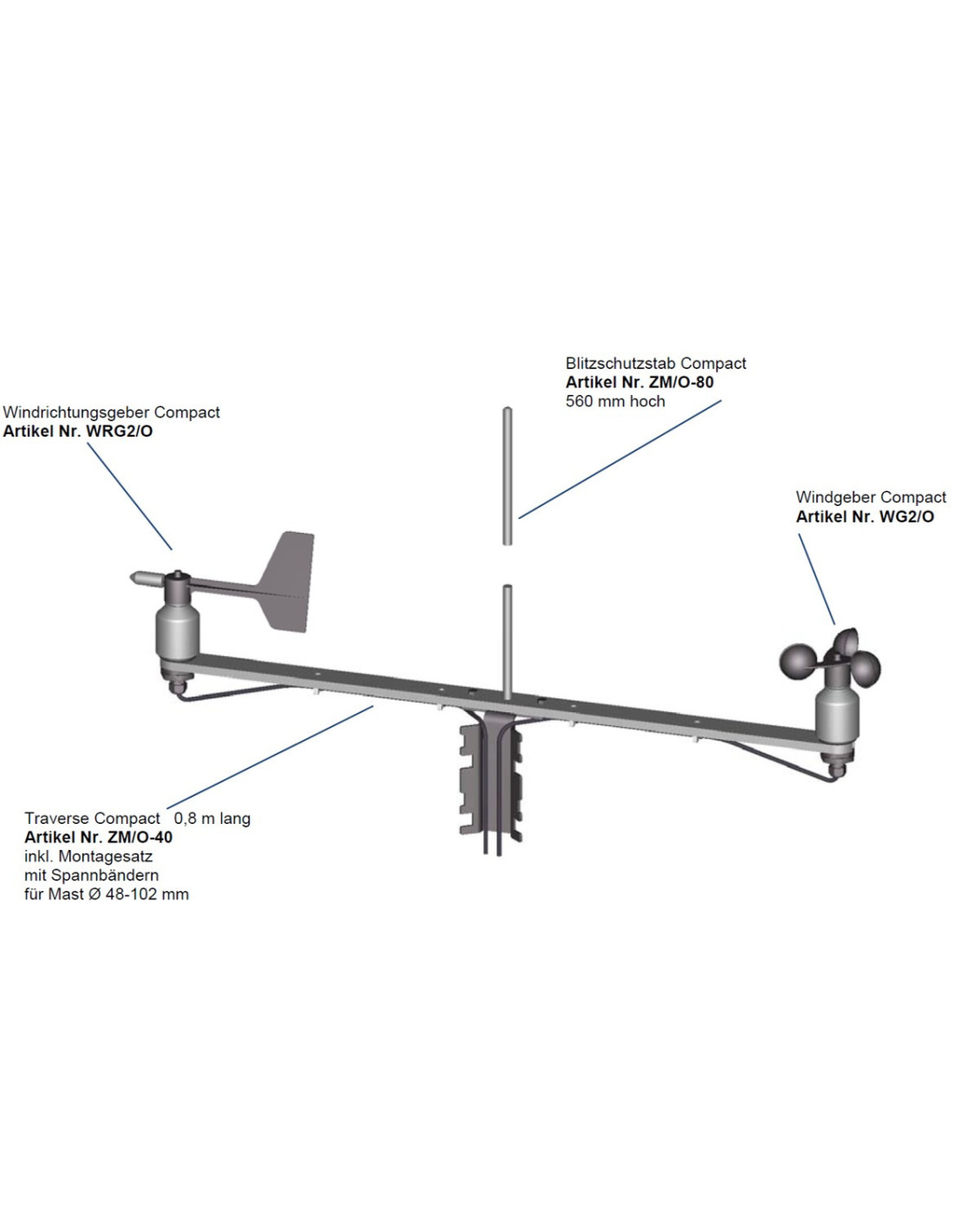

| Article No. ZM/O-40 | |
| Description | Traverse for 2 Wind Transmitter (Compact-Line) for joint installation of wind speed and wind direction sensor on a mast |
| Material | Traverse made of aluminum, mounting kit made of stainless steel V2A |
| Mounting | Mast with clamping range Ø 48-102 mm |
| Sensor distance | 0.8 m, 0.4 m from the mast |
| Weight | 300 g |

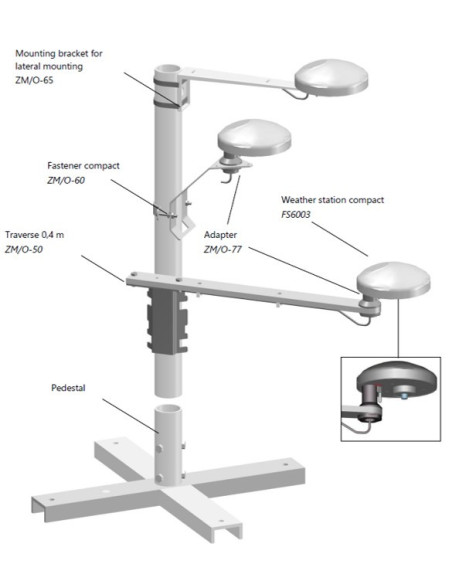

| Article No. ZM/O-50 | |

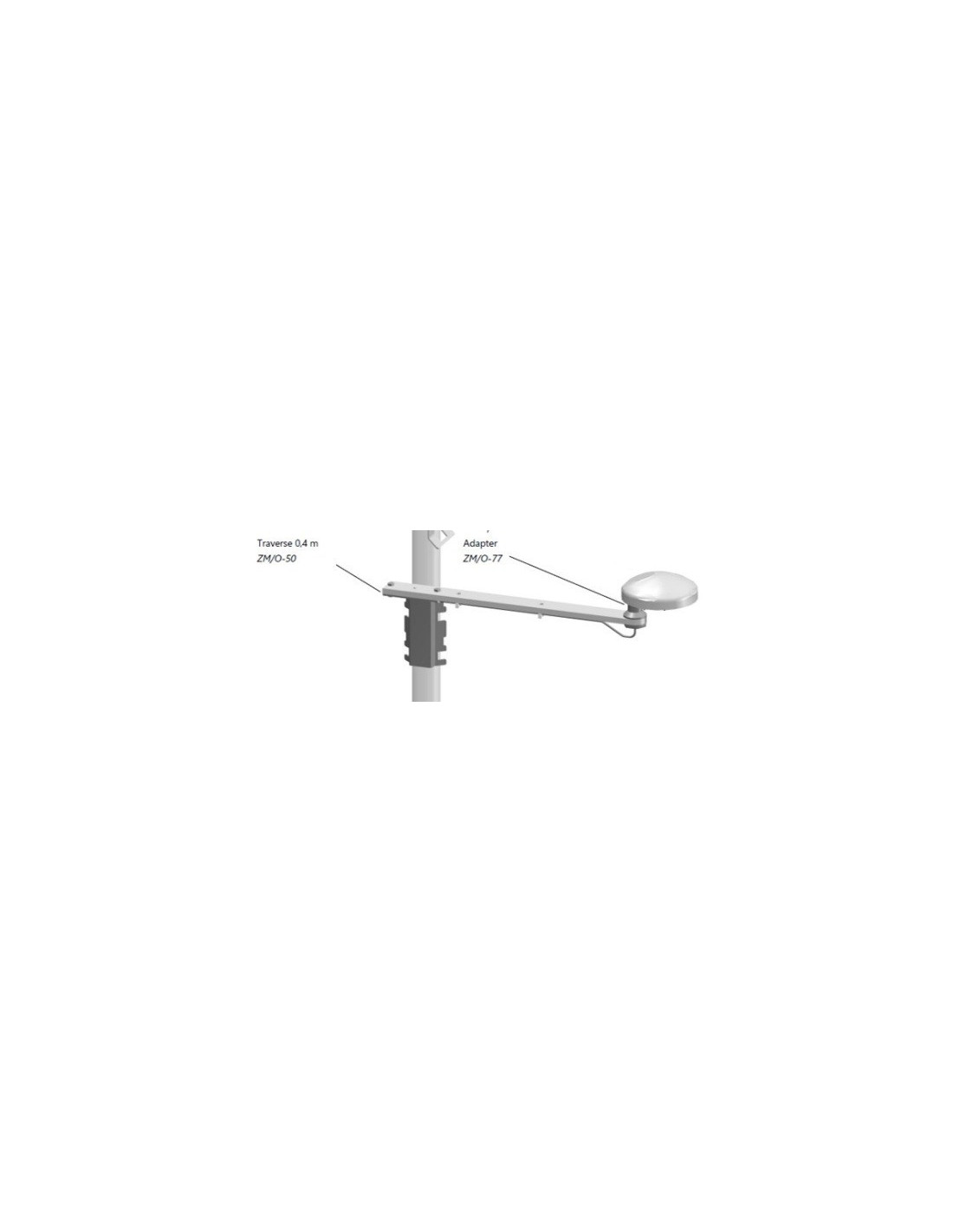

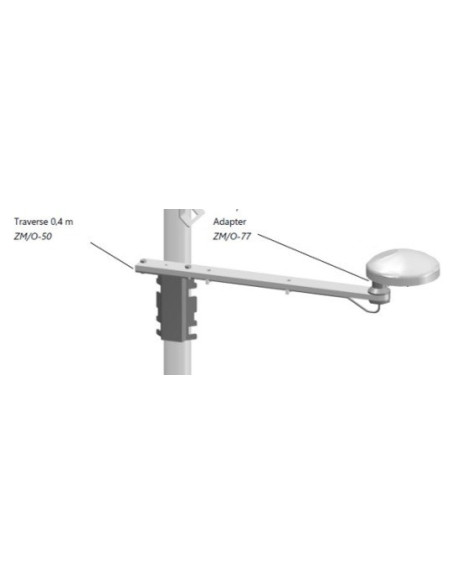

| Description | Traverse short for 1 wind sensor (Compact-Line) for mounting wind speed or wind direction sensor on a mast |
| Material | Traverse made of aluminum, mounting kit made of stainless steel V2A |
| Mounting | Mast with clamping range Ø 48-102 mm |
| Sensor distance | 0.4 m from the mast |
| Weight | 300 g |

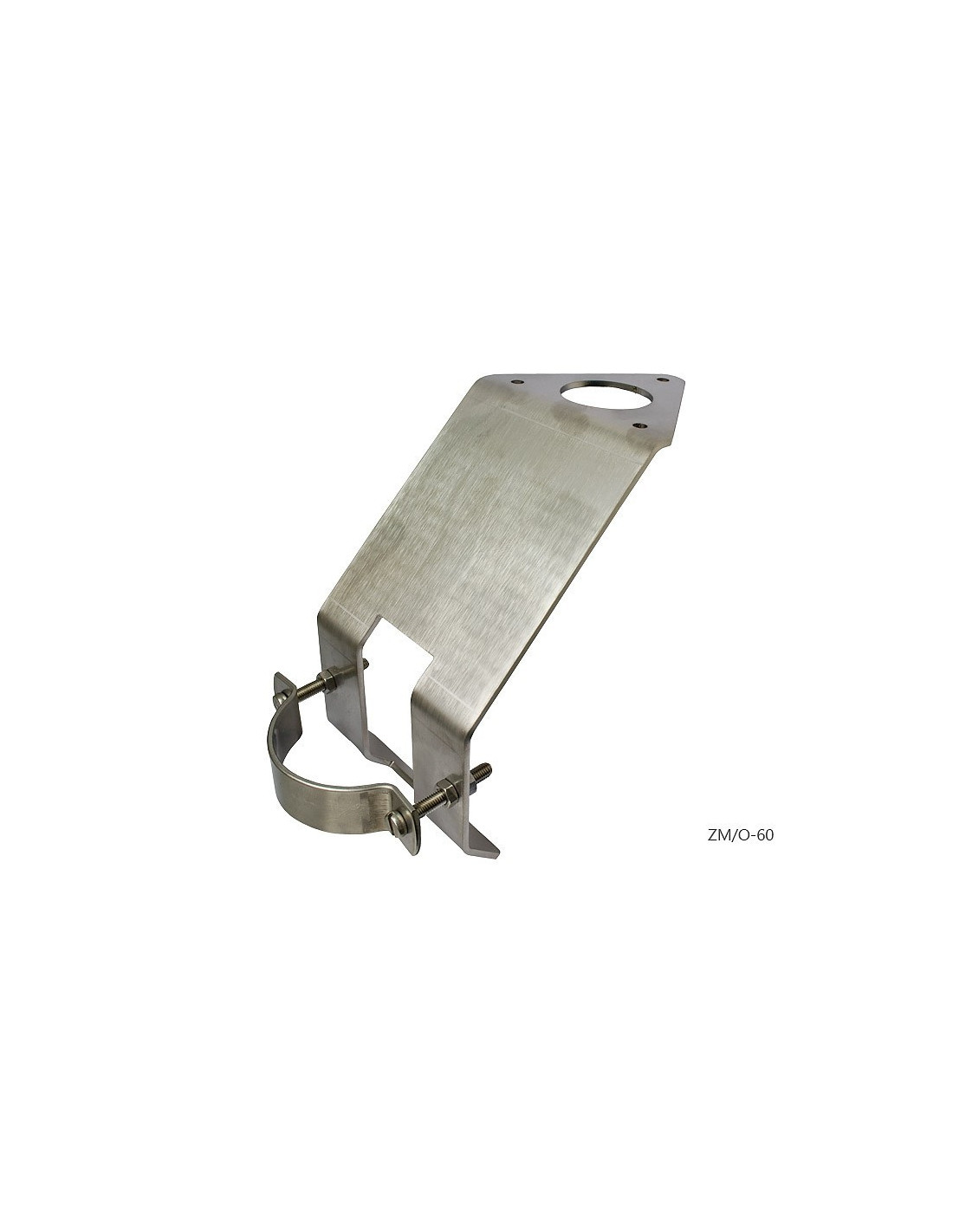

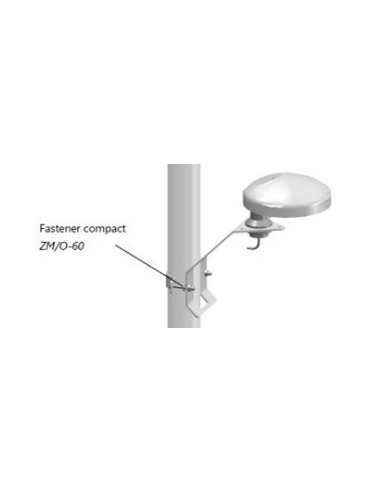

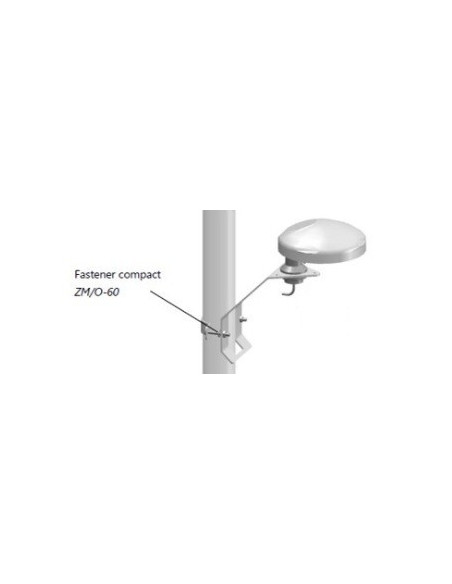

| Article No. ZM/O-60 | |

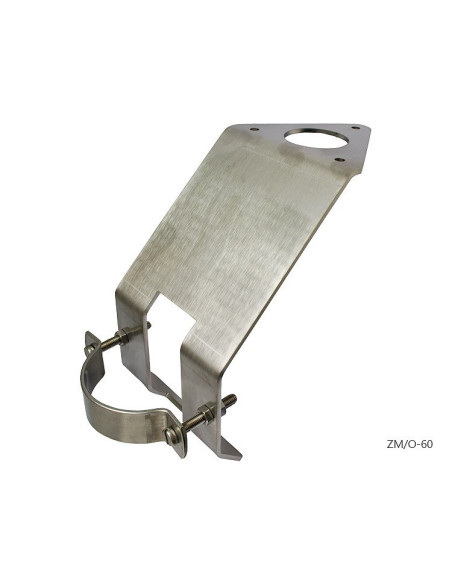

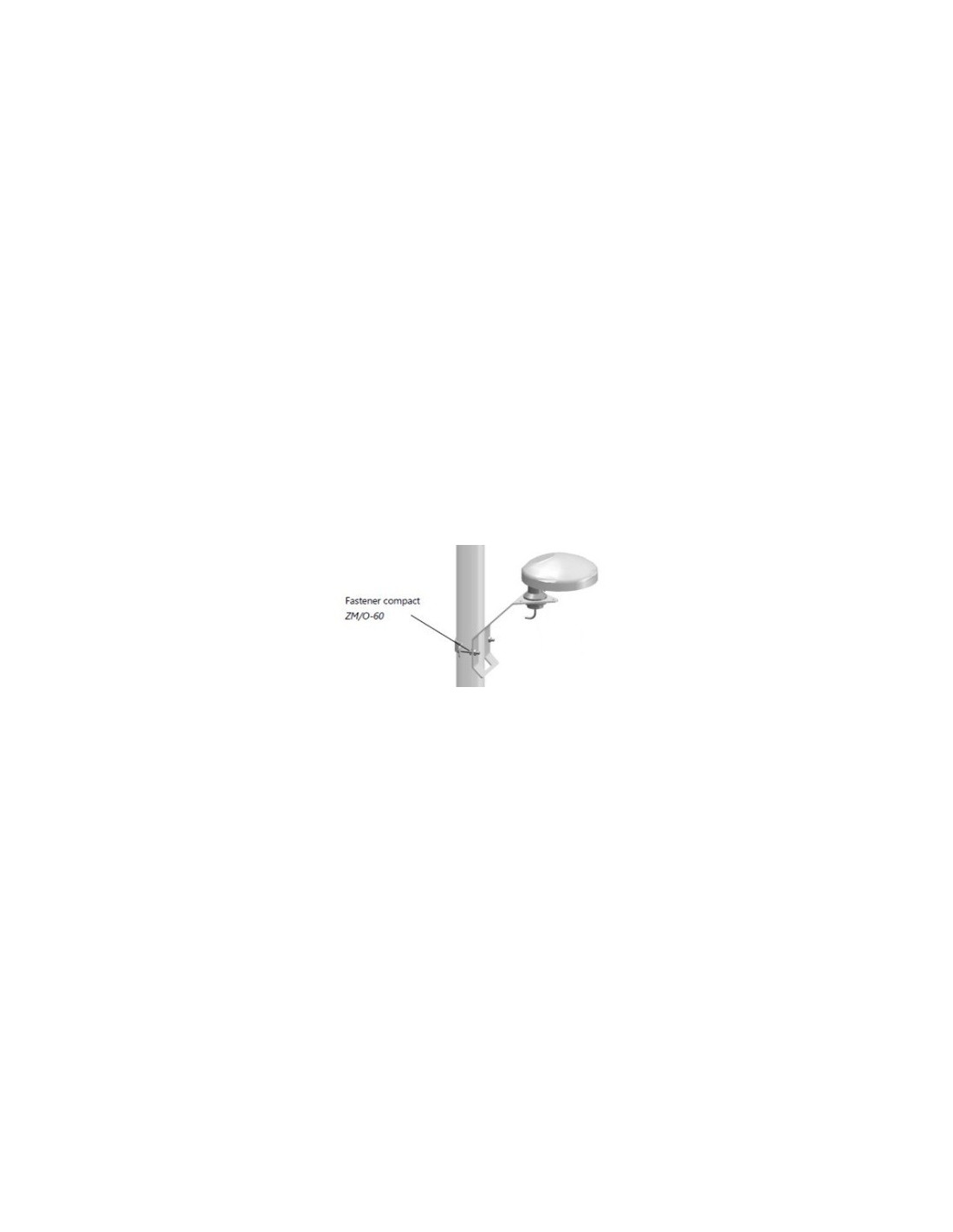

| Description | Holder for 1 wind sensor (Compact-Line) for mounting wind speed or wind direction sensors on a surface, pole or pipe |
| Material | stainless steel V2A |
| Dimension | 80 x 150 mm, hole for pipe diameter Ø 34 mm |
| Mounting | Mast with clamping range Ø 35-50 mm or wall surface |
| Weight | 350 g |

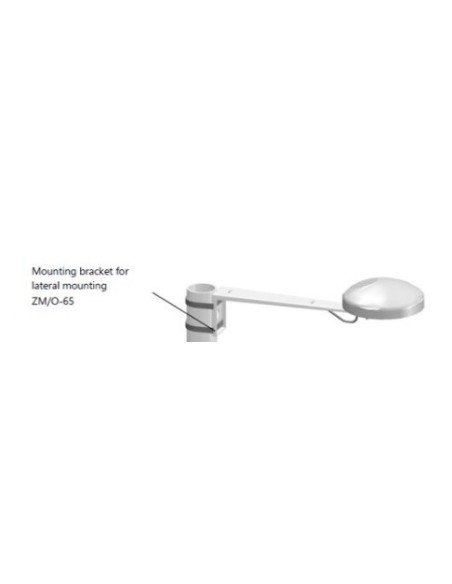

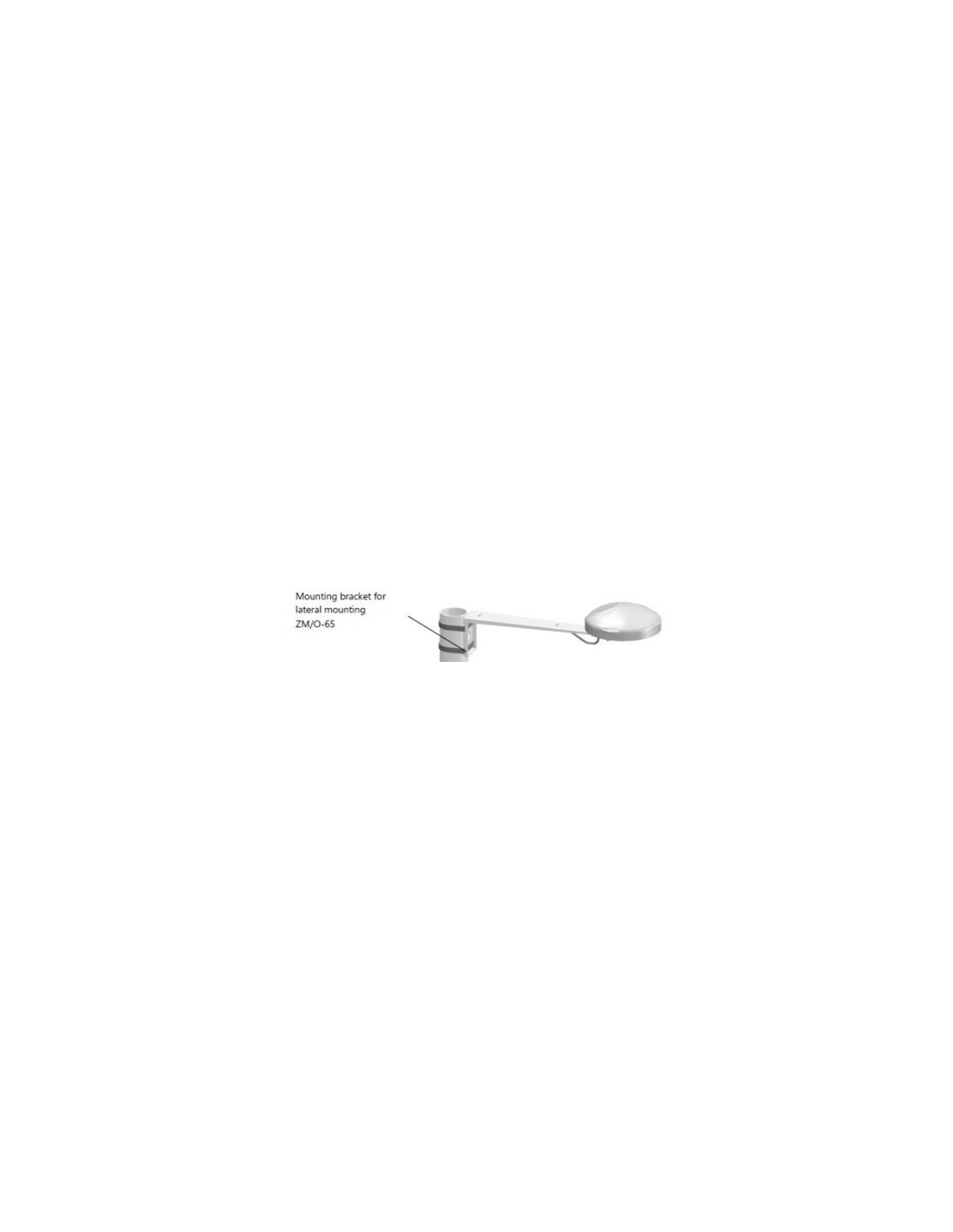

| Article No. ZM/O-65 | |

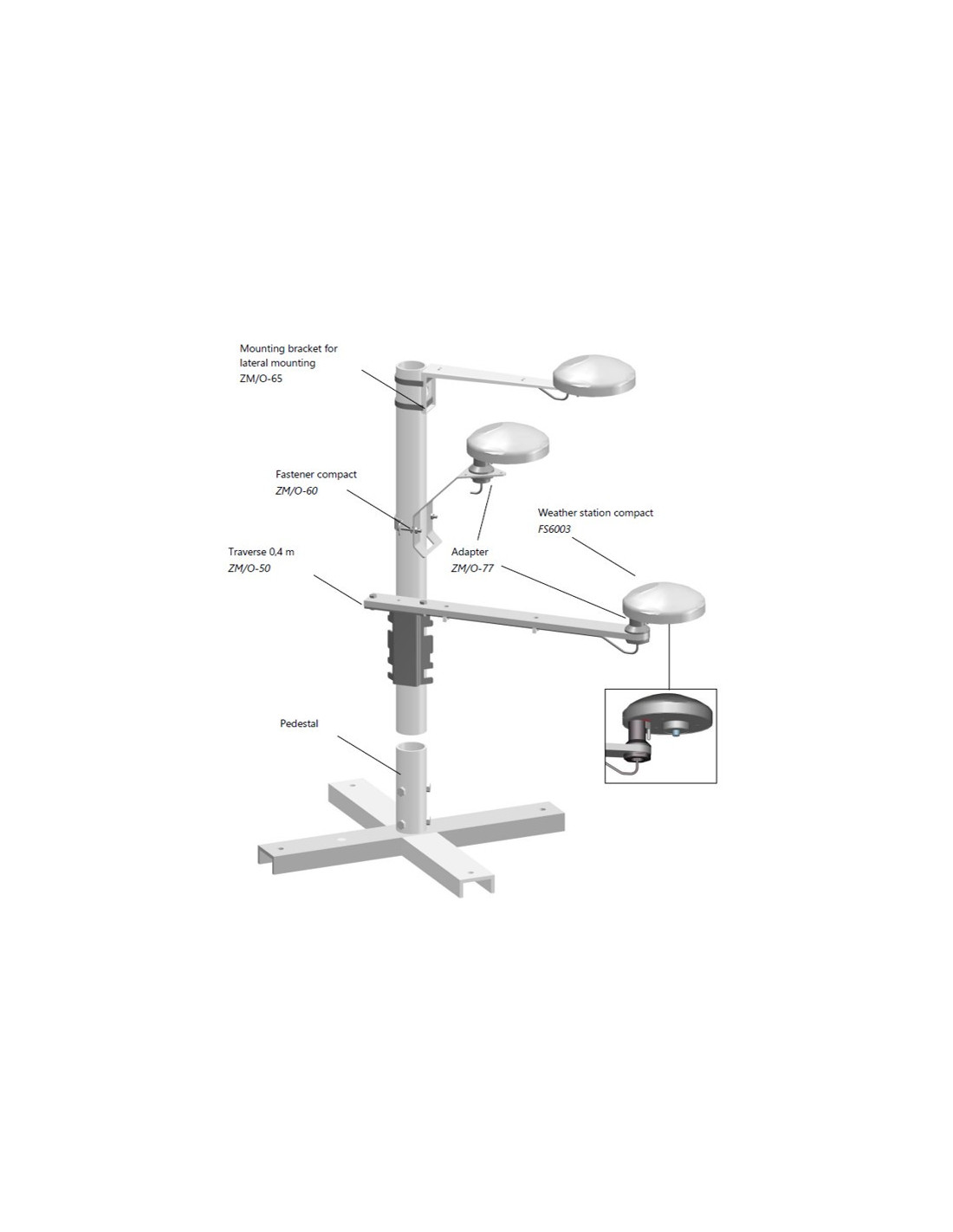

| Description | Mounting bracket for lateral fixing of the weather station FS6003 on a vertical surface, 250 x 42 mm |

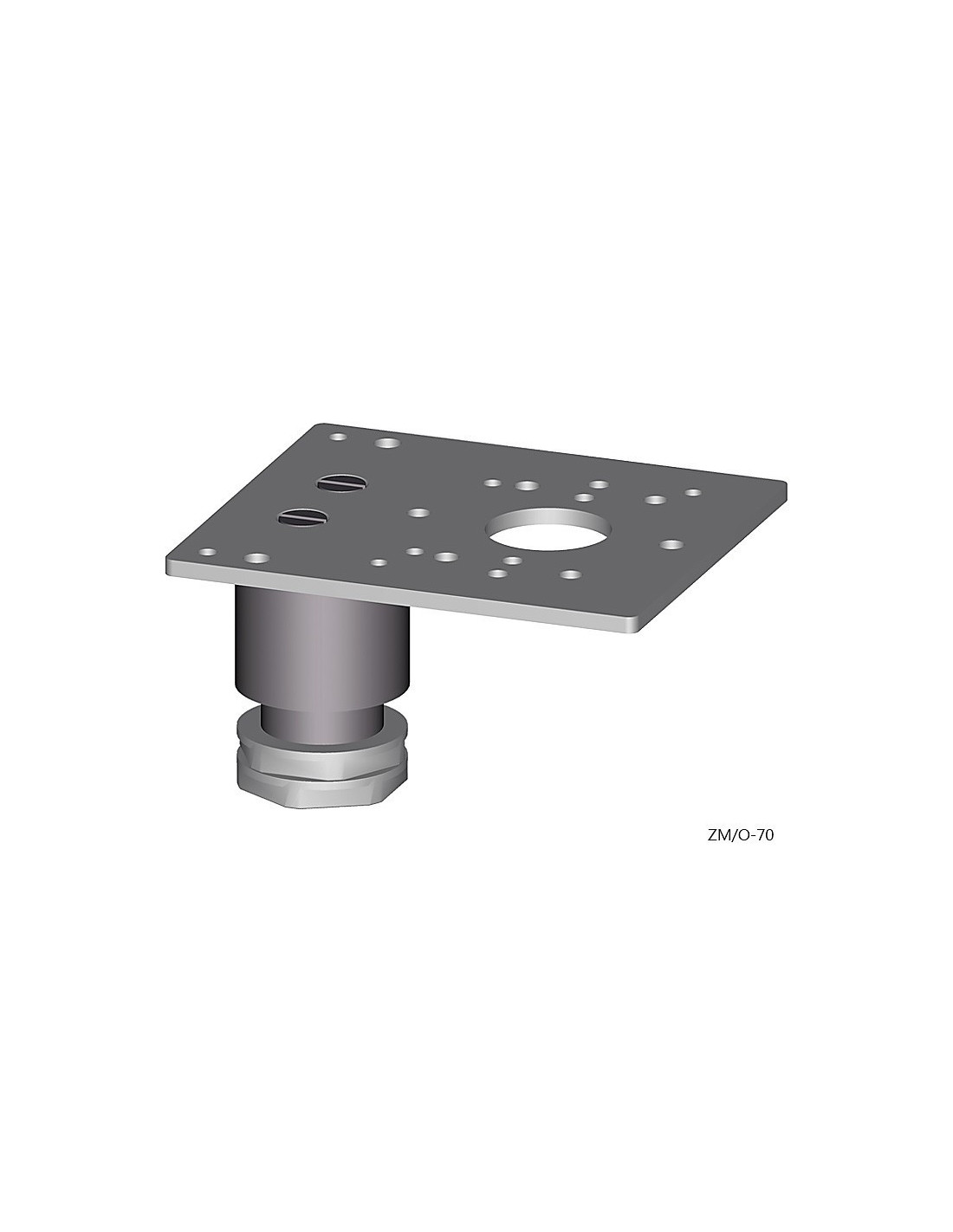

| Article No. ZM/O-70 | |

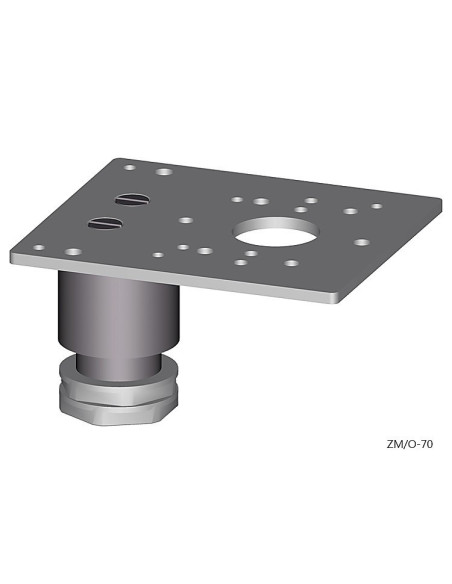

| Description | Base plate with adapter for attaching pyranometer to a crossbeam |
| Material | aluminum, anodised |
| Dimension | 100 x 115 x 65 mm |
| Weight | 500 g |
| Article No. ZM/O-75 | |
| Description | Spigot complete for transducer adaptation on traverses Compact |
| Material | POM |
| Dimensions | 40 x 65 mm |
| Weight | 100 g |
| Article No. ZM/O-76 | |
| Description | Adapter/pin complete for transducer adaptation on traverses Compact |
| Material | aluminum |
| Dimension | 40 x 75 mm |
| Weight | 250 g |
| Article No. ZM/O-80 | |
| Description | Lightning rod for additional attachment to a mast, pipe or crossbar to protect the wind transmitter from destruction by lightning strikes |
| Material | stainless steel |
| Dimension | height 560 mm |
| Weight | 340 g |
| Article No. ZM/O-90 | |
| Description | Connection cable for FS6002, 10 m FRNC 16 x 0.25 mm², open ends on the receiving side, shielded, halogen-free, UV-resistant |
| Article No. ZM/O-91 | |
| Description | Connection cable for FS6003, 10 m, 7-pin, open ends on the receiving side, shielded, halogen-free, UV-resistant |
