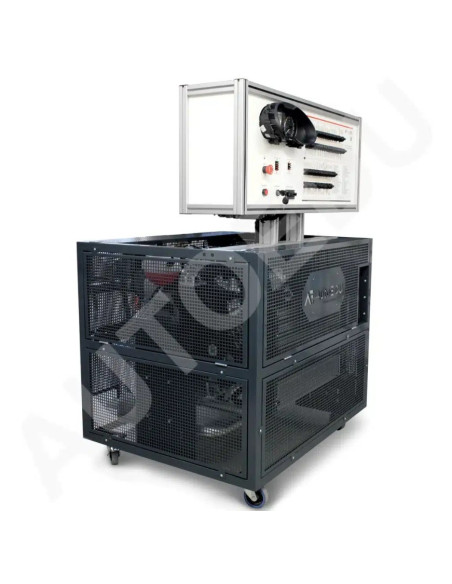

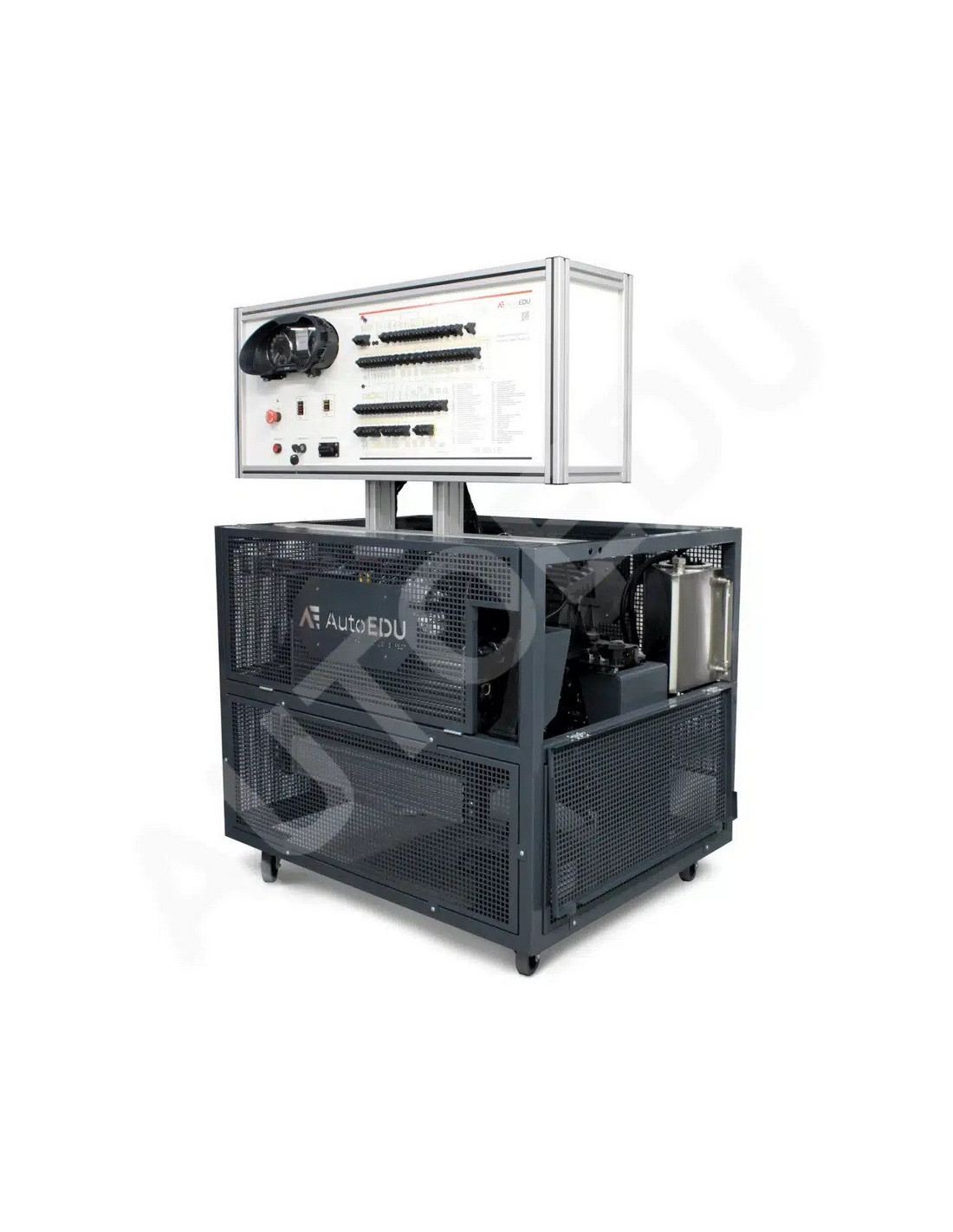

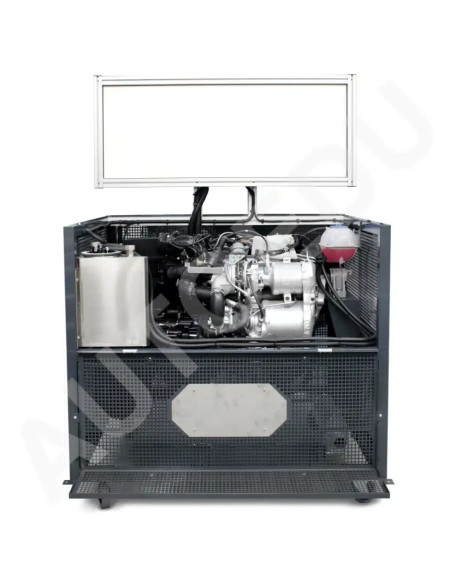

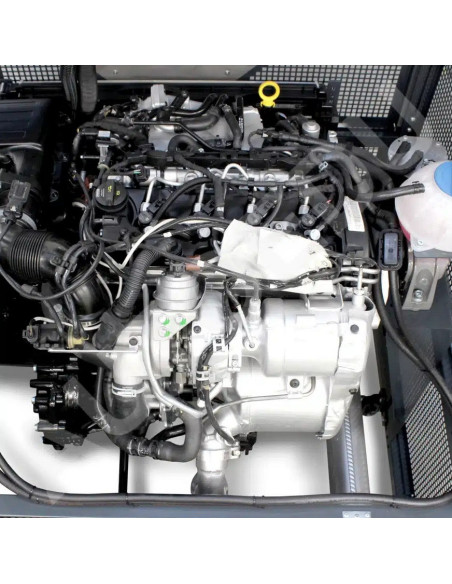

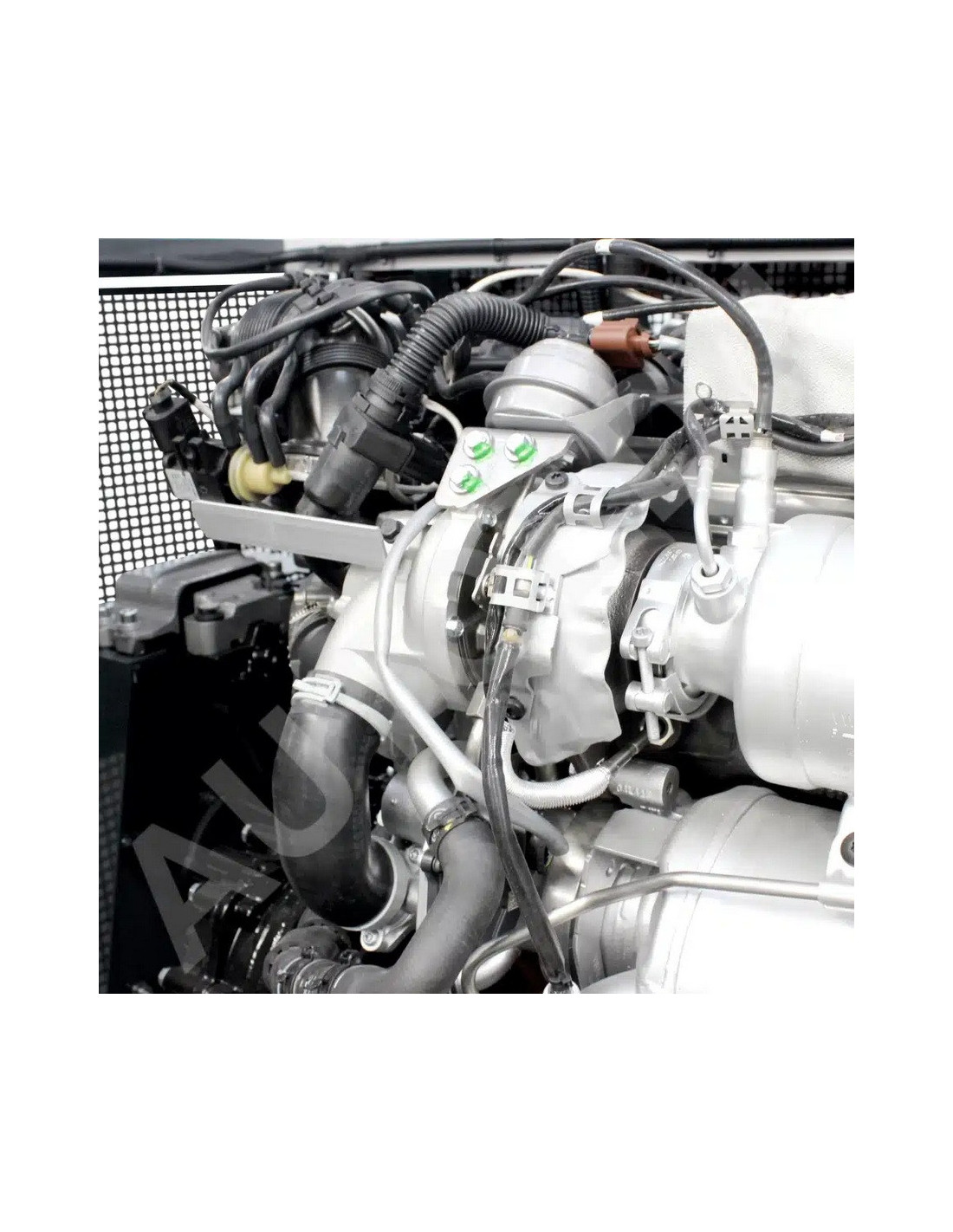

MVCR04 Common Rail EURO 6 diesel engine trainer

Specifications

• Reference: MVCR04.
• Manufacturer: AutoEDU.
• ASE category: A9.
• Product type: fully functional diesel engine trainer.
• System standard: EURO 6 Common Rail.
• Fuel system: Common Rail with high-pressure fuel pump, fuel accumulator, and injectors.
• Electronic control: ECU with complete engine management system.
• Sensors available for study: RPM, mass air flow, fuel pressure, and other engine management sensors.
• Diagnostics: OBD II connector for real-time monitoring and fault code management.
• Fault simulation: jumper-based system for practical troubleshooting exercises.

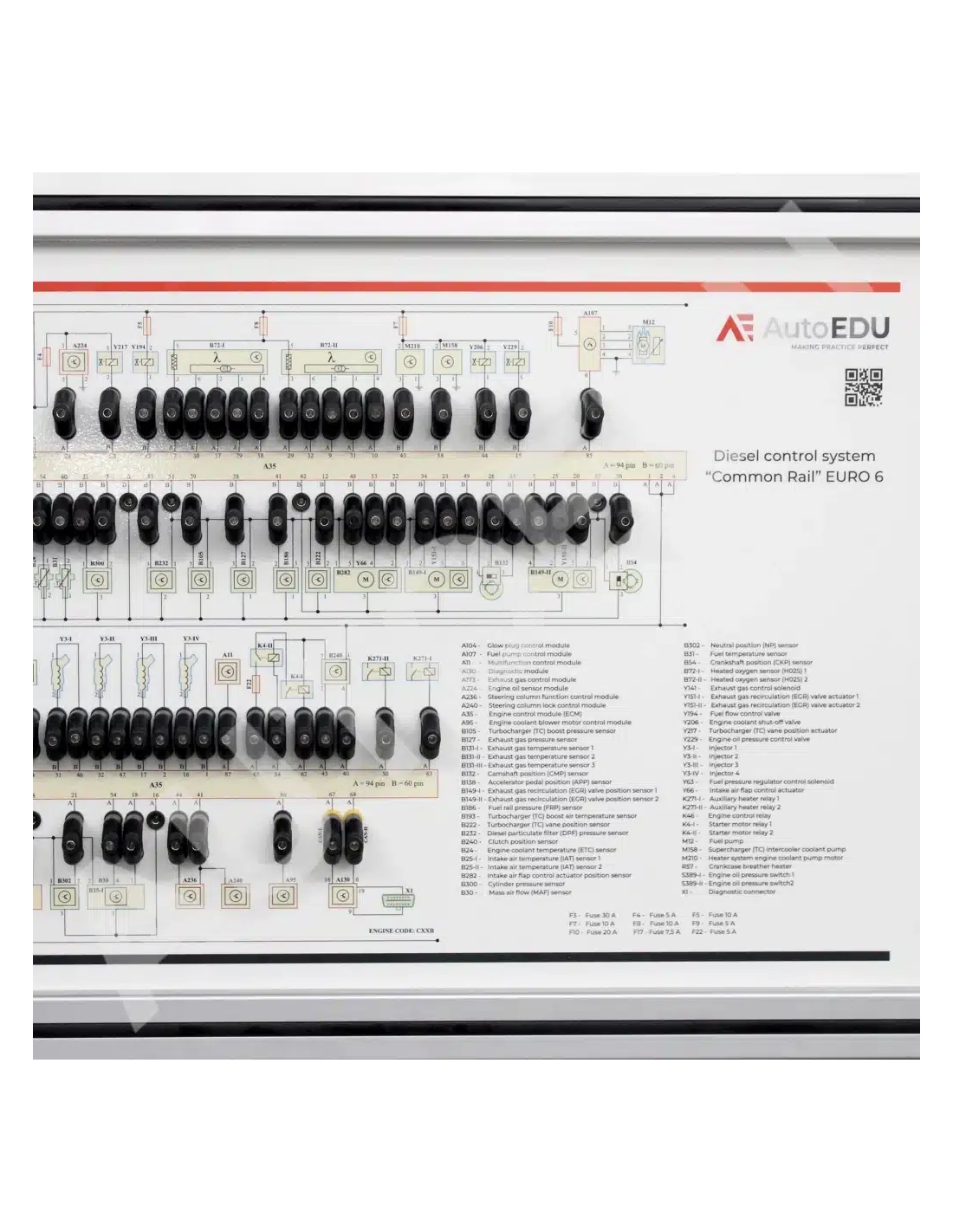

• Control panel: dashboard controls, electrical diagram with measuring contacts, fuses, ignition key, and emergency shutdown key.
• Auxiliary power: integrated 12V battery.
• Structure: metal frame with wheels.
• Installation: plug-and-play design with no need for additional mounting or special preparation.

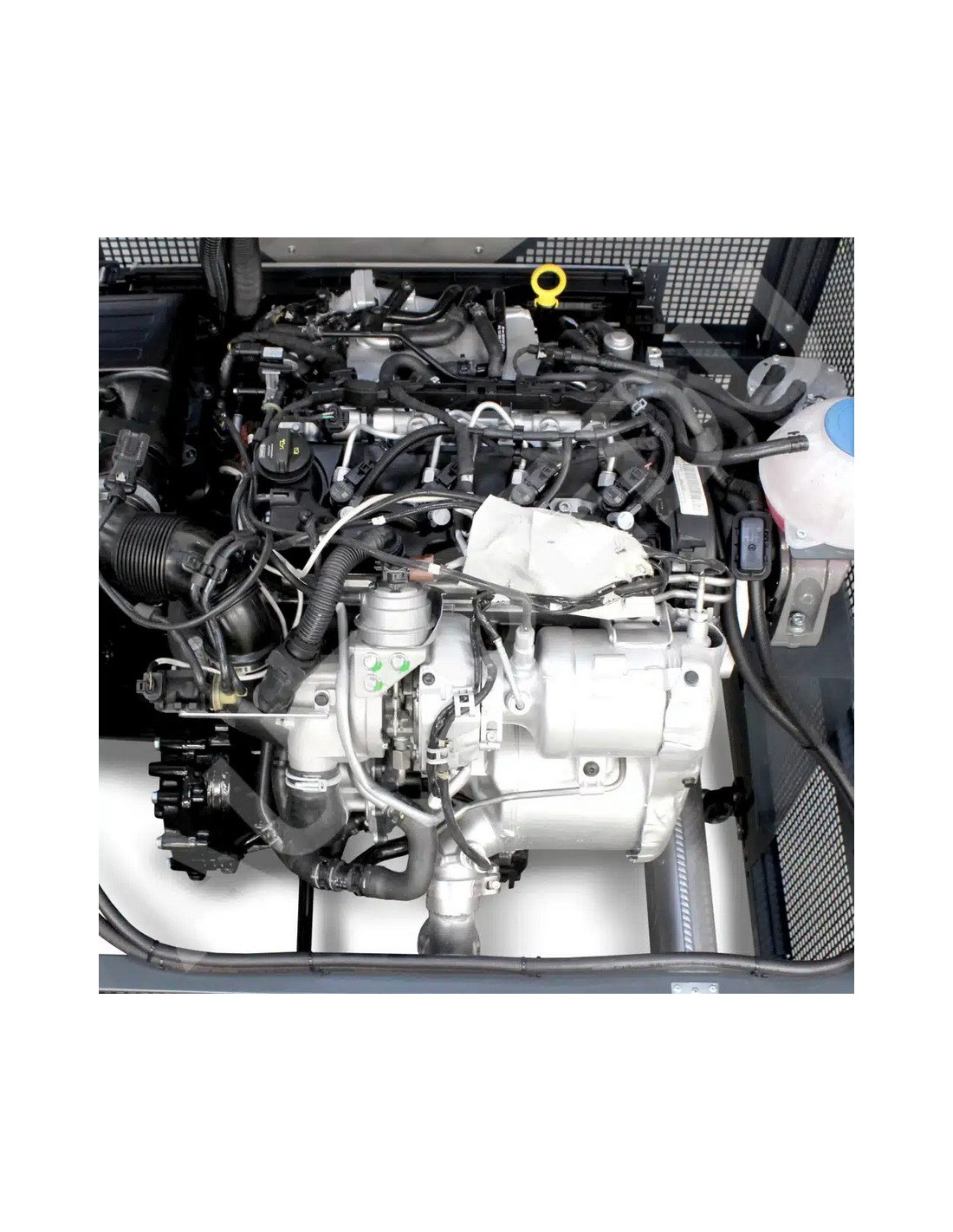

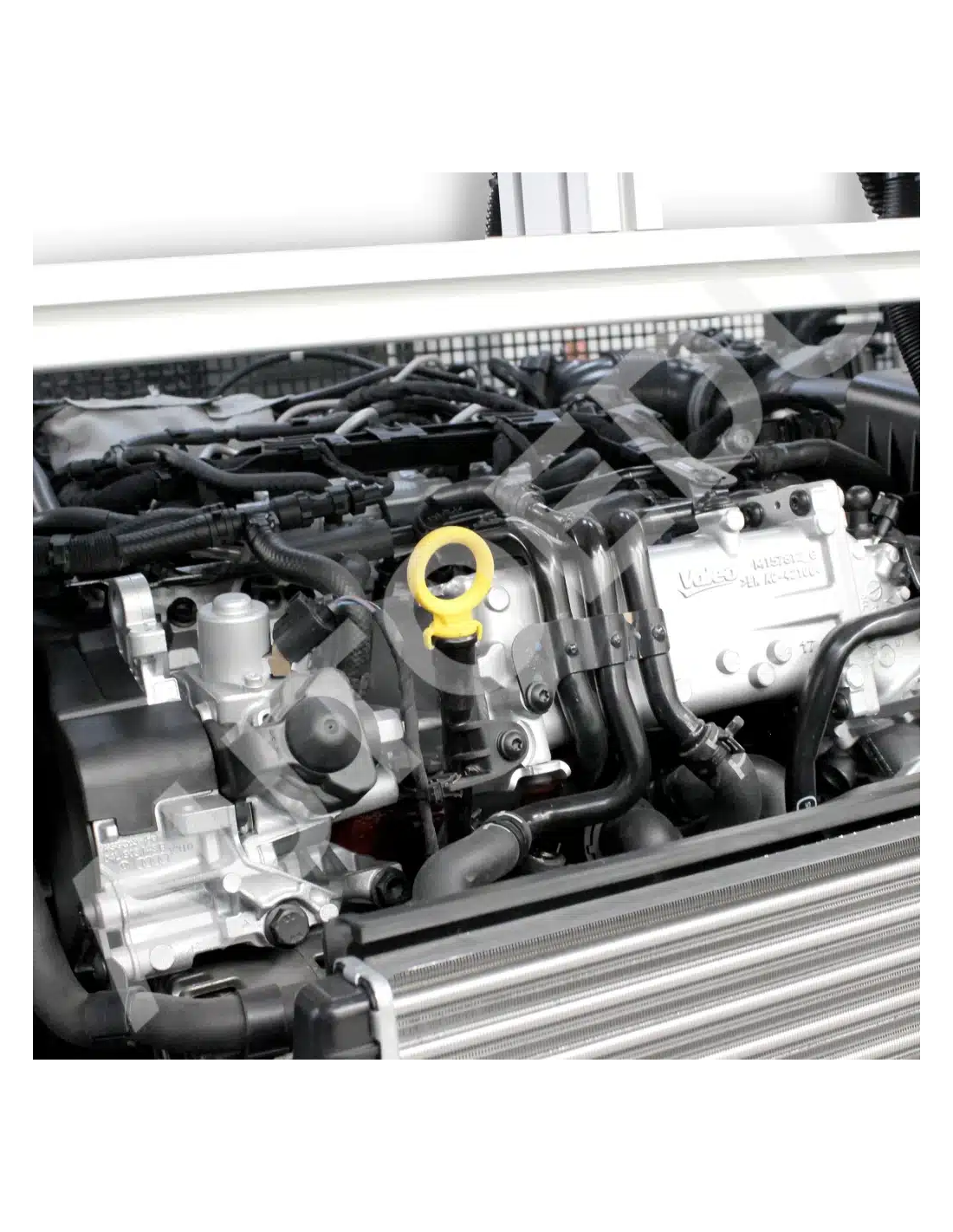

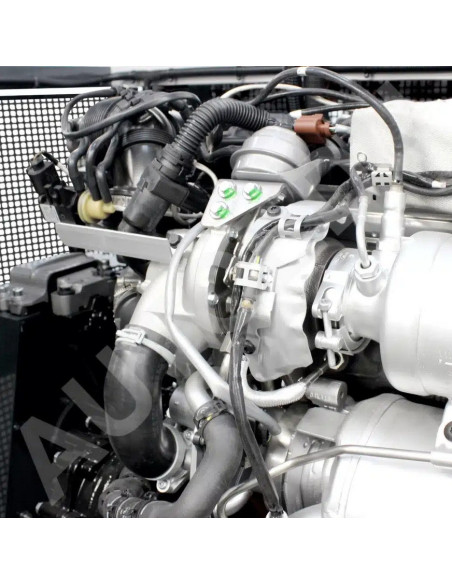

This fully functional OEM diesel engine trainer with Common Rail fuel system is mounted on a robust frame to simulate real automotive operating conditions in a classroom or workshop environment.

Students can diagnose and troubleshoot engine faults using the integrated OBD II diagnostic connector, allowing fault code reading, error deletion, and real-time performance monitoring.

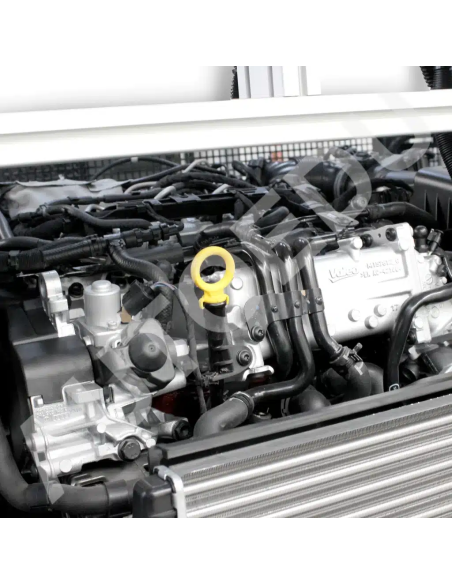

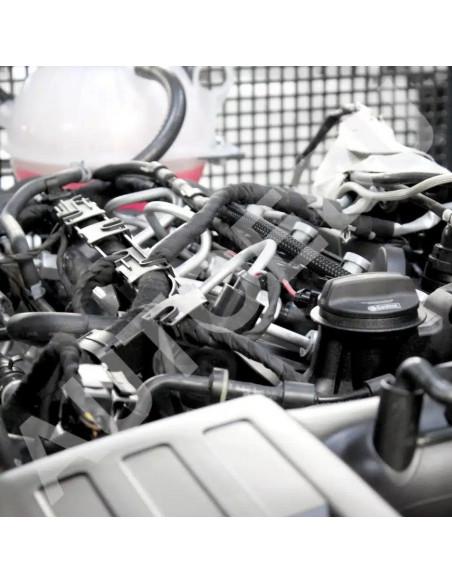

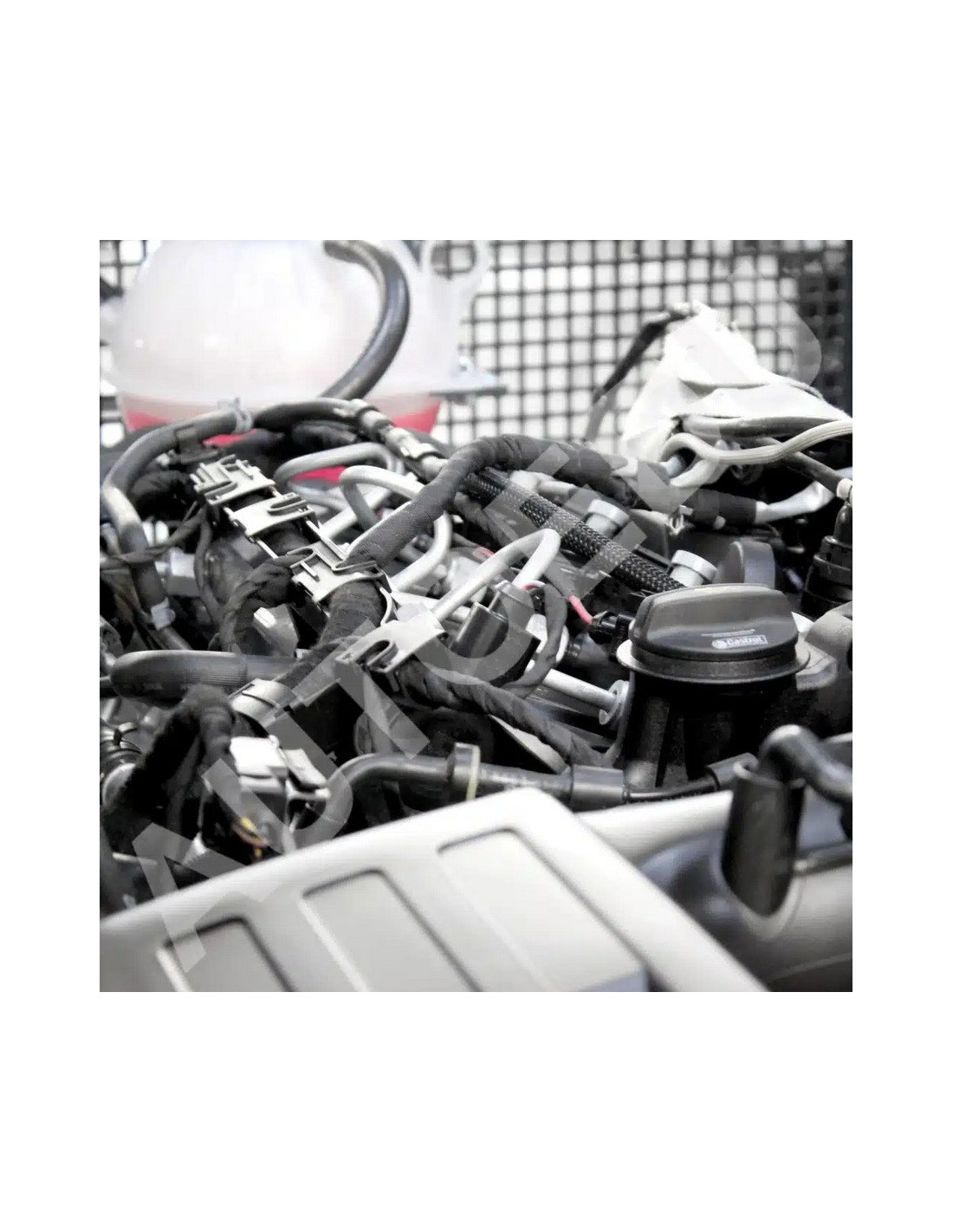

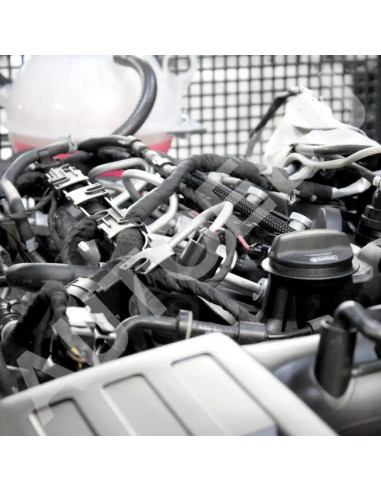

The trainer demonstrates the structure and operation of the Common Rail injection system, including the high-pressure fuel pump, injectors, fuel accumulator, pressure control, and injection timing.

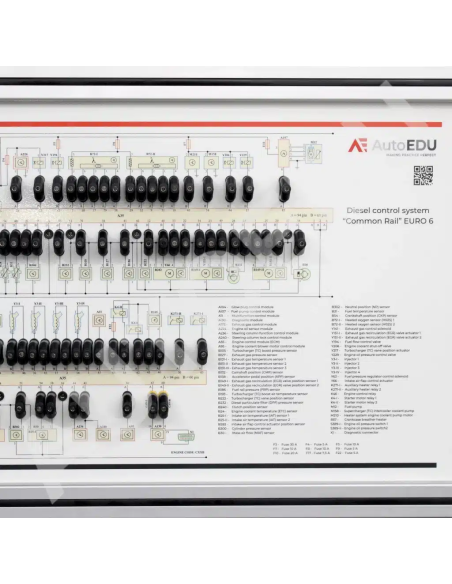

An included electrical diagram helps students understand the connections between sensors, actuators, and control units, supporting practical learning of modern engine management systems.

The system also allows laboratory exercises such as fault simulation through jumpers, enabling students to observe how different failures affect engine behaviour and diagnostic results.

This modern diesel engine trainer allows instructors to demonstrate Common Rail fuel injection, engine management, diagnostics, and fault simulation in a realistic and practical training environment.

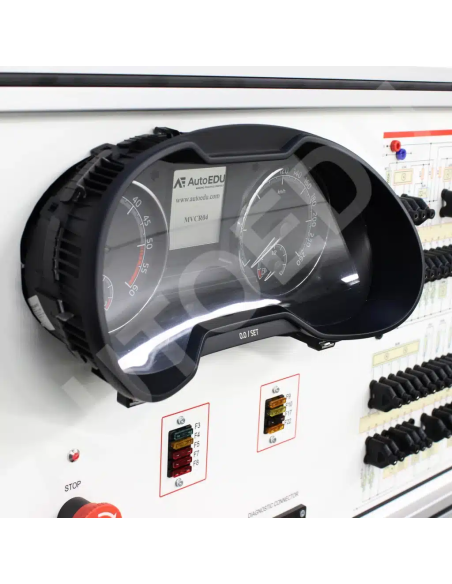

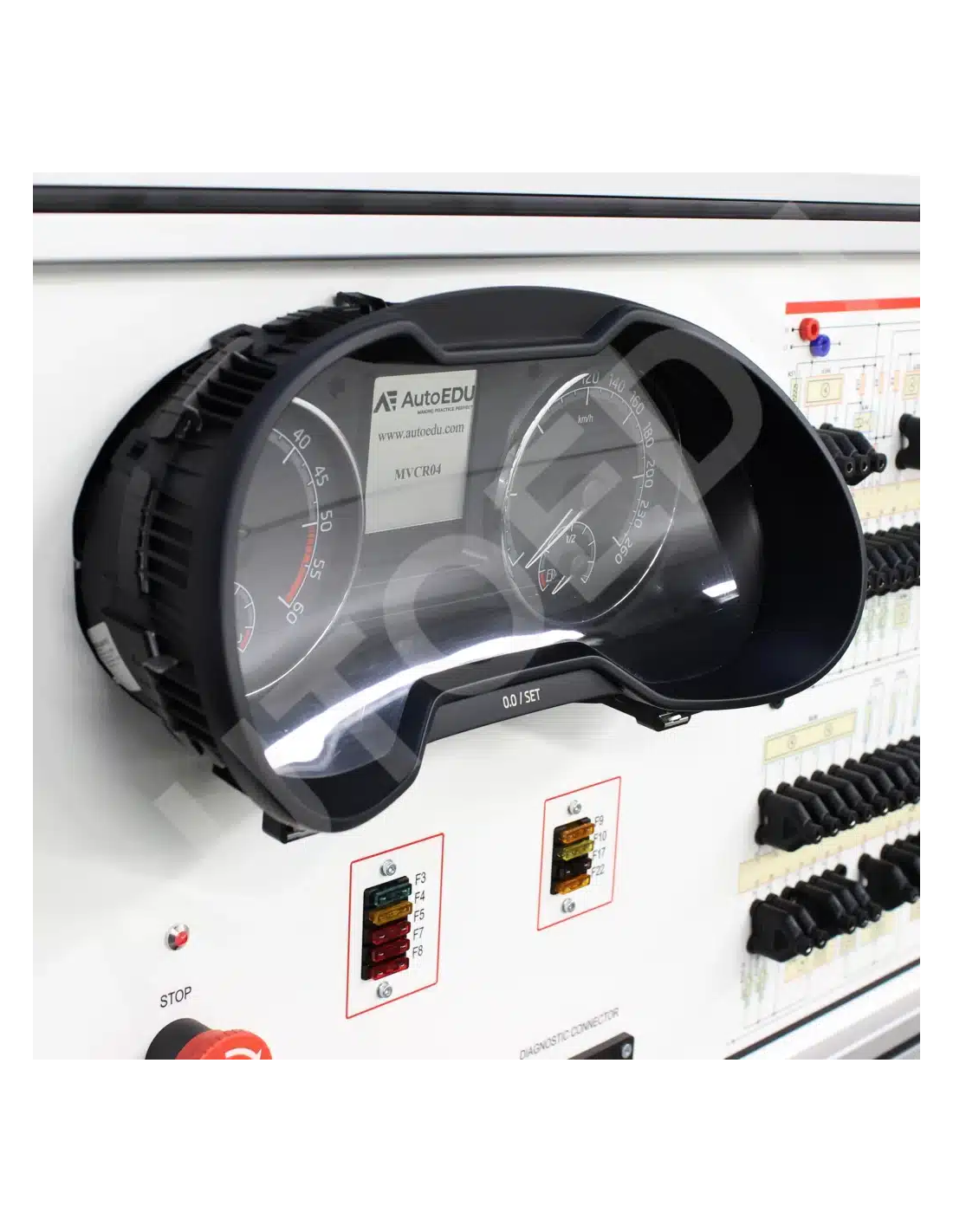

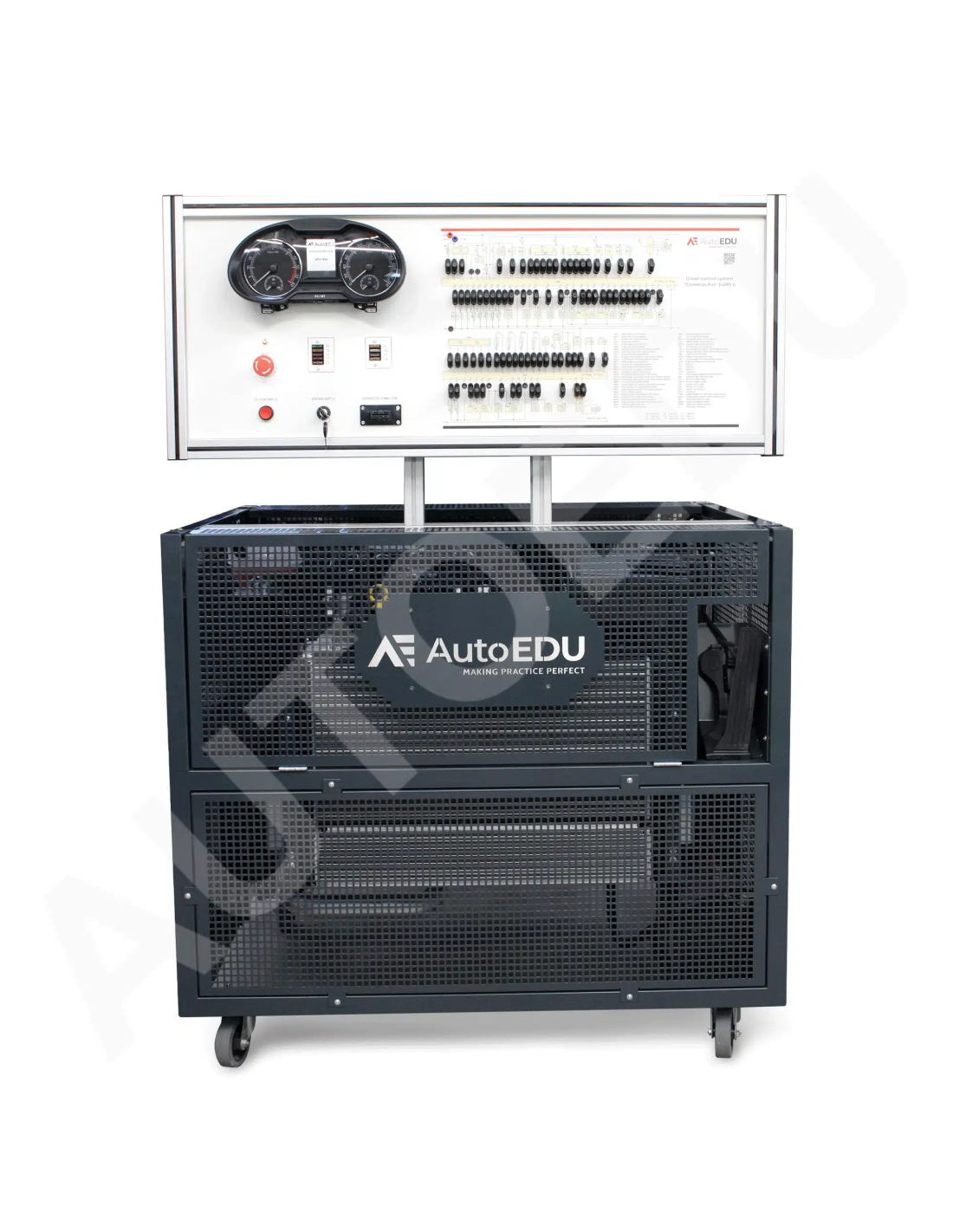

The integrated control panel includes clearly labelled components, jumpers, and electrical contacts, making lessons easier to prepare and helping students understand the relationship between sensors, actuators, control units, and engine operation.

Faults can be simulated and diagnosed through the OBD II connector, allowing teachers to create realistic troubleshooting exercises based on fault codes, live data, and engine behaviour.

Removable safety panels protect users from hot and rotating parts while still allowing access for maintenance and instructional demonstrations.

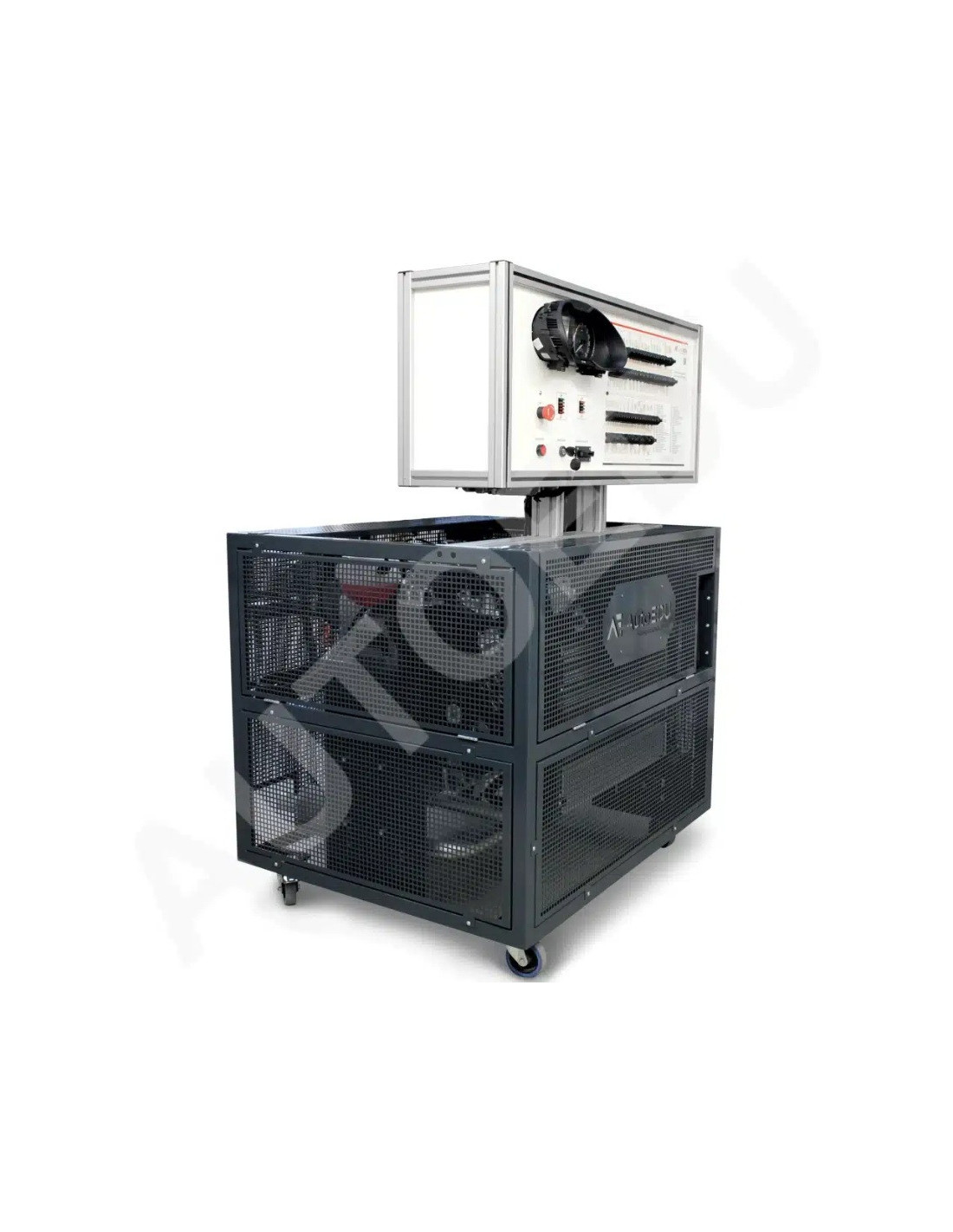

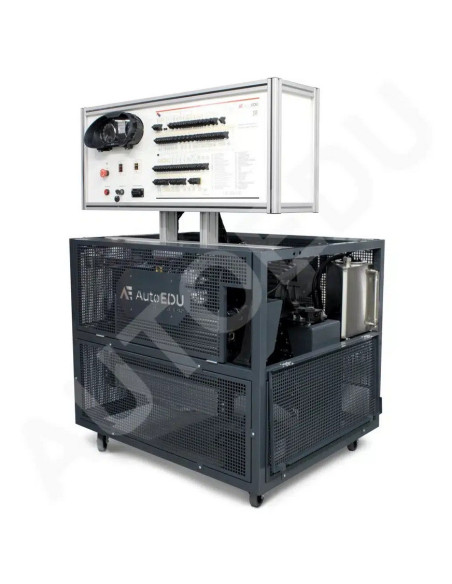

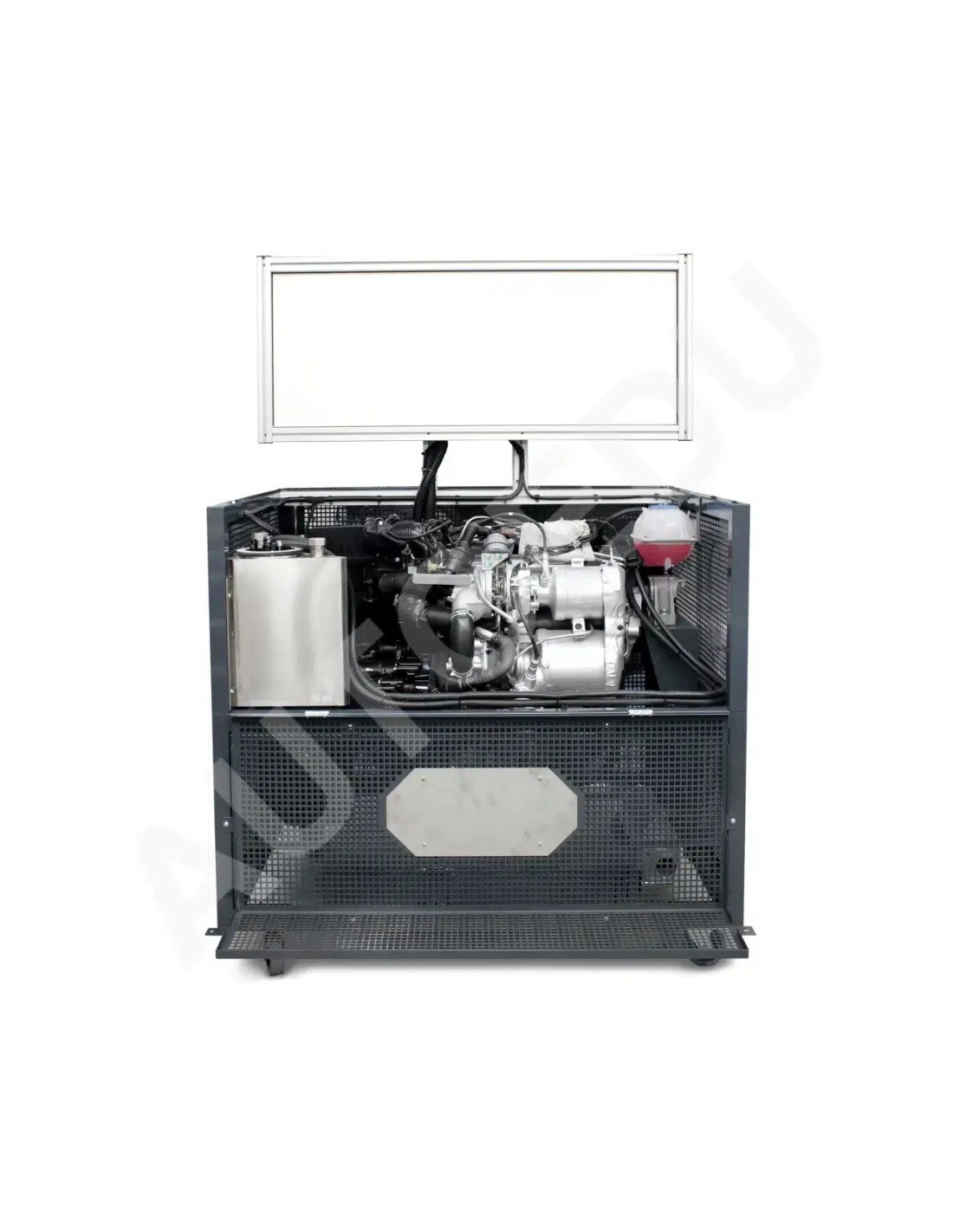

The trainer is mounted on a mobile steel frame with internal wiring, providing a clean, safe, and durable solution for classroom and workshop use. Its plug-and-play design requires no additional assembly or special installation, making it easy to integrate into daily training sessions.

The unit can be quickly reset to default parameters, allowing instructors to prepare each practical lesson efficiently and support collaborative work with multiple students.

Compatible diagnostic tools (sold separately) may include a range of professional scan tools and oscilloscopes, depending on the selected trainer model and configuration.

Supported or recommended options can include:

- OBDEleven diagnostic scan tool, depending on model
- VCDS diagnostic scan tool, depending on model
- TEXA TXT MULTIHUB CAR diagnostic scan tool
- AutoCOM ICON diagnostic scan tool
- TEXA NANO S diagnostic scan tool
- TEXA Uniprobe diagnostic oscilloscope
- TiePie ADK5004D Automotive Diagnostics Kit oscilloscope
- Foxwell OS100 diagnostic oscilloscope

These tools support practical diagnostic training, fault code reading, live data analysis, signal measurement, and troubleshooting exercises in automotive education environments.
