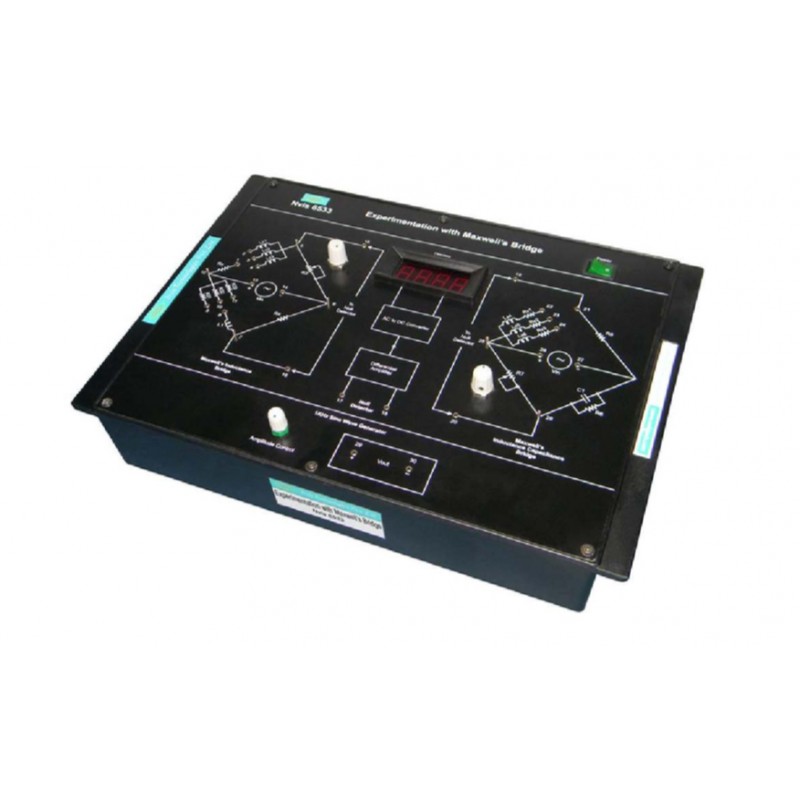

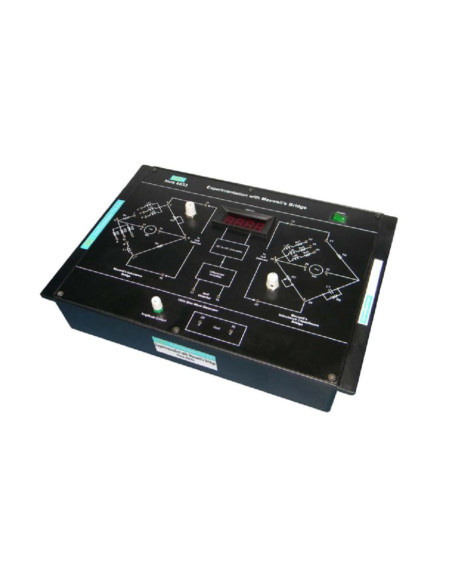

Nvis 6533 Laboratory for Experimentation with Maxwell's Bridge

Reference: Nvis6533 - Manufacturer: NVIS TECHNOLOGIES

Nvis 6533 Laboratory for Experimentation with Maxwell's Bridge is a useful training product for measuring very small values of inductance. It is useful for students to understand the concept and operation of A.C. Bridges.

Nvis 6533 Laboratory for Experimentation with Maxwell's Bridge is an ideal platform to enhance education, training, skills & development amongs our young minds.

Maxwell's bridge can be used to determine value of unknown inductance by comparison with either variable standard self inductance or standard variable capacitance. By setting the null point we can evaluate the unknown inductance value. This product has an on board null detection circuit with differential amplifier, AC to DC convertor and DPM. A 1 KHz sine wave generator is provided with amplitude variation facility.

Features:

- Illustration of both Maxwell`s inductance bridge and
- Maxwell's inductance-capacitance bridge on a single board
- Inbuilt 1 KHz sine wave generator with variable amplitude
- Null detector with DPM
- Online product tutorial

Category: Laboratories

Download (115.51KB)
