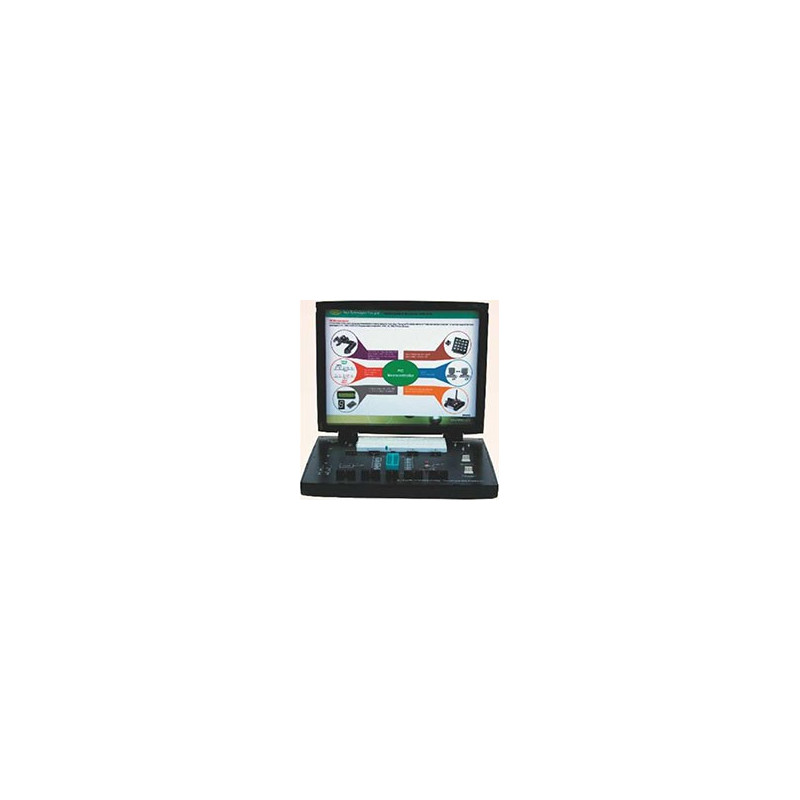

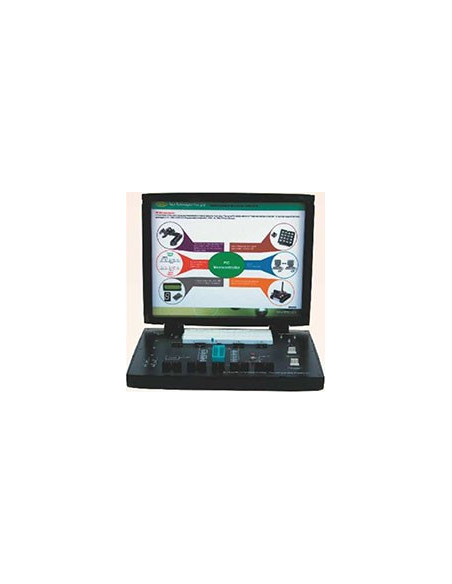

Nvis 5002 Techbook for PIC Microcontroller Development Platform

Nvis 5002 Techbook for PIC Microcontroller Development Platform is a full featured development platform for microchip PIC16F877A microcontroller. It is an ideal platform to implement and test the designs both for the beginners and the experts. Nvis 5002 is a single microcontroller development platform.

The Nvis 5002 gives designers a quick start to develop code on the controller with on platform programmer and on platform breadboard facility. The flexibility of connectors allows the user to make external connections. On platform, breadboard allows making their own circuits and performing an experiment as they desire.

Nvis 5002 Techbook for PIC Microcontroller Development Platform is an ideal platform to enhance education, training, skills & development among our young minds.

• Features:

- PIC16F877A MCU clocked at 4 MHz
- Expansion connectors for plug in modules and prototyping area
- On platform programmer
- USB interface to PC for programming
- Every pin is marked in order to make work easier
- Master Reset/Restart Key for hardware reset
- Input/output & test points provided on platform
- On platform breadboard for connecting external components
- Self contained development platform with on platform DC Power Supply
- CD with sample project code, Programmer software & useful documents

- Study of PIC Microcontroller architecture
- Pin to pin study of MCU.
- To study serial protocol(I2C/SPI).
- To study internal PWM.
- To study internal ADC
- To study RTC.
- Interface various external MC01- MC17 series modules
