KL-900C AM/FM/ASK/FSK Transmitter & Receiver System

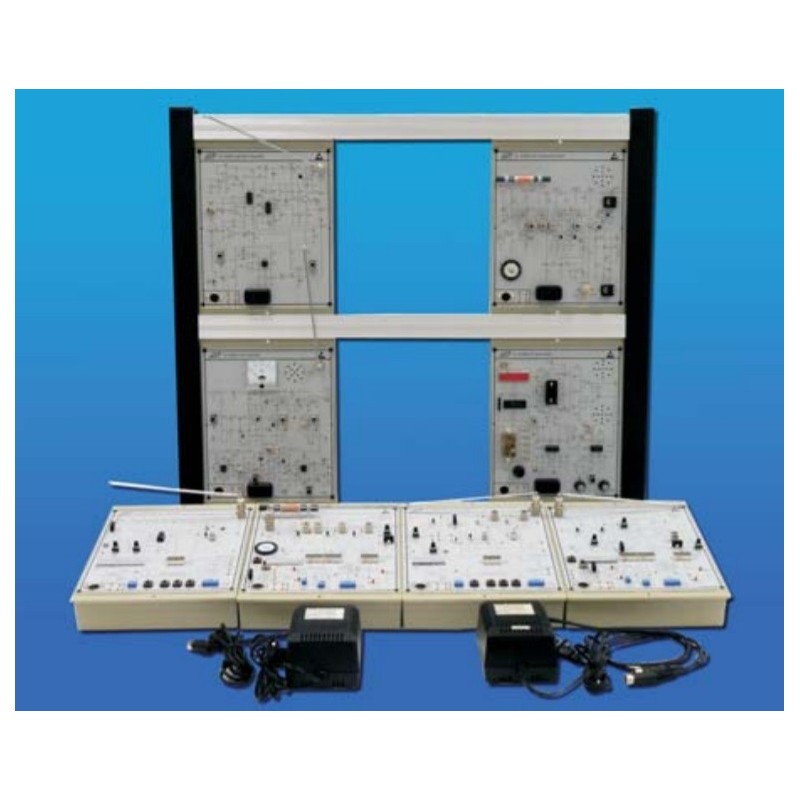

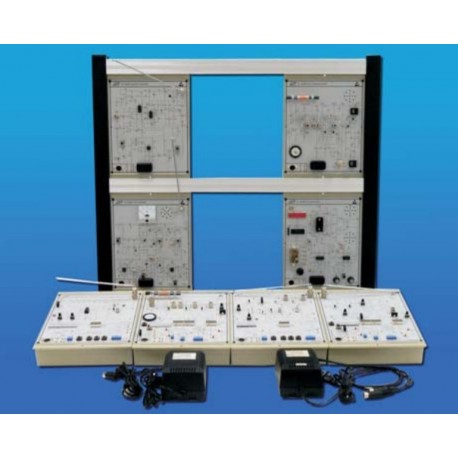

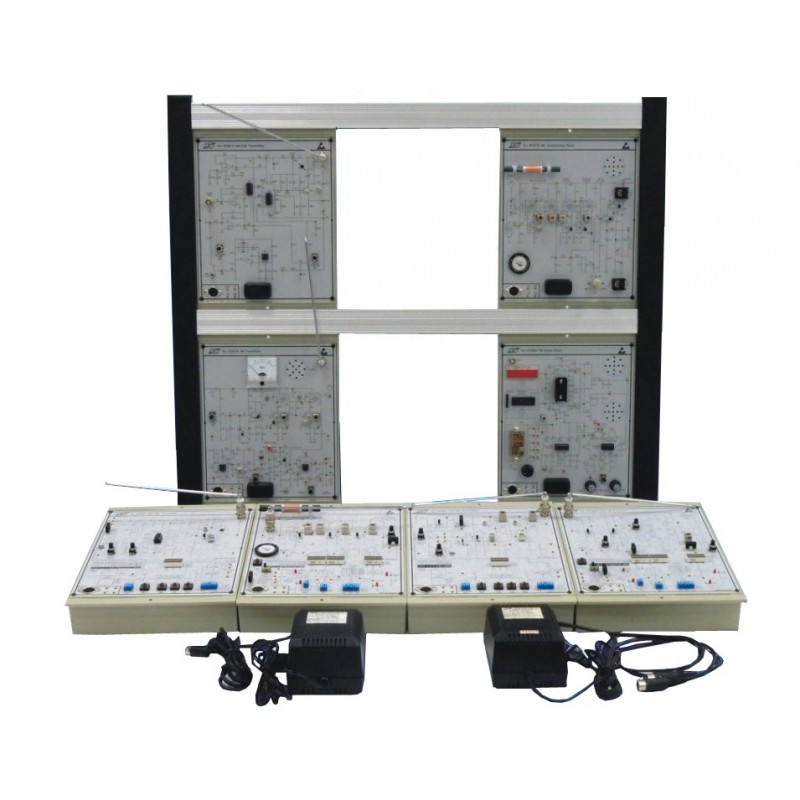

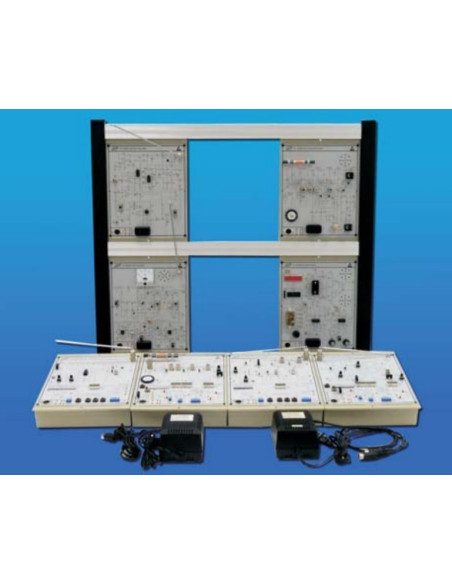

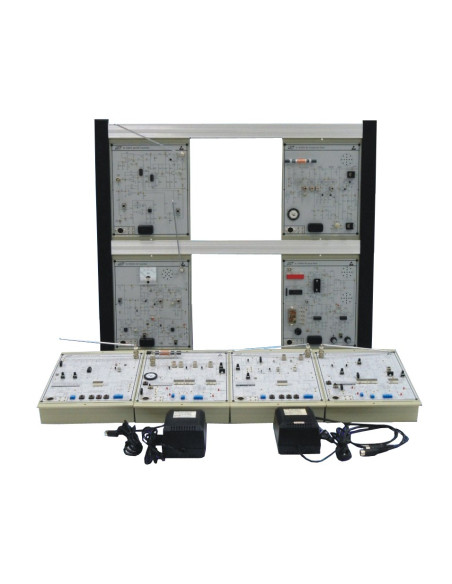

The complete system contains KL-900C1 and KL-900C2, eight separate modules being included:

 · AM transmitter & receiver modules
 · FM transmitter & receiver modules
 · ASK/AM transmitter & receiver modules
 · FSK/FM transmitter & receiver modules

• System consists of ASK/AM transmitter and receiver, and FSK/FM transmitter and receiver.
• Both AM & FM modules are equipped with 8-bit DIP switch for fault-finding experiments.
• Provide comprehensible experiment manual

KL-900C1

1. KL-93061A AM / DSB Transmitter
    Experiments include:
    Crystal Oscillator, Modulator Rate, Sine Wave / Voice Modulator, Scale Modulator,
    RF amplifier, adjustment & coupling, antenna adjustment.
2. KL-93062A Transistorized AM Radio
    Experiments include:
    Mixed oscillator, IF first amplifier, IF second amplifier, audio amplifier.
3. KL-93063A FM Transmitter
    Experiments include:
    Crystal Oscillator, Frequency Modulator, RF Buffer, Reference Oscillator, Frequency Tachometer, and Modulator
    of audio.
4. KL-93064A FM Stereo Radio
    Experiments include:
    Tuner, FM IF amplifier, MPX FM, audio amplifier.

KL-900C2

1. KL-93065 ASK / AM Transmitter
    (1) AM Experiment includes:
          RF amplifier, coupling adjustment, antenna adjustment
    (2) Analog modulation experiment includes:
          AM audio amplifier, audio transmission.
    (3) ASK digital modulation experiment includes:
          ASK CDMA experiment, ASK Manchester experiment, direct modulation transmission experiment,
          coding transmission experiment from Manchester
2. KL-93066 ASK / AM Receiver
    (1) AM Experiment includes:
          First IF amplifier, IF second amplifier and audio amplifier
    (2) Analog AM demodulation experiment includes:
          Experiment AM audio amplifier and audio reception
    (3) ASK digital demodulation experiment includes:
          ASK Direct Demodulation Experiment, Manchester Decoding Experiment
3. KL-93067 FSK / FM Transmitter
    (1) FM Experiment includes:
          Measurement of buffer amplifier tuning, RF amplifier tuning measurement
    (2) Analog FM modulation experiment includes:
          FM audio amplifier, audio transmission
    (3) FSK digital modulation experiment includes:
          FSK CDMA experiment, Manchester FSK experiment, direct modulation transmission experiment,
          coding transmission experiment from Manchester
4. KL-93068 FSK / FM Receiver
    (1) FM Experiment includes:
          IF FM amplifier
    (2) Analog FM demodulation experiment includes:
          Experiment with FM audio amplifier and audio reception
    (3) FSK digital demodulation experiment includes:
          FSK Direct Demodulation Experiment, Manchester Decoding Experiment
