Scientech6205 IoT Builder

The Internet of Things (IoT) is an environment in which objects, animals or people are provided with unique identifiers and the ability to transfer data over a network without requiring Human-to-Human or Human-toComputer interaction. IoT has evolved from the convergence of Wireless Technologies, MicroElectroMechanical Systems (MEMS) and the Internet. IoT is more than smart homes and connected appliances. IoT is about connecting devices over the Internet, letting them talk to us, applications, and each other. Essentially, it is an overarching platform that allows a variety of devices or machines to communicate with each other by "Machine to Machine" communication (M2M).

• Features:

- In-depth practical learning on IoT
- In-depth practical learning on WSN
- Linux based design
- Linux Operating System porting
- Linux python programming
- Qt IDE based GUI development
- Study of Sensor and Actuator interfacing
- Local cloud & server configuration
- Over the air (OTA) node configuration
- GUI based parameter configuration
- GUI Base IoT application development
- IoT Gateway Using WiFi and Ethernet
- Bluetooth interface
- Zigbee interface
- HDMI interface for display
- USB HID and CDC interface
- Ethernet interface
- 4 channel ADC for Voltage input
- Input for Resistance measurement
- Input for 4-20mA measurement
- RS485, I2C, SPI Protocol interface
- LEDs interface
- Motor driver interface
- Color TFT display
- Serial to USB converter
- microSD card socket
- Office Suit
- Switches interface
- Audio interface
- Connectors for external module interface
- Camera connectivity
- GSM IoT gateway (optional)

- Processor: 64bit ARMv7 Quad Core Processor 1.2GHz
- Connectivity: 802.11 b/g/n Wireless LAN Bluetooth 4.1, zigbee, USB & Ethernet
- RAM: 1GB
- Memory: 16GB (upgradable)
- OS: Linux
- Ethernet: 10/100 BaseT Ethernet socket
- Video Output: HDMI and Composite RCA
- Audio Output: Audio Output 3.5mm jack
- USB: 4 nos.
- Camera: 15-pin MIPI Camera Serial Interface
- Memory Card: Push/pull Micro
- LCD: Color TFT LCD
- Motor Driver: Stepper and DC Motor
- Analog Input: 8 nos.
- Relay Output: 4 nos.
- Buzzer Output: 1 no.
- Zigbee Frequency: 2.4GHz
- Power: 5V, 2A

+ Wireless Sensor Node:
- Analog Inputs: 6 nos
- Digital Outputs: 4 nos.
- I2C channel: 1 no.
- Communication: Zigbee 2.4 GHz
- PC Interface: USB
- Charging: USB and Solar Panel
- Battery: 3.7V/4400mAH
- Solar Panel: 6W

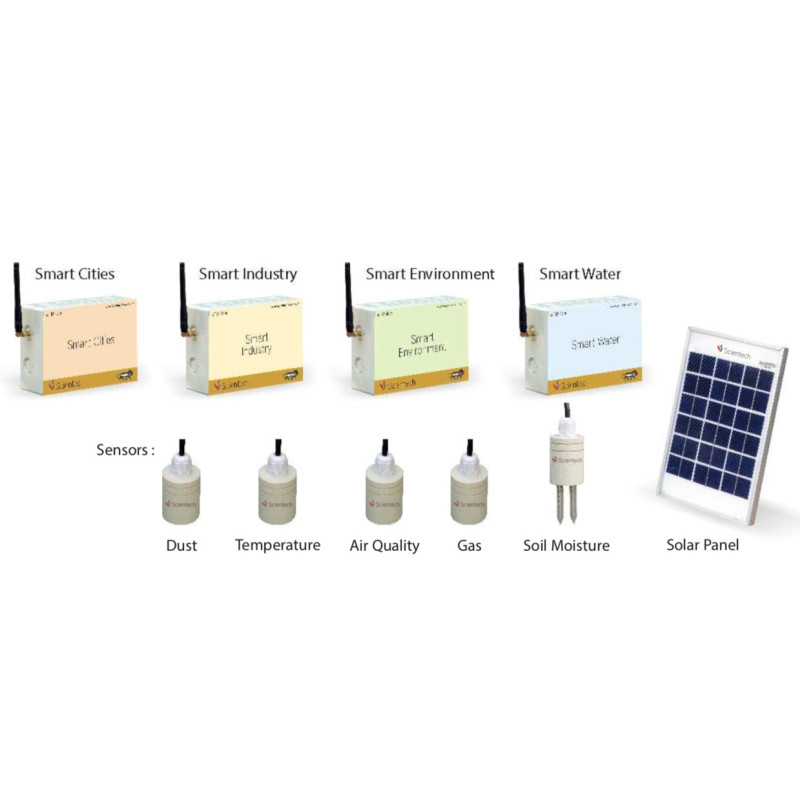

+ Included Sensors with Scientech 6205L:
- SS150 Temperature and Humidity: 2 nos
- SS151 Air Quality Sensor: 2 nos
- SS152 Soil Moisture: 2 nos
- SS153 Ambient Light Sensor: 2 nos
- SS154 Soil/Water temperature: 2 nos
- SS155 PIR Sensor: 2 nos.

+ Optional:
-- GSM IoT Gateway:
- Quad-Band 850/900/1800/1900 MHz
- GPRS multi-slot class 10/8
- GPRS mobile station class B
- Compliant to GSM phase 2/2+
- Class 4 (2 W @850/ 900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
- Control via AT commands
- SIM application toolkit
- Supply voltage range : 3.2 ... 4.8V
- GPRS class 10 : max. 85.6 kbps (downlink)
- Embedded TCP/UDP protocol

+ Optional Cloud/Server:
-- Physical Cloud/Server:
It included physical hardware (Computer) for Sever along with all required software. Also it will come with static IP address. Annual subscription is required for only IP Address. In this internet facility should be required in user’s premises.
-- Online Cloud/Server:
This is online server, in this user will get one static IP address, one domain (Website) name and one database along with email address. Annual subscription for domain name and IP address required.

Important Note:
- To perform actual/remote cloud application and configuration user must have Static IP based server with MySQL Database/Php/Java/Html software.
- The best feature of Scientech IoT Builder – Development Platform is that users can configure it as a Base Station for WSN, IoT gateway and Cloud Storage. So if users want to configure it as gateway and Cloud separately (in case Static Server IP is not available) then they will require 2nos. of IoT Builder – Development Platforms.
- To make IoT Builder– Development Platform as a GSM gateway users must have own SIM Card with data balance.
- Product customization is also possible for Industrial requirement.

+ Introduction to Internet of Things (IoT):
- Definition of the Internet of Things (IoT)
- The Importance of the Internet of Things (IoT) in Society
- IoT Architecture
- History of IoT, M2M Machine to Machine, Web of Things
- Overview of IoTLab Hardware platforms
- The Layering concepts, IoT Communication Pattern, IoT protocol Architecture, 6LoWPAN
- Understand IoT Market perspective in different segments.

+ Operating System used for IoT:
- Linux Operating System introduction
- Working with the command line and the Shell
- Managing directories and files
- Managing user access and security
- Setting up a Linux file system
- Understanding system initialization
- Connecting a system to the network
- Installing and Configuring Linux

+ Shell Scripting Programming for IoT:
- Introduction
- Creating Shell Scripts
- Flow control in the Shell
- Advanced Shell features

+ Programming Language used in IoT:
- C Programming
- Python

+ Hardware Interfacing for IoT
- Sensors interfacing
- Actuators interfacing

+ Communication Protocol study for IoT
- UART Communication
- RS485 Communication
- I2C Protocol device interfacing
- SPI Protocol device interfacing
- Ethernet configuration
- Zigbee interfacing
- MQTT Protocol
- Wi-Fi AP and Router interfacing
- GSM module interfacing (optional)
Database, Cloud and Server Configuration for IoT Qt based GUI and C++ Programming for IoT Web and Application Development Tools for IoT Importance of Wireless Sensor Network (WSN) in IoT Study of Zigbee router, end device and coordinator configuration

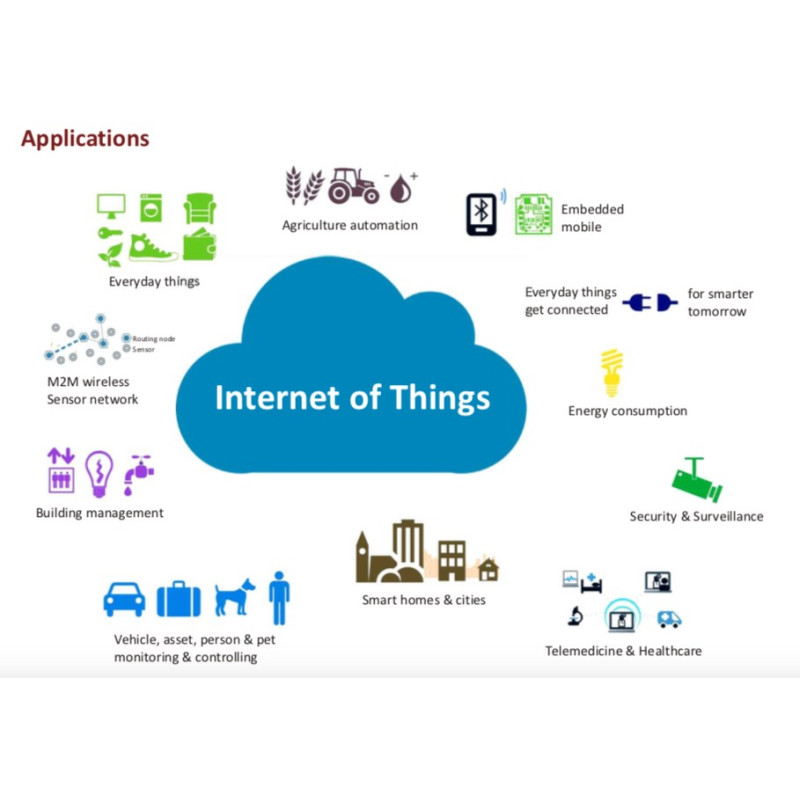

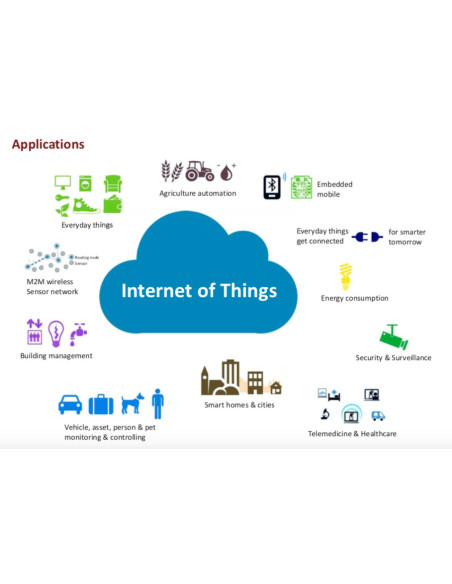

+ Case study & advanced IoT Applications with :
- Smart Agriculture Sensors
- Smart Environment Sensors
- Smart Industrial Sensors
- Smart Water Sensors
- Smart Home Automation
- Smart Security Solutions
