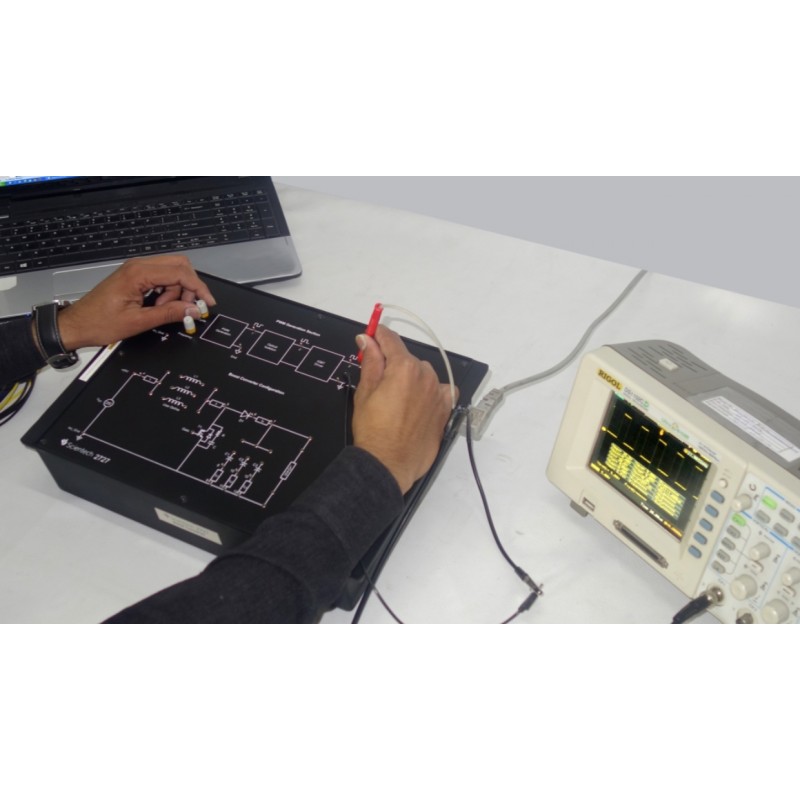

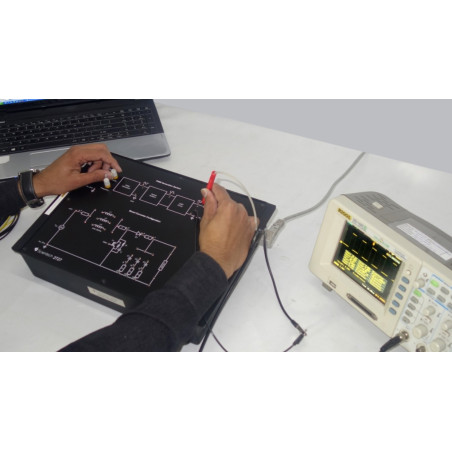

Scientech TechBook 2727 is a compact and user friendly learning platform which is very useful for students to understand the concept of PWM generation technique, and Boost Converter topology on various load configurations. It is also helpful for understanding the converter output on various filter configurations. Platform explains PWM generation technique, Boost converter operation, and power isolation circuit.

Product Features:

• Easy to operate & understand.

• Optically isolated PWM generation with Gate driver.

• Inbuilt isolation section for measurement of the signal.

• Space provided for external inductor connection.

• Test Points provided at output of each section to measure the signals.

• To study PWM generation

• To study Boost Converter with different filter components and loads
