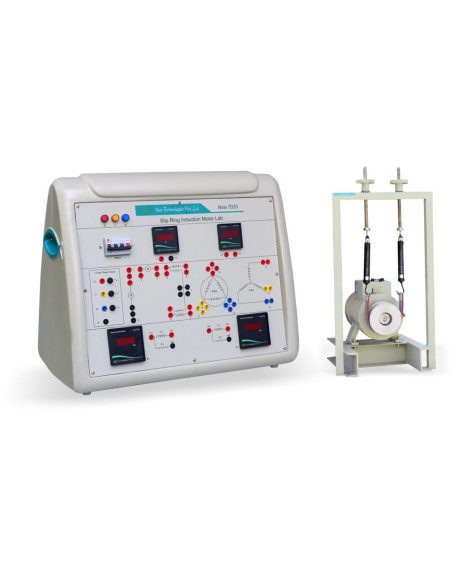

Nvis 7033 Slip Ring Induction Motor Lab
The product helps to understand the basic concepts and functioning of a Slip Ring Induction Motor. This system gives practical knowledge about the running and reversing of Induction Motor, study of no load test, block rotor test and load test etc.
This product is represented in such an easy way so that each test can be studied differently in proper sequence. Students can easily observe the test themselves using test points provided in very technical and easy way and get expected results
- Features:
- Machine with Mechanical Loading Arrangement
- Provided with Digital Tachometer
- Control board consist of high grade FRP material to provide utmost safety to the users
- Machine with Class “B” Insulation
- Heavy Duty Base/Channel
- Brake-Drum/Pulley with heat suppression facility
- Equipped with supply indication lamps
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Product Tutorial (CD)
- Mains Supply: Three Phase, 415 V ±10 %, 50 Hz
- MotorSpecification's:
- Type: Slip Ring
- Rating: 3 HP
- Voltage Rating: 415 V ±10 %
- Speed: 1440 RPM ±5 %
- Insulation: Class ‘B’
- Loading arrangement: Mechanical
- Brake Drum / Pulley: Aluminum Casted
- Digital Meters used:
- Wattmeter: 2000 W (2 nos.)
- AC Voltmeter: 450 V
- AC Ammeter: 5 A
- MCB (TPN): 10 A
- Digital Tachometer: 20,000 RPM
- Optional:
-- Three Phase Variac, 10 A
-- Rotor resistance starter
- Running and Reversing of Slip Ring Induction Motor
- No Load Test in a Slip Ring Induction Motor
- Block Rotor Test in a Slip Ring Induction Motor
- Measurement of Slip in a Slip ring Induction Motor
- Speed-Torque Characteristics of Slip Ring Induction Motor
- Category
- Laboratories
